Maximum torque can reach: 955Nm
The highest accuracy can reach 3um
The average time between failures can reach 1500hours
Language

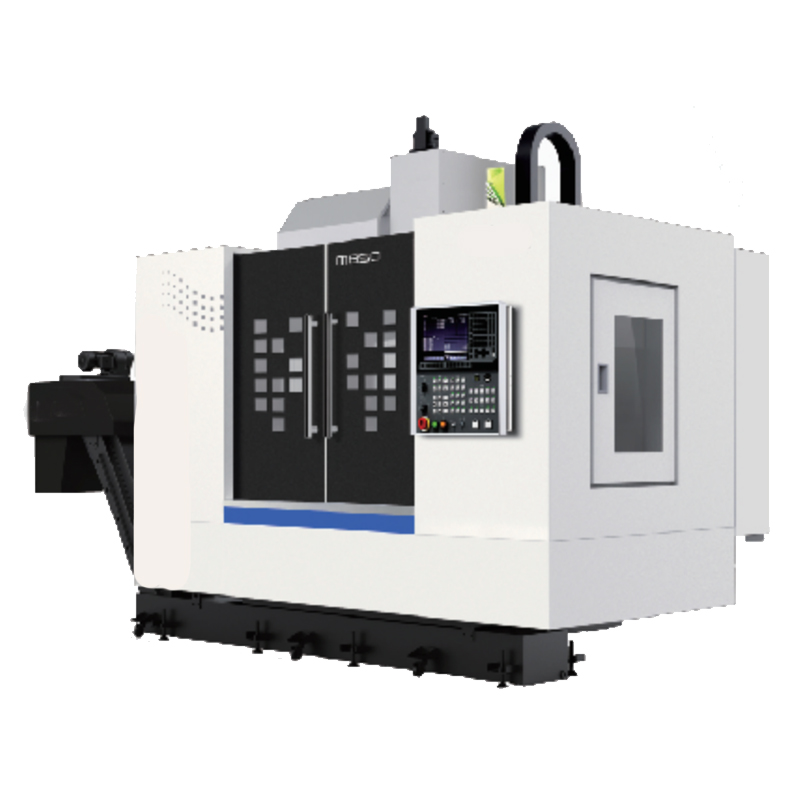

M500 | M800 | M1000 | M1100 | M1300 | M1600 | ||
Workbench size | mm | 650*400 | 850*410 | 1155*500 | 1300*610 | 1400*700 | 1700*800 |
Distance from spindle end face to workbench | mm | 150-450 | 150-450 | 150-690 | 150-800 | 150-830 | 150-950 |
Travel (XYZ axis) | mm | 500/400/300 | 800/400/300 | 850/550/540 | 1100/610/650 | 1300/700/700 | 1500/800/800 |
Rapid movement speed (XY/Z-axis) | m/min | 48/48/48 | 48/48/48 | 36/36/32 | 32/32/30 | 30/30/30 | 12/12/12 |
Main spindle specifications | - | BT30 | BT30 | BT40 | BT40 | BT50 | BT50 |
Maximum spindle speed | rpm | 20000 | 20000 | 10000 | 10000 | 6000 | 6000 |
Main motor power | kw | 3.7/5.5 | 3.7/5.5 | 7.5/11 | 11/15 | 15/18.5 | 15/18.5 |
Spindle output torque | N.m | 11.8/28.7 | 11.8/28.7 | 48/70 | 52.5/71.6 | 143/177 | 143/177 |
