Product Description

OEM Transmission CA Type Agricultural Chain

Products Description

CA627 CA550D CA555D CA557D CA620D CA2062H Steel Conveyor CA Type Agricultural Chain

This corn head gathering chain assembly fits Fantini corn head gathers. What separates this chain assembly from others is that it uses an extreme-duty CA627 chain that is assembled using special high-strength heat-treated components and features a solid roller design for increased performance and durability. These chains are made with chrome pins which can make them last twice as long. It has seven (6) CPEF2 attachments/ gathering lugs that are spaced every 15.35" and it is 78 links long, which is 92.12" total.

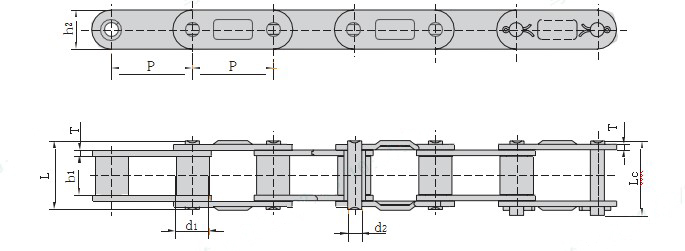

	Pitch	Roller diameter	Width between inner plates	Pin diameter	Pin length			Plate dimension			Ultimate tensile strength
Chain No	P	d1 max	b1 min	d2 max	L max	Lc max	h2 max	T max	Q min
Chain No		mm	mm	mm	mm	mm	mm	mm	mm	kN/lbf
CA627	30.00	15.88	19.05	8.28	36.1	39.4	20.5	3.00	50.00/11247
CA550D	41.40	16.87	19.81	7.19	35.0	38.0	19.3	2.80	39.10/8886
CA555D	41.40	16.87	12.70	7.19	29.1	32.0	19.3	3.10	39.10/8886
CA557D	41.40	17.78	20.24	8.00	37.4	40.6	23.1	3.10	55.61/12639
CA620D	42.01	17.91	24.51	7.19	41.8	45.2	20.2	3.25	39.10/8886
CA2062H	38.10	22.23	12.57	5.94	29.2	31.6	18.0	3.25	31.10/6992

C80F3 OR Pitch: 25.4mm
Roller diameter: 15.88mm
Width between inner plates:15.78mm
Pin diameter: 7.92mm
Pin length: L36.6mm Lc 38.7mm Plate depth: 24.0mm Plate thickness: 3.25mm Ultimate tensile strength: 56.7/12886 kN/lbf Average
tensile strength: 69.4kN

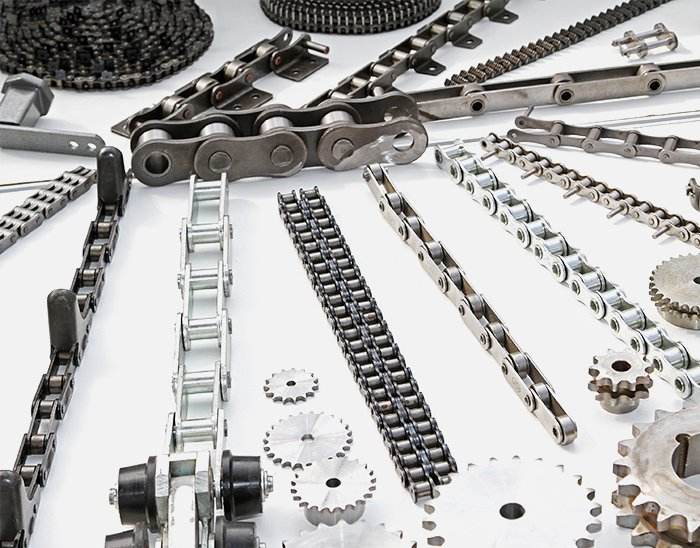

we are specialised in producing Agricultural Roller Chain, Flat Top Chain,Caterpillar Track Chain,Hollow Pin Chain,Conveyor Chain for Beer Filling and Packing Line,Paver Chain,Attachment Sidebar Elevator Chain,Bucket Elevator Chain (Cement Mill Chain),Forging Scraper Chain,Loading Chain for Automobile Industry,Loading Chain for Metallurgical Industry,Conveyor Chain for Mine Machinery,Trencher Chain,Sugar Mill Chain,Double Flex Chain,etc. Welcome calls and emails to inquiry!
