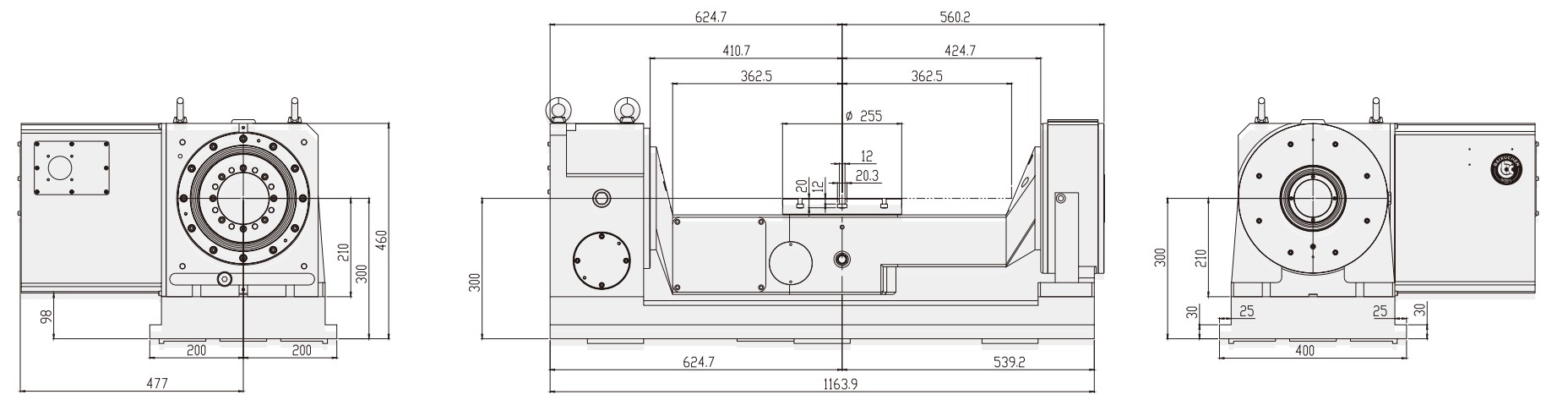

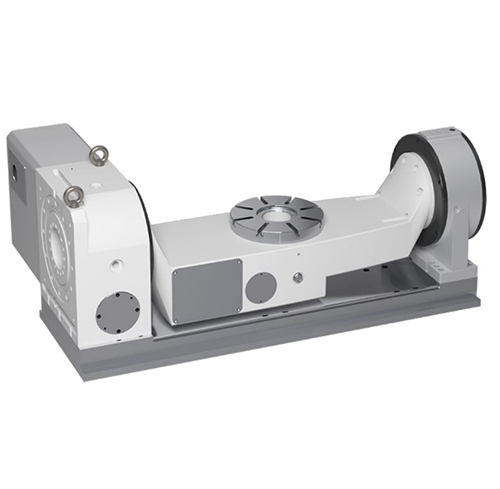

Product Model | WT-SL255 | Servo motor (optional) | Rotation axis β12i HF-154;Tilt axis β22i HF-204 |

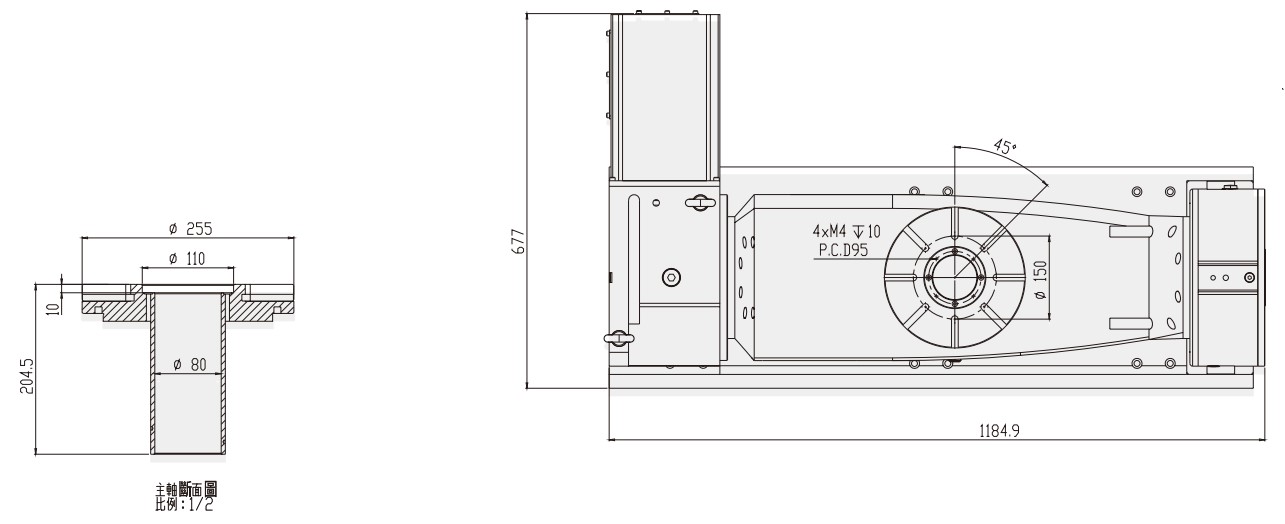

Panel Size | Φ255mm | Reduction Ratio | Rotation axis 1:120 ;Tilt axis 1:180 |
Disk Aperture | Φ110mm | Maximum Rotation Speed Of Worktable | Rotation axis 25r.p.m ;Tilt axis 16.6r.p.m |
Center Trough Hole | Φ80mm | Minimum Setting Angle | 0.001°deg |
Disk Height | 300mm | Segmentation Accuracy | Rotation axis 15″sec;Tilt axis 30″sec |
Disk T-Slot | 12H8mm | Repeat Positioning Accuracy | Rotation axis 4″sec;Tilt axis 4''sec |
Positioning Button | 18H7mm | Locking Method | Rotation axis oil pressure 35Kg/cm²;Tilt axis oil pressure 35Kg/cm² |
Tilt Axis Angle Range | -45 ~110° | Brake Torque | Rotation axis 31Kg/m ;Tilt axis 31Kg/m |
Net Weight (about) | 600Kg | Allowable Cutting Force | Rotation axis 80Kg.m ;Tilt axis 80Kg.m |
Horizontal placement | 150KG | Placement | 100KG |
