PTO SPEED REDUCER GEARBOX

The gearbox is a designed to alter the output speed of your tractors PTO shaft. Its versatile design allows the gearbox to be used as either an increasing ratio or decreasing ratio gearbox to suit your needs.

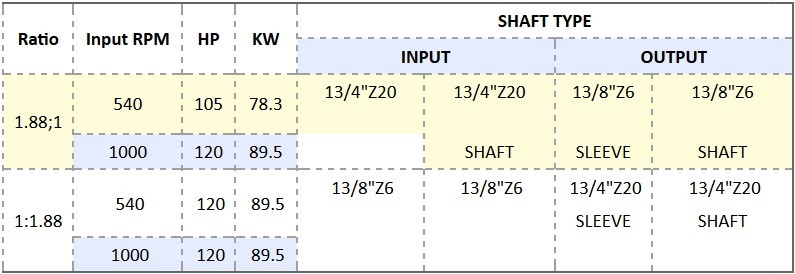

As a decreasing ratio gearbox it will reduce 1000 rpm PTO shaft speed to 540 rpm allowing the use of equipment designed to operate at 540 rpm.
As an increasing ratio gearbox it will increase 540 rpm PTO shaft speed to 1000 rpm.

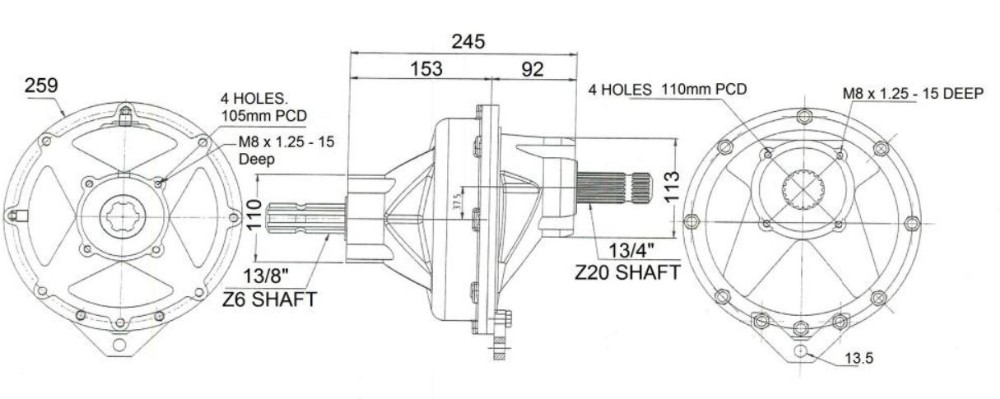

The gearbox is assembled with 2 x internal splined sleeves. One 13/8"Z6 the other 13/4"Z20. These splined sleeves allow for direct coupling to your tractors PTO shaft as the input. The gearbox is also supplied with 2 x separate shafts with matching splines. These are easily assembled to give you the required output shaft.
Notes:
- Although designed for attachment to a tractors PTO shaft this gearbox can be used in other applications on agricultural machinery.
- A lug is supplied fitted to the base of the gearbox housing. This must be securely attached to your tractor by way of a chain or mounting plate to ensure the gearbox does not rotate during operation.
- Gearboxes are shipped without oil. Please fill to the level plug with EP90 gear oil before use.
- This gearbox can be used on tractors with 13/8"Z21 (1000rpm) PTO shafts with the addition of our splined adaptor AL00296 (13/8"Z21 internal - 13/4"Z20 external)

Ever-power specialist in making all kinds of mechanical transmission and hydraulic transmission like: planetary gearboxes, worm reducers, in-line helical gear speed reducers, parallel shaft helical gear reducers, helical bevel reducers, helical worm gear reducers, agricultural gearboxes, tractor gearboxes, auto gearboxes, pto drive shafts, special reducer & related gear components and other related products, sprockets, hydraulic system, vaccum pumps, fluid coupling, gear racks, chains, timing pulleys, udl speed variators, v pulleys, hydraulic cylinder, gear pumps, screw air compressors, shaft collars low backlash worm reducers and so on. furthermore, we can produce customized variators, geared motors, electric motors and other hydraulic products according to customers' drawings.
The company provides a reliable gurantee for the product' s quality by advanced inspection and testing equipment. professional technical team, exquisite processing technology and strict control system.
In recent years, the company has been developing rapidly by its rich experience in production, adcanced managemant system, standardized management system, strong technical force. We always adhere the concept of survial by quality, and decelopment by innovation in science and technology.
Ever-power Group is willing to work with you hand in hand and create brilliance together!

Grinding Workshop

CNC Teeth Machine

CNC Lathe Workshop

Figuring Center

CNC Workshop

Heat Treatment Machine

3D Measurement Machinery

Gear Teeth Profile Test Machines

Heat Treatment Workshop

Tooth Profile Workshop

Low carbon steel, C45, 20CrMnTi, 42CrMo, 40Cr, stainless steel. Can be adapted regarding customer requirements.

Blacking, galvanization, chroming, electrophoresis, color painting, ...

High frequency quenching heat treatment, hardened teeth, carbonizing, nitride, ...
