SI10T/K Series M10*1.5 Thread Joint Rod End Bearing

SI10T/K Series M10*1.5 Thread Joint Rod End BearingProduct DescriptionSI...T/K Rod End Bearing--Rod body with left or right-hand female thread --Sliding contact sarfaces: steel/PTFE--Surface of rod body zinc plated * Easy to use: easy to install and disassemble, the bearing can produce self-lubri......

SI10T/K Series M10*1.5 Thread Joint Rod End Bearing

Product Description
SI10T/K Series  M10*1.5 Thread Joint  Rod End Bearing
SI...T/K  Rod End Bearing
--Rod body with left or right-hand female thread
--Sliding contact sarfaces: steel/PTFE
--Surface of rod body zinc plated

* Easy to use: easy to install and disassemble, the bearing can produce self-lubrication during work, no maintenance required
* Features: The rod end bearing is a spherical sliding bearing, which can rotate and swing at any angle during motion
* Applicable to instrumentation, construction machinery, mining and mineral processing, industrial fans, etc.

Specification
SI10T/K Series  M10*1.5 Thread Joint  Rod End Bearing
SI10T/K Series  M10*1.5 Thread Joint  Rod End Bearing

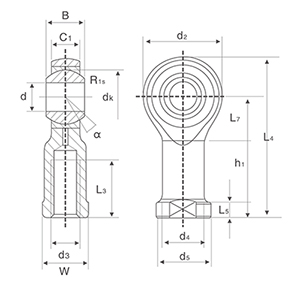

Part Number
Dimensions(mm)
Load ratings(KN)
Weight(g)
d
d3
B
dyn.c
stat.c0
SI5T/K
5
M5*0.8
8
5.7
6
17.5
SI6T/K
6
M6*1.0
9
7.2
7.65
25
SI8T/K
8
M8*1.25
12
11.6
12.9
49
SI10T/K
10
M10*1.5
14
14.5
18
74.6
SI10-1T/K
10
M10*1.25
14
14.5
18
77
SI12T/K
12
M12*1.75
16
17
24
107
SI12-1T/K
12
M12*1.25
16
17
24
107
SI14T/K
14
M14*2.0
19
24
31
163
SI14-1T/K
14
M14*1.5
19
24
31
163
SI16T/K
16
M16*2.0
21
28.5
39
216
SI16-1T/K
16
M16*1.5
21
28.5
39
216
SI18T/K
18
M18*1.5
23
42.5
47.5
303
SI20T/K
20
M20*1.5
25
42.5
57
386
SI22T/K
22
M22*1.5
28
57
68
500
SI25T/K
25
M24*2.0
31
68
85
645
SI28T/K
28
M27*2.0
35
86
107
714
SI30T/K
30
M30*2.0
37
88
114
1105
SI30-1T/K
30
M27*2.0
37
88
114
1105
SI35T/K
35
M36*2.0
43
101
206
1600
SI40T/K
40
M42*2.0
49
124
280
2400
SI50T/K
50
M48*2.0
60
308
485
5000
●For left-hand thread,please and surffix“L”,e.g. SIL 18 T/K。
●If need the stainless steel material please to add “S”in front of the model for example:SS 18 T/K。
