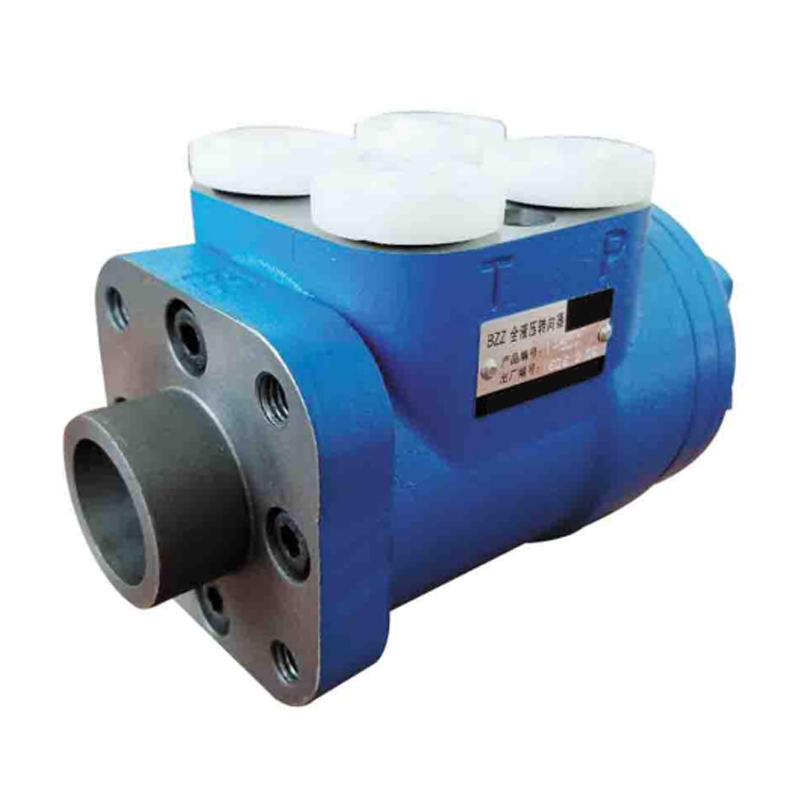

Small Displacement SCU S50 Series Hydraulic Steering Control Unit for Mini Tractor
  • Small Displacement SCU S50 Series Hydraulic Steering Control Unit for Mini TractorSmall Displacement SCU S50 Series Hydraulic Steering Control Unit for Mini Tractor

Small Displacement SCU S50 Series Hydraulic Steering Control Unit for Mini Tractor

Small Displacement SCU S50 Series Hydraulic Steering Control Unit for Mini TractorProduct DescriptionS50 Series Hydraulic Steering Control Unit---Optimized control rotary valve design, superior performance---Low hydraulic noise---Casting inner channel design, small pressure loss---Three basic types:......

Small Displacement SCU S50 Series Hydraulic Steering Control Unit for Mini Tractor

Product Description
Small Displacement SCU S50 Series Hydraulic Steering Control Unit for Mini Tractor
S50 Series Hydraulic Steering Control Unit
---Optimized control rotary valve design, superior performance
---Low hydraulic noise
---Casting inner channel design, small pressure loss
---Three basic types: open core, closed core and load sensing
Main performance parameters
Maximum inlet pressure………………16MPa
Maximum continuous back pressure………………2.1MPa
input torque………………………………2.8-4.0Nm
Ultra-low torque……………………………1.1 ~ 1.4Nm
Maximum system temperature………………93°C
Recommended Oil Cleanliness………ISO 18/13

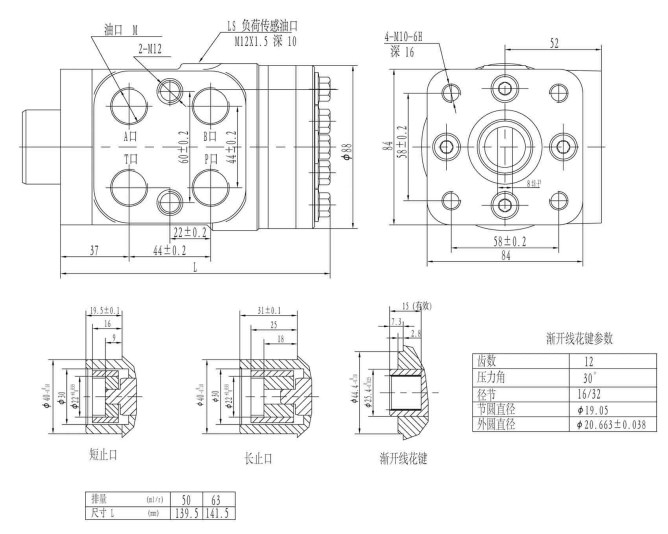

Specification
Small Displacement SCU S50 Series Hydraulic Steering Control Unit for Mini Tractor
Product Features
Displacement/No.
Type
Connection
Oil port
50
63
Open core
No reaction
Short stop
4-M20X1.5
4-M10
2-M12
S50-1101
-1102
Long stop
S50-1201
-1202
Internal spline
S50-1301
-1302
Open core
No reaction
Short stop
4-G1/2
4-M10
2-M12
S50-1111
-1112
Long stop
S50-1211
-1212
Internal spline
S50-1311
-1312
Closed core
No reaction
Short stop
3/4-16UNF ‘O’-ring
4-M10
2-M12
S50-3131
-3132
Long stop
S50-3231
-3232
Internal spline
S50-3331
-3332
Static signal load sensing
Short stop
4-M20X1.5&M12X1.5
4-M10
2-M12
S50-5101
-5102
Long stop
S50-5201
-5202
Internal spline
S50-5301
-5302
Dynamic signal load sensing
Short stop
4-G1/2&M12X1.5
4-M10
2-M12
S50-7111
-7112
Long stop
S50-7211
-7212
Internal spline
S50-7311
-7312
Applications
The various products produced by the company can be widely used in mining construction engineering machinery, lifting and transportation equipment, heavy metallurgical machinery, stone. Oil and coal mining machinery, ship deck machinery, machine tools, light industry, plastic machinery, geological drilling equipment, agricultural and forestry machinery, minerals Machinery, construction equipment and work platforms, lawn mowers, special vehicles, fishing winches, machine tools, carpentry and sawmills, rubber In the hydraulic transmission system of various machinery such as machinery. Especially suitable for injection molding machine screw drive, lifting winch, drum drive, Driving of various slewing mechanisms and driving of crawler and wheel traveling mechanisms
