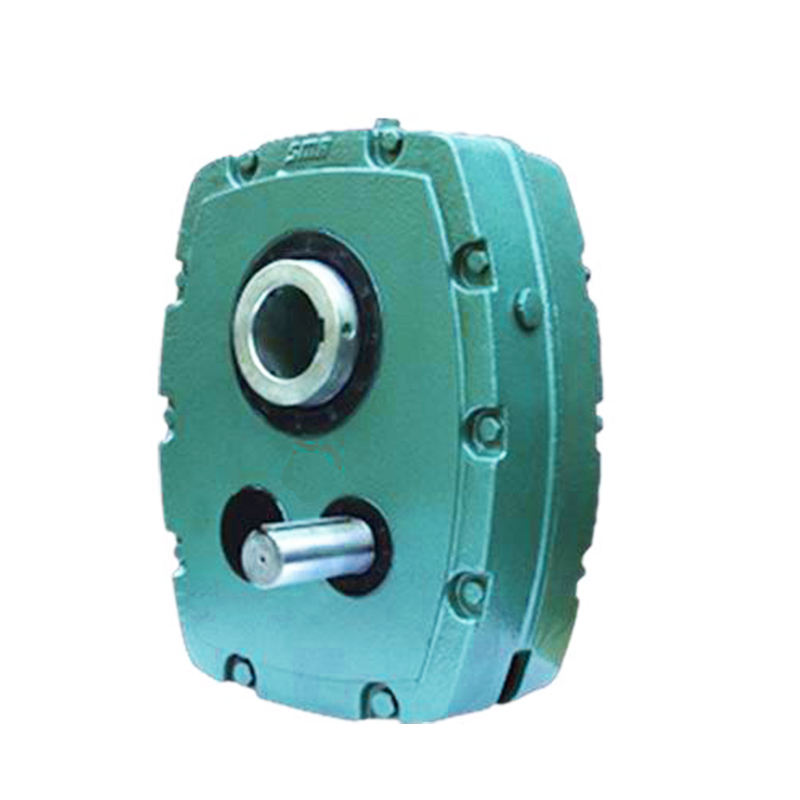

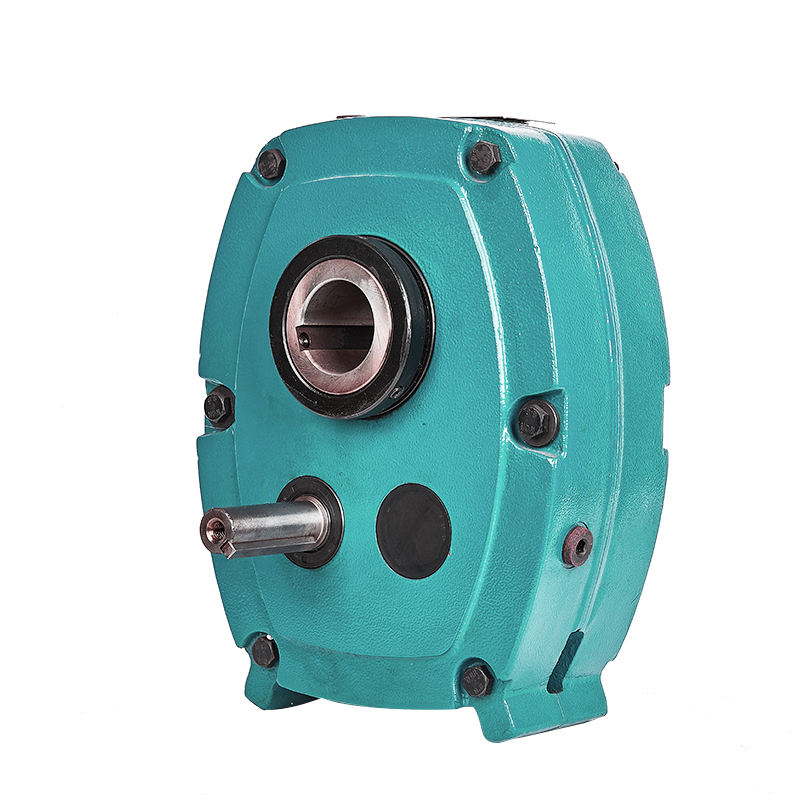

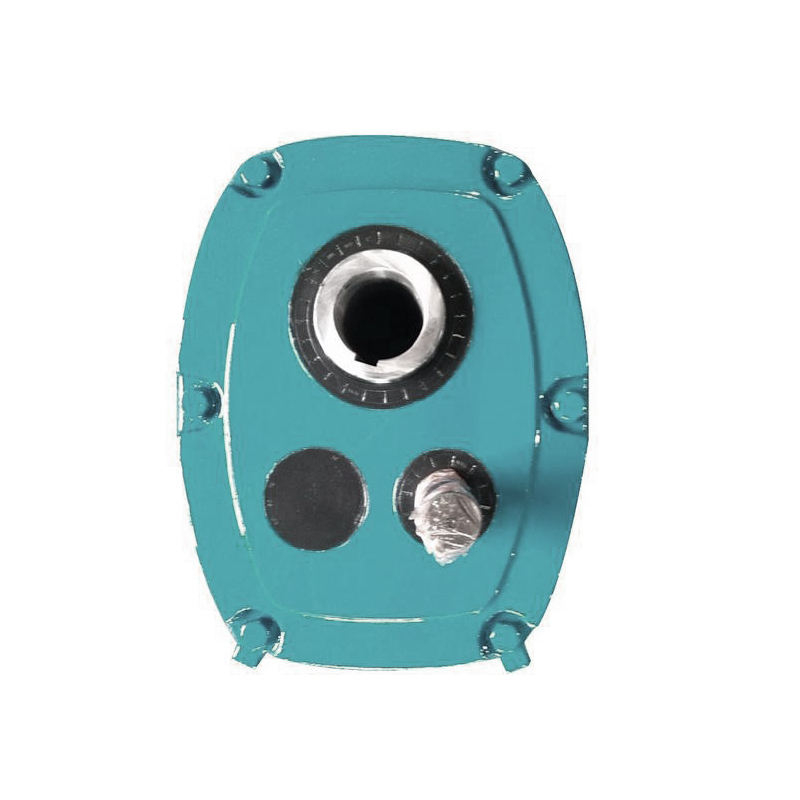

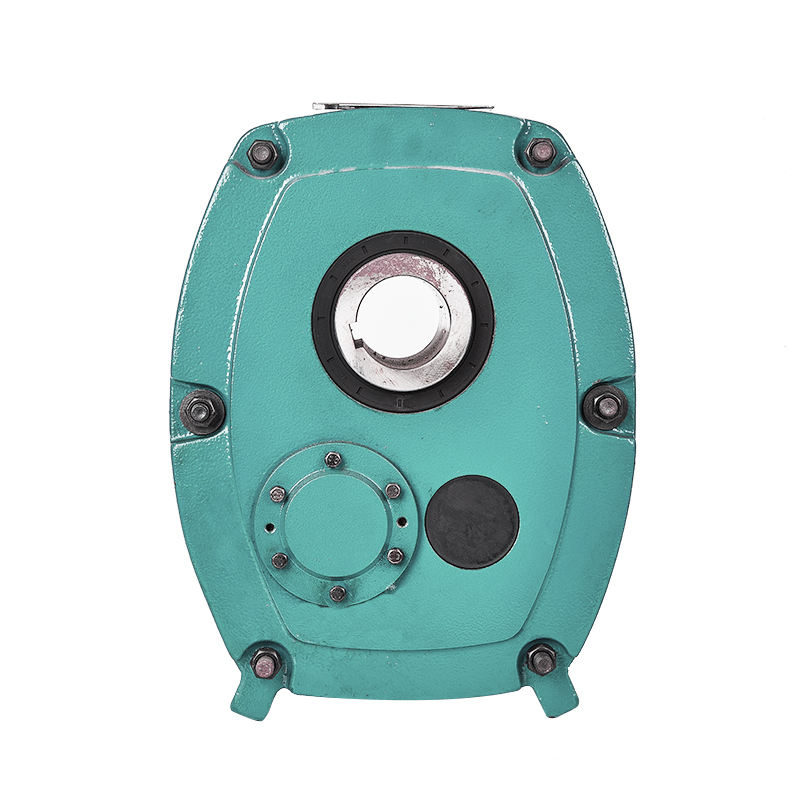

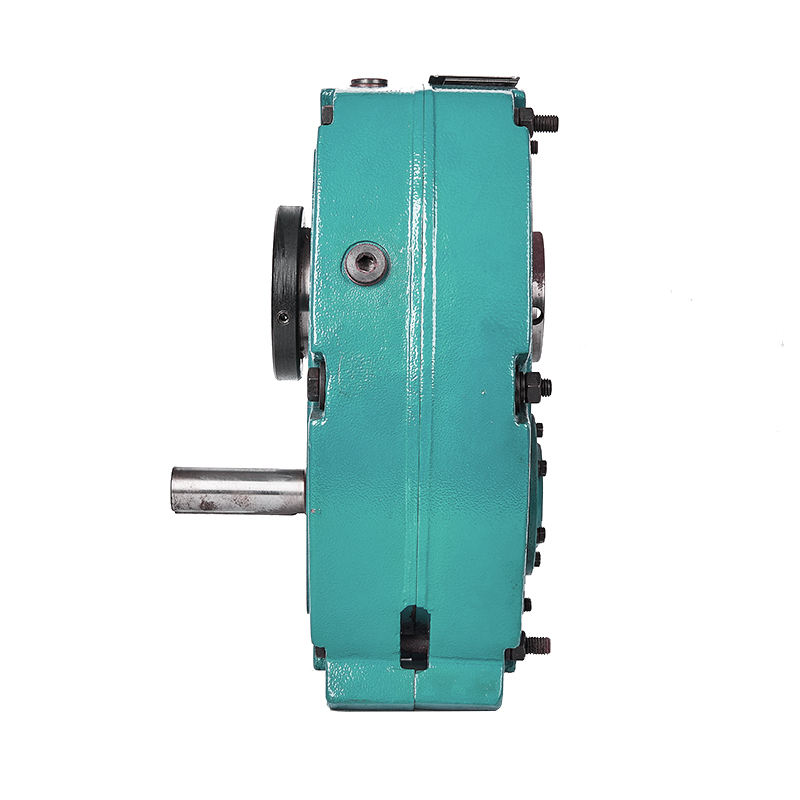

SMR Type Shaft Mounted Smr Gearbox

SMR Type Shaft Mounted Smr GearboxProduct Description* Key benefits – Cost effective solution – High Reliability – Robustness – Very Compact design – Prevent the movement in the wrong way – Highly customizable product * Main options – Fluor Elastomer Seals – Backstop – Torque range......
Send Inquiry
Product Description

SMR Type Shaft Mounted Smr Gearbox

Product Description
* Key benefits
– Cost effective solution
– High Reliability
– Robustness
– Very Compact design
– Prevent the movement in the wrong way
– Highly customizable product
* Main options
– Fluor Elastomer Seals
– Backstop
– Torque range
– 150 … 16,000 Nm
* Gear ratios
– 5 … 33.2
* Transmissible Mechanical Power
– Up to 226 kW
* Motors
– Input with solid shaft
– Input with e-motor coupling:
> BN, BE, BX [IEC asynchronous]
> BSR [IEC reluctance]
> BS [IEC single phase]
* Motor options
– Thermistors and thermostat sensors
– Independent forced cooling
– Incremental, sin/cos absolute single/multi-turn encoders
– Tropicalization
– Anti-condensation heaters

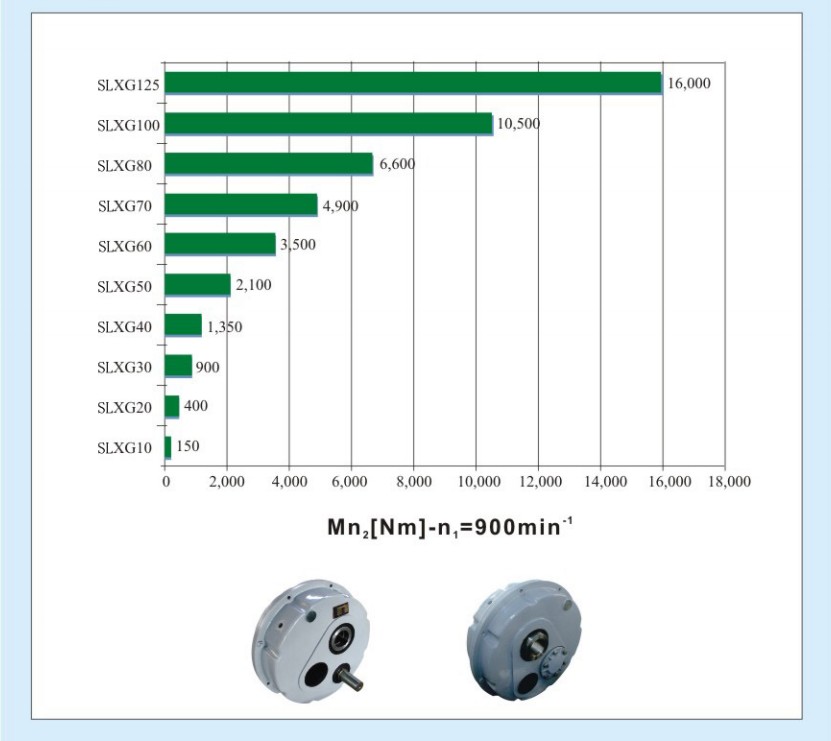

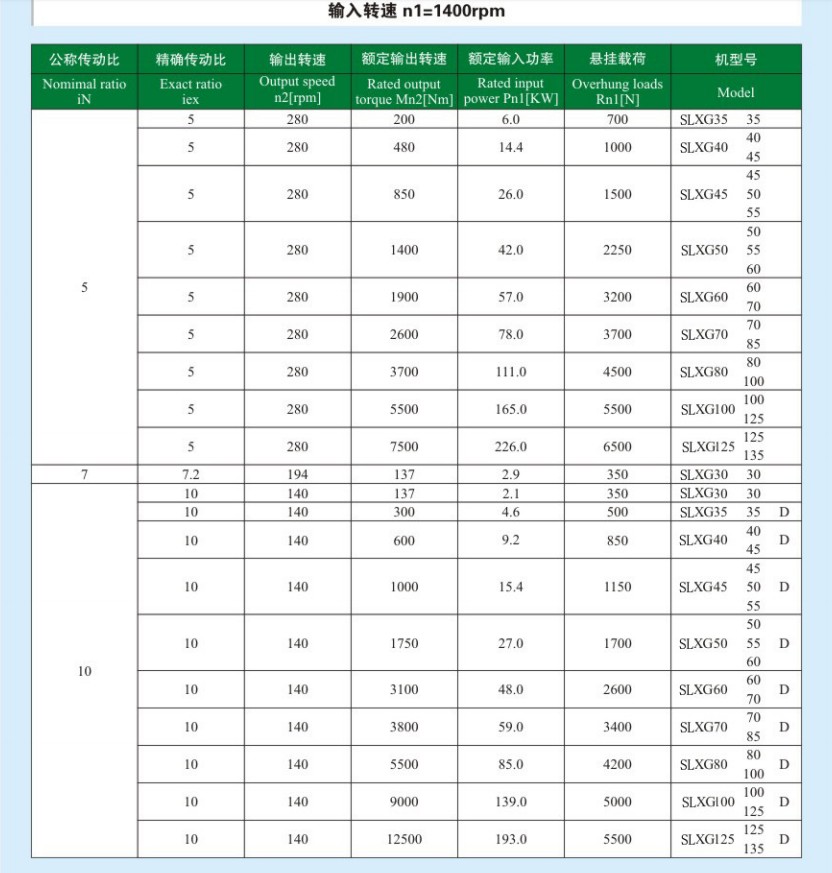

* Torque Range
– TA 30 = 150 Nm
– TA 35 = 400 Nm
– TA 40 = 900 Nm
– TA 45 = 1360 Nm
– TA 50 = 2100 Nm
– TA 60 = 3500 Nm
– TA 70 = 4900 Nm
– TA 80 = 6600 Nm
– TA 100 = 10500 Nm
– TA 125 = 16000 Nm
SMR Type Shaft Mounted Smr Gearbox
SMR Type Shaft Mounted Smr Gearbox
SMR Type Shaft Mounted Smr Gearbox
SMR Type Shaft Mounted Smr Gearbox
SMR Type Shaft Mounted Smr Gearbox
SMR Type Shaft Mounted Smr Gearbox
