Product Description

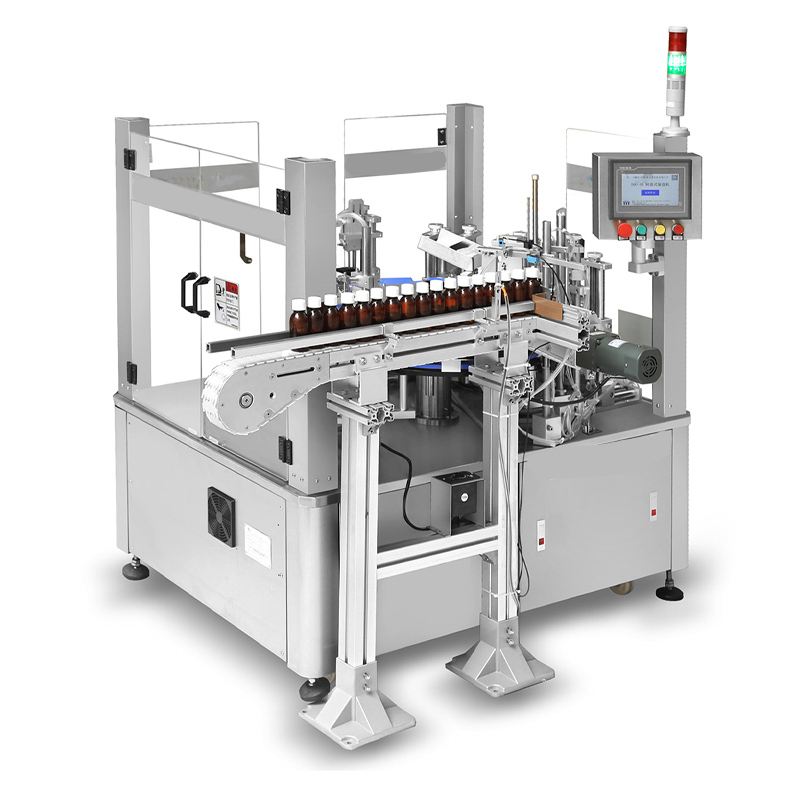

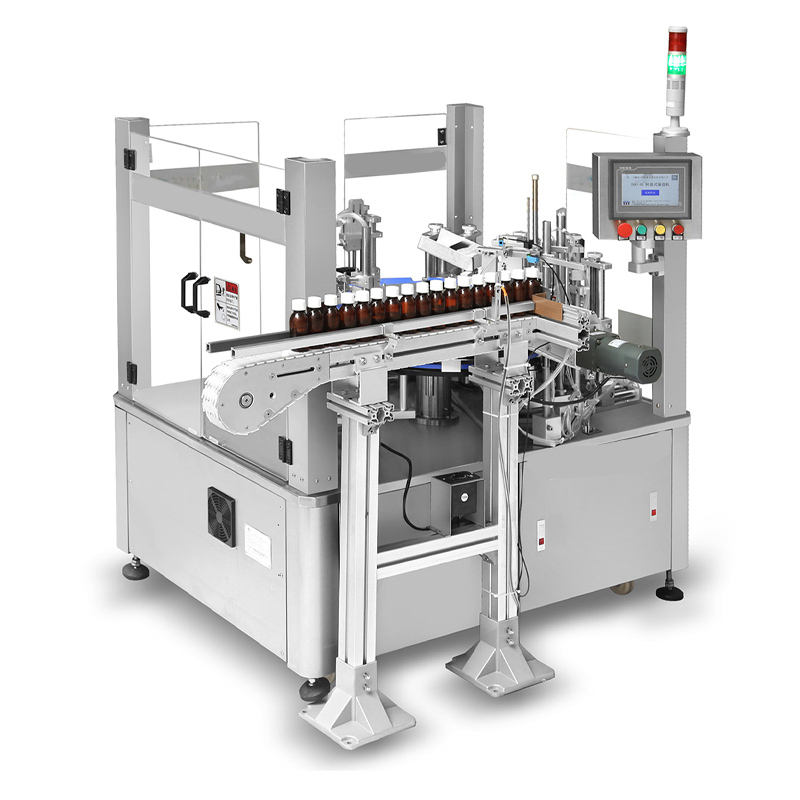

SN-120L Vertical Box Packaging Machine Automatic Cartoning Machine

Products Description

SN-120L Vertical Automatic Cartoning Machine

This machine is designed independently for manufacturers of packaging paper boxes with multiple sizes and small batch sizes. Low cost and small footprint. Suitable for boxes of various sizes. This machine is a multifunctional vertical automatic box packing machine with short time for changing specifications and molds. 304 stainless steel casing, advanced PLC control system combined with 5.7 color touch screen control panel, can easily set and change packaging parameters.

Packaging process 1. Suck the cardboard box onto the star wheel. 2. Fold the tongue under the cardboard box. 3. Fold off the cover. 4. Insert the lower tongue 5. The product is loaded into a cardboard box (which can be manually or designed with an automatic feeding robot). 6. Fold the tongue on the cardboard box. 7. Fold the lid. 8. Insert the upper tongue 9. Launch of molded products.

Basic Parameters

Model No.	SN-120L
Production speed:	20-50box per min
Paper box's largest size	200 x 80 x 80mm
Paper box's smallest size	60 x 20 x 20 mm
Paper quality of carton	250-350g/m3
Motor horsepower	1/4HP 15:1 1.5KW/H
Power supply	220V 50/60HZ single phase
Machine noise	≤80dB
Gas source	0.5-0.8 Mpa
Compress air consumption	260L/min
Machine measurement:	L 1100 x W 1500 x H 1700 mm
Machine weight	450Kg
