Special Design Widely Used Male Elbow-WE-NPT Hydraulic Fittings for hydraulic cylinder parts

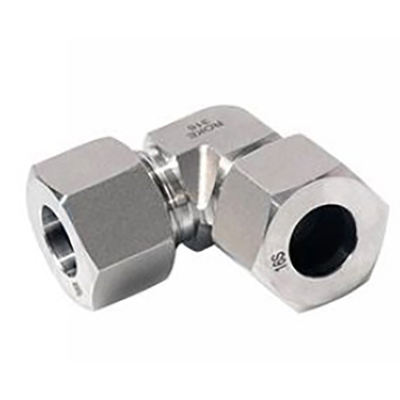

Product Description

Male Elbow-WE-NPT hydraulic fittings typically refer to hydraulic fittings with a male NPT (National Pipe Thread) threaded end and an elbow configuration. NPT thread is a widely used standard for pipe fittings in the United States and is characterized by its tapered thread design. However, in general, the Male Elbow-WE-NPT hydraulic fittings are designed to provide a 90-degree change in direction in hydraulic systems using NPT threads. They are commonly used in applications where a pipe or tubing needs to be connected at a right angle.

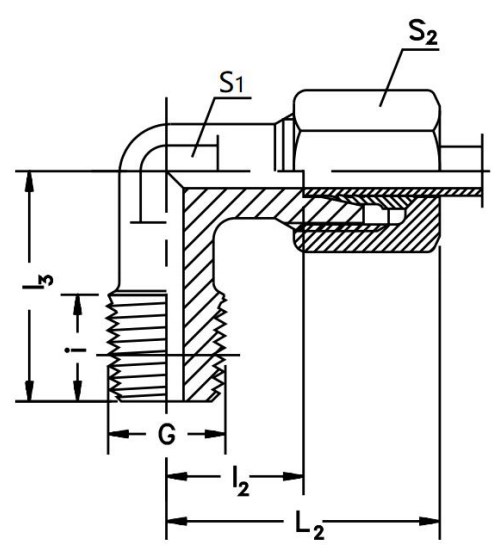

WE-NPT Part no.	Series Working Pressure (bar/psi)	Tube o.d.	G	i	I2	I4	L2	S1	S2
-WE04LL1/8NPT	LL very light 100 bar 1450 psi	4	1/8-27 NPT	10	11	17	21	11	10
-WE06LL1/8NPT		6	1/8-27 NPT	10	9.5	17	21	11	12
-WE08LL1/8NPT		8	1/8-27 NPT	10	11.5	20	23	12	14
-WE06L1/8NPT	L light 315 bar 4560 psi	6	1/8-27 NPT	10	12	20	27	12	14
-WE08L1/4NPT		8	1/4-18 NPT	15	14	26	29	14	17
-WE10L1/4NPT		10	1/4-18 NPT	15	15	27	30	17	19
-WE12L3/8NPT		12	3/8-18 NPT	15.3	17	28	32	19	22
-WE15L1/2NPT		15	1/2-14 NPT	20	21	34	36	19	27
-WE18L1/2NPT		18	1/2-14 NPT	20	23.5	36	40	24	32
-WE22L3/4NPT	160 bar 2320 psi	22	3/4-14 NPT	20	27.5	42	44	27	36
-WE28L1NPT		28	1-11.5 NPT	25	30.5	48	47	36	41
-WE35L11/4NPT		35	1 1/4-11.5 NPT	25.5	34.5	54	56	41	50
-WE42L11/2NPT		42	1 1/2-11.5 NPT	26	40	61	63	50	60
-WE06S1/4NPT	S heavy 630 bar 9130 psi	6	1/4-18 NPT	15	16	26	31	14	17
-WE08S1/4NPT		8	1/4-18 NPT	15	17	27	32	17	19
-WE10S3/8NPT		10	3/8-18 NPT	15.3	17.5	28	34	19	22
-WE12S3/8NPT		12	3/8-18 NPT	15.3	17	28	38	22	24
-WE14S1/2NPT		14	1/2-14 NPT	20	22	34	40	19	27
-WE16S1/2NPT	400 bar 5800 psi	16	1/2-14 NPT	20	24.5	36	43	24	30
-WE20S3/4NPT		20	3/4-14 NPT	20	26.5	42	48	27	36
-WE25S1NPT		25	1-11.5 NPT	25	30	48	54	36	46
-WE30S11/4NPT		30	1 1/4-11.5 NPT	25.5	35.5	54	62	41	50
-WE38S11/2NPT	315 bar 4560 psi	38	1 1/2-11.5 NPT	26	41	61	72	50	60

Installation instructions The nuts of ROKE hydraulic connectors are all silver plated and coated with our patented nano lubricating layer. Through this method, the installation torque can be controlled within a reasonable range. Especially in narrow spaces or suspended operations, installation is very easy. In order to assemble correctly, the assembly instructions should be followed. Improper assembly may cause malfunctions or damage safety.

1. Cut the tube： 1/2˚ angle tolerance to the tube axis is permissible. Tube cutter is not recommendable.

2. Lightly remove chips and particles from the inside and outside cut edges of tube. Bevel up to 0.2mm × 45˚ is permissible.
3. For tube bend, the minimum height from the straight pipe end to the bending radius must be at least twice the
height of the nut.
4. Lubricate thread and cone of the fitting body, ring and thread of nut.

Assembly
5. Slip nut and then ring onto the tube end. Ensure that the ring is placed correctly.
6. Screw nut manually onto fitting body until finger tight. Hold the tube against the shoulder in the cone of the fitting body.
7. Mark nut and tube for measuring the prescribed turns of the nut.
8. Tighten the nut 1 1/4 turns. Tube must not turn with tube. Stop edge of the ring limits over-tightening by increasing tightening torque.

Check & Final Assembly
9. Loosen nut and remove ring-mounted tube from fitting. And check if a visivle collar has formed on the pipe in
front of the first cutting edge. If not, tighten slightly more.
10. Insert the pre-assembled tube into the fitting.
While holding fitting body with a wrench, tighten nut approx. 1/4 revolution beyond the point of a clearly perceptible resistance.

Here are a few key points to consider when working with Male Elbow-WE-NPT hydraulic fittings: 1.NPT Thread Type: NPT threads are tapered and require the use of pipe sealant or thread tape to ensure a proper seal. It's important to ensure that the male NPT threaded end of the fitting matches the corresponding female NPT threaded component in your hydraulic system. 2.Thread Size: Pay attention to the thread size of the Male Elbow-WE-NPT fitting to ensure compatibility with the other components in your hydraulic system. The thread size is typically specified in inches and refers to the nominal diameter of the pipe or fitting. 3.Tightening Torque: When installing Male Elbow-WE-NPT hydraulic fittings, use the appropriate tightening torque to ensure a secure and leak-free connection. Over-tightening can damage the fitting or cause thread distortion, while under-tightening can result in leaks. Refer to the manufacturer's recommendations for the recommended torque values. 4.Sealing: Proper sealing is crucial to prevent leaks in hydraulic systems. Male Elbow-WE-NPT fittings often require the use of pipe sealant or thread tape on the tapered NPT threads to create a reliable seal. Follow the manufacturer's instructions to achieve an effective seal. 5.Application and System Requirements: Consider the specific requirements of your hydraulic system and the application in which the Male Elbow-WE-NPT fittings will be used. Ensure that the fitting materials and design are compatible with the hydraulic fluid, pressure, temperature, and other system parameters. Always consult the manufacturer's documentation, guidelines, or technical specifications for the Male Elbow-WE-NPT hydraulic fittings you are working with to ensure proper installation and compatibility with your hydraulic system.
