Standard 01 Series Single Row Gear Ball Slewing Bearing Ring for Crane Excavator

Products Description

Single row ball slewing ring （Standard Series 01）

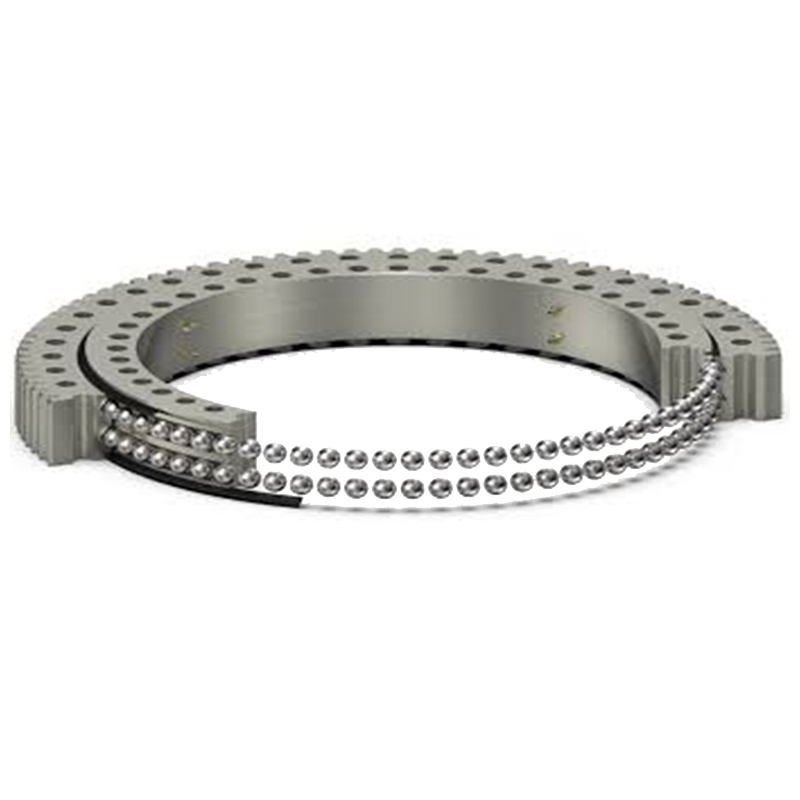

Single Row Ball Slewing Bearing (Series 01) is a type of slewing bearing that consists of a single row of balls or rollers

arranged in a circular raceway. These bearings are designed to support axial, radial, and moment loads simultaneously. The Series 01 designation typically refers to a specific range of dimensions, load capacities, and performance characteristics within the single row ball slewing bearing category.

Key features of Single Row Ball Slewing Bearings (Series 01) may include:

Compact Design: They are known for their relatively compact design compared to other types of slewing bearings, making them suitable for applications with limited space.

High Load Capacity: Despite their compact size, these bearings can offer high load-carrying capacity due to the arrangement of the balls or rollers in the raceway.

Smooth Operation: Single row ball slewing bearings are designed to provide smooth and precise rotation, making them ideal for applications requiring smooth motion.

Low Friction: They typically have low friction characteristics, which contribute to efficient operation and reduced energy

consumption.

Various Sizes: Single row ball slewing bearings in Series 01 may be available in a range of sizes and configurations to suit

different application requirements.

These bearings are commonly used in various industries such as construction machinery, cranes, excavators, and industrial equipment where rotational movement is required.

Slewing bearing safety factor fs

Working type	Working characteristics	Machine example	Safety factor fs
Light duty	Not often fully loaded, stable rotation with little impact	Stacker-reclaimers, truck cranes, non-port wheeled cranes	1.00~1.15
middle duty	Not often fully loaded, fast rotation, impact	Tower crane, marine crane, crawler crane	1.15~1.30
heavy duty	Often fully loaded, fast rotation and large impact	Grab crane, port crane, single bucket excavator, container crane	1.30~1.45
extremely heavy duty	Full load, heavy impact or harsh working conditions	Bucket wheel excavators, tunnel boring machines, metallurgical cranes, offshore platform cranes	1.45~1.70

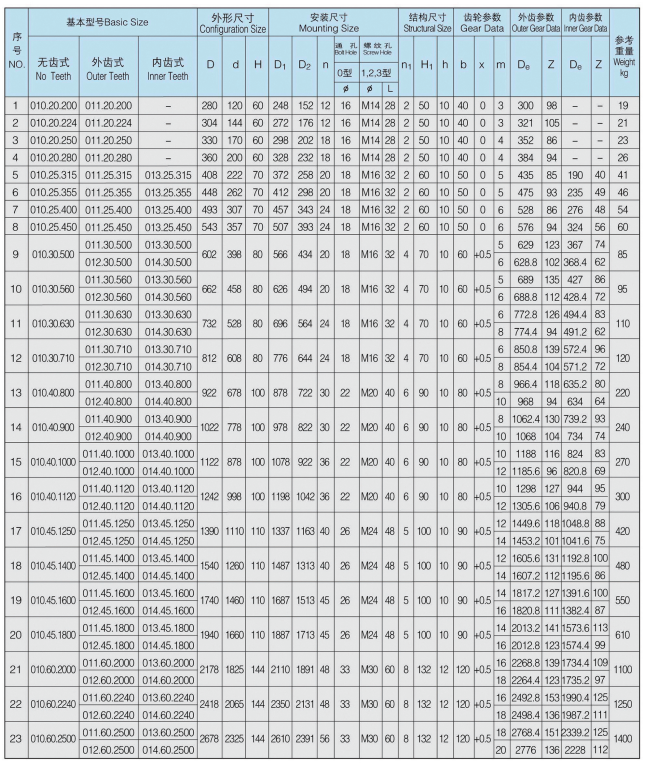

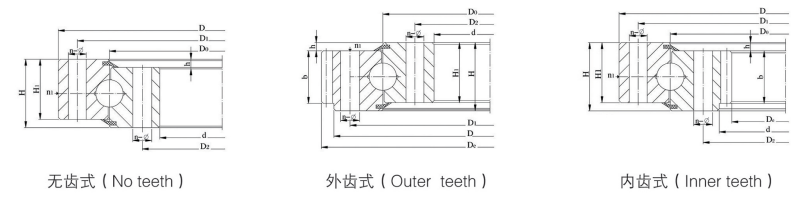

Basic data of standard Series 01

Slewing Bearing

Applications: Slewing bearings are widely used in construction machinery, concrete machinery, feeding machinery, hoisting machinery, ground processing machinery, light industrial machinery, ship cranes, port equipment, new energy equipment, metallurgical equipment, playground equipment, airport equipment, Robots, medical equipment, green facilities, parking equipment, etc.

Produce Name	Slewing Bearing for Excavator and Crane
Material	50Mn/42CrMo/C45
Gear Type	Internal Gear,External Gear And No Gear
Cage Material	Nylon/ steel /copper
Rollng elements	Steel ball / Cylinder Roller
Features	Durable, Simple structure, low cost, Various sizes, and designs.
Mounting hole	Through hole/Tapped hole
Outer diameter	240-8000mm
Bore size	200-5000mm
Warranty	1 year
Payment Terms	L/C,T/T,Western Union
Serivce	OEM ODM Customer Service
Application	Excavators, Cranes, Construction Machinery,Industrial Machinery, Automated machinery
