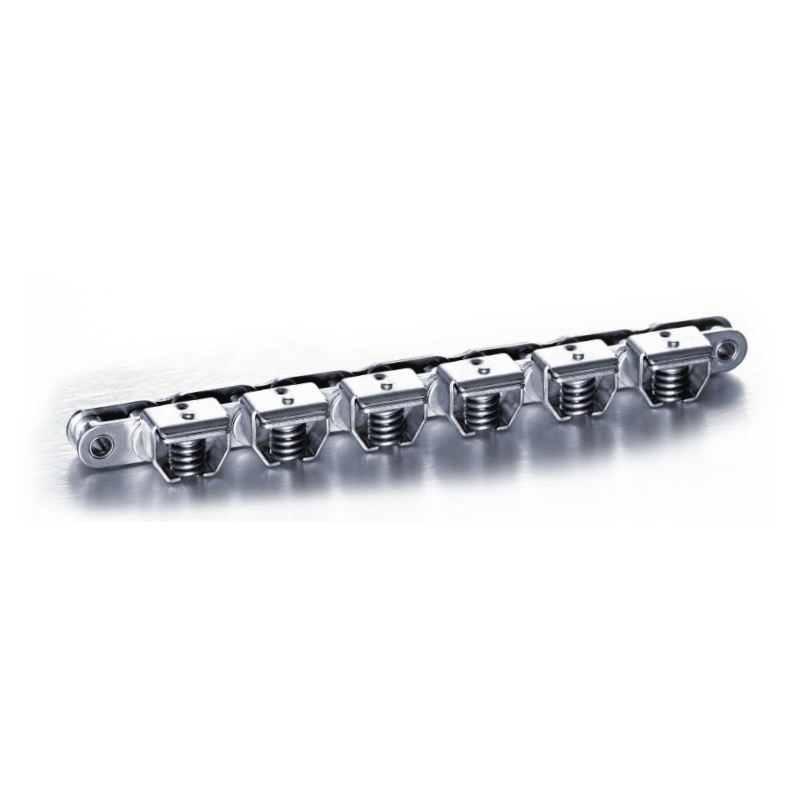

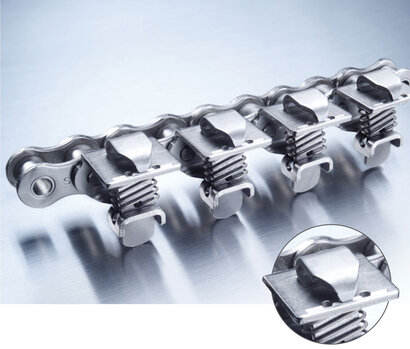

Standard Frame Clamp 10B2GC-B Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal Wrapping

Raydafon Group's Standard Frame Clamp 10B2GC-B Stainless Steel Gripper Roller Chain is engineered for precision in form fill and vacuum seal wrapping, offering durability and superior grip. Ideal for industrial professionals, it enhances efficiency and reliability, solving common sealing issues with its unique stainless steel construction. Experience smoother operations and increased productivity today!
Send Inquiry
Product Description

Standard Frame Clamp 10B2GC-B Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal Wrapping

Product Description
Standard Frame Clamp 10B2GC-B Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal Wrapping
08B
1
GC
A
SS
Chain Size
Strand
Gripper Chain
Type
Base Chain Material
Standard Frame Clamp 10B2GC-B Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal Wrapping

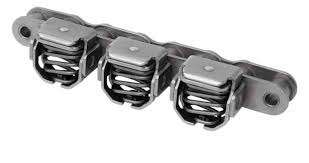

The Standard Frame Clamp (Type B)
allows for a combination of vertical movement and horizontal rotation to ensure easy film engagement and scrap release
Code
DIN / ISO
Material
Pitch
Inside Width
Roller Dia.
Clamp Force
Tensile Strength
Base Chain
Clamp
Spring
P mm
b1 Max
mm
d1 Max
mm
Q-C
N
Q Min
kN
10B2GC-B
10B-2
SS
SS
SS
15.875
9.65
10.16
70
35.6
10B-2
NP
SS
SS
15.875
9.65
10.16
70
44.5
With more than 20 years experience of stainless steel chains production, we are becoming one of the leading manufacturers in China. After continuous study and investment, we now have almost all popular Gripper Chain models. Those high-performanced chains are widely welcomed by both OEM and after-market, domestic and overseas customers.
Standard Frame Clamp 10B2GC-B Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal Wrapping

Gripper Chain Features

1.Gripper Chains with Base Chains available both in Nickel Plated and Stainless Steel, for excellent corrosion
resistance;
2.Stainless springs are made of Japan-imported material which ensure the clamping force always;
3.For stainless steel base chain, Pin & Bush are made of AISI 630HT which provides outstanding wear-resistance;
4.Supplied in Pre-streched and matched strands which guarantee trouble-free machine set-up;
5.Furthermore, Lube-free Nickel Plated chain version is also available upon request.
Applications
Standard Frame Clamp 10B2GC-B Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal Wrapping
Standard Frame Clamp 10B2GC-B Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal Wrapping

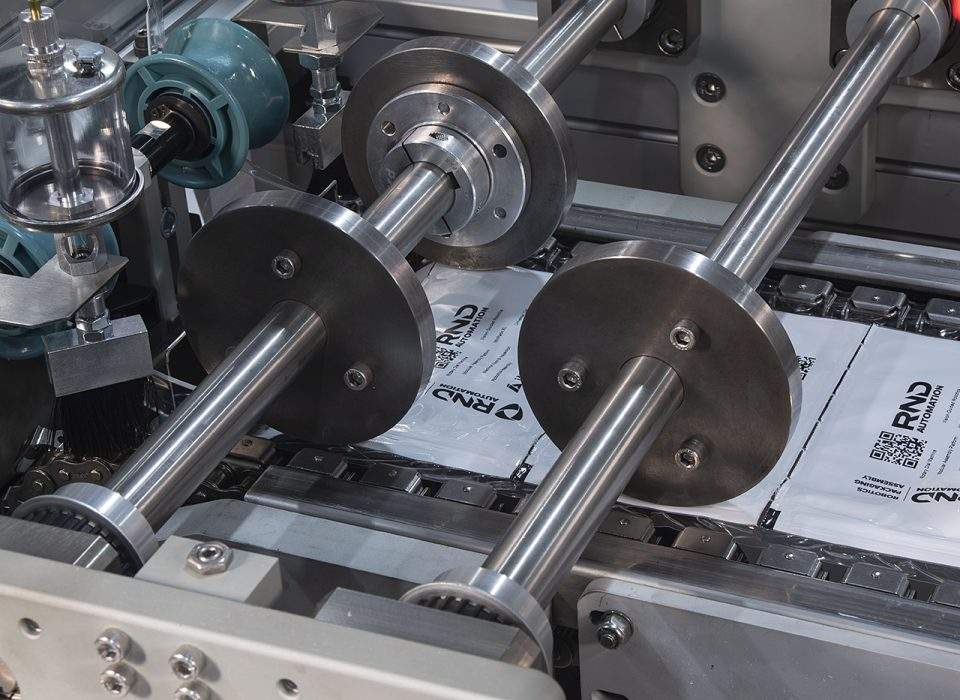

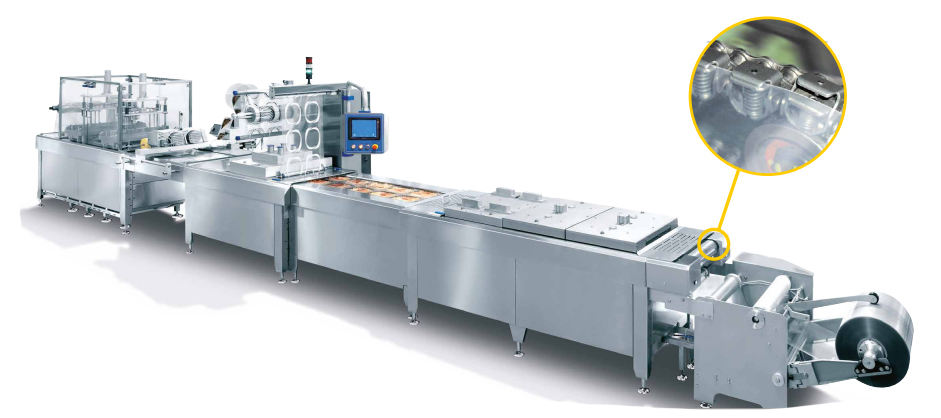

Gripper chains are widely used in various industries for Form, Fill and Vacuum Seal wrapping applications

--Food Industry: Packaging for Ham, sausage, cheese, bread, fish etc.
--Electronics Industry: Packaging for wires etc.
--Medical Industry: Packaging for injection syringe, pharmaceutical etc.
For more types，Please click here！
We provide chain matching sprockets with various specifications, which can be customized according to your drawings
Standard Frame Clamp 10B2GC-B Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal Wrapping
