A2040 667x 667 Agricultural Conveyor Roller Chain and sprockets Double Pitch Roller Chain

A2040 667x 667 Agricultural Conveyor Roller Chain and sprockets Double Pitch Roller ChainProducts Description#A2040 Conveyor Roller Chain 10 Feet with 1 Connecting LinkPitch Size: 1.000 InchRoller Diameter: 0.312 InchWidth Between Inner Plates: 0.309 InchPin Diameter: 0.156 InchPin Length L Max: 0.6......
Send Inquiry
Product Description

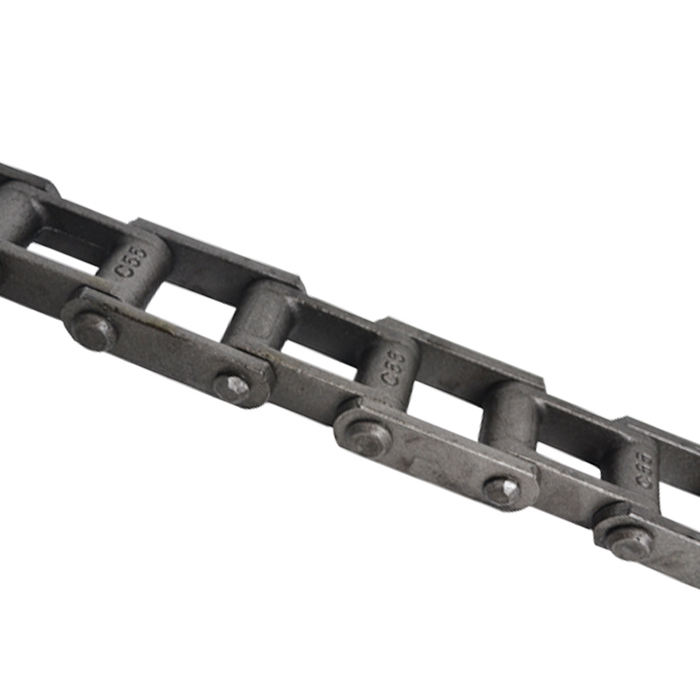

A2040 667x 667 Agricultural Conveyor Roller Chain and sprockets Double Pitch Roller Chain

A2040 667x 667 Agricultural Conveyor Roller Chain and sprockets Double Pitch Roller Chain
Products Description
#A2040 Conveyor Roller Chain 10 Feet with 1 Connecting Link

Pitch Size: 1.000 Inch

Roller Diameter: 0.312 Inch

Width Between Inner Plates: 0.309 Inch

Pin Diameter: 0.156 Inch

Pin Length L Max: 0.654 Inch

Pin Length Lc Max: 0.701 Inch

Inner Plate Depth: 0.472 Inch

Plate Thickness: 0.059 Inch

Average Tensile Strength: 3754 lb

Material: Carbon Steel

Length: 10 Feet

Weight Per Foot: 0.281 lbs

All of our chain products have gone through stringent process measures for Best Quality! This includes heat treatment, which
ensures the optimum ware life and toughness for all component parts. Solid hardened and shot peened precision rollers are standard
on most of our chains. The bushings provide a smooth roller bearing effect reducing the impact load as the chain engages the
sprockets tooth. During chain assembly, all chain components are oriented to ensure pins, bushings, and side plates are correctly
positioned for optimum chain strength and long life. Assembled chains are then dipped in a hot lubricant. This lubrication and the
process in which it is applied greatly improve the ware life capacity of the chain and further protect it from the effects of the
environment. All of our chains are factory preload. They are pretested to support and maintain the expected load the chain will
see when in use. This helps align the chain parts which will minimize the initial elongation. This will drastically increase the
life of the chain. All our Chain is certified from ISO 9001:2000 QM certification through ISO 14001 (which documents the
sustainability and environmental compatibility of production and waste disposal processes) to the ISO/TS 16949 quality
requirements for the automotive industry.
A2040 667x 667 Agricultural Conveyor Roller Chain and sprockets Double Pitch Roller Chain
We also offer sprockets
For more details, please click here to contact us！
Related Products
Recommended by seller

Agricultural Drive Stainless Steel Plastic Drag Drop Forged Pintle Welded Silent Roller Conveyor Chain With Attachment Sprocket

$15.00-20.00 / meter

100 meters

145 434 442 445 452 455 462 477 483 488 4103 4124 400 Class Pintle Chain

$15.00-20.00 / meter

100 meters

WT-3000PSI Welded Tee Type Cylinders Hydraulic Cylinder

$60.00-180.00 / piece

50 pieces

Made In China Superior Quality Plastic Sprockets chain and sprocket in steel and stainless steel

$17.50-20.00 / piece

100 pieces

Agricultural machinery parts Tractor Truck Rotary Drive Pto Shaft With Clutch Yoke Adapter Agriculture Tube Spline

$28.00-35.00 / piece

50 pieces

Xrv050/Mrv050 Series Gear Reducer IP67 Waterproof Worm Car Washer Gearbox For Automatic Vehicle Washing Machine

$480.00-500.00 / unit

20 units

X348 x458 x678 drop forged chain rivet-less overhead conveyor chain for grain machines

$15.00-20.00 / meter

100 meters

Steel Roller Chain Engineer Class Agricultural Pintle Cast Iron Weld on Hub Finished Bore Idler Bushing Taper Lock Qd Sprocket

$17.50-20.00 / piece

100 pieces

Low Backlash High Precision Planetary Speed Reducer Reduction Manufacturer Nema Dc Stepper Servo Motor Small Planetary GearBox

$480.00-500.00 / unit

20 units

Farm Center Pivot Gear Box Drive Wheel System Sprinkler Irrigation Gearbox For Valley Pivots Replacement Zimmatic UMC

$52.00-63.00 / piece

50 pieces

Ball Thread Rod Mechanical Hydraulic Lift Elevator Scaffolding Gearbox Electric Worm Gear Screw Jack for Construction Jump Form

$30.00-40.00 / unit

50 units

Hot Tags: A2040 667x 667 Agricultural Conveyor Roller Chain, Double Pitch Roller Chain, Sprockets, Raydafon Transmission, Raydafon, Raydafon Power, Supplier, Manufacturer, Factory, China
Related Category
Send Inquiry
Contact Info
Related Products
1005-FT(FTDP)-SGS Straight Run Super Plastic Top Rubber Conveyor Mesh Roller Chain Belt
1005-FT(FTDP)-SGS Straight Run Super Plastic Top Rubber Conveyor Mesh Roller Chain Belt View More >>
1005-FT(FTDP)-LBP Straight Run Plastic Conveyor Mesh Roller Chain Belt
1005-FT(FTDP)-LBP Straight Run Plastic Conveyor Mesh Roller Chain Belt View More >>
667X Pintle Roller Chain and sprockets
667X Pintle Roller Chain and sprockets View More >>
823 Heavy Duty Sideflex Run Single Hinge Hook Foot Curved Roller Chain
823 Heavy Duty Sideflex Run Single Hinge Hook Foot Curved Roller Chain View More >>
823 Heavy Duty Sideflex Run Single Hinge Magnetic Curved Roller Chain
823 Heavy Duty Sideflex Run Single Hinge Magnetic Curved Roller Chain View More >>

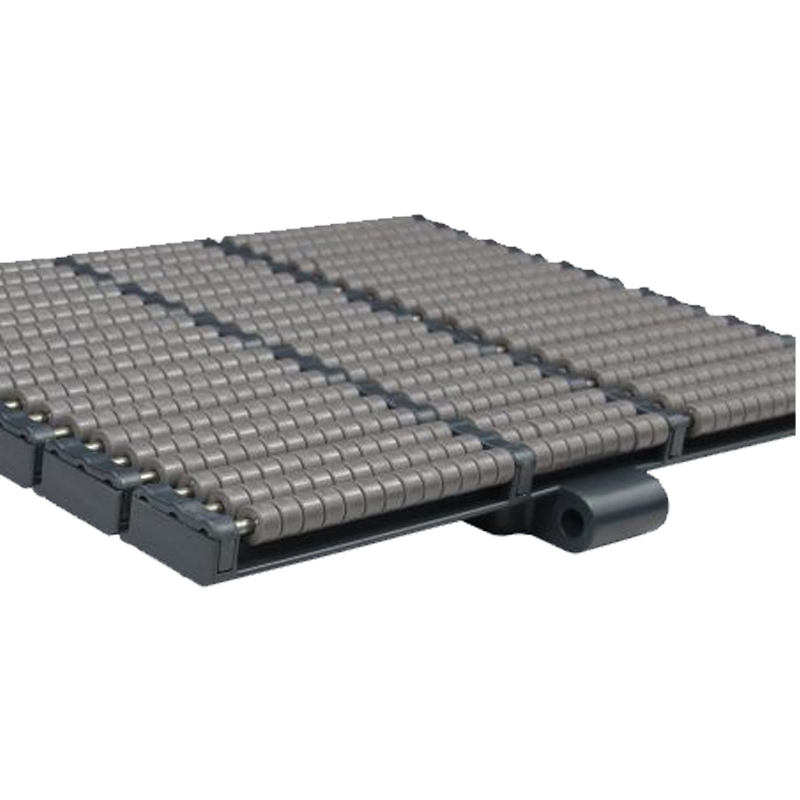

822 Heavy Duty Straight Sideflex Run Single Hinge Roller Chain
