T Series PTO Drive Shaft Triangular Tube
  • T Series PTO Drive Shaft Triangular TubeT Series PTO Drive Shaft Triangular Tube
  • T Series PTO Drive Shaft Triangular TubeT Series PTO Drive Shaft Triangular Tube
  • T Series PTO Drive Shaft Triangular TubeT Series PTO Drive Shaft Triangular Tube
  • T Series PTO Drive Shaft Triangular TubeT Series PTO Drive Shaft Triangular Tube
  • T Series PTO Drive Shaft Triangular TubeT Series PTO Drive Shaft Triangular Tube
  • T Series PTO Drive Shaft Triangular TubeT Series PTO Drive Shaft Triangular Tube

T Series PTO Drive Shaft Triangular Tube

T Series PTO Drive Shaft Triangular TubeVideo Description00:00/00:00Product DescriptionBenefits.Premium quality PTO shafts.Unique lever release PTO protective shaft cover.Universal joints with long life triple lip internal sealsSeries540 tr./min1000 tr./minMP(NM)KwPkNmKwPkNmT112162101825172320T21521......

T Series PTO Drive Shaft Triangular Tube

Video Description

00:00/00:00
T Series PTO Drive Shaft Triangular Tube
Product Description
T Series PTO Drive Shaft Triangular Tube
Benefits
.Premium quality PTO shafts
.Unique lever release PTO protective shaft cover
.Universal joints with long life triple lip internal seals
Series
540 tr./min
1000 tr./min
MP(NM)
Kw
Pk
Nm
Kw
Pk
Nm
T1
12
16
210
18
25
172
320
T2
15
21
270
23
31
220
450
T3
22
30
390
35
47
330
640
T4
26
35
460
40
55
380
780
T5
35
47
620
54
74
520
1050
T6
47
64
830
74
100
710
1450
T7
55
75
970
87
118
830
1800
T7N
55
75
970
87
118
830
1800
T8
70
95
1240
110
150
1050
2250
T38
78
105
1380
123
166
1175
2500
T9
88
120
1560
140
190
1340
2800
T10
106
145
1905
170
230
1650
3500

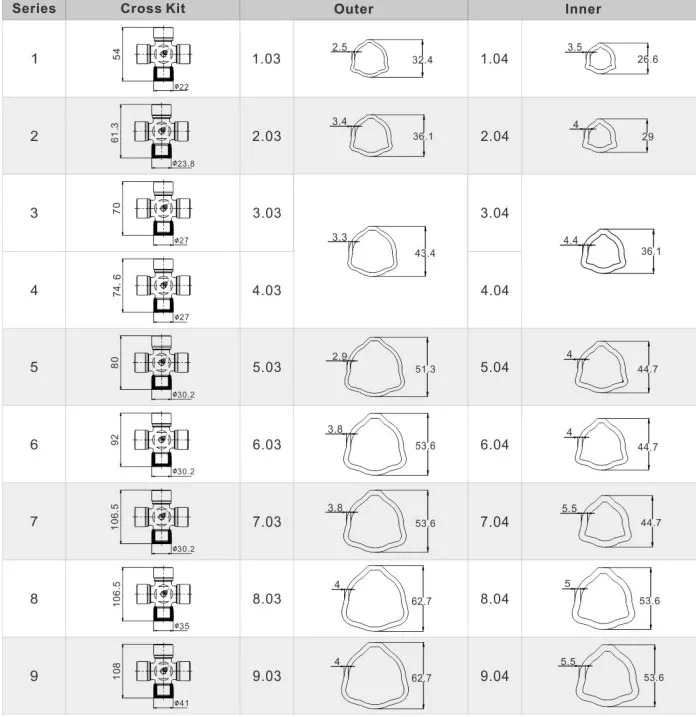

Triangular Tube of PTO Shaft
T Series PTO Drive Shaft Triangular Tube

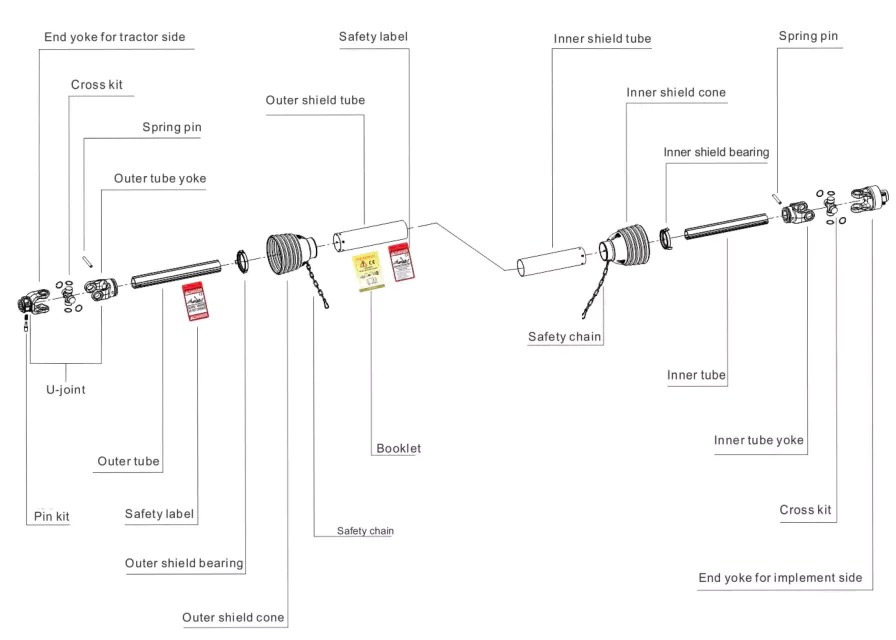

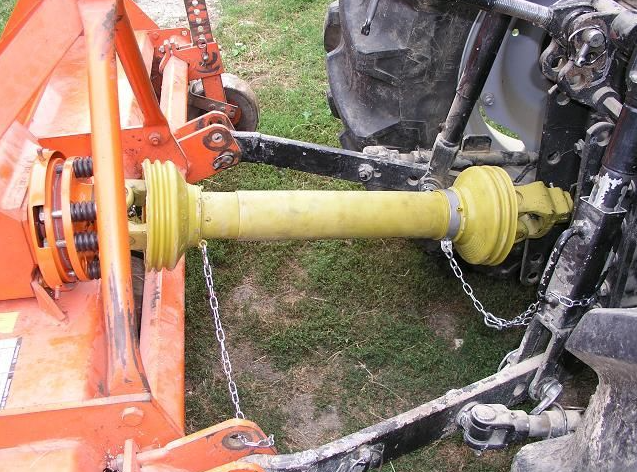

Agricultural PTO Drive Shaft Structure
T Series PTO Drive Shaft Triangular Tube

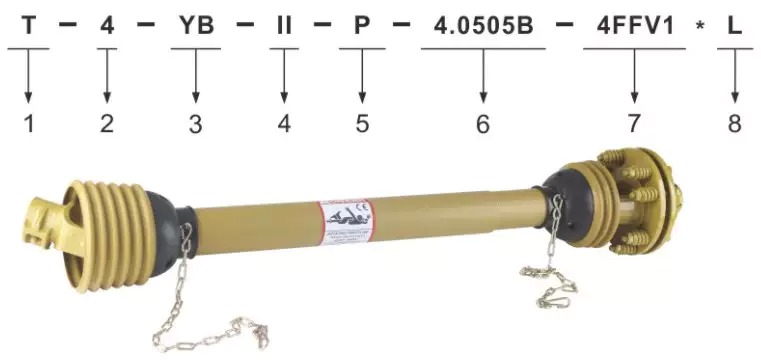

PTO Shaft Code Explanation
T Series PTO Drive Shaft Triangular Tube
Product # in picture
Description
1
The Types of Tubes(e.g: T: L, ST: G)
2
The series of cross kits
3
The Code of Color(YB=Yellow+Black)
4
The Code of Safety Shield Structure
5
Connection Method Pin Connected
6
The Tractor End Yokes
7
The Implement End Yokes
8

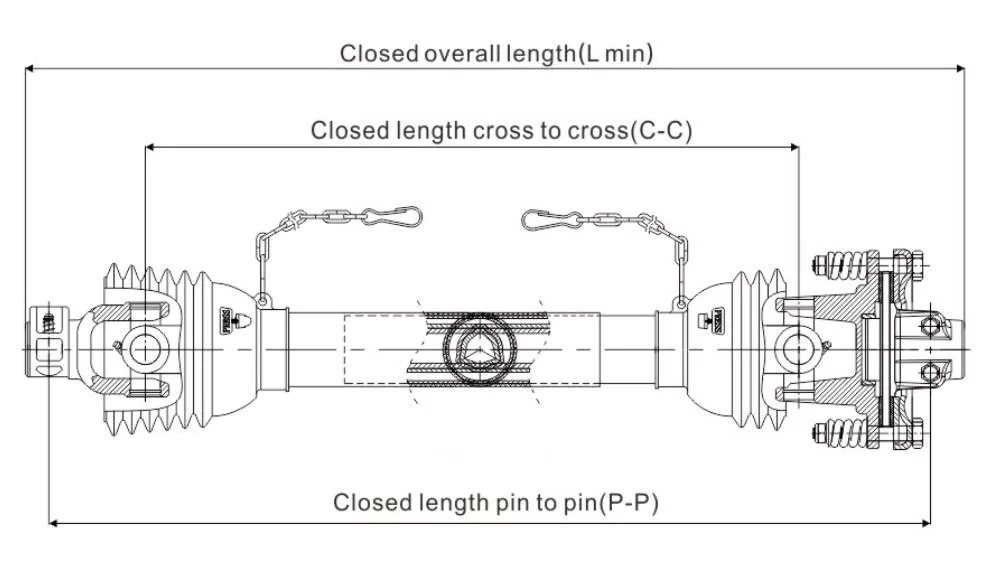

Minimum Overall length
T Series PTO Drive Shaft Triangular Tube
PTO SHAFT
Function
Drive Shaft Parts & Power Transmission

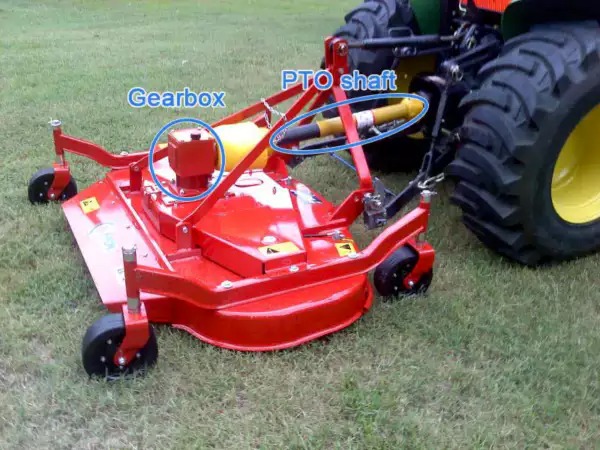

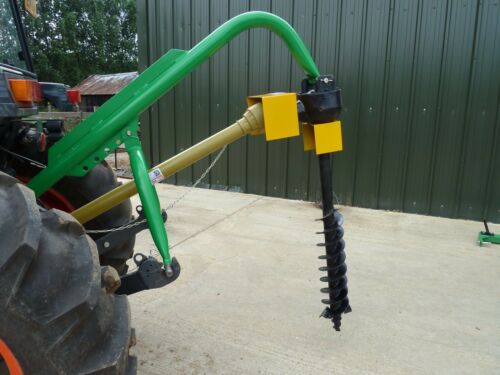

Usage
Kinds of Tractors & Farm Implements
Yoke Type
Double push pin, Bolt pins, Split pins, Pushpin, Quick release, Ball attachment, Collar…..
Processing Of Yoke
Forging
Plastic Cover
YW; BW; YS; BS; Etc
Color
Green; Orange; Yellow; Black Ect.
Series
T1-T10; L1-L6;S6-S10;10HP-150HP with SA,RA,SB,SFF,WA,CV Etc
Tube Type
Lemon, Triangular, Star, Square, Hexangular, Spline, Special Ect
Processing Of Tube
Cold drawn
Spline Type
1 1/8″ Z6;1 3/8″ Z6; 1 3/8″ Z21 ;1 3/4″ Z20; 1 3/4″ Z6; 8-38*32*6 8-42*36*7; 8-48*42*8;
PTO SHAFT INSTALLATION INSTRUCTION

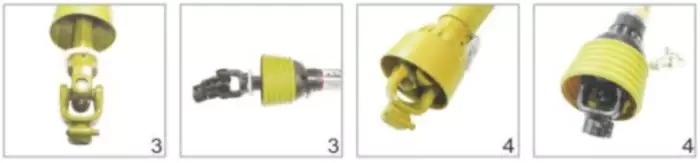

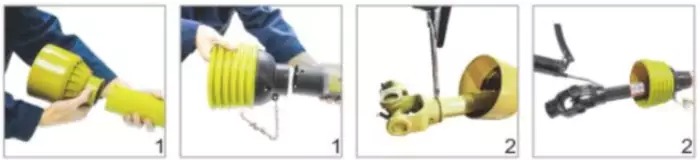

Install assembly
T Series PTO Drive Shaft Triangular Tube
1 press-fit plastic pipe and plastic cap,
2 fill the groove on the horn with oil

T Series PTO Drive Shaft Triangular Tube
3. Slide the nylon bearing into the groove
4. Align nylon bearing and plastic protective cover

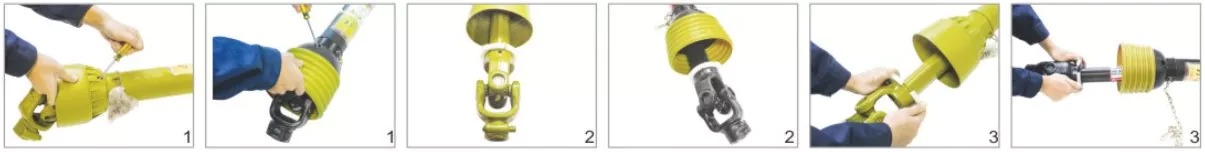

Disassembly
1. remove the nylon bearing clamp (three places) with a screwdriver, and then separate the steel pipe and plastic protective cover.
2. Take off the nylon bearing from the groove of the yokes.
3. repeat the above-mentioned steps for the other side.
T Series PTO Drive Shaft Triangular Tube

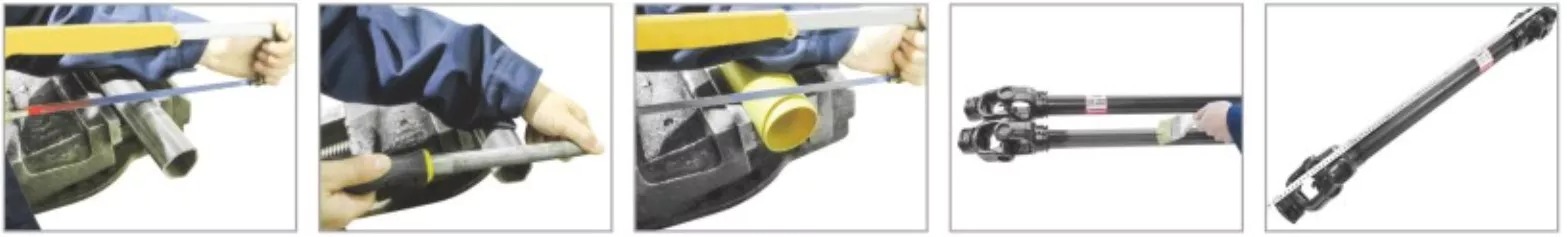

SHORTENING THE PTO DRIVESHAFT
1. Remove the safety shield.
2. Shorten the inner and outer tubes according to the required length, and the inner and outer tubes shall be shortened by the same length at one time
3. Deburr edges of the drive tubes with a file and remove all filings from the tubes.
4. Shorten the inner and outer plastic pipes according to the required length, and the inner and outer plastic pipes shall be shortened by the same length at one time.
5. Grease the internal drive tubes and reassemble them with a safety shield.
Check the minimum and maximum length of the driveshaft installed on the machine. In working condition, the drive tubes should overlap 2/3 length and the plastic tube should never be separated
T Series PTO Drive Shaft Triangular Tube
LUBRICATION OF THE PTO DRIVESHAFT

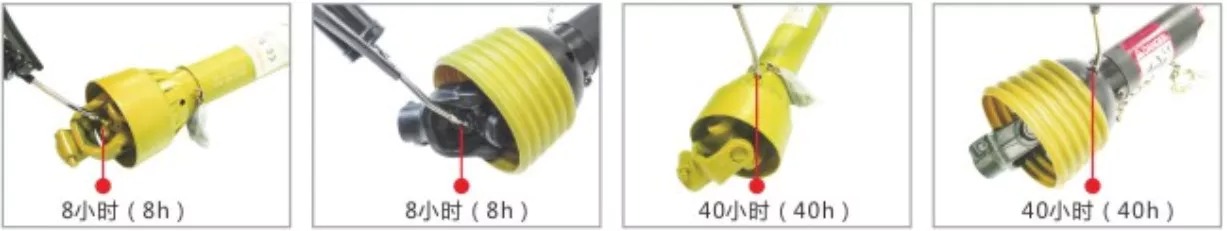

Frequent lubrication is required. Grease the driveline shaft parts at hourly intervals as indicated on the drawing left.
T Series PTO Drive Shaft Triangular Tube
The same assembly method is used for both types of safety shields.

We Also Supply PTO Shafts
If you also need the PTO axis, click here:https://www.Raydafon.com/product-detail/Agricultural-Gear-Box-Right-Angle-Drive_62006978819.html?spm=a2700.shop_plfe.41413.11.3d587e03BHaaiH)
T Series PTO Drive Shaft Triangular Tube
T Series PTO Drive Shaft Triangular Tube
T Series PTO Drive Shaft Triangular Tube
T Series PTO Drive Shaft Triangular Tube
Click here for more details!
Customer Feedback Graph
T Series PTO Drive Shaft Triangular Tube
T Series PTO Drive Shaft Triangular Tube
T Series PTO Drive Shaft Triangular Tube
Related Products
Recommended by seller

PTO Shaft Transmission T6 Spline Driving Universal Joint PTO Connecting Tractor Cardan Drive Shaft for Agricultural Machinery

$40.00-45.00 / piece

5 pieces

Agricultural Gearbox 90 Degree Right Angle Farm Pto Tractor Gearboxes for Lawn Mower Rotary Tiller Pga Feeder Mixer Earth Auger

$50.00 / piece

10 pieces

TYPE RV-010 Agricultural Machinery parts 90 degree right angel reducer gear motor bevel pto Gearbox for farm tractor

$90.00-99.00 / unit

50 units

PTO Tractor gear box drive agricultural machinery parts 540 gearbox for Mower Rake PTO drive shaft gearbox

$65.00-85.00 / piece

50 pieces

Farm PTO Shaft Manufacturer Agricultural Machinery Tractors Parts Pto Drive Shaft With Shear Bolt Torque Limiter Pin Clutch

$45.00-50.00 / piece

10 pieces

High Quality Drive Shaft Parts Universal Cardan Cross Joint for PTO Shaft

$13.00-15.00 / piece

50 pieces

Differential Friction transmission input PTO spline Shaft for agricultural gearboxes From China Supplier

$28.00-35.00 / piece

50 pieces

Agricultural Gearbox For Offset Mowers
Agricultural Gearbox For Flail Mowers
Driveline Gearbox Of Irrigation System
Center-dive Gear Box of Irrigation System
Gearboxes For Feed Mixer
Oil-pump Gearbox
Potato Harvester Gearbox
Harvester Gearbox Reversing Bevel Gearbox

Agricultural Gearbox For Vineyard And Orchard Grass Cutters
Agricultural Gearbox For HAY TEDDER
General Gearbox For Agricultural Machinery
Side-Delivery Rake Gearbox
PTO SPEED REDUCER GEARBOX
Grain Harvester Reversing Gearbox
Pesticide Sprayer Gearbox
Rotary Mower Gearboxes
Reversing Gearbox (used In Grain Unloading System)

Agriculture Gearbox For Rotary Harrows
Agricultural Pto Gearboxes For Powered Generator
Hydraulic PTO Drive Gearbox Speed Increaser
SLASHER GEARBOXES
Grain Auger Gearboxes
Agricultural Chain Sprockets Gearbox
Agricultural Gearbox Grain Conveyor Gearbox
