Various Good Quality American Standard 5V Series Cast Iron Six-Groove QD Sheaves for 5V Belts
  • Various Good Quality American Standard 5V Series Cast Iron Six-Groove QD Sheaves for 5V BeltsVarious Good Quality American Standard 5V Series Cast Iron Six-Groove QD Sheaves for 5V Belts
  • Various Good Quality American Standard 5V Series Cast Iron Six-Groove QD Sheaves for 5V BeltsVarious Good Quality American Standard 5V Series Cast Iron Six-Groove QD Sheaves for 5V Belts
  • Various Good Quality American Standard 5V Series Cast Iron Six-Groove QD Sheaves for 5V BeltsVarious Good Quality American Standard 5V Series Cast Iron Six-Groove QD Sheaves for 5V Belts
  • Various Good Quality American Standard 5V Series Cast Iron Six-Groove QD Sheaves for 5V BeltsVarious Good Quality American Standard 5V Series Cast Iron Six-Groove QD Sheaves for 5V Belts
  • Various Good Quality American Standard 5V Series Cast Iron Six-Groove QD Sheaves for 5V BeltsVarious Good Quality American Standard 5V Series Cast Iron Six-Groove QD Sheaves for 5V Belts
  • Various Good Quality American Standard 5V Series Cast Iron Six-Groove QD Sheaves for 5V BeltsVarious Good Quality American Standard 5V Series Cast Iron Six-Groove QD Sheaves for 5V Belts

Various Good Quality American Standard 5V Series Cast Iron Six-Groove QD Sheaves for 5V Belts

Various Good Quality American Standard 5V Series Cast Iron Six-Groove QD Sheaves for 5V BeltsVideo Description00:00/00:00Products Description5V Series Cast Iron Six-Groove QD Sheaves for "5V" Belts5V series six groove QD (quick disassembly) bushing pulley is applicable to 5V, 5VX, 5V belt ......

Various Good Quality American Standard 5V Series Cast Iron Six-Groove QD Sheaves for 5V Belts

Video Description

00:00/00:00
Various Good Quality American Standard 5V Series Cast Iron Six-Groove QD Sheaves for 5V Belts
Products Description

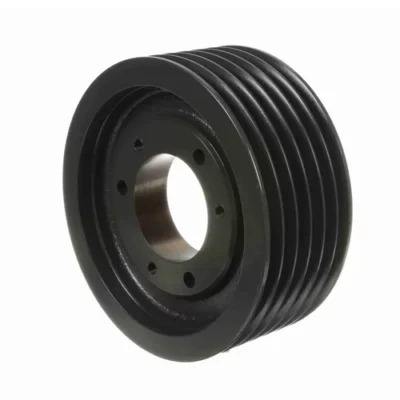

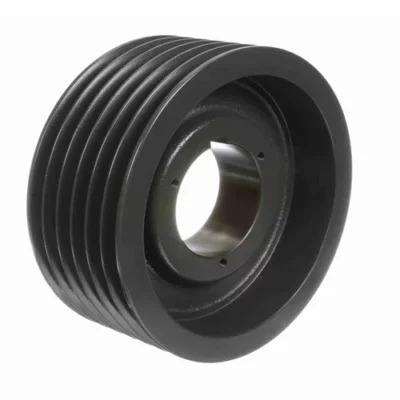

5V Series Cast Iron Six-Groove QD Sheaves for "5V" Belts

5V series six groove QD (quick disassembly) bushing pulley is applicable to 5V, 5VX, 5V belt and 5VX belt. They range in diameter from 4.40 "to 50.00". Depending on the pulley size, they use SD, SK, SF, E, F or J QD bushings, which we also have in stock. Our six groove 5V QD pulleys are mostly made of high-strength 35 grade cast iron, coated with phosphate and anti-corrosion paint. All these are balanced at the factory to ensure smooth operation of the machine.

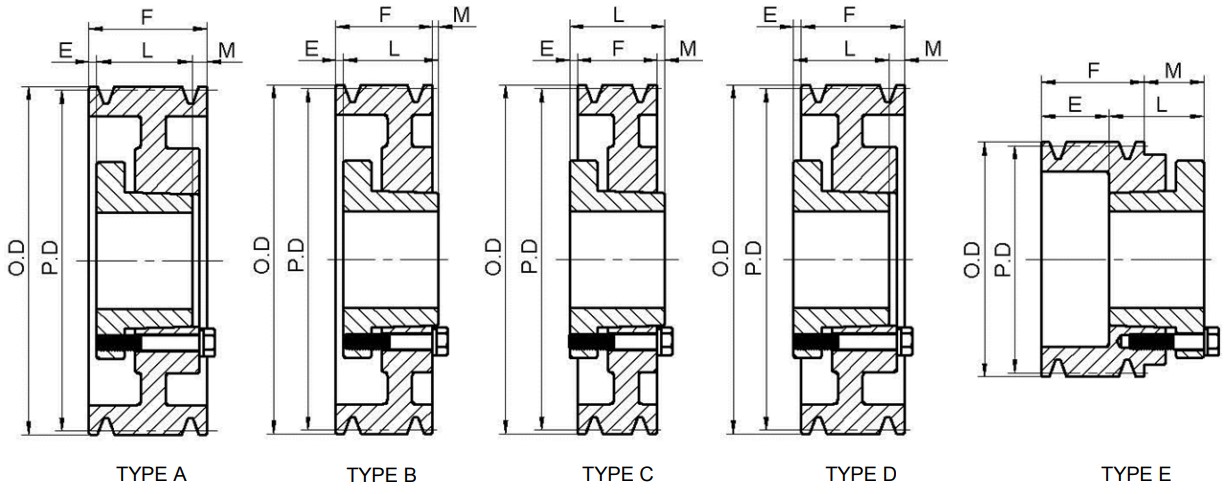

Six-Groove 5V QD Sheave Size Chart
Various Good Quality American Standard 5V Series Cast Iron Six-Groove QD Sheaves for 5V Belts
For more details, please click here to contact us!
Size
Bushing Type
Type
Pitch Diameter
Outside Diameter
(E)
(F)
(L)
(M)
Weight (LBS)
65V440SD
SD
E
4.30"
4.40"
3 25/32"
4 7/16"
1 13/16"
21/32"
10.1
65V465SD
SD
E
4.55"
4.65"
3 25/32"
4 7/16"
1 13/16"
21/32"
10.4
65V490SD
SD
A
4.80"
4.90"
21/32"
4 7/16"
1 13/16"
1 31/32"
11.2
65V520SD
SD
A
5.10"
5.20"
21/32"
4 7/16"
1 13/16"
1 31/32"
12.1
65V550SD
SD
A
5.40"
5.50"
21/32"
4 7/16"
1 13/16"
1 31/32"
13.3
65V590SK
SK
A
5.80"
5.90"
17/32"
4 7/16"
1 15/16"
1 31/32"
14.6
65V630SK
SK
A
6.20"
6.30"
17/32"
4 7/16"
1 15/16"
1 31/32"
17.4
65V670SF
SF
A
6.60"
6.60"
25/32"
4 7/16"
2 1/16"
1 19/32"
20.0
65V710SF
SF
A
7.00"
7.10"
25/32"
4 7/16"
2 1/16"
1 19/32"
21.9
65V750SF
SF
A
7.40"
7.50"
25/32"
4 7/16"
2 1/16"
1 19/32"
23.4
65V800E
E
A
7.90"
8.00"
27/32"
4 7/16"
2 3/4"
27/32"
24.2
65V850E
E
A
8.40"
8.50"
27/32"
4 7/16"
2 3/4"
27/32"
26.7
65V900E
E
A
8.90"
9.00"
27/32"
4 7/16"
2 3/4"
27/32"
28.5
65V925E
E
A
9.15"
9.25"
27/32"
4 7/16"
2 3/4"
27/32"
30.2
65V975E
E
A
9.65"
9.75"
27/32"
4 7/16"
2 3/4"
27/32"
33.8
65V1030E
E
A
10.20"
10.30"
27/32"
4 7/16"
2 3/4"
27/32"
36.6
65V1090E
E
A
10.80"
10.90"
27/32"
4 7/16"
2 3/4"
27/32"
38.1
65V1130E
E
A
11.20"
11.30"
27/32"
4 7/16"
2 3/4"
27/32"
39.8
65V1180E
E
A
11.70"
11.80"
27/32"
4 7/16"
2 3/4"
27/32"
41.2
65V1250F
F
B
12.40"
12.50"
23/32"
4 7/16"
3 3/4"
1/32"
58.2
65V1320F
F
B
13.10"
13.20"
23/32"
4 7/16"
3 3/4"
1/32"
64.0
65V1400F
F
B
13.90"
14.00"
23/32"
4 7/16"
3 3/4"
1/32"
66.0
65V1500F
F
B
14.90"
15.00"
23/32"
4 7/16"
3 3/4"
1/32"
68.0
65V1600F
F
B
15.90"
16.00"
23/32"
4 7/16"
3 3/4"
1/32"
77.5
65V1870F
F
D
18.60"
18.70"
1/32"
4 7/16"
3 3/4"
23/32"
85.8
65V2120F
F
D
21.10"
21.20"
1/32"
4 7/16"
3 3/4"
23/32"
96.0
65V2360J
J
C
23.50"
23.60"
1/8"
4 7/16"
4 5/8"
1/16"
113.0
65V2800J
J
C
27.90"
28.00"
1/8"
4 7/16"
4 5/8"
1/16"
148.0
65V3150J
J
C
31.40"
31.50"
1/8"
4 7/16"
4 5/8"
1/16"
183.0
65V3750J
J
C
37.40"
37.50"
1/8"
4 7/16"
4 5/8"
1/16"
218.0
65V5000M
M
C
49.90"
50.00"
1 3/32"
4 7/16"
6 3/4"
1 7/32"
310.0
Relevant supporting 5V, 5VX series V-belts (1) 5V series V-belt Classic 5V series V-belts have a top width of 0.63 ", a thickness of 0.53", and an angle of 38 °. In addition, the 5V V-belt is one of the oldest V-belts in the industry. Because of their long-term success and economic operation, they are also one of the most widely used belt series in the industry. The high-quality 5V series v-belts we provide are manufactured according to ISO 9001 specifications. They are oil and heat resistant and can be directly interchanged with other brands. They are composed of natural rubber compound and polyester rope, and are covered with a mixture of cotton and polyester, with high durability. The 5V series belts are used with HVAC, lawn and garden equipment, and agricultural equipment for most general heavy industrial applications. (2) 5VX toothed V-belt The top width of the 5VX toothed v-belt is 0.53 "and the thickness is 0.53". Our grooved 5VX v-belts are manufactured with rough sidewalls to eliminate slip, improve efficiency and save operating costs. They are also manufactured according to ARPM standards and are oil and heat resistant. The 5VX conveyor belt is composed of high-quality neoprene compound and high-strength polyester string, and the top fabric is made of cotton polyester blend. In addition to performance, durability and energy saving advantages, our toothed v-belts will also be used with existing vertical pulleys/pulleys. Please contact us to get the quotation of 5VX toothed v-belt or pulley, and we will be happy to help you.
(3) 5V series ribbon V-belt The 5V series V-belts are part of the "classic" series of V-belts because they are one of the oldest and most common belts. Our belts are manufactured according to ARPM standards and have excellent strength, durability and performance. The top width of each 5V series v-belt (belt/rib) is 0.63 ". (4) 5VX belt toothed V-belt All our v-belts are manufactured according to ARPM specifications, with excellent performance and durability. Because of its design, the belt 5VX toothed v-belt runs more smoothly and more relaxed, and is generally more durable than the standard belt C v-belt. They also provide higher efficiency than ordinary v-belts, which means less energy costs. We can also stock pulleys/pulleys for 5VX belt.
Various Good Quality American Standard 5V Series Cast Iron Six-Groove QD Sheaves for 5V Belts
QD Bushings | Quick Disconnect Bushings QD bushings are used in various sprockets, pulleys, pulleys and synchronous drives throughout the industrial power transmission and agricultural industries. They are designed for easy installation and unloading; They are also commonly referred to as quick disconnect bushings. The QD bushing facilitates normal installation on the outside of the flange and reverse installation on the inside of the flange, and utilizes a single split that extends over the entire length of the bushing. Our QD bushings can be interchanged with other brands and are made of high-grade steel by precision machining, which is suitable for perfect installation. Advantages of QD casing compared with different types of casing include:; Easy to install/unload, strong grip and excellent strength. We stock all standard size QD bushings and provide custom QD bushings (including stainless steel bushings) upon request. QD casing is found in some of the strongest applications in the world; Please contact our customer service team immediately for a quote or other information on the quality QD casing.
Features of tapered bushing pulley Tapered bushing belt pulley is a mechanical connection component. A tapered sleeve is embedded between the mounting shaft and the belt pulley. The belt pulley is self-locking on the pointed sleeve through the socket head cap screw, and the tapered sleeve tightly fixes the mounting shaft. The taper sleeve is mainly divided into TB taper sleeve and QD taper sleeve. The matching holes of the conical sleeve and the belt pulley are half sided. Two small holes on the conical sleeve and two threaded holes on the belt pulley form a complete hole respectively. The threaded holes in the tapered sleeve and the smooth holes in the pulley form a complete fixture. During assembly, place two screws in the two threaded holes of the pulley. As the screw continues to tighten in the threaded hole of the pulley, the thread action pushes the screw to the small end of the tapered hole of the pulley. The tapered sleeve is the two incompletely machined holes of the screw, so when the screw head contacts the bottom of the suction tube hole, the force will be transferred to the tapered sleeve. The tapered sleeve moves to the small end of the tapered hole of the pulley relative to the pulley. At this time, because of the taper, the taper sleeve will continue to wrap the shaft, and the column will react to the taper sleeve and then act on the pulley. In this way, the pulley, tapered sleeve and shaft are tightly assembled. Common application of QD bushing pulley *Machine tool *Crusher, pulverizer, crusher, classifier, vibrating screen *Material conveying system *Fans, blowers and exhausters *Pumps and compressors *Woodworking saw, milling machine, planer, lathe
Various Good Quality American Standard 5V Series Cast Iron Six-Groove QD Sheaves for 5V Belts
Technological Processing
Various Good Quality American Standard 5V Series Cast Iron Six-Groove QD Sheaves for 5V Belts
Warehouse inventory The warehouse covers an area of 5000 square meters, and can provide various standard models of A/B/C/Z, with complete quantities and large inventory. At the same time, it accepts various non-standard customized drawings. The daily output is 10 tons and the delivery time is short.
Various Good Quality American Standard 5V Series Cast Iron Six-Groove QD Sheaves for 5V Belts
