Wholesale Quality W 2500 Series Walterscheid Replacement PTO Shaft

Wholesale Quality W 2500 Series Walterscheid Replacement PTO ShaftProduct DescriptionScope of application:HarvesterSoil tillage machineryWood crusherProperty:Tractor side 1 – 3/8 "(6) collar kitMachine side: flange Ö 160Lubrication interval is 50 to 100 hoursConforming to the requirements ......

Send Inquiry

Product Description

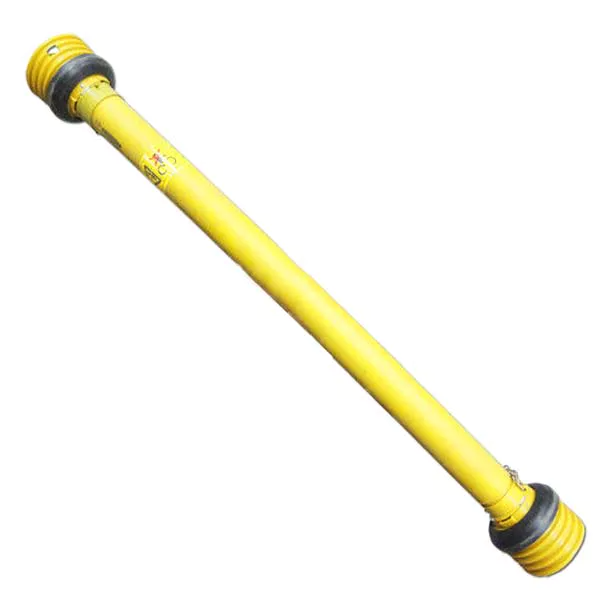

Wholesale Quality W 2500 Series Walterscheid Replacement PTO Shaft

Product Description

Scope of application: Harvester Soil tillage machinery Wood crusher Property: Tractor side 1 – 3/8 "(6) collar kit Machine side: flange Ö 160 Lubrication interval is 50 to 100 hours Conforming to the requirements of EC 89/392 EEC Comply with EN12965 safety standard CE mark available Technical information: Refer to the instructions of Waltsched Maximum dynamic capacity 540 rpm: 66 kW, 1175 Nm Maximum dynamic capacity 1000 rpm: 102 kW, 975 Nm Value at working angle of 5 ° and service life of 1000 hours LZ=sliding length from intersection to intersection (unit: mm)

Specification of W 2500 series PTO shaft

Connection outside diameter tractor side	1-3/8 Inch
Connection number of splines/grooves by tractor side	6
Consists of	* Pto shaft with a guard tube * Declaration of conformity * Instruction manual
Locking type by tractor side	Collar lock
Attachment tractor side	Quick disconnect yoke
Locking type by machine side	Flange
Attachment machine side	Flange yoke
Size code	W2500
Length	710 mm
Power per 540 rpm	66 kW
Power per 1000 rpm	102 kW
Cross joint cap diameter tractor side	36 mm
Cross joint length tractor side	89 mm
Cross joint cap diameter machine side	36 mm
Cross joint length machine side	89 mm
Clutch type	n/a
Outer tube profile	S5
Outer tube wall thickness	4,5 mm
Outer tube large outside diameter	61 mm
Inner tube profile	S4
Inner tube large outside diameter	51 mm
Max static torque	6000 N·m

Problems encountered in the use of PTO shaft 1. What if the PTO is not engaged but the PTO shaft is rotating? W 2500 Series PTO Shaft Replacement Walter scheid Kubota tractor PTO not engaged When the engine speed rises above 1500, the shaft stops. However, when the engine speed drops below 1000 RPM, the steering continues. Although it is not difficult to turn, sometimes it is enough to turn accessories (whether pile hole excavator or winch). You may have a bad clutch pack, but it is unlikely to leak. It may also be a bad clutch component brake disc that cannot stop the clutch. If this is the case, a visual inspection is required. Remember, the entire disassembly will be performed on the card. Most likely, the PTO control valve is not adjusted correctly so that it can only be partially engaged or floating. A simple pressure test of the control valve will reveal whether this is a potential problem. If the speed is changed and engaged, the seal may be poor. When the flow and pressure rise to high enough, a shutdown will occur. On the other hand, when the flow and pressure decrease, it engages again. 2. What if the PTO is grounded but not engaged? Kubota tractor power output problem For most PTO, there is no external adjustment. It is internal. It includes a clutch component, which can be replaced. You should know that the damage of clutch components is caused by the overload of PTO tasks. For example, using a 50 hp tractor to complete the work of a 65 hp grinder/mixer will soon cause problems in the clutch assembly. Usually, the PTO clutch ring and shaft need to be replaced, because people use tractors to run 4-5-foot garden tillers and bush pigs without sliding clutch.

What are the different types of PTO shafts? There are several types of PTO shafts on agricultural tractors. Understanding these types of shafts can help you choose the shaft that best suits your needs and ensure that it works properly. Transmission PTO shaft: This is the oldest and simplest PTO shaft, which is directly connected to the tractor transmission. It only engages the PTO when you press the clutch, so it does not work when you put the tractor into gear. This can cause serious problems when using the mower, because you will not be able to cut the entire area you need. This type of PTO shaft is also called a live PTO because it is operated by a two-stage transmission clutch. The first stage allows you to start the PTO by pressing the clutch halfway, while the second stage allows you to control its engagement. This makes the operation easier because you can reduce the tractor speed while operating the PTO shaft. Economical PTO shaft: The PTO is designed to operate at a low speed of 540 to save fuel, reduce vibration and improve efficiency. It is an economic choice for many implements, such as a hay rake or a tractor, which can help your tractor work more efficiently. Domestic PTO shaft: This kind of PTO is made of square, rectangular, hexagonal or spline oil pipe/shaft. This is usually the standard PTO type for tractors manufactured in the United States. It can also be used for bell or star metric drive systems. Depending on the design of the PTO, you can find the yoke and U-joint that connects it to the tractor or implement. The yoke and universal joint are usually welded to the drive end of the PTO shaft. The yoke can be spring-locked or quick-disconnected, and the U-joint has an inner hole that matches the connection on the tractor. 1. Tractor yoke: The yoke is located at the tractor end of the PTO shaft. It has a "Y" shape for connecting the PTO and a male hole. It can be spring lock or quick disconnect, and can have six splines, 20 splines and 21 spline sizes. 2. Universal joint: universal joint is used to connect the implement end of tractor and PTO shaft. It can be 6 splines, 20 splines or 21 splines and welded to the implement end of the PTO shaft. 3. PTO shaft parts: PTO shaft is the key component of tractor transmission system. This is a heavy machine, which must be properly installed to work properly. A full understanding of the various parts in the PTO shaft will help you keep the tractor in the best condition and avoid future maintenance. 4. PTO shaft maintenance: If your PTO shaft needs to be repaired, there are many reasons that may cause its failure, such as connection damage, improper length or power overload. If you are not sure what the problem is, you'd better contact the experienced professionals of Tulsa DriveShaft to restore your agricultural machinery to the best working condition.

PTO shaft of agricultural gearbox Agricultural equipment includes various PTO shafts. Each is connected by a yoke at both ends and rotates between 540 and 1000 rpm. Safety guards are usually installed at both ends of the PTO shaft to protect the operator. These protective covers also exist in tractors and agricultural implements to ensure maximum efficiency. The use of the internal yoke also provides additional safety. The agricultural PTO gearbox is designed to change the output speed of the PTO shaft. It can be used as a reduction or speed-ratio gearbox. Through the reduction ratio gearbox, it reduces the speed of the PTO shaft from 1000 rpm to 540 rpm, allowing you to use equipment specially designed for 540 rpm. On the other hand, the gearbox with increased transmission ratio increases the speed of the PTO shaft from 540 rpm to 1000 rpm.
