Product Description

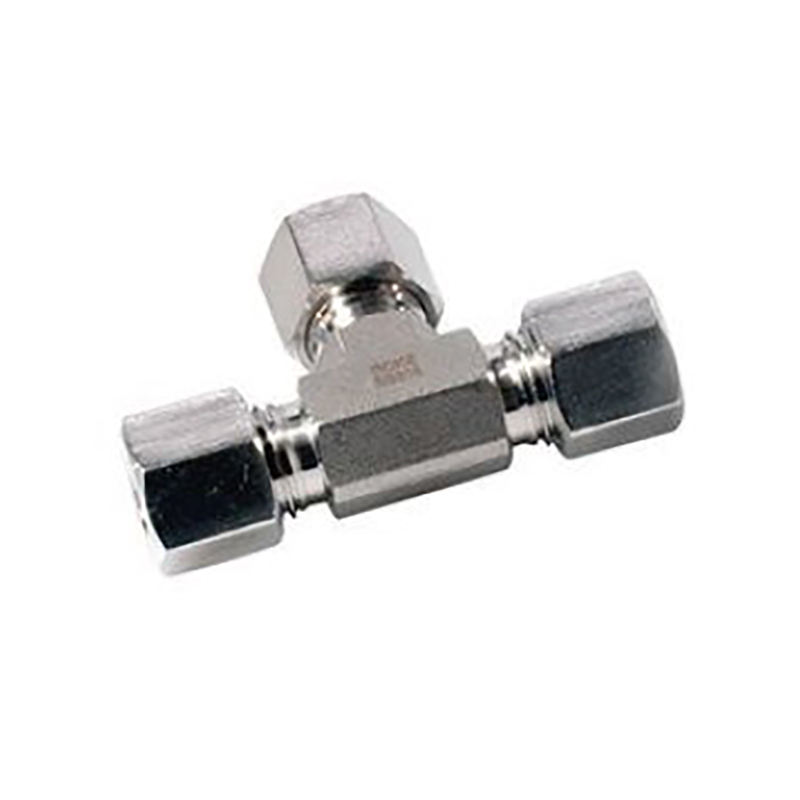

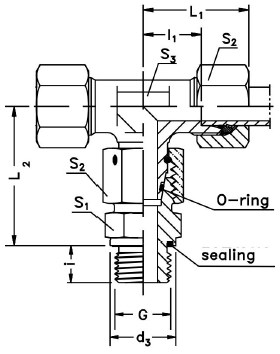

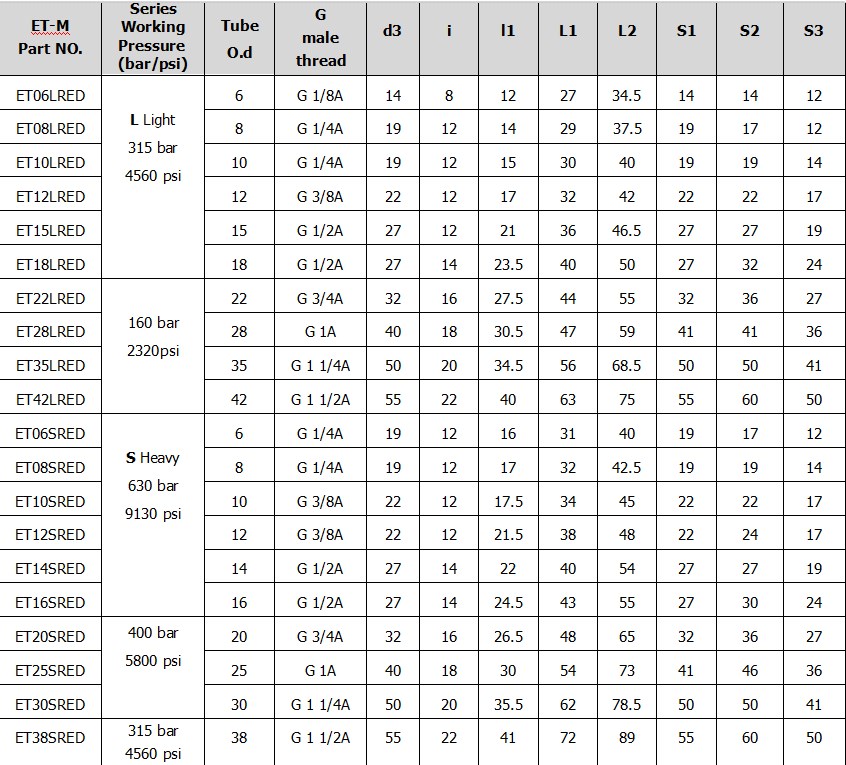

Widely Used Assembled Adjustable Swivel Brunch Tee-ET-R-ED Hydraulic Fitting For Hydraulic Cylinder Parts

Product Description

Hydraulic fittings are components used to connect, control, and direct fluid flow in hydraulic systems. They play a crucial role in ensuring efficient and leak-free operation of hydraulic systems by providing secure connections between various hydraulic components such as hoses, pipes, valves, pumps, cylinders, and filters.

Here are some key aspects and types of hydraulic fittings: 1.Function: Hydraulic fittings serve different functions within a hydraulic system, including: -Connecting: Fittings allow for the connection of hydraulic components, joining hoses or pipes together, or connecting them to other hydraulic equipment. -Sealing: Fittings incorporate sealing mechanisms, such as O-rings or sealing threads, to prevent fluid leakage at connection points. -Directing Flow: Fittings can control and direct the flow of hydraulic fluid, enabling fluid movement in specific directions or allowing for branching connections. 2.Types of Fittings: Hydraulic fittings come in various types to accommodate different connection requirements. Some common types include: -Straight Fittings: These fittings provide a straight connection between two hoses or pipes, maintaining a continuous flow path. -Elbow Fittings: Elbows are designed to change the direction of fluid flow by 90 degrees or other specified angles. -Tee Fittings: Tee fittings allow for branching connections, splitting flow into two or more directions. -Cross Fittings: Cross fittings provide branching connections in multiple directions, typically at right angles to each other. -Adapter Fittings: Adapter fittings facilitate the connection between different thread types, sizes, or configurations. -Quick-Disconnect Fittings: These fittings allow for rapid and easy connection and disconnection of hydraulic lines, commonly used in applications that require frequent hose changes. -Swivel Fittings: Swivel fittings incorporate a rotating mechanism that allows for movement and flexibility, making installation and alignment easier. -Materials: Hydraulic fittings are typically constructed from materials such as steel, stainless steel, brass, or aluminum. The choice of material depends on factors such as system pressure, fluid compatibility, environmental conditions, and application requirements. -Thread Types: Fittings have specific thread types that determine how they connect to hoses, pipes, or other components. Common thread types include NPT (National Pipe Thread), BSP (British Standard Pipe), JIC (Joint Industry Council), ORFS (O-ring Face Seal), and SAE (Society of Automotive Engineers) threads. -Installation and Maintenance: Proper installation and maintenance of hydraulic fittings are essential to ensure system performance and reliability. This includes using appropriate tools, tightening fittings to the recommended torque, inspecting for leaks, and replacing damaged or worn fittings as necessary. It's important to consult the manufacturer's guidelines, system specifications, or seek assistance from hydraulic experts to ensure the correct selection, installation, and maintenance of hydraulic fittings for your specific application or system requirements

Installation instructions The nuts of ROKE hydraulic connectors are all silver plated and coated with our patented nano lubricating layer. Through this method, the installation torque can be controlled within a reasonable range. Especially in narrow spaces or suspended operations, installation is very easy. In order to assemble correctly, the assembly instructions should be followed. Improper assembly may cause malfunctions or damage safety.

1. Cut the tube： 1/2˚ angle tolerance to the tube axis is permissible. Tube cutter is not recommendable.

2. Lightly remove chips and particles from the inside and outside cut edges of tube. Bevel up to 0.2mm × 45˚ is permissible.
3. For tube bend, the minimum height from the straight pipe end to the bending radius must be at least twice the
height of the nut.
4. Lubricate thread and cone of the fitting body, ring and thread of nut.

Assembly
5. Slip nut and then ring onto the tube end. Ensure that the ring is placed correctly.
6. Screw nut manually onto fitting body until finger tight. Hold the tube against the shoulder in the cone of the fitting body.
7. Mark nut and tube for measuring the prescribed turns of the nut.
8. Tighten the nut 1 1/4 turns. Tube must not turn with tube. Stop edge of the ring limits over-tightening by increasing tightening torque.

Check & Final Assembly
9. Loosen nut and remove ring-mounted tube from fitting. And check if a visivle collar has formed on the pipe in
front of the first cutting edge. If not, tighten slightly more.
10. Insert the pre-assembled tube into the fitting.
While holding fitting body with a wrench, tighten nut approx. 1/4 revolution beyond the point of a clearly perceptible resistance.
