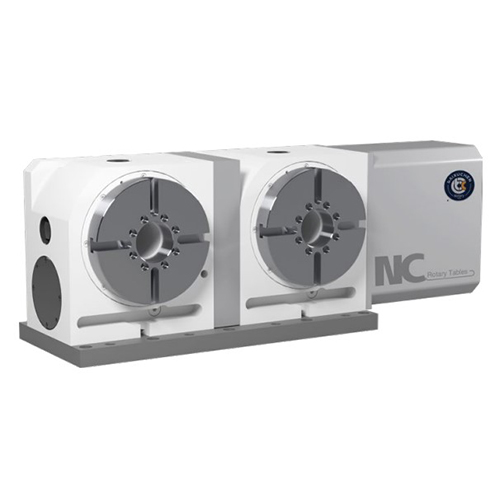

Product Model | WT-170-2W | Segmentation accuracy | 15 ″ |
Disk Diameter | Φ170mm | Repeat positioning | 4 ″ |
Center Diameter | Φ55H7mm | Locking Mode | 31kg.m |
Spindle Hole | Φ50mm | Servo Motor | β8is;HF-104 |
Center Height | 160mm | Speed Reduction Ratio | 1:90 |
T-Slot Width | 12H7mm | Maximun Speed | 33.3r.p.m |
Positioning Button | 14H7mm | Allowable Work Inertia | 5.4kg.cm.sec2 |
Min lncrement | 0.001° | Allowable Cutting Torque | 18Kg.m |
Weight（Without Motor） | 150Kg | Vertical | 80KG |
Center Distance | 260mm | Tailstock applied | 160KG |
