X Type X348 X458 X658 X678 Rive Tless Drop Forged Chain Bar Loop Chains

Product Description

Rivetless Drop Forged Chain is highly regarded as one of the strongest chains ever developed, and has found widespread application in many industries. Because materials do not tend to pack in its open struc- ture, Rivetless Drop Forged Chain is used extensively for flight conveyors. Its design permits both horizontal and vertical operation over irregular routes, making it particularly adapt- able for trolley conveyor service. Special features of this chain in- clude maximum strength without ex- cessive weight, and resistance to lengthening even after extensive op- eration.

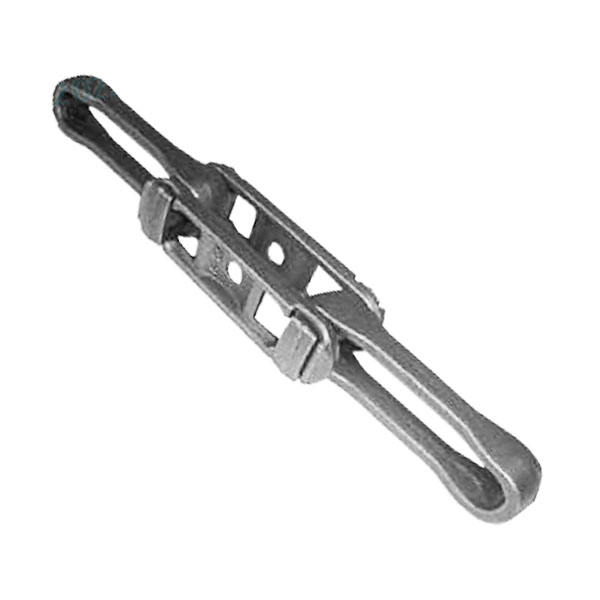

X-TYPE X-Type is furnished with all components heat treated, and is designed to have increased flexibility, trans- verse strength, and better operating performance.

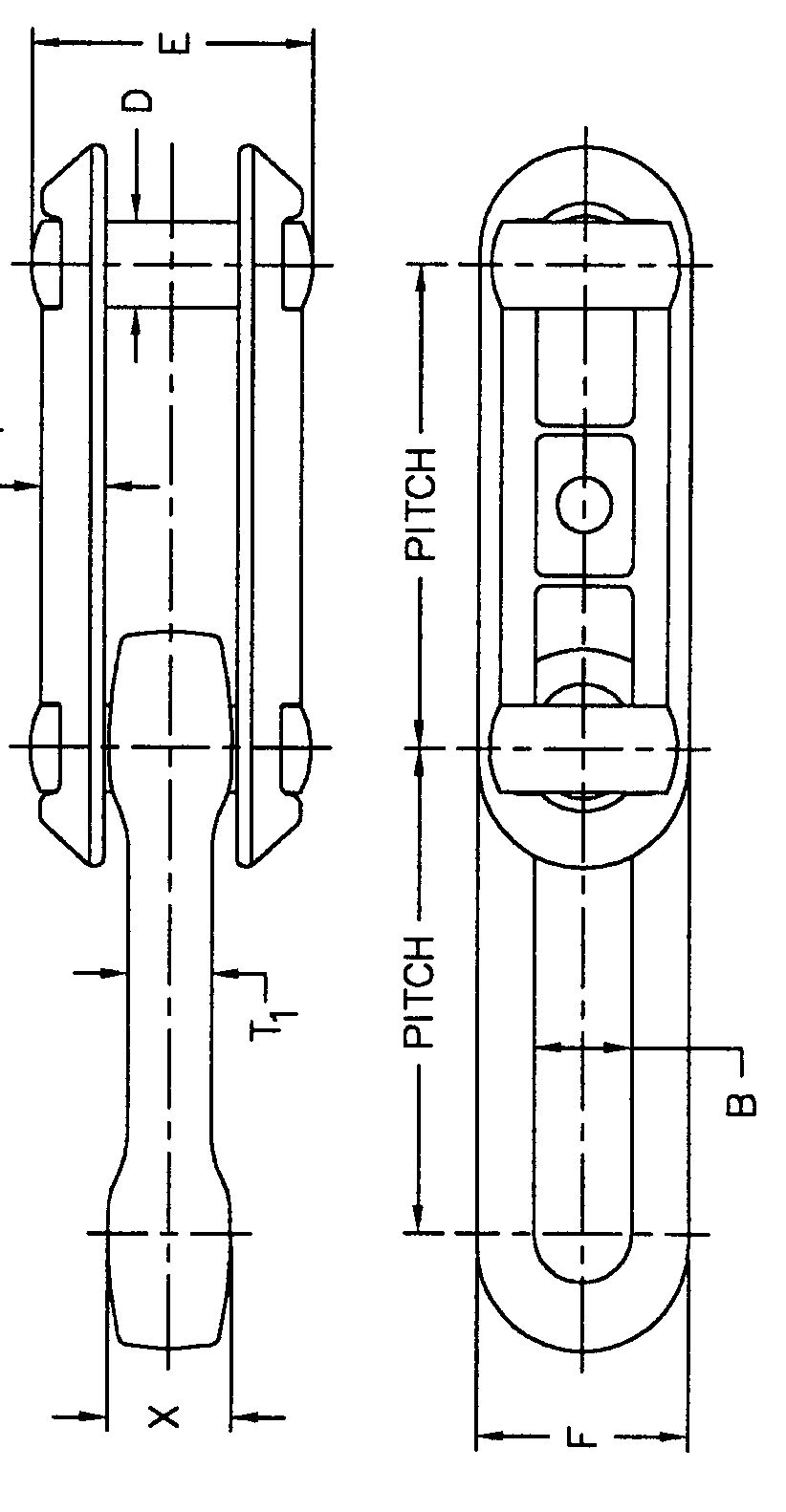

	A-L CHAIN NO.	PITCH IN INCHES	LINKS PER 10 FEET	WEIGHT PER FOOT LBS.	AVERAGE ULTIMATE STRENGTH—LBS. Head Treated Steel*	CHAIN CONSTRUCTION
3.031" PITCH CHAIN	X348	3.031	40	2.2	24,000	Special Pin
4.031" PITCH CHAIN	X458	4.031	30	3.2	48,000	Special Pin
4.031" PITCH CHAIN		468	4.031	30	7.5	70,000	Special Pin
6.031" PITCH CHAIN	X658	6.031	20	2.6	48,000	Special Pin
		X678	6.031	20	6.7	85,000	Special Pin

		698	6.031	20	11.4	130,000	Special Pin
9.031" PITCH CHAIN	998	9.031	13.3	9.0	130,000	Special Pin
		9118	9.031	13.3	16.0	220,000	Special Pin
		9148	9.031	13.3	27.0	300,000	Special Pin
3.031" PITCH CHAIN	S348	3.031	40	2.4	24,000	Riveted
4.031" PITCH CHAIN	S458	4.031	30	3.5	48,000	Riveted
4.031" PITCH CHAIN	S468	4.031	30	7.9	80,000	Riveted
9.031" PITCH CHAIN	S9118	9.031	13.3	20.4	220,000	Riveted

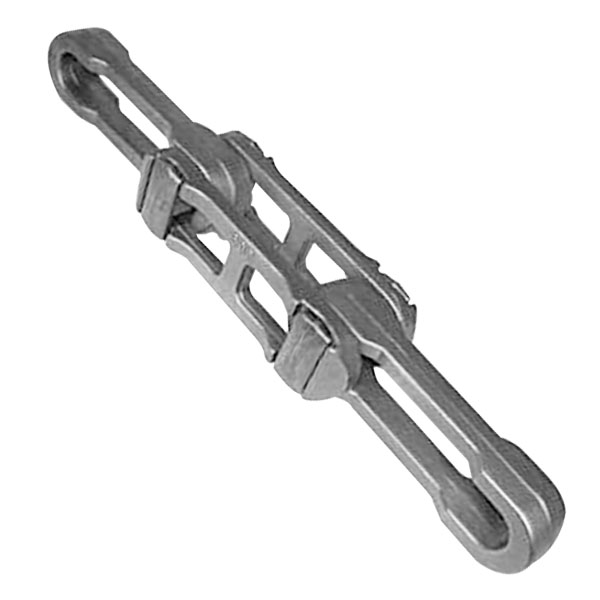

REGULAR TYPE Regular Type is furnished with only the T-head pins heat treated. These pins are symmetrical and may be reversed when worn.

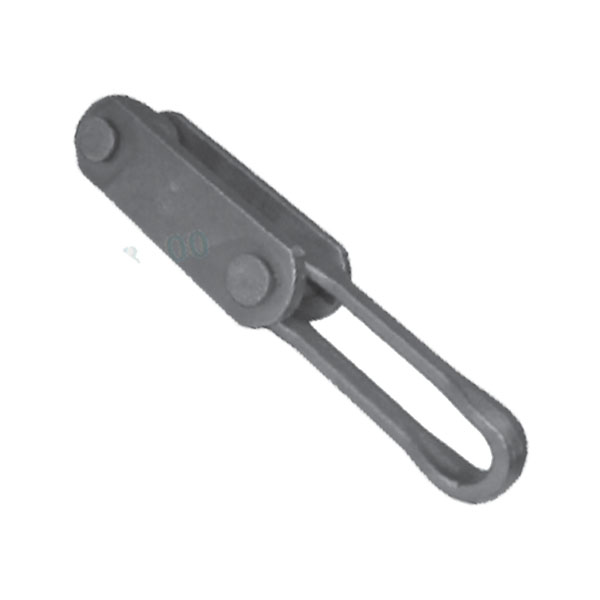

S-TYPE Barloop chain is manufactured with a standard rivet- less block link and fabricated steel sidebars. Barloop chains offer the advantage of a flat steel sidebar for welding attachments. The pins are a riveted style to keep the sidebars locked, eliminating the chance of chain coming apart when slack is present and reducing wear between the pin and sidebar.
