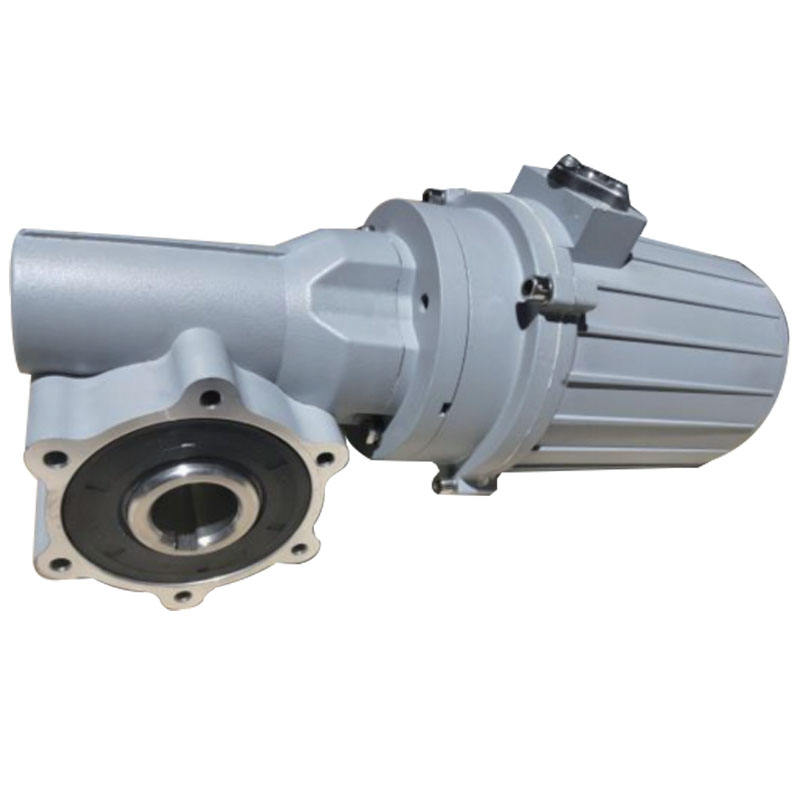

Xrv050/Mrv050 Series Gear Reducer IP67 Waterproof Worm Car Washer Gearbox For Automatic Vehicle Washing Machine

Xrv050/Mrv050 Series Gear Reducer IP67 Waterproof Worm Car Washer Gearbox For Automatic Vehicle Washing MachineProduct DescriptionXRV SERIES WORM GEAR SPEED REDUCER XRV series reducer for automatic car washer is a modified RV reducer used foauto car washer , which has the advantages of higher cost p......

Send Inquiry

Product Description

Xrv050/Mrv050 Series Gear Reducer IP67 Waterproof Worm Car Washer Gearbox For Automatic Vehicle Washing Machine

Product Description

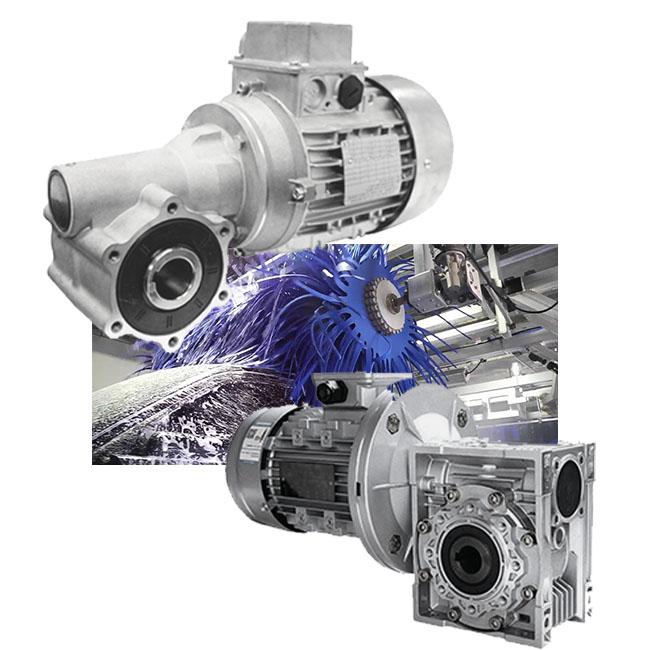

XRV SERIES WORM GEAR SPEED REDUCER
XRV series reducer for automatic car washer is a modified RV reducer used foauto car washer , which has the advantages of higher cost performance , wideapplicability and XRV ' s advantages . The install is more convenient and flexible than XRV . The supporting motor power can be 0.25kw-0.75kw , and matching flanges , tomeet the different needs of customers

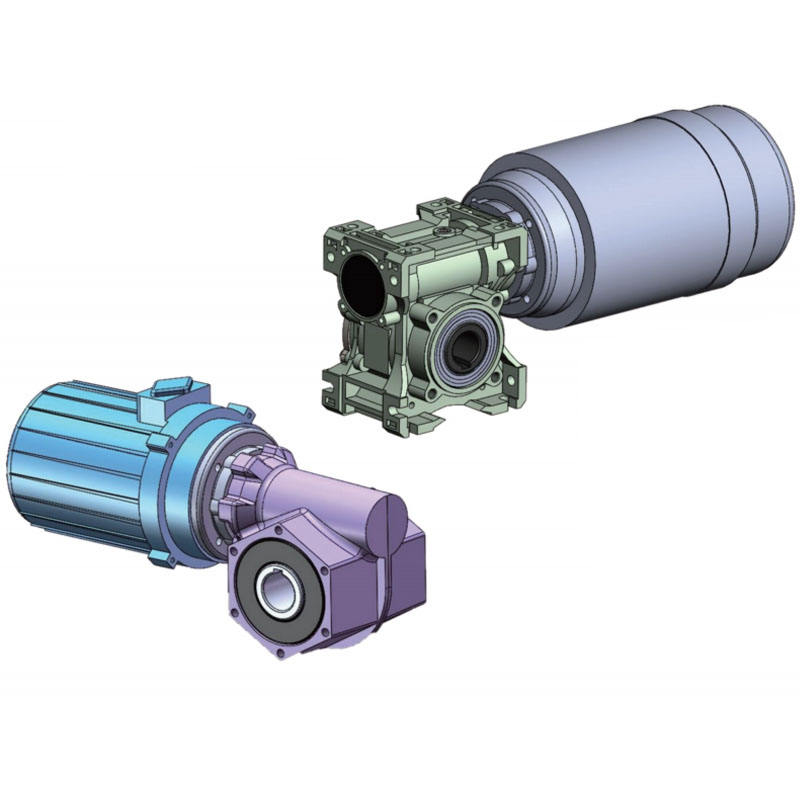

XRV050 gear reducer

XMRV050 gear reducer

Model	speed ratio	Input flange	power
XRV050 & XMRV050 gear reducer	5/75/10/12/15/16/20/25/30/40/50/52/60/80/100	71B14	0.25kw、0.37kw 、0.55kw
XRV050 & XMRV050 gear reducer	5/75/10/12/15/16/20/25/30/40/50/52/60/80/100			80B14	0.55kw、0.75kw

How Car Wash Gearbox Works？

A car wash gearbox works by converting the input rotational motion and power from a motor into the desired output motion and torque required to drive various components within a car wash system. Here's a general overview of how a car wash gearbox functions: 1. Input Shaft: The gearbox receives rotational motion and power from an input shaft connected to a motor or drive system. This input shaft transfers the rotation to the gearbox's internal components. 2. Gearing System: The gearbox contains a system of gears that transmit and modify the rotational motion and torque. The gears are arranged in specific configurations, such as spur gears, helical gears, or planetary gears, depending on the gearbox design and requirements.

3. Speed Reduction or Increase: The gears within the gearbox are sized and arranged to achieve the desired speed reduction or increase. In car wash applications, speed reduction is often required to provide the necessary torque for driving components like brushes or conveyor belts at the desired speed. 4. Torque Transfer: As the input shaft rotates, the gears within the gearbox mesh and transfer the rotational force, effectively increasing or decreasing the torque depending on the gear ratio. This torque transfer allows the gearbox to deliver the required driving force to the car wash system's components. 5. Output Shaft: The output shaft of the gearbox transfers the modified rotational motion and torque to the driven components within the car wash system. This can include brush systems, conveyor belts, arches, pumps, or other components involved in the car wash process. 6. Control and Adjustment: Car wash gearboxes may incorporate additional features for control and adjustment. These can include variable speed control mechanisms, clutch systems for engaging/disengaging the gearbox, or other control mechanisms to fine-tune the operation and performance of the car wash system. The specific operation and internal configuration of a car wash gearbox can vary depending on the gearbox design, manufacturer, and specific application requirements. The gearbox design and gear arrangement are optimized to provide the necessary torque, speed, and control for driving the components within the car wash system effectively.

Application of Car Wash Gearbox

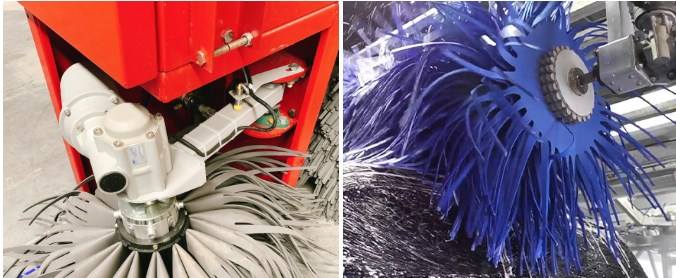

1.Brush Systems: Car wash gearboxes are commonly used to drive the rotating brushes that clean the exterior surfaces of vehicles. The gearbox provides the necessary torque and speed to ensure effective cleaning while allowing for adjustable brush rotation. 2.Conveyor Systems: Car wash gearboxes are employed in conveyor systems that move vehicles through the car wash process. The gearbox drives the conveyor belts or rollers, ensuring a smooth and controlled movement of vehicles through different cleaning stages. 3.Arch Systems: In car wash systems that utilize arches for applying soap, foam, wax, or other cleaning agents, gearboxes are used to control the movement and positioning of the arches. The gearbox allows for precise and synchronized operation of the arches for optimal application of cleaning solutions. 4.Drying Systems: Car wash gearboxes are utilized in drying systems, such as air blowers or drying curtains, to provide rotational motion and control the movement of drying elements. The gearbox ensures consistent and efficient drying of the vehicle's surfaces. 5.Pumping Systems: Some car wash systems utilize gearboxes in pumping systems for delivering water, cleaning solutions, or other fluids to various parts of the car wash process. The gearbox helps drive the pumps, providing the necessary pressure and flow rate for effective cleaning operations. 6.Miscellaneous Applications: Car wash gearboxes can be found in other components and mechanisms within a car wash system, such as water sprayers, oscillating nozzles, or rotating platforms for specialized cleaning or detailing purposes.

We also provide motors for use with car washing gearboxes

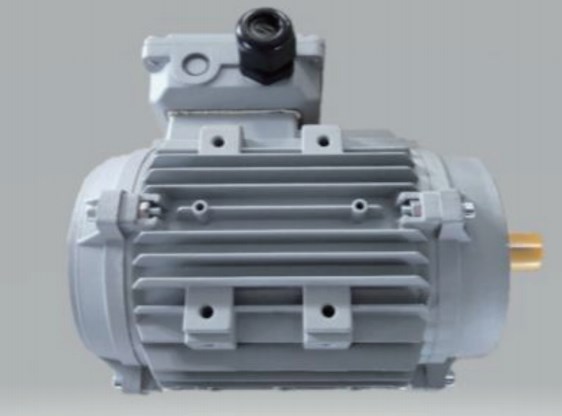

IP67 MOTOR

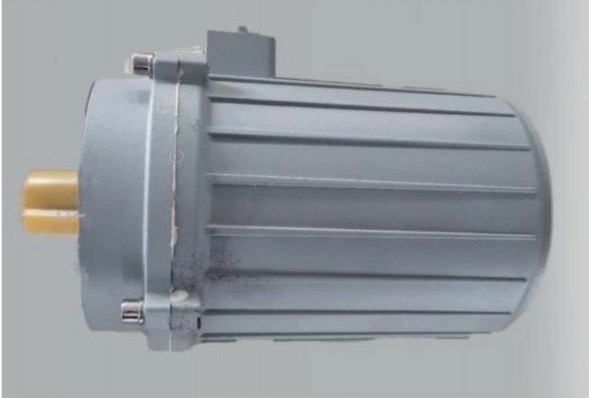

IP56 MOTOR
