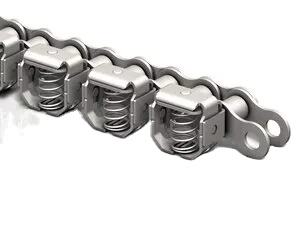

08B1GC-D Stainless Steel Clamp Roller Chain for Film Label Conveying with Clamp Extra Plastic (D-type)

Raydafon Group's 08B1GC-D Stainless Steel Clamp Roller Chain for Film Label Conveying with Clamp Extra Plastic (D-type) delivers superior durability and precision in film handling. Ideal for packaging and labeling industries, its stainless steel construction and D-type clamp ensure reliable performance, reducing downtime and enhancing efficiency. Experience seamless operations and trust in Raydafon's innovation for your conveying needs.
Send Inquiry
Product Description

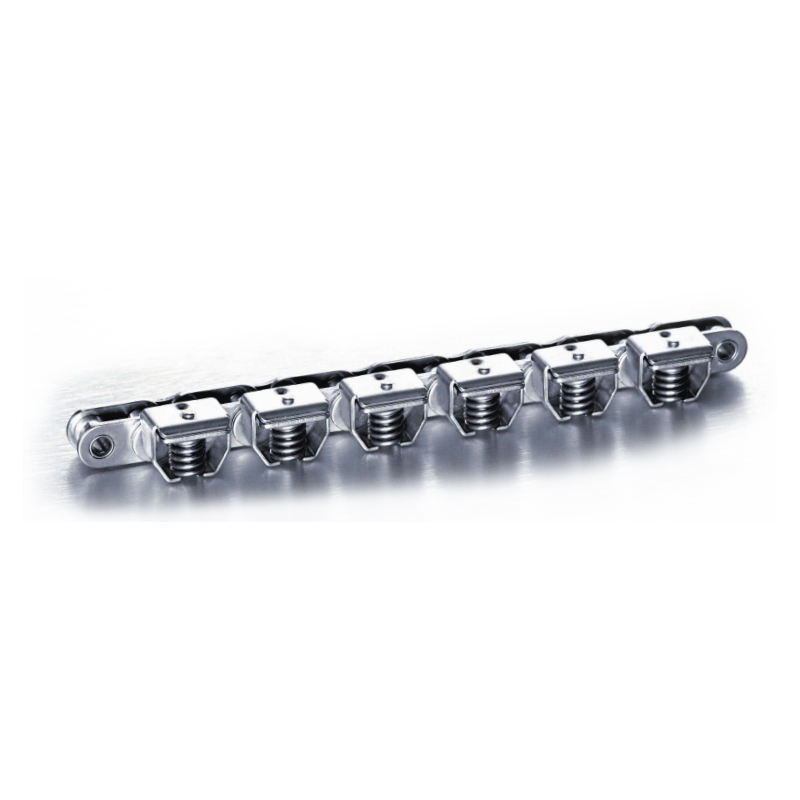

08B1GC-D Stainless Steel Clamp Roller Chain for Film Label Conveying with Clamp Extra Plastic (D-type)

Product Description
08B1GC-D Stainless Steel Clamp Roller Chain for Film Label Conveying with Clamp Extra Plastic (D-type)
08B
1
GC
A
SS
Chain Size
Strand
Gripper Chain
Type
Base Chain Material
08B1GC-D Stainless Steel Clamp Roller Chain for Film Label Conveying with Clamp Extra Plastic (D-type)

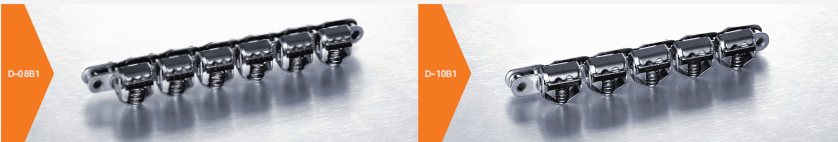

The Clamp w/ extra Plastic (Type D)
offer combined Steel- Plastic plates which ensure the optimum wearing performance..
Code
DIN / ISO
Material
Pitch
Inside Width
Roller Dia.
Clamp Force
Tensile Strength
Base Chain
Clamp
Spring
P mm
b1 Max
mm
d1 Max
mm
Q-C
N
Q Min
kN
08B1GC-D
08B-1
SS
SS
SS
12.700
7.75
8.51
50
15.0
08B-1
NP
SS
SS
12.700
7.75
8.51
50
18.0
10B1GC-D
10B-2
SS
SS
SS
15.875
9.65
10.16
70
18.5
10B-2
NP
SS
SS
15.875
9.65
10.16
70
22.4
08B1GC-D Stainless Steel Clamp Roller Chain for Film Label Conveying with Clamp Extra Plastic (D-type)
With more than 20 years experience of stainless steel chains production, we are becoming one of the leading manufacturers in China. After continuous study and investment, we now have almost all popular Gripper Chain models. Those high-performanced chains are widely welcomed by both OEM and after-market, domestic and overseas customers.
08B1GC-D Stainless Steel Clamp Roller Chain for Film Label Conveying with Clamp Extra Plastic (D-type)

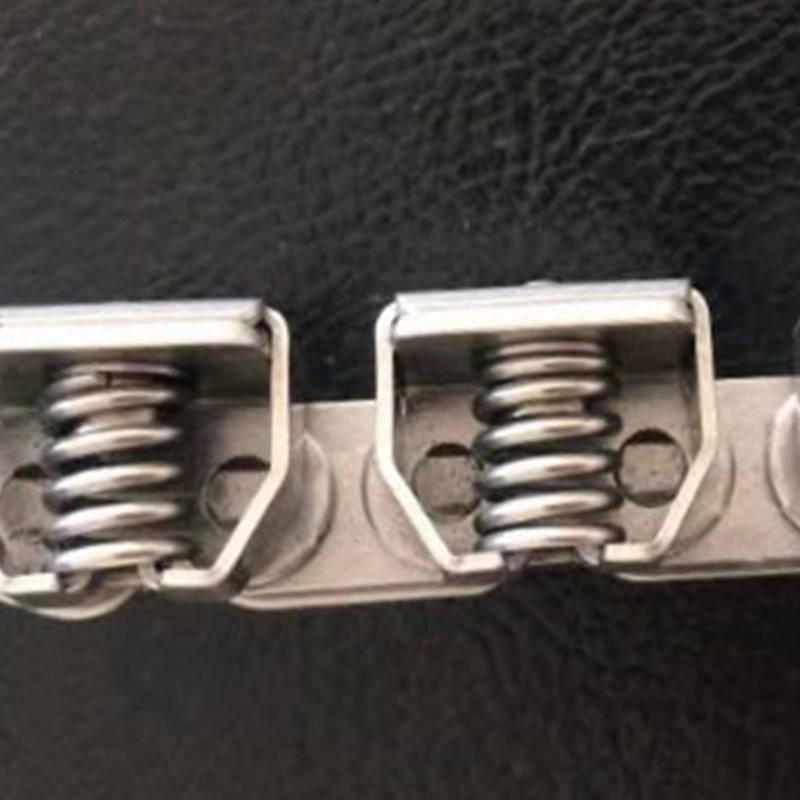

Gripper Chain Features

1.Gripper Chains with Base Chains available both in Nickel Plated and Stainless Steel, for excellent corrosion
resistance;
2.Stainless springs are made of Japan-imported material which ensure the clamping force always;
3.For stainless steel base chain, Pin & Bush are made of AISI 630HT which provides outstanding wear-resistance;
4.Supplied in Pre-streched and matched strands which guarantee trouble-free machine set-up;
5.Furthermore, Lube-free Nickel Plated chain version is also available upon request.
Applications
08B1GC-D Stainless Steel Clamp Roller Chain for Film Label Conveying with Clamp Extra Plastic (D-type)
08B1GC-D Stainless Steel Clamp Roller Chain for Film Label Conveying with Clamp Extra Plastic (D-type)

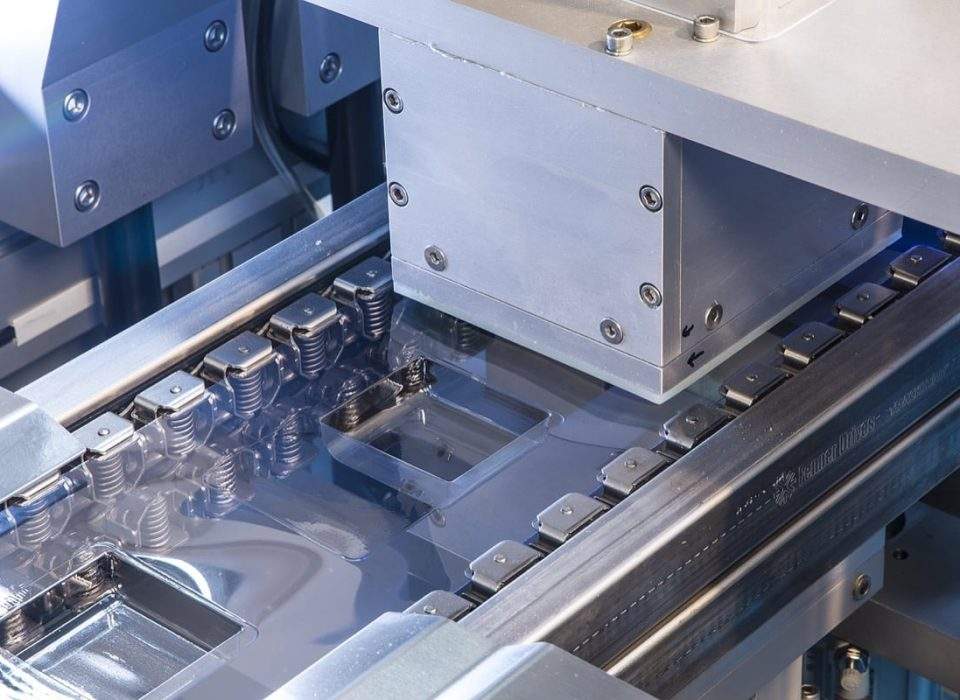

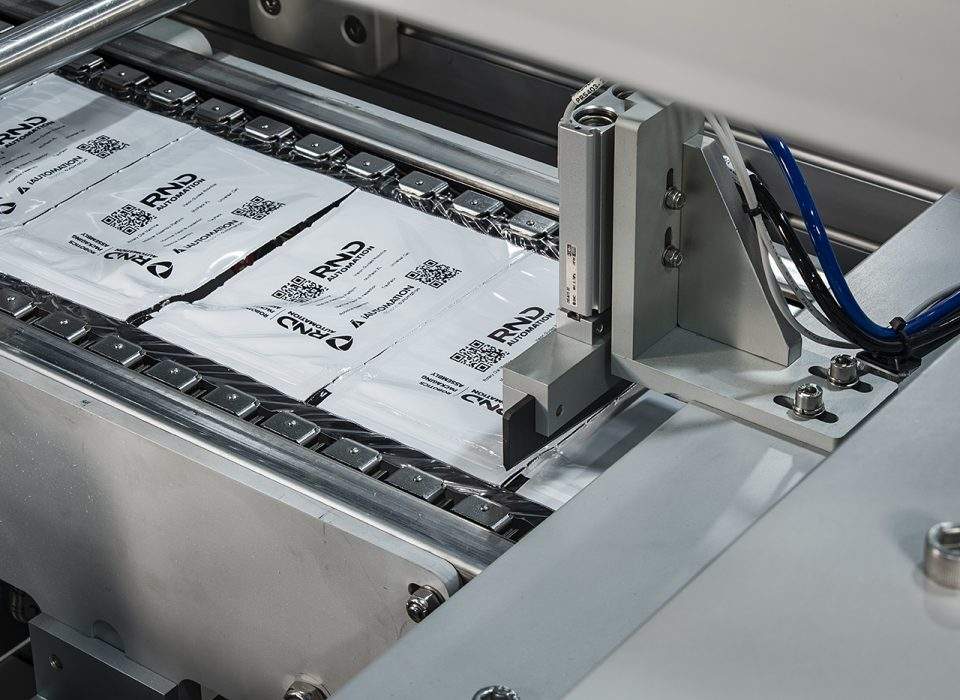

Gripper chains are widely used in various industries for Form, Fill and Vacuum Seal wrapping applications

--Food Industry: Packaging for Ham, sausage, cheese, bread, fish etc.
--Electronics Industry: Packaging for wires etc.
--Medical Industry: Packaging for injection syringe, pharmaceutical etc.
For more types，Please click here！
We provide chain matching sprockets with various specifications, which can be customized according to your drawings
08B1GC-D Stainless Steel Clamp Roller Chain for Film Label Conveying with Clamp Extra Plastic (D-type)
