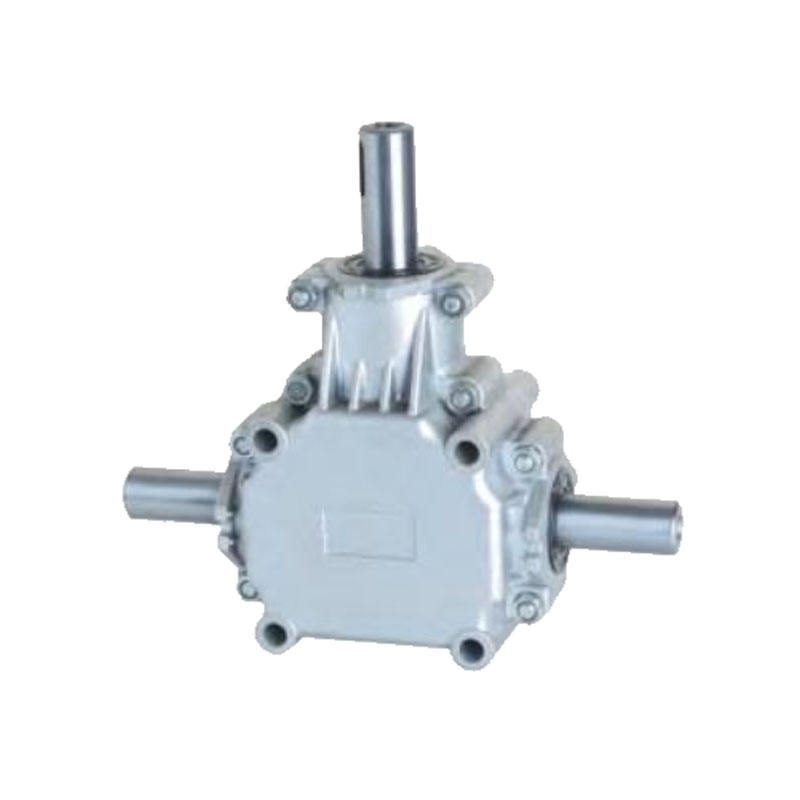

1000 to 540 Tractor Toyota PTO Right Angle Bevel Cutter Agricultural Rotovator Power Rotary Tiller Gearbox for Flail Mower

Raydafon Group's 1000 to 540 Tractor Toyota PTO Right Angle Bevel Cutter Agricultural Rotovator Power Rotary Tiller Gearbox for Flail Mower offers durable, high-performance gear reduction. Ideal for farmers and landscapers, it enhances efficiency, reduces maintenance, and ensures smooth operation, making tough tasks effortless and reliable.

Send Inquiry

Product Description

1000 to 540 Tractor Toyota PTO Right Angle Bevel Cutter Agricultural Rotovator Power Rotary Tiller Gearbox for Flail Mower

Products Description

The gearbox is used for lawn mower transmission, our normal standard from 30 HP-90 HP, we accept custom-made. We are professionals in the agricultural gearbox field with more than 15 years of experience.
This series gearbox is self-developed. With its characteristics of high universality, simple structure, good performance, etc, it is widely used in garden machines and other agricultural machines.
Various gearboxes are used in agricultural machines and industrial machines.
Advanced technics, strong self-development power, ability to produce new type gearbox according to customer’s design drawings.

* All gearboxes are supplied without oil.
* First oil change after 50-70 operating hours, then after 500-700 operating hours or at least once a year.
* Contact us for power at a different RPM.

Composition of agricultural gearbox

Agricultural machinery gearbox is one of the important components of agricultural machinery and equipment, which is usually used to transfer power, change output speed, improve torque and other functions. The gearbox of agricultural machinery is usually composed of several components, including: 1. Housing: The housing of agricultural machinery gearbox is made of cast iron or other materials, usually in box shape. 2. Bearing: The bearing in the gearbox of agricultural machinery is used to support the rotation of the shaft, reduce friction, and make the shaft bear the load. Bearings include ball bearings and sliding bearings. 3. Gear: The gear box of agricultural machinery includes a number of gears of different shapes and sizes. The gears transmit the input power to the output shaft through meshing. 4. Shaft: shaft is the component responsible for carrying and transmitting power and torque. Agricultural machinery gearbox usually includes input shaft and output shaft. 5. Oil seal: The oil seal in the gearbox of agricultural machinery is designed to prevent the leakage of lubricating oil and keep the oil clean and durable. 6. Lubrication system: The lubrication system is used to provide lubricating oil to reduce friction and wear and keep the operating temperature of the gearbox low. In general, the agricultural machinery gearbox is a complex mechanical component, composed of multiple components, which work together to achieve the functions it provides.

ITEM	*EP-75*	*EP-9.310*	*EP-20100.131.00*	*EP-9.311-JCG*	*EP-9.312*	*EP-30*	*EP-9.311*
Ratio	1:3 / 1:2.83 / 1:1.65 / 1:1.6	1:3	1.31:1	1:3	1:3	1:2.9	1:3
Teeth	12/36 34/12 33/20 24/15	12/36	16/21	36/12	12/364.58	32/11	36/12
Module	6.0/5.35/5.5/7.5	3.45	7.0	4.35	4.58	3.0	4.35
Power（HP）	75/75/100/125	30	100	50	62	30	50
Rated Input	540rpm	540rpm	600rpm	540rpm	540rpm	540rpm	540rpm
Input/Output Deacription	3/8 Z6 / Opitc axis	1 3/8 Z6 / Opitc axis	8-Φ 48×Φ 42×8	1 3/8 Z6 / Opitc axis	1 3/8 Z6 / Opitc axis	1 3/8 Z6 / Opitc axis	1 3/8 Z6 / Opitc axis
Weight（N.W）	37kg	18kg	58kg	21kg	27kg	13.5kg	21kg

Our agricultural gearbox is the right choice

1. Large output torque

2. Safe, reliable, economical, and durable
3. Stable transmission, quiet operation
4. High carrying ability
5. High modularization design, may equip with various outer power inputs conveniently. The same machine type may equip with various power motors. It is easy to realize the combination and junction between every machine type
6. Transmission ratio: Fine division, wide scope. The combined machine type may form a very large transmission ratio, i. E. Output very low rotary speed.
7. Form of installation: The position to be installed is not limited.
8. High strength, compact the box body of high strength cast iron, gear and gear shaft adopt the gas carbonization, quenching, and fine grinding process, therefore the bearing capacity of unit volume is high.
9. Long life: Under the condition of the correct type chosen(including choosing suitable operation parament ) normal operation and maintenance, the life of the main parts speed reducer(except wearing parts)should not be less than 20000 hours. The wearing parts include lubricating oil, oil seal, and bearing.
10. Low noise: Because the main parts of the speed reducer are processed, and tested critically, therefore the noise of the speed reducer is low.
11. Our gearbox has reached the advanced international level and can replace the same kind of products imported.

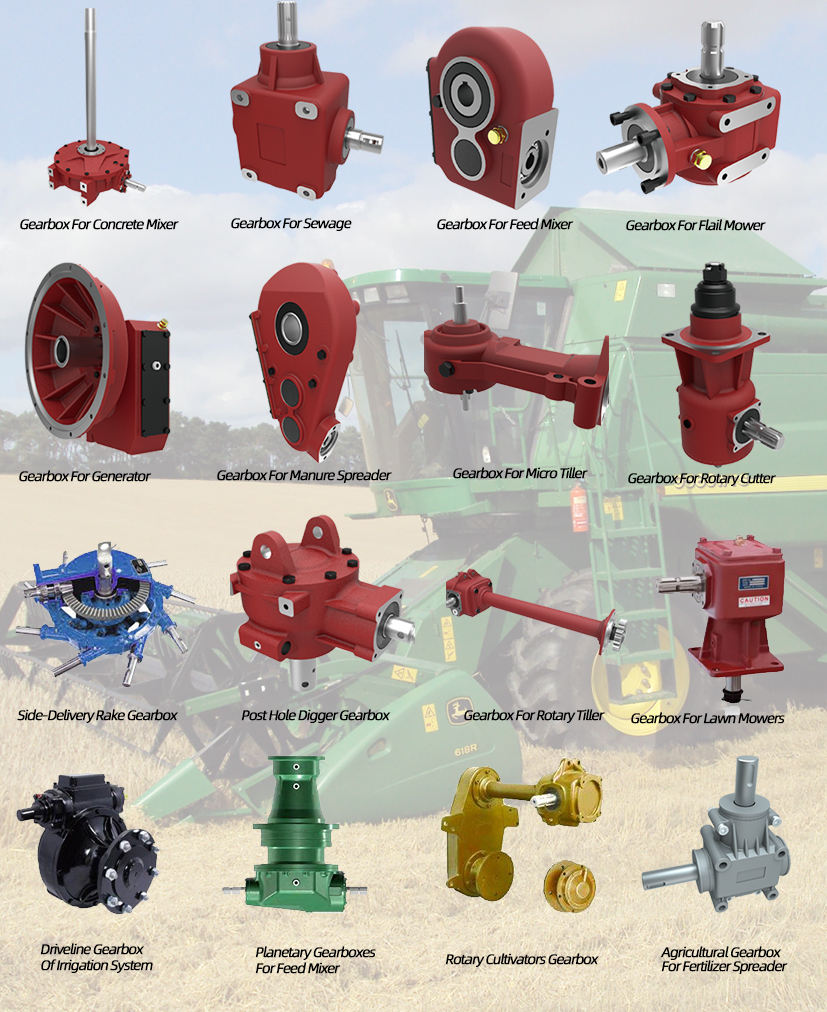

Application

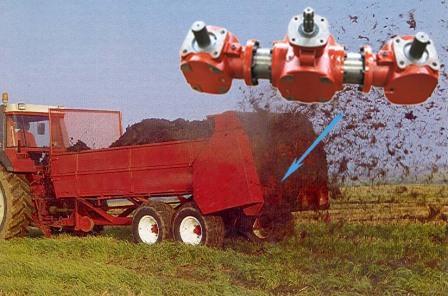

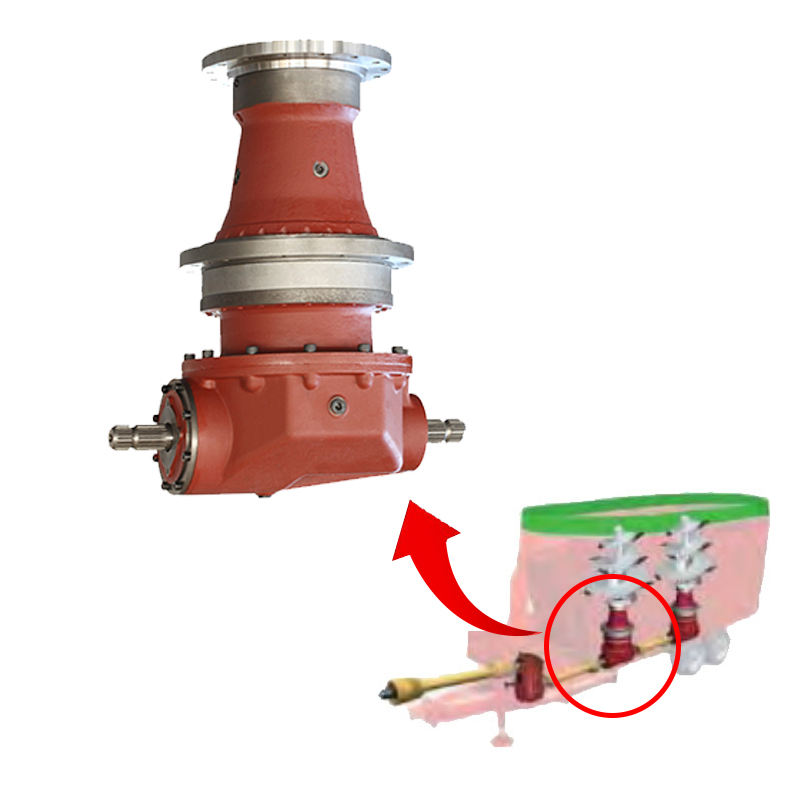

Spreader gearbox

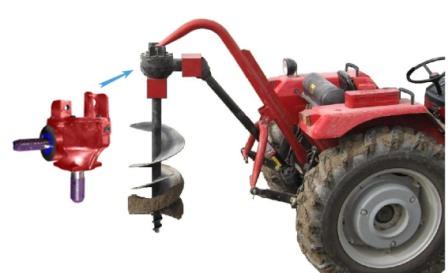

Drilling machine gearbox

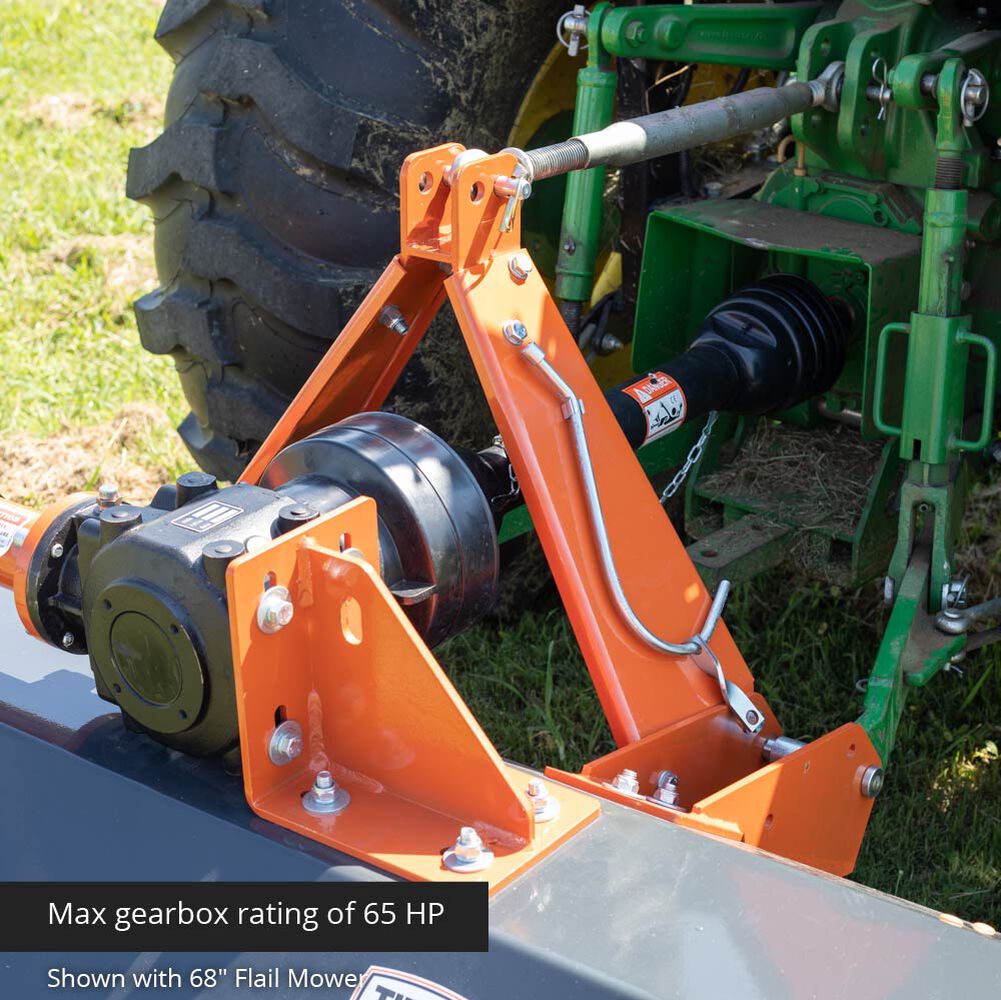

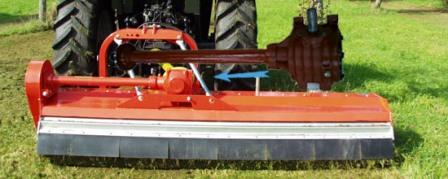

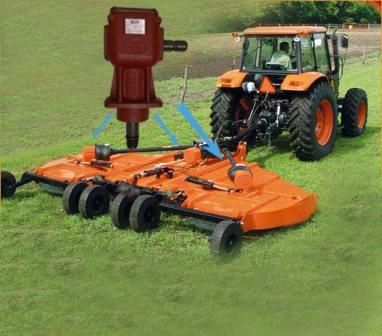

Mower gearbox

Stubble remower

We Also Supply PTO Shafts

Click here for more types！

Customer Feedback Graph

For more types，please contact us！
