220GSKB High Speed Granule Packing Machine for Food Additives Desiccants White Sugar Instant Coffee

220GSKB High Speed Granule Packing Machine for Food Additives Desiccants White Sugar Instant CoffeeProducts DescriptionHigh Speed Granule Packing MachineThis machine is suitable for products in medicine, food, health care and special industries, such as food additives, desiccants, white sugar.instan......

Send Inquiry

Product Description

220GSKB High Speed Granule Packing Machine for Food Additives Desiccants White Sugar Instant Coffee

Products Description

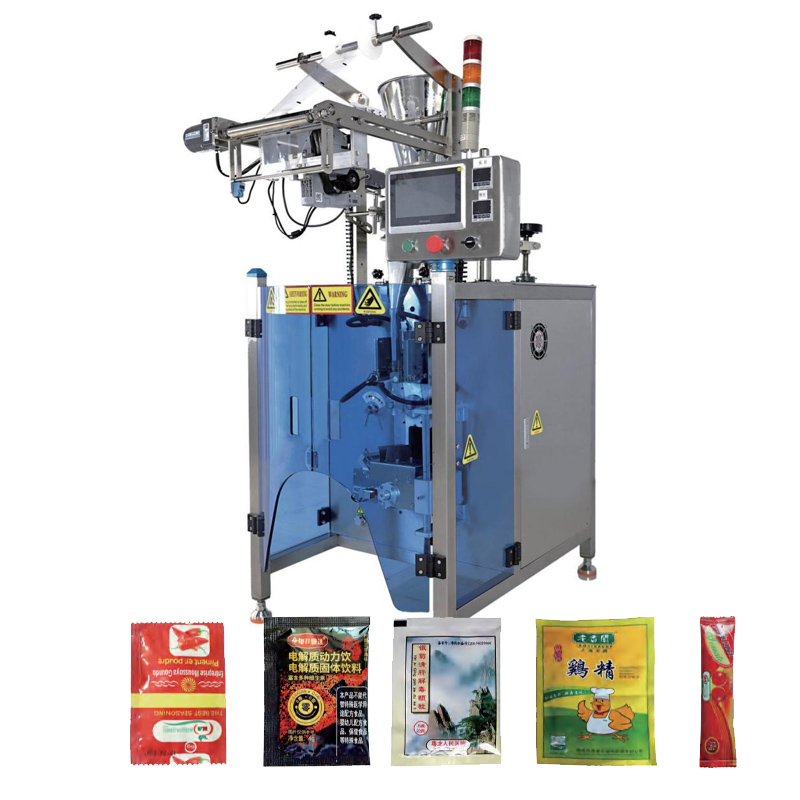

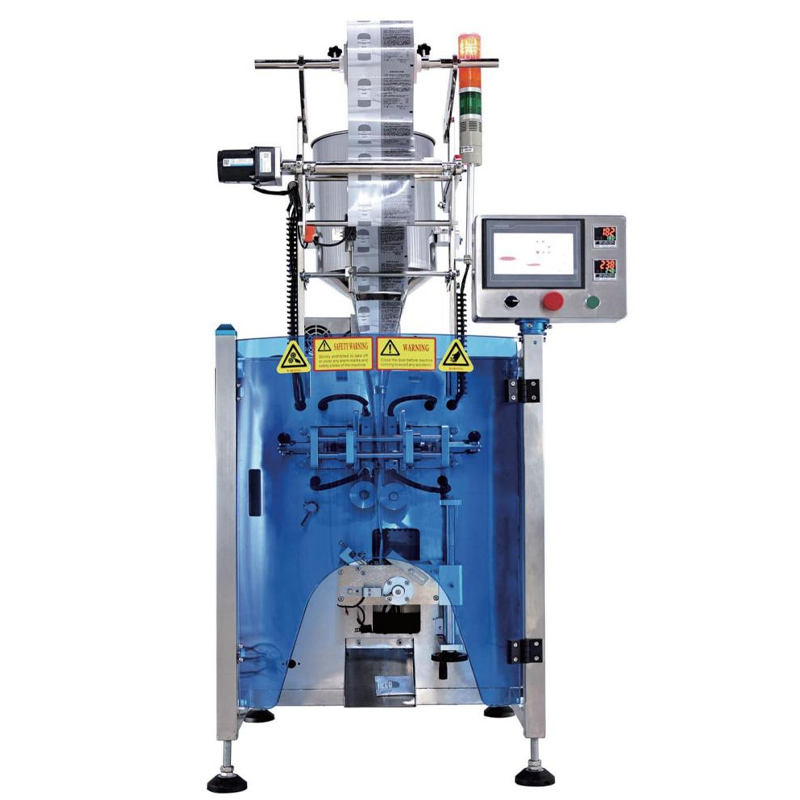

High Speed Granule Packing Machine

This machine is suitable for products in medicine, food, health care and special industries, such as food additives, desiccants, white sugar.instant coffee, traditional Chinese medicine granules and various granules

Equipment Characteristic

1、 lt can automaticaly complete all the work of fling、 measuring, bag making、 seaing、 cuting、 hot pressing, batch number, etcduring the packaging process, and the photoelectric tracking positioning does not need to be adjusted.

2、 Purely electric, using three stepping motors, the movement is lighter,the stucture is more streamlined, and it is easy to maintain anamaintain.

3. intellgent control system, chinese and Enalsh LaD display, Ony need to set the parameters to precisely control the operaton of thesystem. 4、 The heat sealer controls the uniform heating of the bag side, and the temperature of the upper and lower sides can be adjustedseoarately.

5、 Replading the cutter can realize one-line, pattern-shaped cuting, one-line joint cuting, bag cutting is stable and reliable without bagamming, easy to operate, and can be equipped with a wheel type coding machine to arrange batch numbers, shelf life, etc.

Features

1、 Pure electic, using three stepper motors, lighter in action, more streamlined in structure, easy to maintain and easy to maintain

2、 The speed can be adjusted by pressing the up and down keys on the PLC screen display without adjusting any parameters; 3、Quiet, high precision, easy to dean; 4、The chassis is customized with 304 stainless steel, non-outsourcing stainless steel plate, 5、 The equipment is highly compatible, and diferent specifications can be realized by changing the mold,solid state use cooling base

Basic Parameters

Product name	220GSKB
Filling volume range	1-30g
Bag width	(back seal)L:20-145mm;W:20-100mm (side seal)L:20-145mm;W:30-100mm
Dose range	rotary measuring cups
Control system	PLC Control system
Voltage	220V50-60HZ/2KW
Speed	80-120bag/min
Weight	300KG
Dimension	L900W700H1720 mm
Packing material	BOPP/PE/PET,any heat sealing laminated fim roll
