2507111 Agricultural spare parts Knotter Cam replacement For Baler

2507111 Agricultural spare parts Knotter Cam replacement For BalerProduct DescriptionCharacteristic The Gallignani baler 5690 EXL was designed to be versatile and high-performing for various working environments. While its compression chamber and tail are similar to that of the 5690 S model, this mo......

Send Inquiry

Product Description

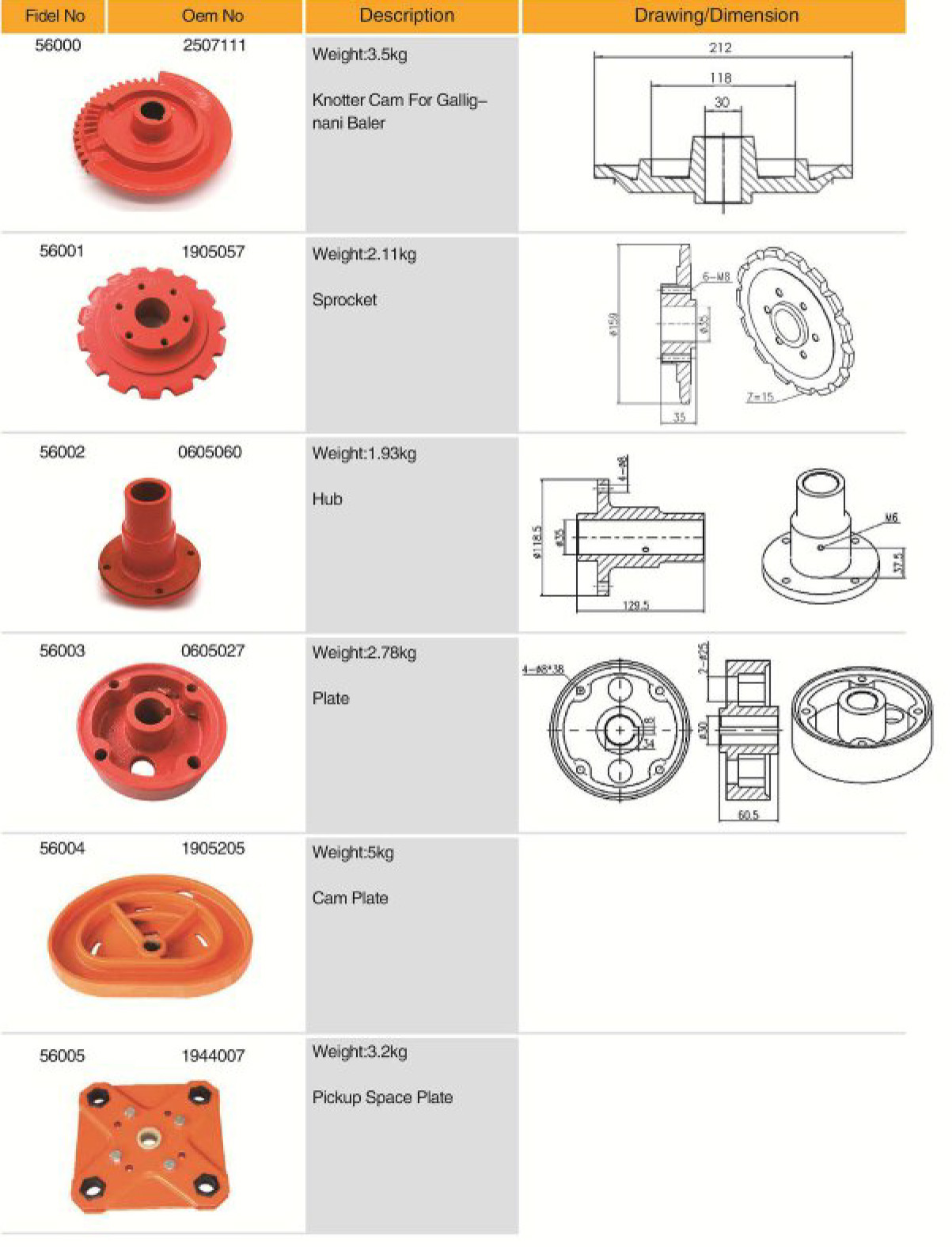

2507111 Agricultural spare parts Knotter Cam replacement For Baler

Product Description

Characteristic

The Gallignani baler 5690 EXL was designed to be versatile and high-performing for various working environments. While its compression chamber and tail are similar to that of the 5690 S model, this model's pick-up is wider and has more teeth: 156 on each bar. The three forks have crossed phases, and a surprising mix of performance makes it an excellent choice for a large variety of baling applications. Knotters are positioned using an adjustment screw instead of shims The wheels of a Gallignani baler may be placed at a wide wheel stance during operation and narrowed while driving. Wheel stances are important because field dimensions may vary. Also, the wheels may not fit the dimensions of the truck. In this case, the undercarriage of the baler may have adjustment holes for adjusting wheel stances. They are positioned using an adjustment screw The Gallignani Baler comes with a parts catalogue in French and an English supplement booklet. The parts catalogue is in rough condition with a worn cover, dirt marks, and slightly turned up corners. However, it is still legible. Using the parts catalogue can make assembly and adjustment of the Gallignani Baler much easier. They are used to position the bales The knotter cam for the Gallignani baler is a mechanical device that is used to position the individual bales. The knotter cam is pivotally connected to the baler's tying mechanism and is operated via a clutch mechanism. The clutch mechanism comprises a pawl assembly and a pawl tab. A second cam is pivotally attached to the pawl tab and operatively associated with the pawl assembly.

Click here for more details！

Our Main procucts

Please click on the photos below to visit their websites.

Hot Tags: 2507111 Agricultural spare parts, Knotter Cam replacement, Baler parts, Raydafon Transmission, Raydafon, Raydafon Power, Supplier, Manufacturer, Factory, China
