280D Alcohol Pre-pads Four Side Packing Machine

280D Alcohol Pre-pads Four Side Packing MachineProducts Description280D Alcohol Pre-pads Four Side Packing MachineThe fully automatic alcohol cotton pad packaging machine is developed by Sino Company based on years of experience in medical dressing production lines and medical device production equi......

Send Inquiry

Product Description

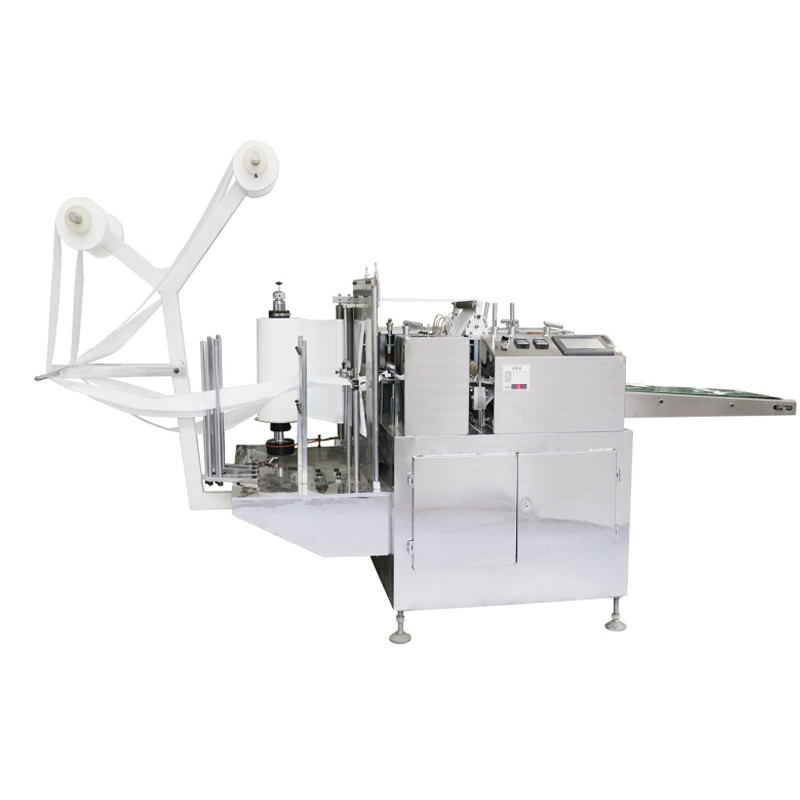

280D Alcohol Pre-pads Four Side Packing Machine

Products Description

280D Alcohol Pre-pads Four Side Packing Machine

The fully automatic alcohol cotton pad packaging machine is developed by Sino Company based on years of experience in medical dressing production lines and medical device production equipment. Its stable and efficient excellent quality is very suitable for large-scale production of alcohol pads by a large number of production enterprises.

Equipment performance

1. Color touch screen operation interface operation; Adopting servo drive system; The PLC programmable controller intelligently controls the operation of the entire machine, providing precise film feeding, stable transmission of cotton sheets, and precise bag cutting. 2. Imported liquid pump, the amount of liquid added can be directly set on the touch screen. 3. Under the premise of high liquid addition, the seal should be tight, leak free, and bubble free 4. Independent column type mold frame, mobile synchronous heat sealing system, more uniform and stable sealing surface temperature, tight edge sealing, durable!. 5. Packaging materials with different thicknesses and materials have a wider adaptability. 6. Multipurpose: This machine is also suitable for automatic cutting and sealing of single films

Production process

Non woven fabric and packaging film machine → Non woven fabric folded vertically (or not folded) → Cutting → Liquid addition → Folding sheet output → Bag making → Packaging → Sealing → Output packaged finished products.

Basic Parameters

Model	280D
Expended Size	(L)30×(W)60mm
Folded Size	(W)30×(W)30mm
Folding Way	Folded once, 2 layer or no folded single layer
Bag Size	(L) 50mm×(W)50mm
Film requirements	73-110g/㎡ paper-aluminum film composite wrapping paper, Φ≤350 mm, width 400 mm, inner diameter of paper core 76.2
Raw Material	Coiled, 30-60g/㎡ spunlace non-woven fabric, diameter ≤600mm, width 60mm
Inner diameter of raw paper core	Φ 76.2mm (=3")
Power	220v ，50hz ，5 kw
Packing Speed	280-400 Bag/min
Machine Size	(LWH)2800×1300×1500mm
Weight	500 KG
