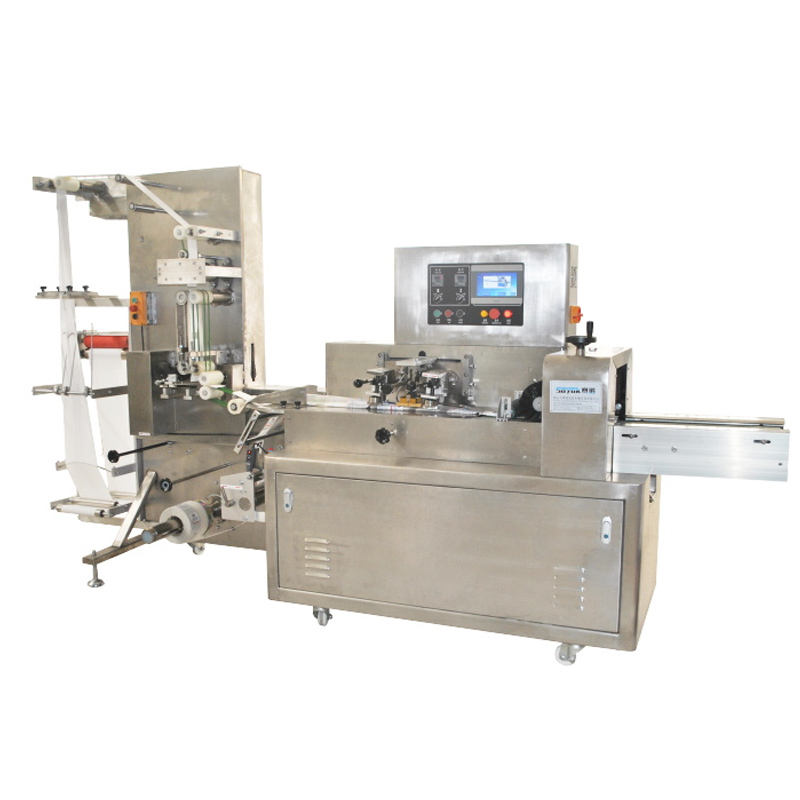

350X (5) Wet Wipes Tissue Automatic Cutting and Packaging Machine

350X (5) Wet Wipes Tissue Automatic Cutting and Packaging MachineProducts Description350X (5) Wet Wipes Tissue Automatic Cutting and Packaging MachineThe equipment adopts a photovoltaic integrated design, PLC centralized control, mature equipment technology, stable performance, simple operation, bea......

Send Inquiry

Product Description

350X (5) Wet Wipes Tissue Automatic Cutting and Packaging Machine

Products Description

350X (5) Wet Wipes Tissue Automatic Cutting and Packaging Machine

The equipment adopts a photovoltaic integrated design, PLC centralized control, mature equipment technology, stable performance, simple operation, beautiful packaging of finished products, continuous pneumatic sealing firmly, ensuring the sealing of wet wipes products. It can automatically complete the entire process of non-woven fabric folding, humidification, counting and cutting, automatic feeding, filling, labeling and punching, bag making and sealing, batch number printing, measuring and packaging, and finished product output, saving labor and high degree of automation

Equipment performance

1. Color touch screen operation interface operation; Adopting servo drive system; The PLC programmable controller intelligently controls the operation of the entire machine, providing precise film feeding, stable transmission of cotton sheets, and precise bag cutting.

2. Imported liquid pump, the amount of liquid added can be directly set on the touch screen.

3. Under the premise of high liquid addition, the seal should be tight, leak free, and bubble free

4. Independent column type mold frame, mobile synchronous heat sealing system, more uniform and stable sealing surface temperature, tight edge sealing, durable!.

5. Packaging materials with different thicknesses and materials have a wider adaptability.

6. Multipurpose: This machine is also suitable for automatic cutting and sealing of single films

Production process

Roll material machine → slitting and folding → conveying → spraying → water jet non-woven fabric machine (finished product) → tail frame automatic synchronous conveying → bag insertion → automatic opening → automatic labeling → bag making → sealing → cutting → product conveying

Basic Parameters

	SN-1L	SN-6L
Wet wipes unfolded size	L*H:100-220×100-240mm	(120-210)X(160-220) (length X width)
Wet wipes folded size	L*H: 80-110×30-90mm	(120-210)X(90-110) (length X width)
Wipes folding method	Vertically folded N/W type	Vertically folded N/W type
Bag size	L*W: 130-160×50-100mm	Single bag: L*W: 130-160×50-100mm
Processing capacity	Single row 40～100 slices/min (single row)	1200-2400 pieces/minute 15-20 packs/minute (80 pieces/pack)
Packaging film	70-130g/㎡ PE&PET OPP&PE , Φ≤400mm, width 200-380mm	70-130g/㎡ PE&PET OPP&PE , Φ≤400mm, width 200-380mm
Raw Material	40-80g Spunlace	40-80g Spunlace
Total power	220V 50Hz 3KW	380V 50HZ 2.15KW
Machine weight	About 810 kg	1400kg
Dimensions	LWH: 4020×720×1320mm	LWH:6000×2500×1800mm
