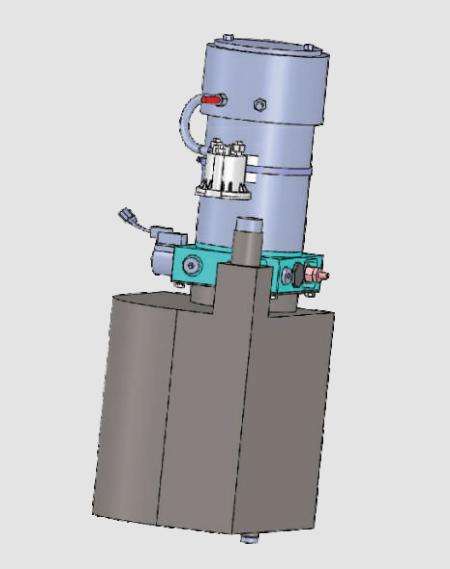

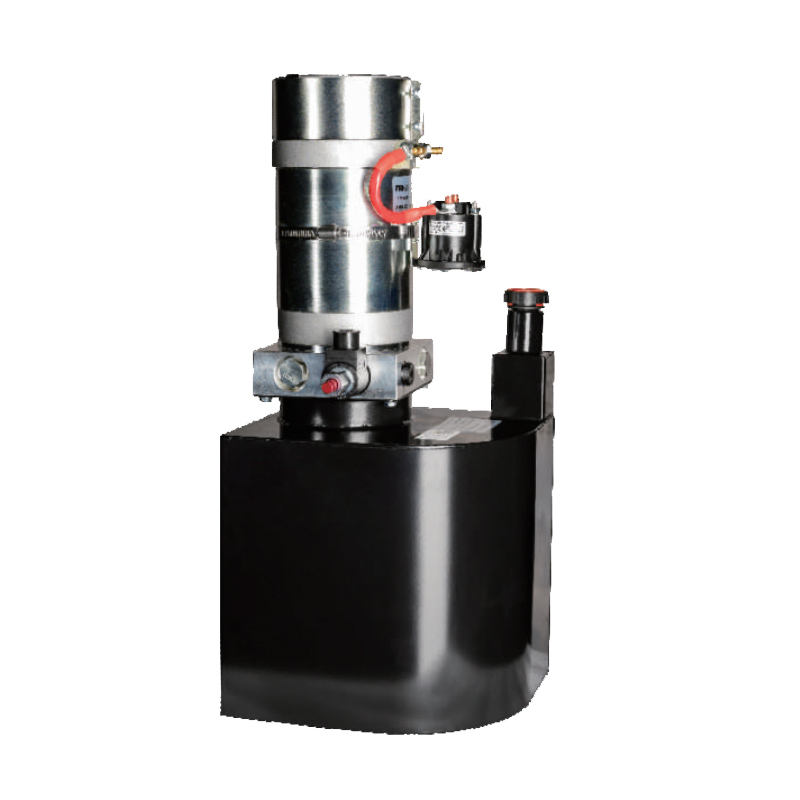

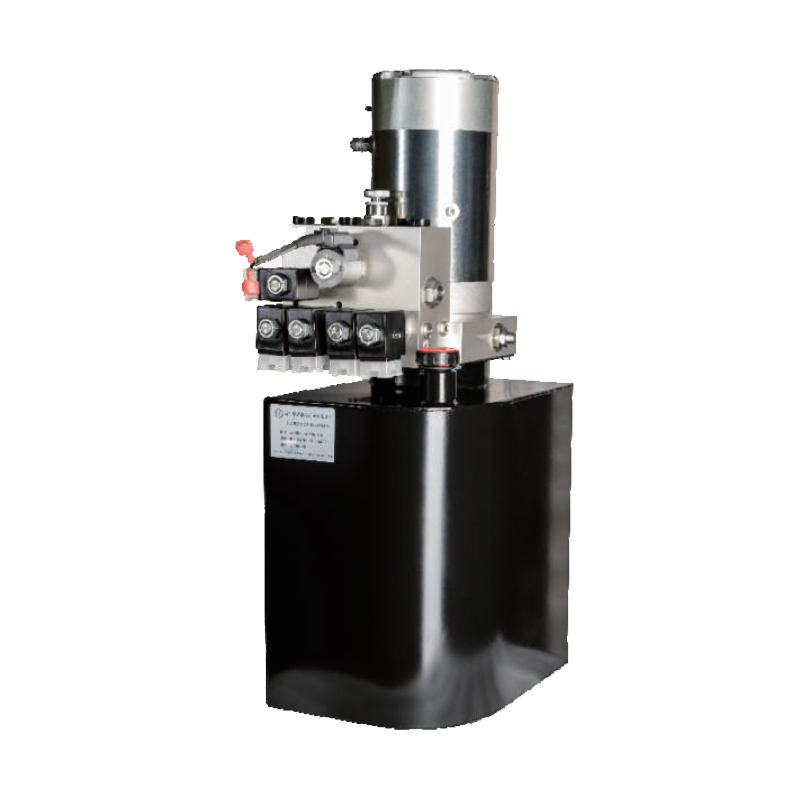

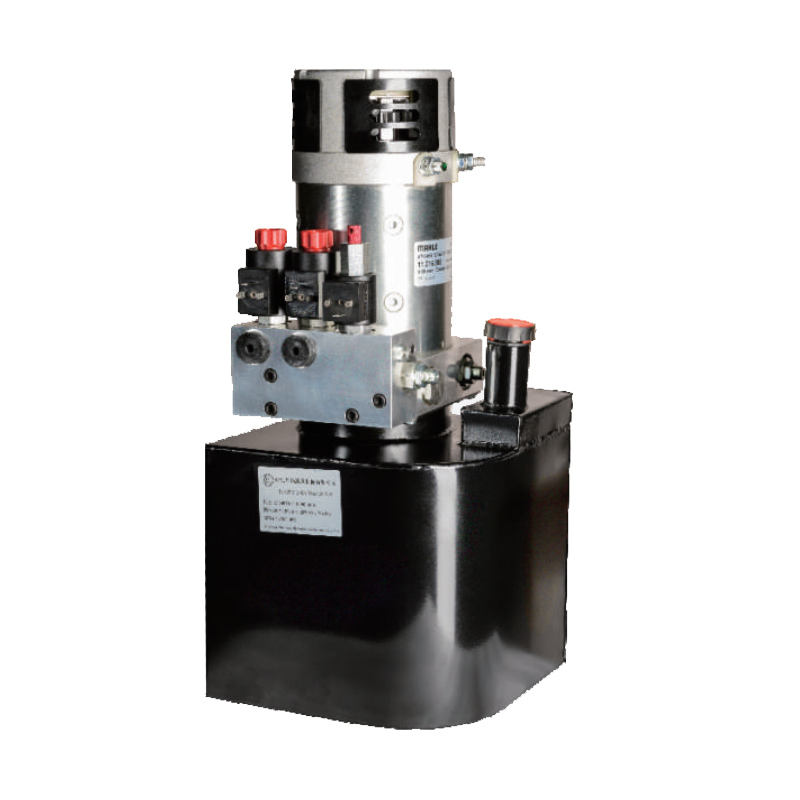

ABDS201 Electric Pallet Trucks Series 24V Hydraulic Power Unit

ABDS201 Electric Pallet Trucks Series 24V Hydraulic Power UnitProduct DescriptionFeatures---Mainly used for logistics equipment, automobile warranty equipment, mining machinery, agricultural machinery.machine tool fixture, automobile, loader, snow plow, lifting platform;---Simple principle,reliable ......
Send Inquiry
Product Description

ABDS201 Electric Pallet Trucks Series 24V Hydraulic Power Unit

Product Description
ABDS201 Electric Pallet Trucks Series 24V Hydraulic Power Unit
ABDS201 Electric Pallet Trucks Series 24V Hydraulic Power Unit

Features

---Mainly used for logistics equipment, automobile warranty equipment, mining machinery, agricultural machinery.machine tool fixture, automobile, loader, snow plow, lifting platform;
---Simple principle,reliable performance, easy maintenance;
---Compact structural, beautiful appearance, and small overall layout space;Through different combinations of hydraulic valves, there are more than 200 hydraulic circuits for customers tochoose: ---Adopt high efficiency, low noise, small volume of high pressure small displacement gear pump, pumpdisplacement selection range is large; ---Can use DCC motor, motor voltage selection range is large;
---With high performance, zero leakage cartridge valve, pressure maintaining good performance,
----Each valve pressure loss is small, low energy consumption, economic and environmental protection;Can be used with manual emergency operation reversing valve, high safety;
---The electromagnetic proportional reversing valve can be used to realize the proportional control of the runningspeed of the actuator: ---Return oil using throttle valve, steady drop, small hydraulic impact;
---The valve block is made of high strength aluminum alloy, light weight and not easy to rust,
---The use of universal standard jack, good technology;Electric control or manual operation;
Technical parameters
ABDS201 Piling truck series
Forward stacker car series
Picking up cart series
Dc voltage (V)
24
24.
24
Motor power (kW)
2.2/3.0
3.0
3.2
Rated speed (r/min)
2750/2850
2850
3150
Pump displacement(m//r)
2.7/3.7
3.7
3.7
Noise (dB)
≤70
Overflow valve (MPa)
18/20
20.5
21
Electromagnetic valve
Proportionalelectromaqnetic valve
Throttle valve (L/min)
17
15
15
Port screw thread
G1/4 M14x1.5、M16x1.5、Can be customized

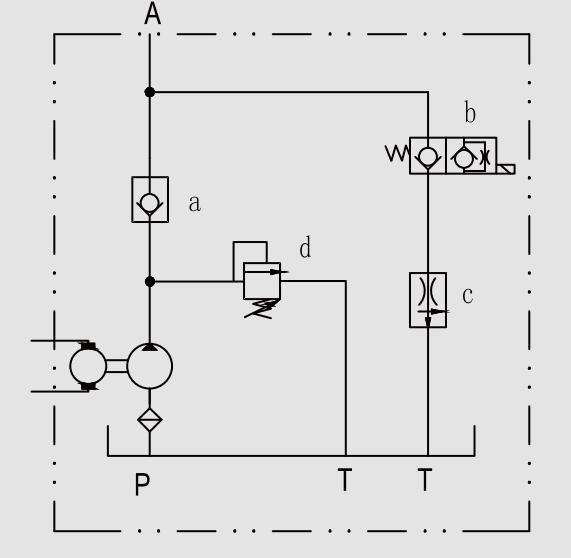

Hydrualic principle diagram
ABDS201 Electric Pallet Trucks Series 24V Hydraulic Power Unit

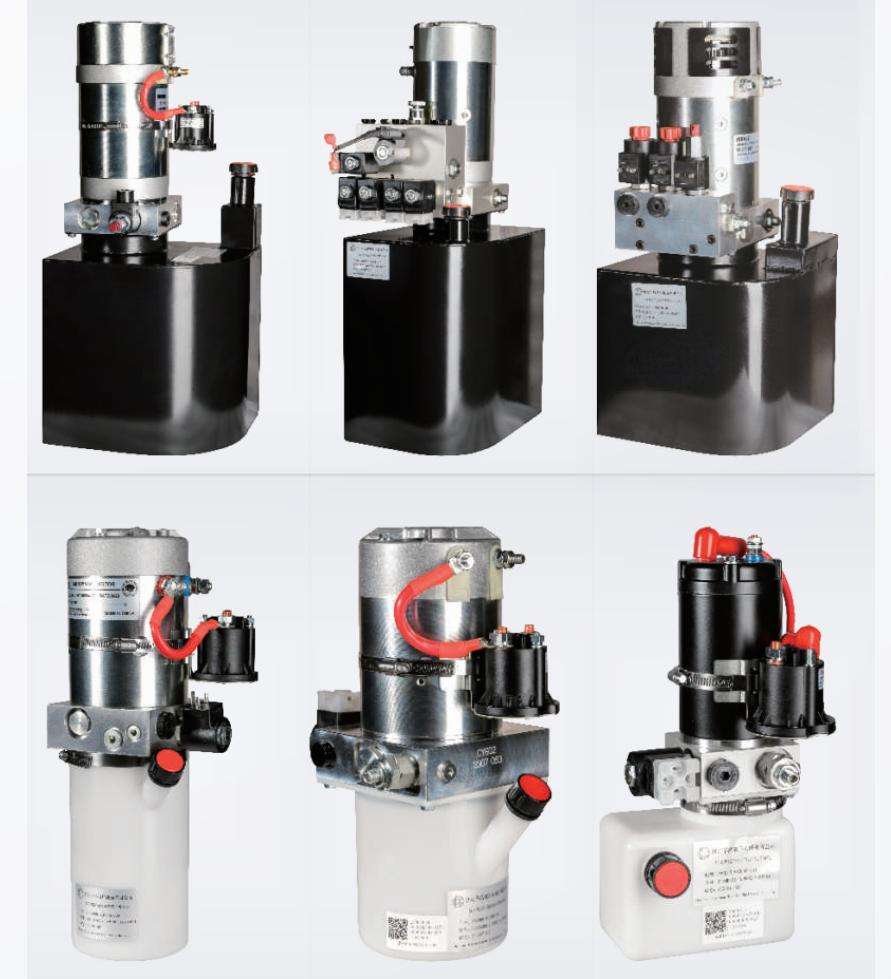

Application
ABDS201 Electric Pallet Trucks Series 24V Hydraulic Power Unit
