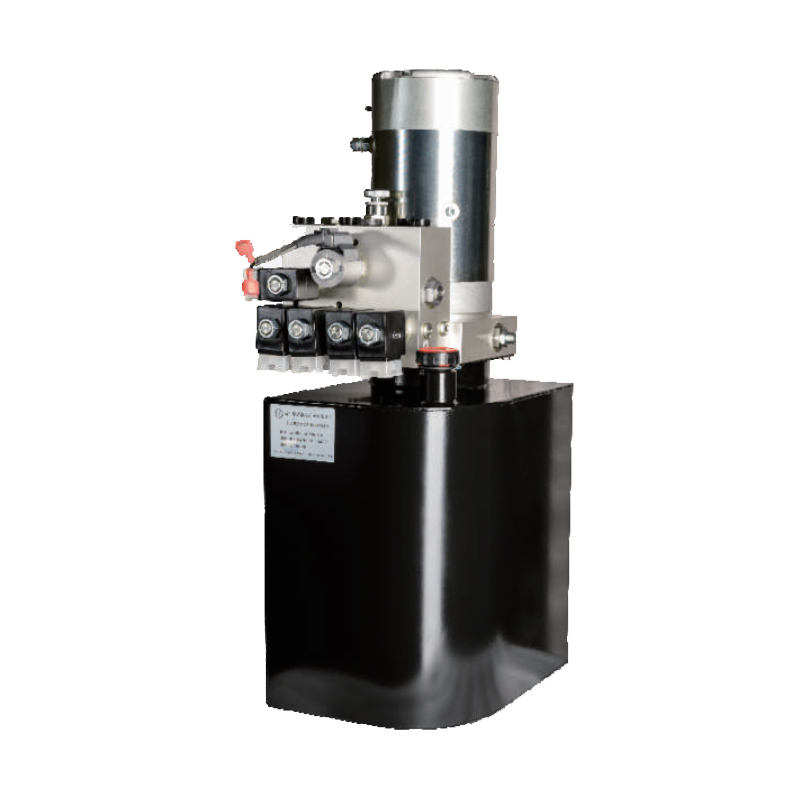

ABS200/300 Electric Pallet Trucks Series Hydraulic Power Unit

ABS200/300 Electric Pallet Trucks Series Hydraulic Power UnitProduct DescriptionFeatures---Mainly used for logistics equipment, automobile warranty equipment, mining machinery, agricultural machinery.machine tool fixture, automobile, loader, snow plow, lifting platform;---Simple principle,reliable ......
Send Inquiry
Product Description

ABS200/300 Electric Pallet Trucks Series Hydraulic Power Unit

Product Description
ABS200/300 Electric Pallet Trucks Series Hydraulic Power Unit
ABS200/300 Electric Pallet Trucks Series Hydraulic Power Unit

Features

---Mainly used for logistics equipment, automobile warranty equipment, mining machinery, agricultural machinery.machine tool fixture, automobile, loader, snow plow, lifting platform;
---Simple principle,reliable performance, easy maintenance;
---Compact structural, beautiful appearance, and small overall layout space;Through different combinations of hydraulic valves, there are more than 200 hydraulic circuits for customers tochoose: ---Adopt high efficiency, low noise, small volume of high pressure small displacement gear pump, pumpdisplacement selection range is large; ---Can use DCC motor, motor voltage selection range is large;
---With high performance, zero leakage cartridge valve, pressure maintaining good performance,
----Each valve pressure loss is small, low energy consumption, economic and environmental protection;Can be used with manual emergency operation reversing valve, high safety;
---The electromagnetic proportional reversing valve can be used to realize the proportional control of the runningspeed of the actuator: ---Return oil using throttle valve, steady drop, small hydraulic impact;
---The valve block is made of high strength aluminum alloy, light weight and not easy to rust,
---The use of universal standard jack, good technology;Electric control or manual operation;
Technical parameters
AMB155(Electric pallet trucks series)
48VElectric pallet trucks series
ABS200/300 series
Dc voltage (V)
24/48
48
24
Motor power (kW)
0.8
2.2
2.2
Rated speed (r/min)
3100
2700
2750
Pump displacement(m//r)
1
1.8
1.6
Noise (dB)
≤70
Overflow valve (MPa)
16
21
15/16
Electromagnetic valve
Electromagnetic directional  valve
Throttle valve (L/min)
4
6
6
Port screw thread
G1/47 M14x1.5、M16x1.5、Can be customized

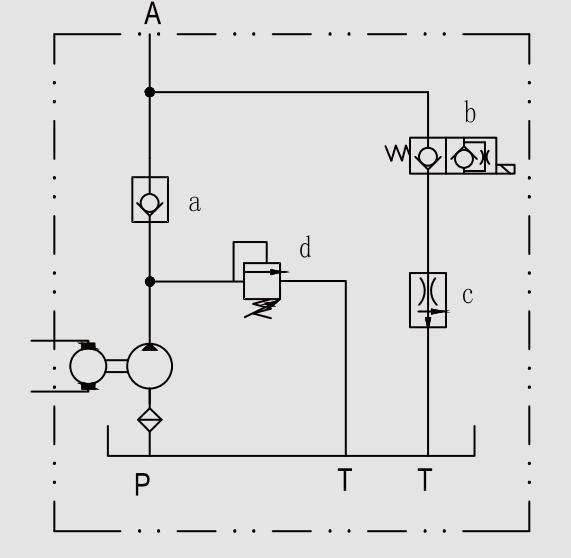

Hydrualic principle diagram
ABS200/300 Electric Pallet Trucks Series Hydraulic Power Unit
Application
ABS200/300 Electric Pallet Trucks Series Hydraulic Power Unit
