Product Description

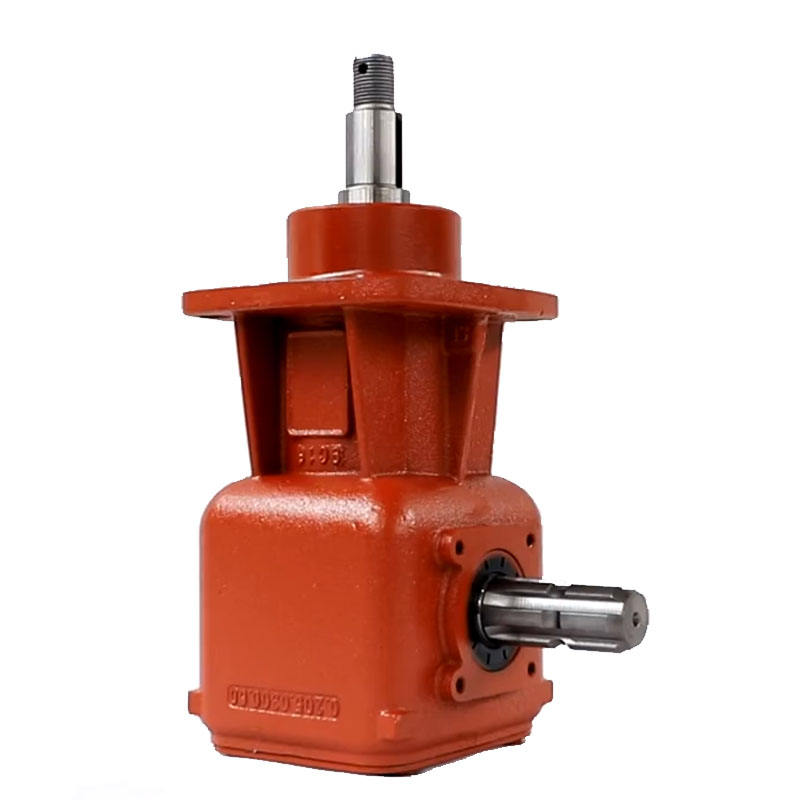

Agricultural Gear Box 90 Degree Tractor Parts Repair 540 Pto Lawn Rotary Cutter Mower Gearbox for Replacement Bush Hog Kubota

Video Description

00:00/00:00
Agricultural Gear Box 90 Degree Tractor Parts Repair 540 Pto Lawn Rotary Cutter Mower Gearbox for Replacement Bush Hog Kubota
Products Description
Gearbox model
EP-RC31
EP-55
EP-30-193
EP-RC61
More Types...
Ratio
 1:1.46 / 1: 1.69 / 1:1.92 / 1:2.3
1:1.6
1:1.93
1:1.46 / 1:1.93
Teeth
22/15 22/13 29/ 15 28/12
15/24
15/29
19/13 27/14
Module
5.08 / 5.0 / 4.0 / 4.0
6.0
4.0
 7.0 / 5.5
Power （HP）
30
50
30
60
Rated input
540rpm
540rpm
Input/Output description

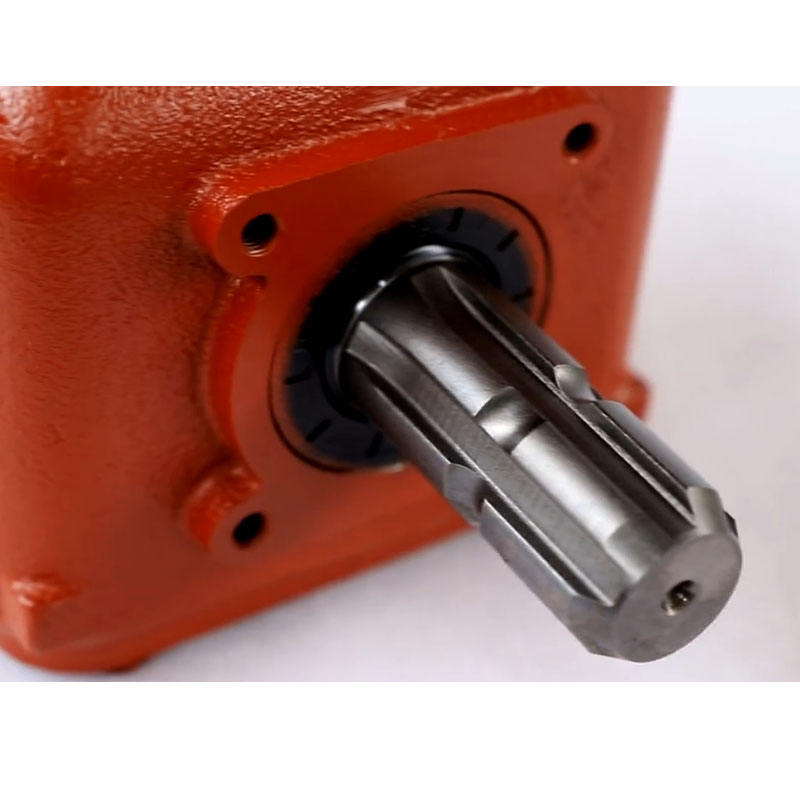

3/8 Z6 Optic axis Taper Spline
1 3/8 Z6 Cone base aequliate spline shaft
1 3/8 Z6
φ31.75 optic axis
1 3/8 Z6 Taper Spline
Weight （N.W）
21.5KG
28.7kg
24.5kg
6.5KG

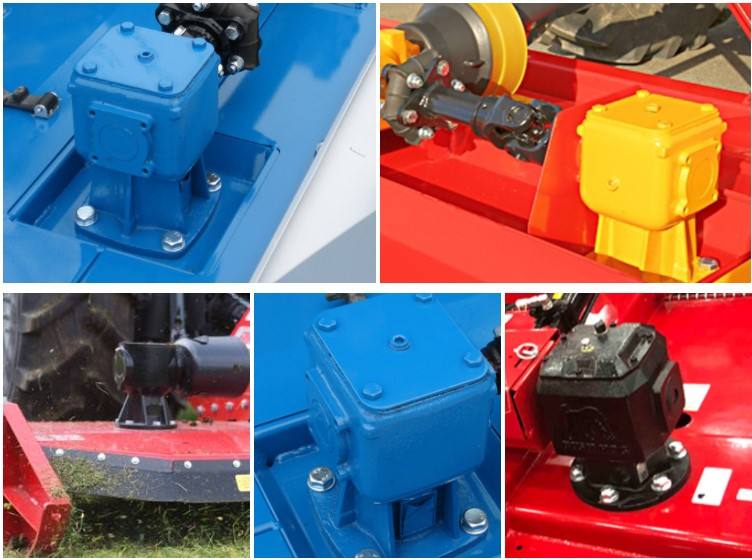

Application
*Power Dividers
*Rotary Cutters
*Rotary Slashers
*Mowers
*Lift Pumps
*Cotton Choppers
*Tree Cutters
Here are a few key things to know about rotary mower gearboxes:
* Purpose: A gearbox is used on rotary lawn mowers to reduce the engine speed from the typical combustion engine RPM range down to the slower speed needed to efficiently turn the cutting blade(s). This provides mechanical advantage.

* Design: Typical rotary mower gearboxes contain 2-3 sets of gears that step down the engine speed progressively. Materials include steel and hardened alloys to withstand torque loads. Gears are either helical (for smoother operation) or spur type.

* Lubrication: Gearboxes require a lubricating oil or grease to reduce friction and prevent wear of the closely fitted gear
parts. Proper lubrication level and type are important for long gearbox life.

* Maintenance: Over time, gearbox lubricant breaks down and needs changing. Gears may also wear out depending on hours of use. Regular inspection/maintenance prolongs the gearbox lifespan. Failure symptoms include noise, difficulty engaging the blades, or loss of power.

* Repairs: Minor gear or bearing wear can sometimes be repaired by replacing individual parts. A complete rebuild or replacement is needed if damage is more extensive.

So in summary, the rotary mower gearbox enables mechanical advantage for efficient blade drive. Proper lubrication and maintenance extends its usable life.
Agricultural Gear Box 90 Degree Tractor Parts Repair 540 Pto Lawn Rotary Cutter Mower Gearbox for Replacement Bush Hog Kubota
Agricultural Gear Box 90 Degree Tractor Parts Repair 540 Pto Lawn Rotary Cutter Mower Gearbox for Replacement Bush Hog Kubota
Agricultural Gear Box 90 Degree Tractor Parts Repair 540 Pto Lawn Rotary Cutter Mower Gearbox for Replacement Bush Hog Kubota

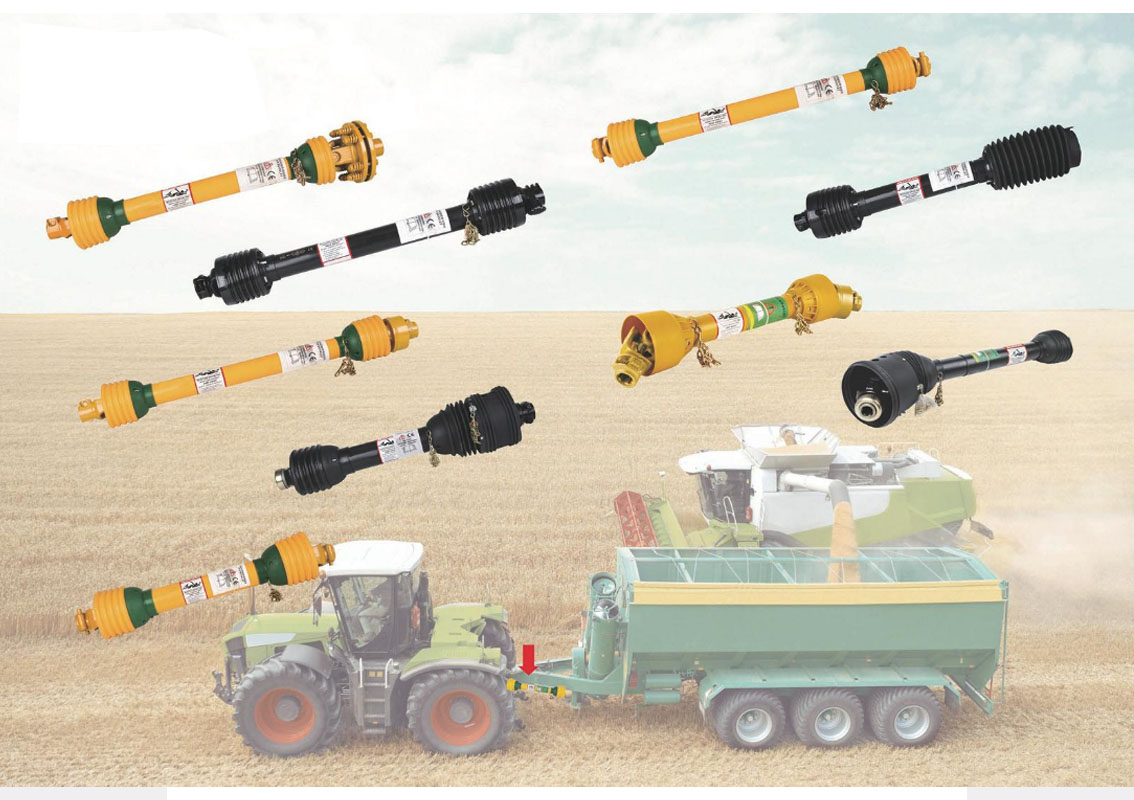

We also offer various sizes and models of PTO shafts for your agricultural tools
Agricultural Gear Box 90 Degree Tractor Parts Repair 540 Pto Lawn Rotary Cutter Mower Gearbox for Replacement Bush Hog Kubota
Customer Feedback Graph
Agricultural Gear Box 90 Degree Tractor Parts Repair 540 Pto Lawn Rotary Cutter Mower Gearbox for Replacement Bush Hog Kubota
Agricultural Gear Box 90 Degree Tractor Parts Repair 540 Pto Lawn Rotary Cutter Mower Gearbox for Replacement Bush Hog Kubota
Agricultural Gear Box 90 Degree Tractor Parts Repair 540 Pto Lawn Rotary Cutter Mower Gearbox for Replacement Bush Hog Kubota
Agricultural Gear Box 90 Degree Tractor Parts Repair 540 Pto Lawn Rotary Cutter Mower Gearbox for Replacement Bush Hog Kubota
Agricultural Gear Box 90 Degree Tractor Parts Repair 540 Pto Lawn Rotary Cutter Mower Gearbox for Replacement Bush Hog Kubota
Related Products
Recommended by seller

1000 to 540 Tractor Toyota PTO Right Angle Bevel Cutter Agricultural Rotovator Power Rotary Tiller Gearbox for Flail Mower

$52.00-63.00 / piece

50 pieces

Agri Adjustable Category CAT 1 2 3 3-pt Tractor Quick Attach 3 Point Quick Hitch for Kubota With Adapter

$60.00-65.00 / set

50 sets

Agricultural machinery parts Tractor Truck Rotary Drive Pto Shaft With Clutch Yoke Adapter Agriculture Tube Spline

$28.00-35.00 / piece

50 pieces

Aluminum Box 540rpm Ratio 1 1 90 Degree PTO Transmission Miter Bevel Fertilizer Spreader Agriculture Gearbox for Seeders

$60.00-80.00 / piece

10 pieces

Farm Center Pivot Gear Box Drive Wheel System Sprinkler Irrigation Gearbox For Valley Pivots Replacement Zimmatic UMC

$52.00-63.00 / piece

50 pieces

PAG Auger Drive Planetary Gear Reducer Gattle TMR Feed Mixer Gearbox For Trailed Vertical Stationary Machines Feeder mixing

$480.00-500.00 / unit

20 units

Agricultural PHD Heavy Duty Right Angle 540 Pto Auger Tractor 45hp 3 Point Post Hole Digger Gearbox for Replacement Speeco

$75.00-80.00 / piece

50 pieces

Agricultural Farm Machinery Parts Rotary Tiller Gearbox

$90.00-100.00 / piece

50 pieces

EP-MDH-40 Agricultural gearbox Lawn mower series

$52.00-63.00 / piece

50 pieces

EP-40002 Competitive price Agricultural gearbox Lawn mower series

$52.00-63.00 / piece

50 pieces

Gearbox For Rotary Tiller
Gearbox For Fertiliser Spreaders
Agricultural Gearbox For HAY TEDDER
Agricultural Gearbox For Rotary Cutter
Gearbox For Rotary Mowers
Agricultural Pto Gearboxes For Powered Generator
Post Hole Digger Gearbox
Gearbox For Self Loading Trailer
General Gearbox For Agricultural Machinery
Agricultural Gearbox For Manure Spreader
Gearboxes For Silo Distributors System
Driveline Motor Of Irrigation System
Agricultural Gearbox For Fertilizer Spreader
Hay Choppers Gearboxes
Driveline Gearbox Of Irrigation System
Agricultural Gearbox For Sprayers
Gearboxes For Balers
Center-Dive Gear Box Of Irrigation System
Agricultural Gearbox For Flail Mower
Gearboxes Multiplier For Hydraulic Pump System
Hydraulic PTO Drive Gearbox Speed Increaser
Agricultural Gearbox For Lawn Mowers
Planetary Gearbox For Hydraulic Drive Digger In Line
Side-Delivery Rake Gearbox
Agricultural Gearbox For Generator
Agricultural Gearbox For Harvest Fruits
Planetary Gearboxes For Feed Mixer
Agricultural Gearbox For Micro Tiller
Gearbox For Cattle Cleaning
PTO speed reducer
Agricultural Gearbox For Concrete Mixer
Gearbox For Digger Drive
Slasher gearboxes
Agricultural Gearbox For Feed Mixer
Gearbox For Dryer Drive System
Auger Gearboxes
Agitators For Sewage
Gearbox For Lagoon Pumps
Grain Harvester Reversing Gearbox
Salt Spreader Gearboxes
Bevel Gearbox For Biogas Energy Generator Plant
Oil-Pump-Gearbox
Gearbox reducer for Climate screens drive system
Gearbox For Circular Saw And Belt Saws
Potato Harvester Gearbox
Gearbox And Reducer For Crop Storage Drive Systems
Gearbox For Snow Tillers
Pesticide Sprayer Gearbox
Gearbox Reducer For Horticulture Drive Systems
Gearbox For Concrete Mixers
Chain Sprockets Gearbox
Drive Systems For Ventilation In Livestock Farming
Worm Gear Slewing Drive For Timber Grab
Agricultural Gearbox Grain Conveyor Gearbox
Electric Film Reeler Roll Up Units Winch For Poly Film Greenhouse Ventilation
Agriculture Gearbox For Rotary Harrows
Harvester Gearbox Reversing Bevel Gearbox
Rotary Harrows Gearbox
Agricultural Gearbox For Vineyard
Reversing Gearbox
Rotary Cultivators Gearbox
Agricultural Gearbox For Weed Mowers
Rotary Mower Gearboxes Size EP70
Gearbox For Trenchers
Agricultural Gearbox For Offset Mowers
Poultry and Pig Geared Motors For Feeding Systems
Interpump Gearbox For PTO Drive
Agricultural Gearbox For Flail Mowers
Salt Spreader Sprocket Chain Gearbox
Gearbox For Dusters

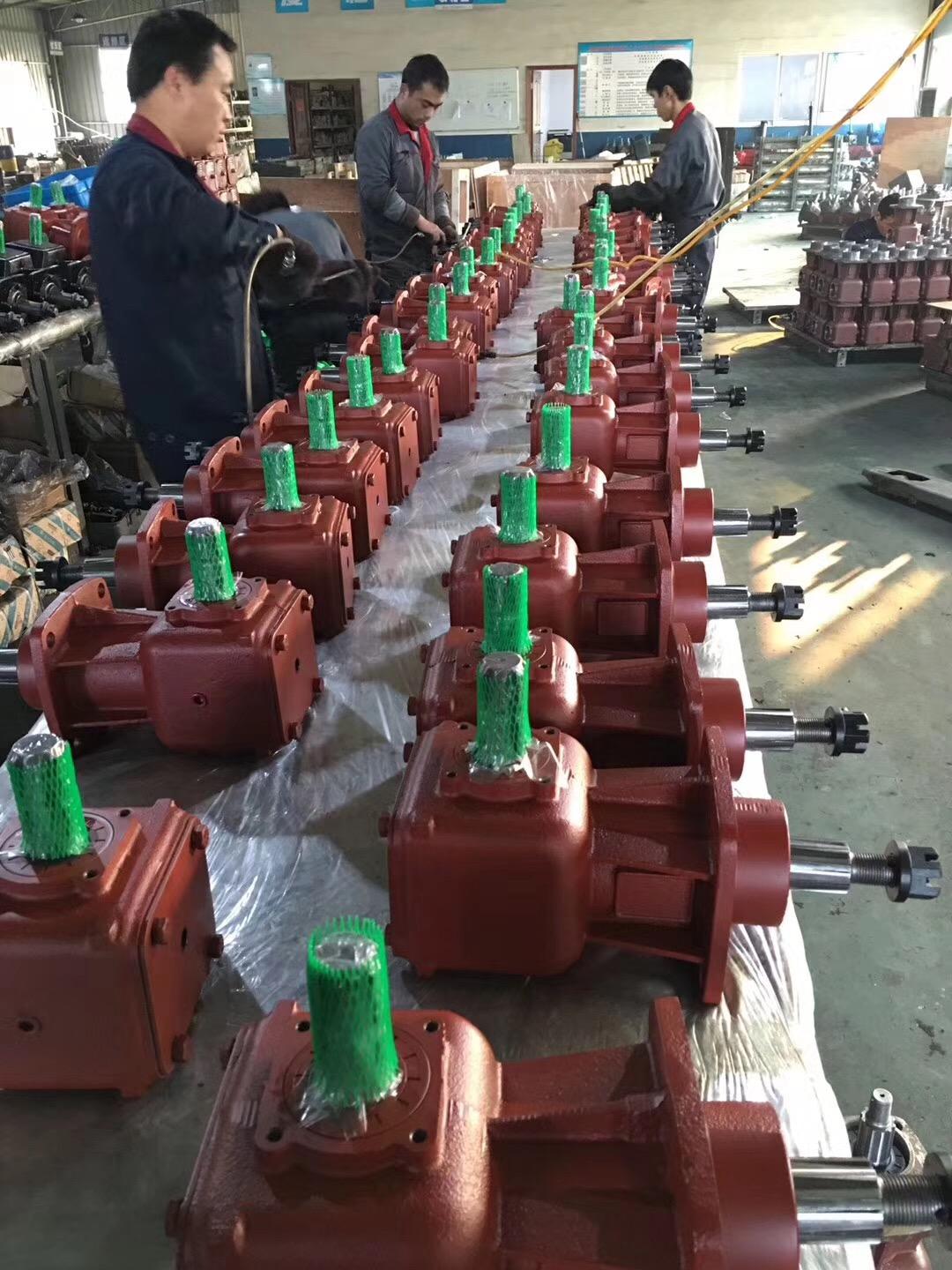

Company Information
Agricultural Gear Box 90 Degree Tractor Parts Repair 540 Pto Lawn Rotary Cutter Mower Gearbox for Replacement Bush Hog Kubota


Ever-Power Transmission Co., Ltd. a specialist in making all kinds of mechanical transmission and hydraulic transmission like: planetary gearboxes, worm reducers, in-line helical gear speed reducers, parallel shaft helical gear reducers, helical bevel reducers, helical worm gear reducers, agricultural gearboxes, tractor gearboxes, auto gearboxes, PTO drive shafts, special reducer & related gear components and other related products, sprockets, hydraulic system, vaccum pumps, fluid coupling, gear racks, chains, timing pulleys, UDL speed variators, v pulleys, hydraulic cylinder, gear pumps, screw air compressors, shaft collars low backlash worm reducers and so on. Furthermore, we can produce customized variators, geared motors, electric motors and other hydraulic products according to customers' drawings.
We have exported our products to clients around the world and earned a good reputation because of our superior product quality and after-sales service. We warmly welcome customers both at home and abroad to contact us to negotiate business, exchange information and cooperate with us.

We staff over 1500 workers, and have CNC turning machines and CNC work centers.
For more details, please check out our products catalogs and machine lists.
Technological Parameter for Straight bevel gearbox assy Customization is available at given design or drawing.
Certifications
Agricultural Gear Box 90 Degree Tractor Parts Repair 540 Pto Lawn Rotary Cutter Mower Gearbox for Replacement Bush Hog Kubota

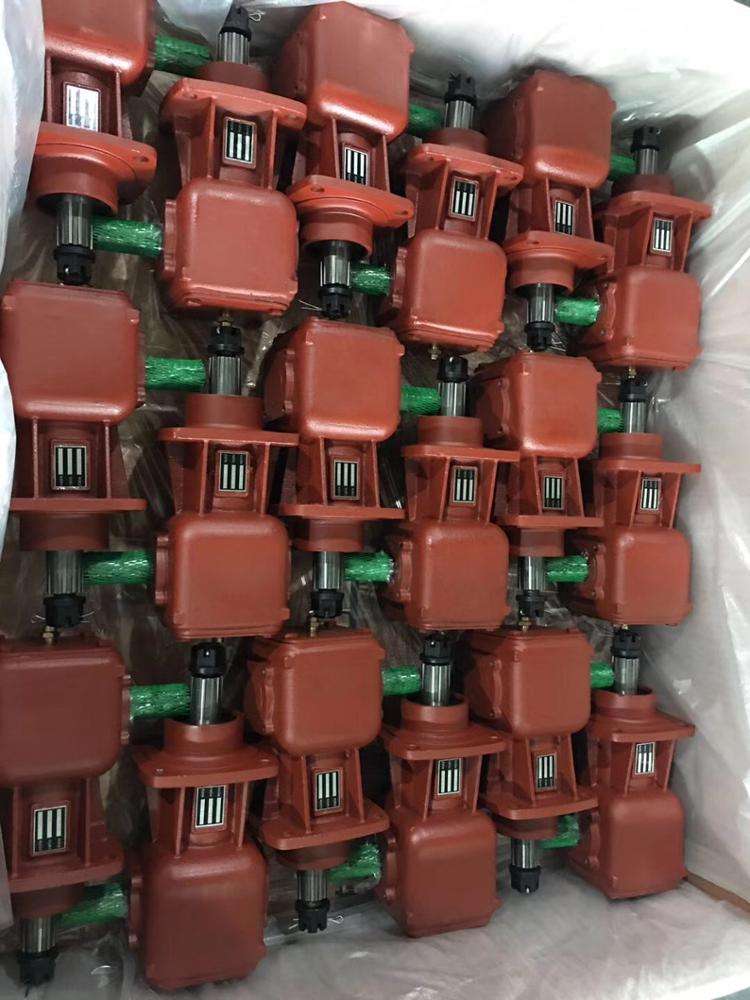

Product packaging
Agricultural Gear Box 90 Degree Tractor Parts Repair 540 Pto Lawn Rotary Cutter Mower Gearbox for Replacement Bush Hog Kubota
FAQ
Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
Hot Tags: Agricultural Gear Box, 90 Degree Gear Box, Tractor Parts Repair, 540 PTO, Lawn Rotary Cutter, Mower Gearbox, Replacement Bush Hog, Kubota, Supplier, Manufacturer, Factory, China
