Product Description

Agricultural Machinery General Progressive Oil Lubrication System Grease Pump for Combine Tractor Harvester

Product Description

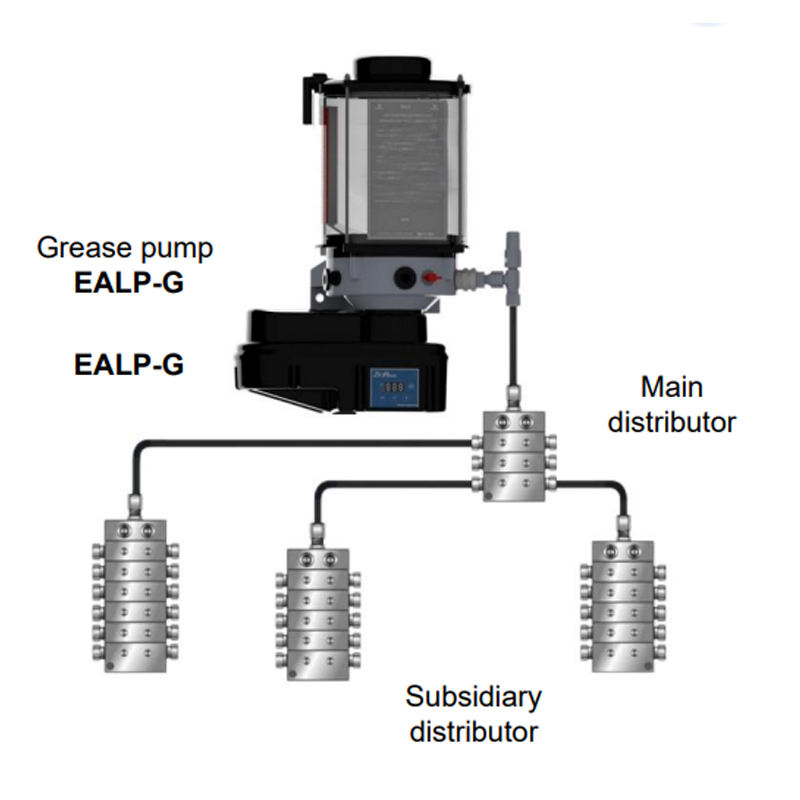

The lubrication points are supplied by the progressive distributors in a consecutive way.

Applications

KRO NE Big M 420 combine

CNH Tractor, 33 lubrication points

JD Sugar Cane Harvester, 71 points

Specification

Delivery volume per stroke (=1 pump revolution) and outlet	0.125cm³/0.175cm³ （depending on pump element）
Regulation	PE125/175
Reservoir capacity (effect.vol.)	4L（2L&3L&6L&8L）
Operating pressure	Max. 350bar
Pressure limiting valve set to	300bar
Pumped medium	greases up to NLGI-cl.2
Operating temperature	-35 ~ +70°C (depending on conveying medium）
Number of outlets	1-4 (Up to 6 exits can be customized)
Type of outlet	Ø 6 mm
Installation position	reservoir vertical,as shown
Degree of protection	IP 6K9K
Weight	5.6KG (w/o pump elements, w/o grease filling)
Motor
Drive	DC motor
Operational voltage	12/24 VDC
Nominal current	max. 3.5/2.2A
Stall current	max. 8.5/6.0A
Speed(=pump speed)	17r.p.m.
