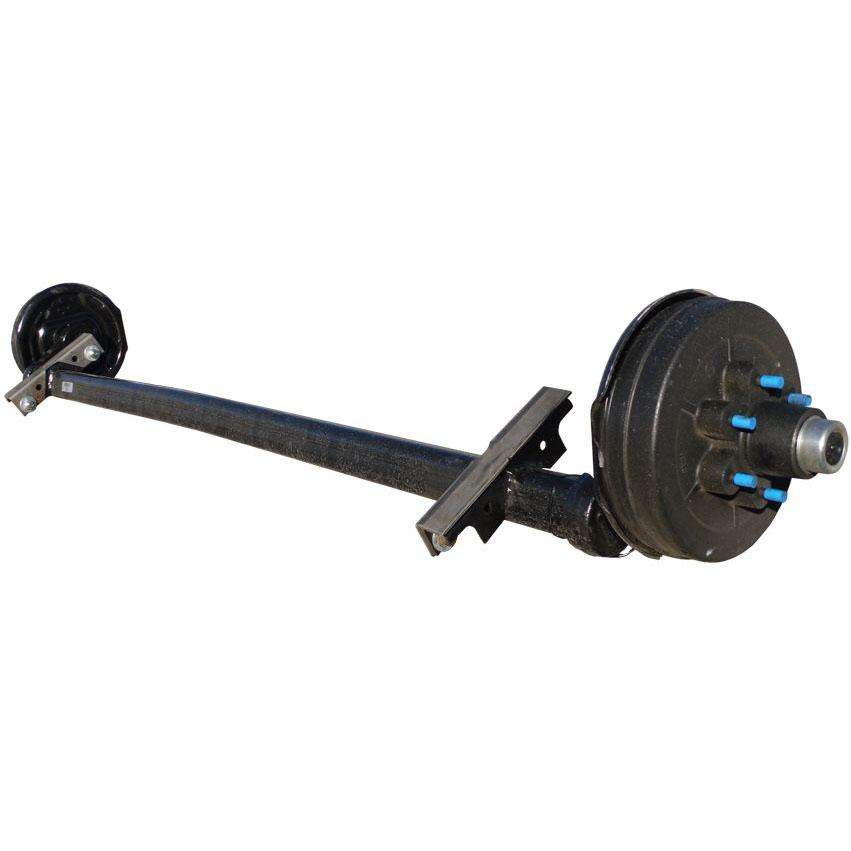

The 7,000 lb Torsion Trailer Axle is a rubber-suspended trailer axle engineered for agricultural trailers, heavy-duty flatbeds and utility trailers that need a quiet ride and low maintenance. Unlike a leaf-spring axle, the torsion beam uses a rubber torsion bar inside a diamond-orientation tube to absorb road shock and vibration, which gives independent wheel suspension, reduces wear on the trailer frame and eliminates the leaf-spring shackles, equalisers and U-bolts that need greasing every season. The axle ships with 12-inch self-adjusting electric brakes and Super Lube hubs on an 8-on-6-1/2" bolt pattern, so brake adjustment and bearing re-packing are both handled from one service point.
Every axle is CSA certified with complete component traceability and serialisation, powder-coated with rust-prohibitive coating on the axle tube, and wired with waterproof connectors on all electrical runs. Raydafon produces the 7,000 lb Torsion Trailer Axle at the Zhejiang factory as a direct OEM replacement and also supplies matching heavy-duty truck kingpins (2" and 3.5" welding type) for trailers that need a full undercarriage refresh at the same time.
A 7,000 lb Torsion Trailer Axle is a trailer axle that uses a rubber torsion bar inside a diamond-orientation steel tube instead of a leaf-spring pack. The axle beam is fixed to the trailer frame through mounting brackets, and each wheel spindle is attached to a trailing arm that rotates against the torsion bar. Because each wheel is sprung independently, one wheel passing over a pothole does not affect the wheel on the other side. This is the key difference between a torsion axle and a leaf-spring axle, and it is why the 7,000 lb Torsion Trailer Axle is specified on agricultural trailers that spend long hours on rough farm tracks and unsealed roads.
The diamond tube orientation is the reason the axle can carry 7,000 lb while still being lighter than an equivalent leaf-spring axle. The diamond section puts the steel where the bending load is highest, which resists axle flex without adding wall thickness. Combined with the rubber torsion bar absorbing road shock, the diamond tube keeps the ride smooth and the trailer frame free of the fatigue cracks that a leaf-spring axle transmits through its rigid connection points.
The table below lists the full dimensional and component specification of the 7,000 lb Torsion Trailer Axle. Hub face-to-face, spring centre, brake flange position and tube length are confirmed against the trailer frame at the time of order.
| Axle Type | Torsion axle with rubber torsion bar |
| Capacity | 7,000 lb per axle |
| Tube Type | Diamond orientation steel tube, powder-coated |
| Suspension | Independent wheel suspension via torsion bar |
| Brake Type | 12-inch diameter self-adjusting electric brakes |
| Bolt Pattern | 8 on 6-1/2 inch |
| Hub Type | Super Lube hubs with bearing lubrication ports |
| Axle Tube Finish | Rust-prohibitive powder-coated steel |
| Electrical Wiring | Waterproof connections on all runs |
| Traceability | Complete component traceability and serialisation on every axle |
| Certification | CSA certified |
| Maintenance vs Leaf Spring | Lower — no shackles, equalisers or U-bolt greasing |
| Applications | Agricultural trailers, flatbed trailers, utility trailers, horse trailers |

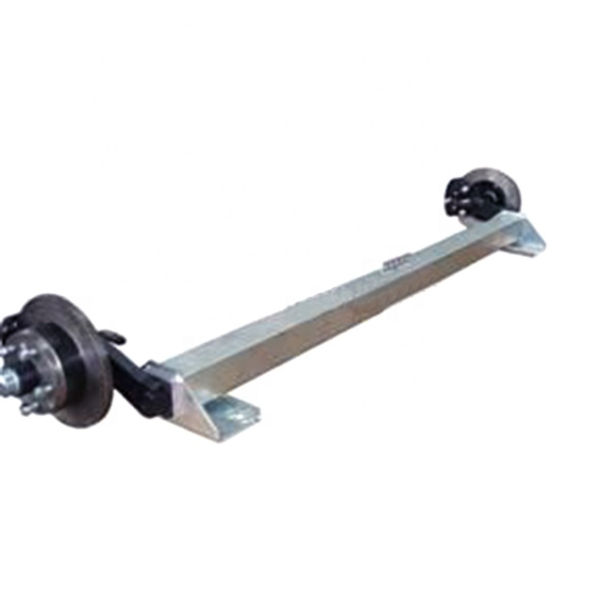

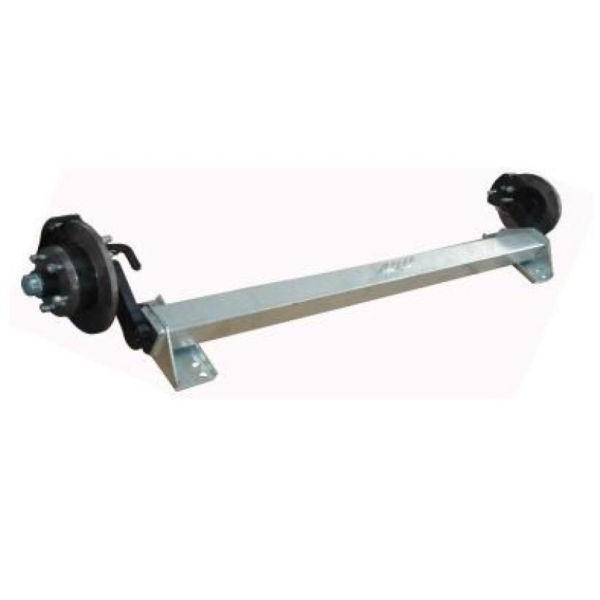

The diamond tube and the rubber torsion bar are the two components that define the performance of the 7,000 lb Torsion Trailer Axle. The two images below show the diamond section geometry and the internal torsion beam structure that give the axle its capacity and ride quality.
A torsion axle costs more than a leaf-spring axle up front, so the decision to specify one is driven by the ride quality, the maintenance interval and the trailer frame design. The six reasons below are the ones that matter most on agricultural and utility trailers.
The rubber torsion bar absorbs road shock and vibration that a leaf-spring axle passes straight into the trailer frame. On an agricultural trailer running on unsealed farm tracks, this keeps the cargo settled and the frame free of fatigue cracks.
Each wheel is sprung independently through its own trailing arm. One wheel hitting a pothole does not affect the other side of the axle, so the trailer stays level and the cargo stays in place.
A torsion axle has no shackles, no equaliser, no U-bolts and no spring eye bushings. The only service points are the Super Lube hub bearings and the 12-inch self-adjusting brakes, which is far less work than a leaf-spring axle over the same service interval.
The torsion axle mounts directly to the frame without a spring pack underneath, so the trailer deck sits lower. This makes loading and unloading easier on an agricultural trailer that handles livestock or heavy equipment.
A leaf-spring axle wraps under heavy braking, which changes the pinion angle and loads the spring. A torsion axle has no spring pack to wrap, so the brake and suspension geometry stay constant under load.
The torsion axle bolts to flat mounting brackets welded onto the trailer frame. There is no need for spring hangers, shackle mounts or U-bolt provisions, which simplifies the trailer frame design and reduces the number of weld points.
Alongside the 7,000 lb Torsion Trailer Axle, Raydafon produces heavy-duty truck kingpins in 2" and 3.5" welding type for trailers, semi-trailers and heavy truck applications. The kingpin is the pivot pin that locks the trailer to the fifth wheel coupling on the tractor. When a trailer undercarriage is being refreshed, the kingpin is usually replaced at the same time as the axle to avoid a second shutdown later. Both components are supplied from the same factory with matching documentation and serialisation.
Every 7,000 lb Torsion Trailer Axle is produced under a controlled quality system and shipped with the documentation that trailer builders and fleet operators need for compliance and traceability.
To confirm the correct 7,000 lb Torsion Trailer Axle and issue a quotation, Raydafon needs the five items below. For a straight replacement of an existing torsion axle, the original axle serial number or a dimensioned drawing is usually enough.
Send the five items below and Raydafon will confirm the axle dimensions, brake configuration, bolt pattern and lead time within one working day.
The 7,000 lb Torsion Trailer Axle is used on agricultural trailers, flatbed trailers, utility trailers and horse trailers that need a quiet ride, low maintenance and independent wheel suspension. It is the standard upgrade from a leaf-spring axle when the trailer runs on unsealed farm tracks or carries cargo that is sensitive to vibration.
A torsion axle uses a rubber torsion bar inside a diamond-orientation steel tube to spring each wheel independently. A leaf-spring axle uses a stack of steel leaves connected to the frame through shackles and U-bolts. The torsion axle gives a quieter ride, independent wheel suspension and lower maintenance because it has no shackles, equalisers or spring eye bushings to grease.
The standard assembly includes the diamond tube torsion beam, rubber torsion bar, spindle and trailing arms, 12-inch self-adjusting electric brakes, Super Lube hubs on an 8-on-6-1/2" bolt pattern, powder-coated axle tube and waterproof electrical connectors on all wiring runs. Brake drums, brake shoes and hub bearings are matched to the 7,000 lb rating.
Yes. The 7,000 lb Torsion Trailer Axle is CSA certified. Every axle carries a serial number for complete component traceability, so the individual torsion bar, spindle, brake assembly and hub used in that unit can be identified from the serial.
The standard configuration is an 8 on 6-1/2" bolt pattern with 12-inch diameter self-adjusting electric brakes and Super Lube hubs. Other bolt patterns and brake sizes can be produced to order when the trailer requires a different wheel fitment.
Yes. Raydafon produces heavy-duty truck kingpins in 2" and 3.5" welding type. The kingpin is a forged or machined alloy steel pin that welds into the trailer upper coupler plate and locks into the fifth wheel coupling. It is commonly replaced at the same time as the axle to avoid a second shutdown.
Yes. Send the original axle serial number or a dimensioned drawing and Raydafon will confirm the hub face-to-face, spring centre, brake flange position and tube length. Where the original is obsolete, a functionally equivalent axle can be produced against the same trailer frame dimensions.
Standard configurations ship in 20 to 40 days. Custom dimensions and non-standard bolt patterns are confirmed with the quotation. As an OEM manufacturer, Raydafon can supply from single axle replacements up to full trailer production quantities. MOQ depends on the specific configuration and is confirmed when the specification is fixed.
Whether you are replacing a worn torsion axle on an agricultural trailer, upgrading a leaf-spring trailer to independent suspension, or specifying a complete undercarriage package with torsion axles and heavy-duty kingpins for a new trailer program, Raydafon can quote the 7,000 lb Torsion Trailer Axle and matching 2" or 3.5" welding kingpins to your frame dimensions. OEM and project quantities supplied directly from the Zhejiang factory.
