Product Description

American Standard 5V Series Cast Iron Three-Groove Sheaves With Split Taper Bushings for 5V Belts

Products Description

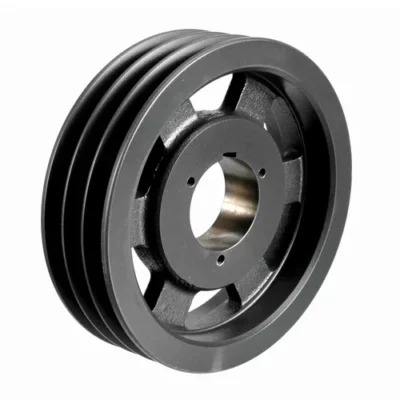

5V Series Cast Iron Three-Groove Sheaves With Split Taper Bushings For 5V Belts

5VX belt. They range in diameter from 4.40 "to 50.0". According to the pulley size, they use P1, Q1, R1, S1 or U0 split taper bushings, which we also have in stock. Our three groove 5V split taper pulleys are mostly made of high-strength 35 cast iron, coated with phosphate coating and anti-corrosion paint. All these are balanced at the factory to ensure smooth operation of the machine.

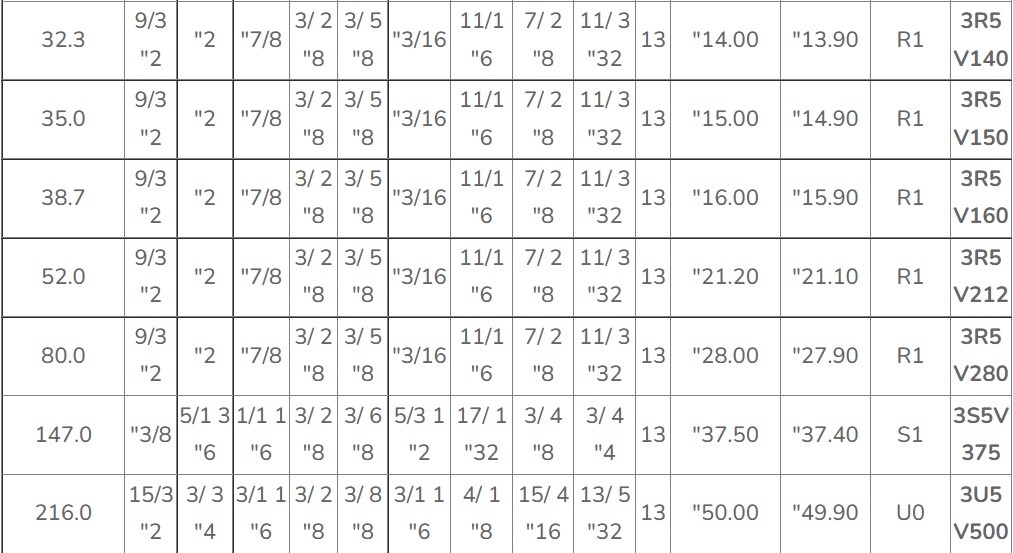

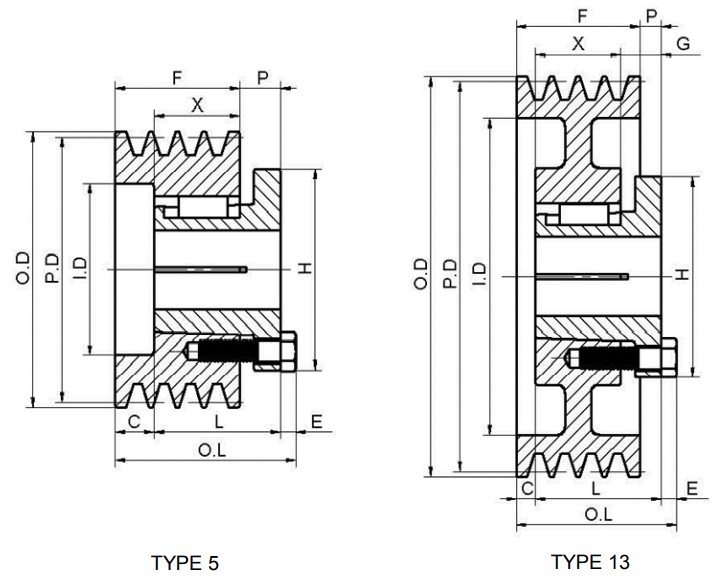

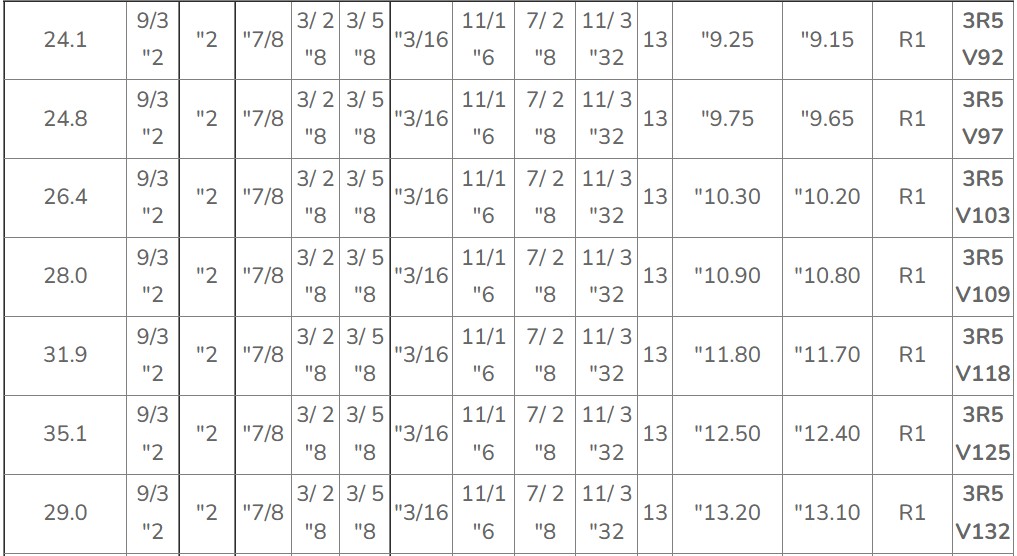

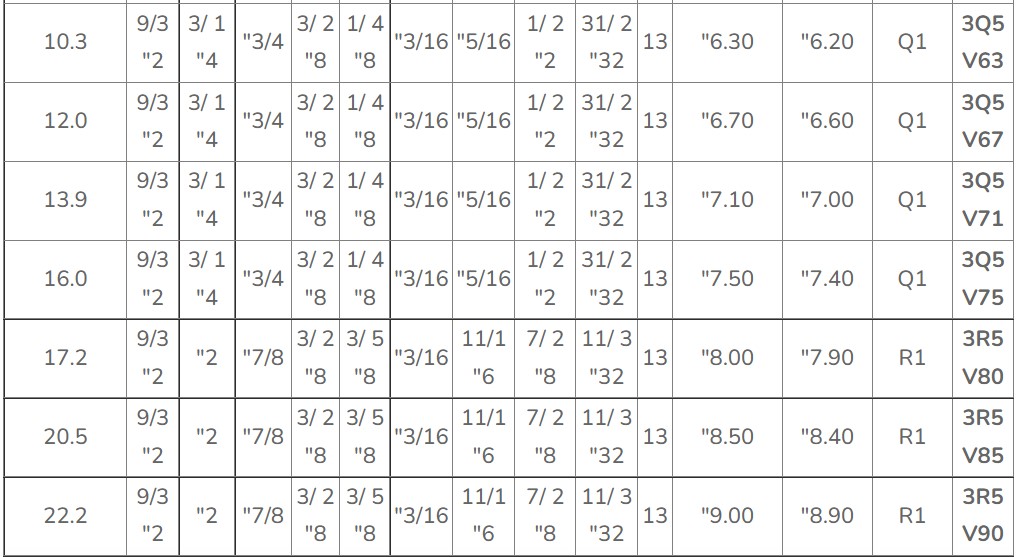

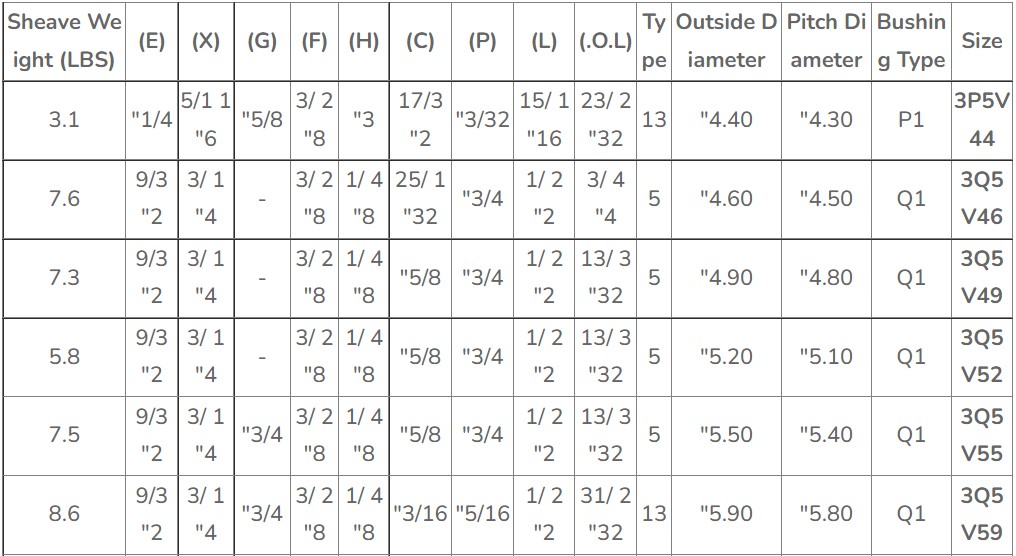

Three-Groove 5V Split Taper Sheave Size Chart

For more details, please click here to contact us！

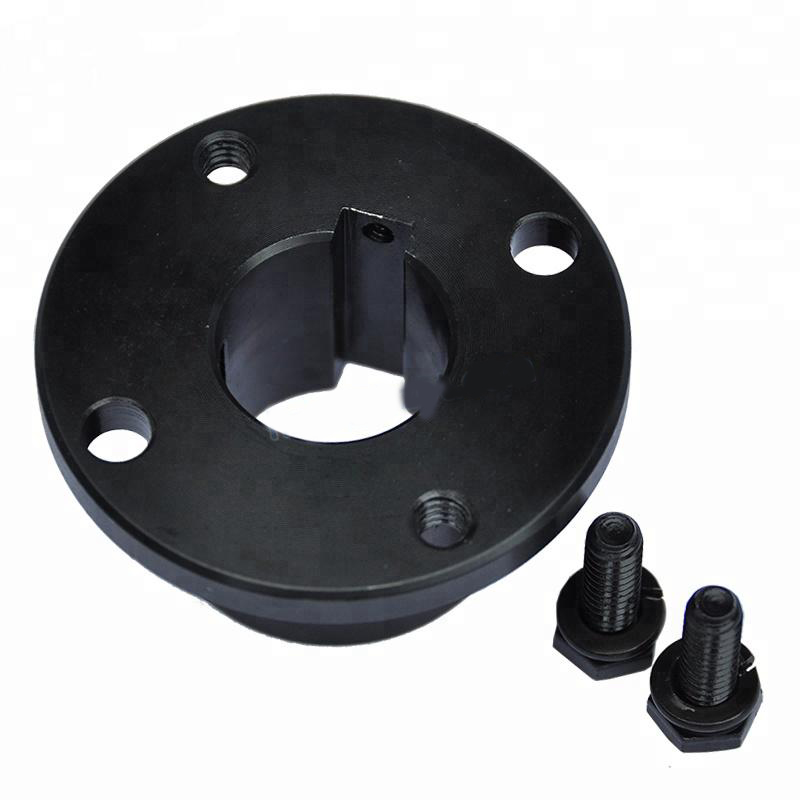

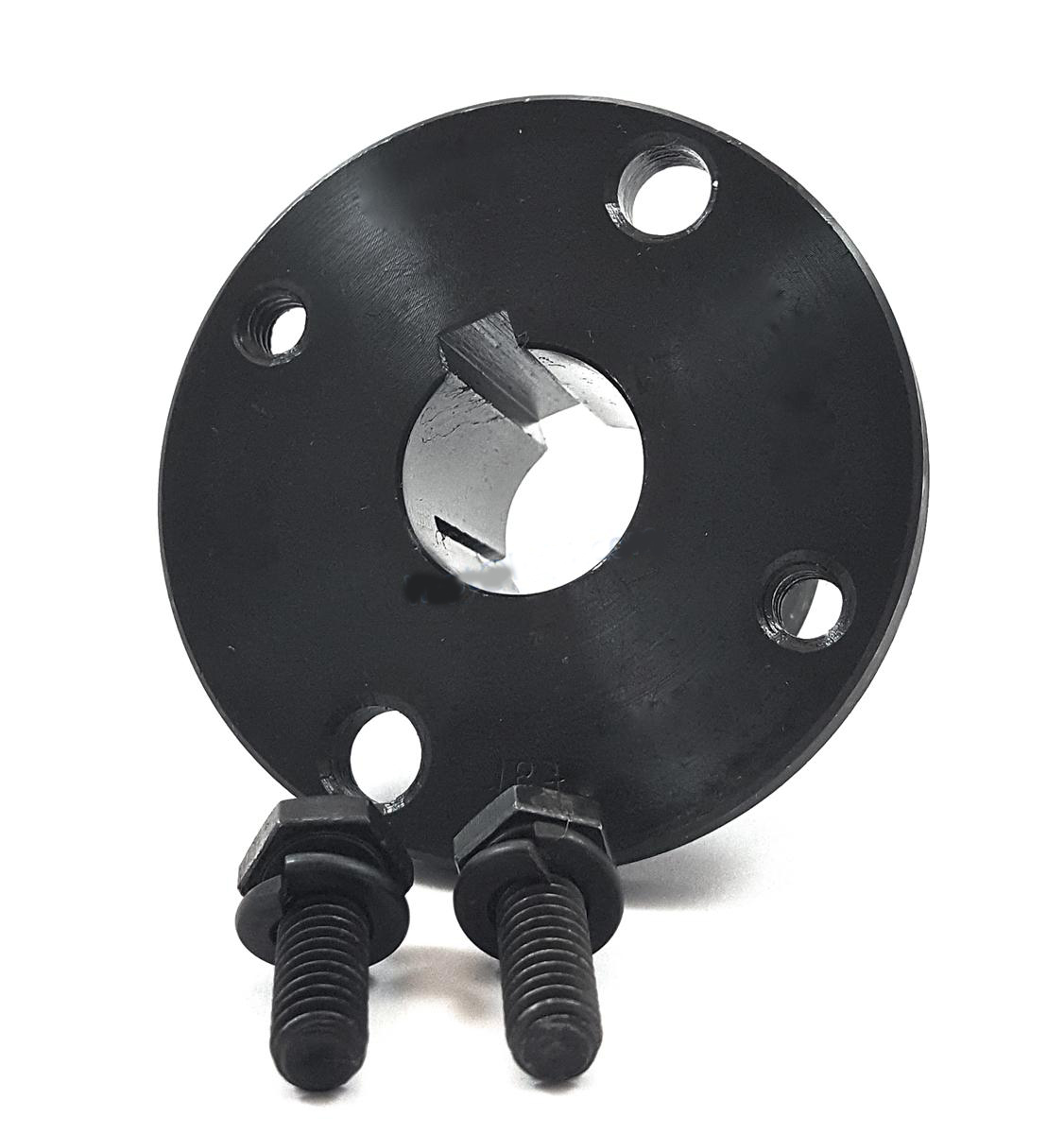

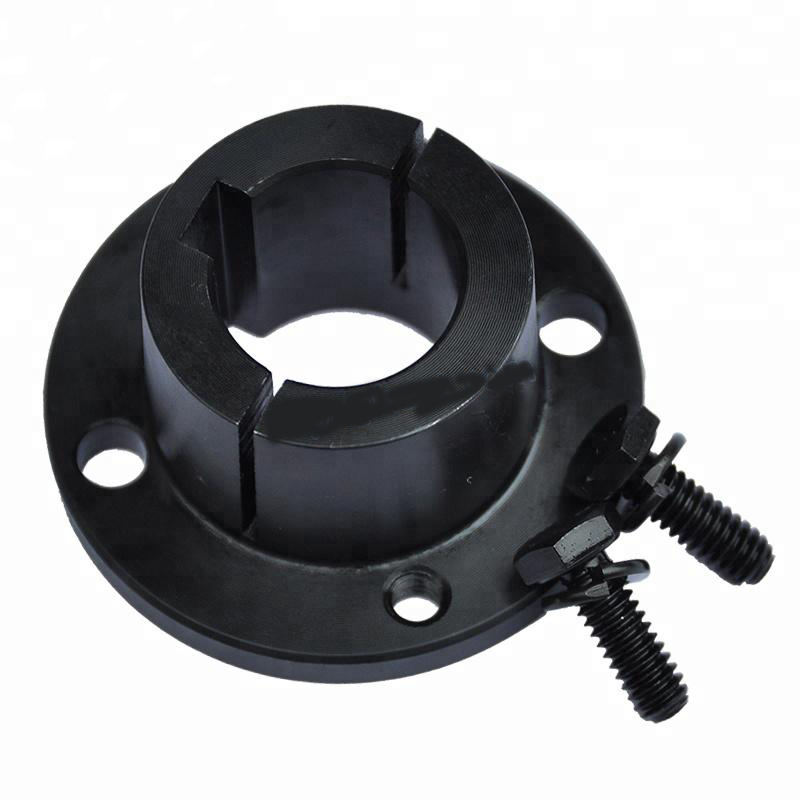

Split Taper Bushings Strength, ease of mounting and unloading, and high retention for successfully connecting the shaft to the drive or idler gear assembly. Split tapered bushes are one of the most commonly used bushes because of their high overall strength, ease of installation and unloading, and high retention for successfully connecting the shaft to the drive or idler gear assembly. The open tapered bushing is used for various pulleys, conveyor pulleys, and sprockets. We have G series to W2 series split tapered bushings with inside diameters of inches and metric systems, ranging from 0.375 inches to 7.43 inches

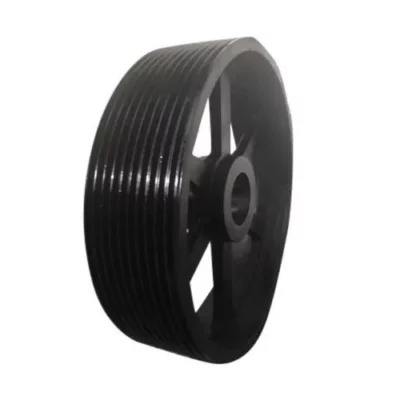

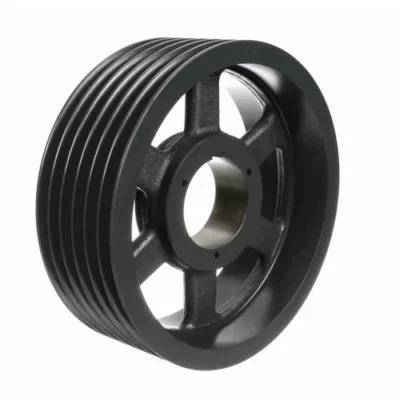

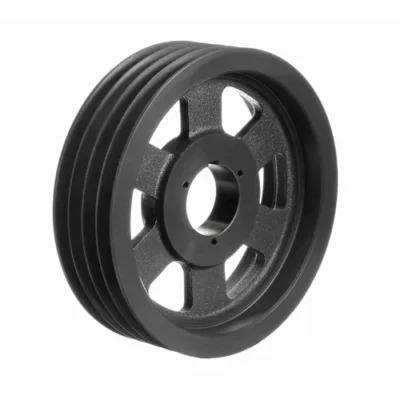

The 5V pulley is specially made for 5V series V-belts and ribbon 5V belts. The size of our 5V v-pulley is manufactured according to ARPM standard, so it can be directly interchanged with other brands. There are only two types of 5V pulley: taper lock and QD (quick disassembly), which can increase the flexibility of the hole diameter range. The difference between our pulleys and other pulleys on the market is that most pulleys are made of Grade 35 cast iron instead of the standard Grade 25 cast iron. This results in stronger pulleys and better wear resistance. In addition, it should be noted that these pulleys, after dynamic balancing, run more smoothly and have less vibration, thus extending the life of bearings and machinery. In addition, they are phosphate and painted to increase corrosion protection.

Removal method of belt pulley:

1. Loosen all bolts, take out one or two bolts according to the number of removal holes, lubricate the bolt type and bolt tip with engine oil, and then insert the bolts into the removal holes. 2. Tighten the bolts alternately until the conical sleeve and pulley are loosened. 3. Remove the tapered sleeve and pulley from the shaft.

Common application of Split Taper Bushings *Machine tool *Crusher, pulverizer, crusher, classifier, vibrating screen *Material conveying system *Fans, blowers and exhausters *Pumps and compressors Woodworking saw, milling machine, planer, lathe

We also provides belts matching pulleys：https://planetary-gearboxes.en.Raydafon.com/productgrouplist-825651128/Belt.html?spm=a2700.shop_pl.98.11

Technological Processing

Warehouse inventory The warehouse covers an area of 5000 square meters, and can provide various standard models of A/B/C/Z, with complete quantities and large inventory. At the same time, it accepts various non-standard customized drawings. The daily output is 10 tons and the delivery time is short.
