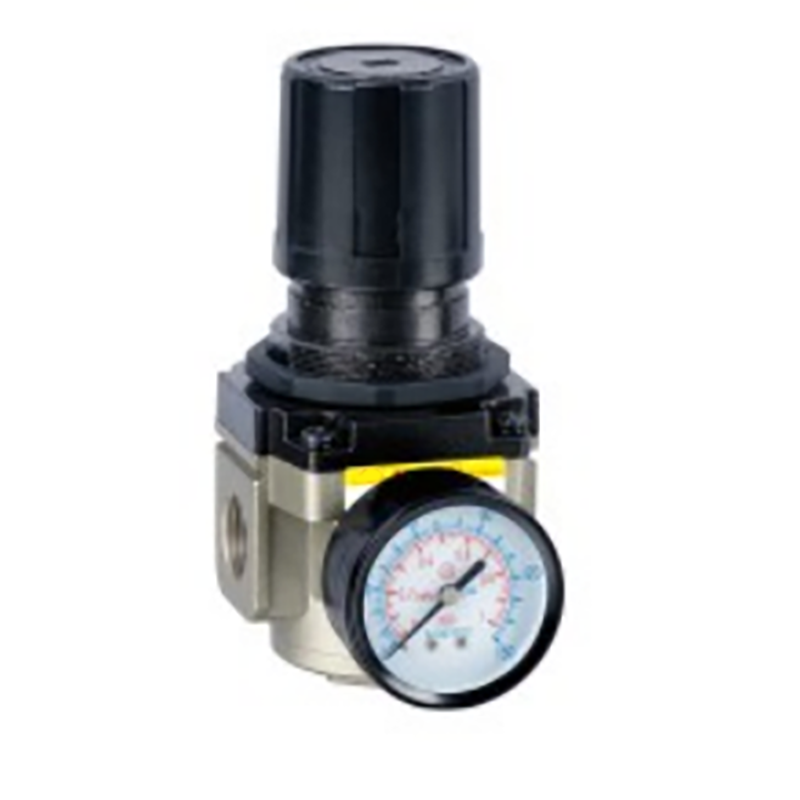

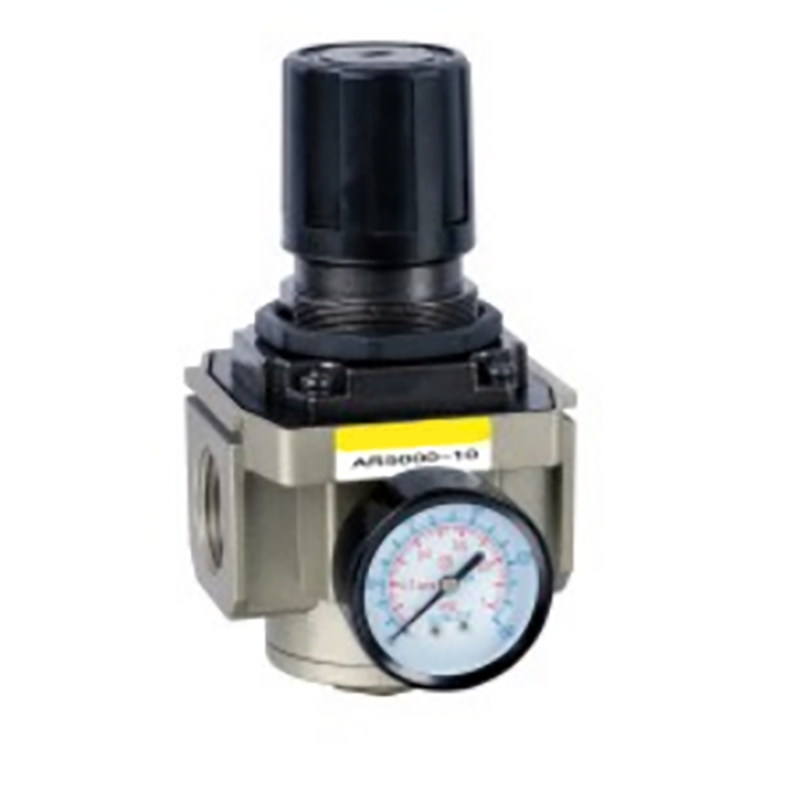

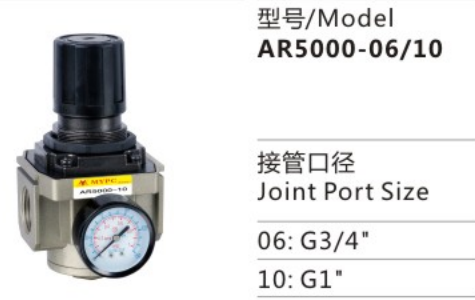

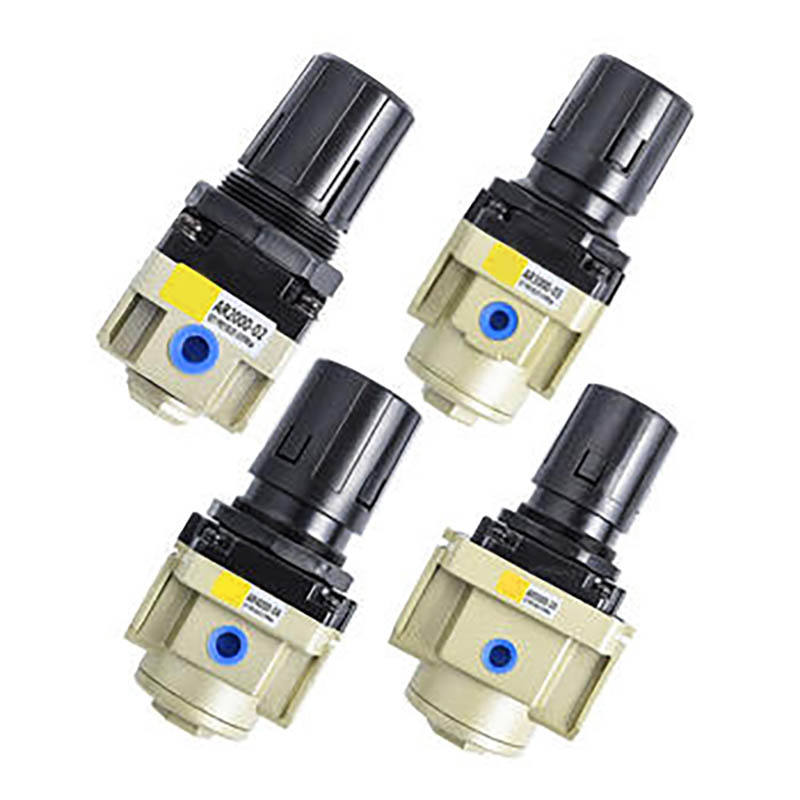

AR Series AR5000-06/10 Air Source Treatment Unit Pneumatic Air pressure reducing Regulator for Compressed Air System

Product Highlights: Integrated air source treatment unit | Pressure reducing regulator + lubricator + filter | Aluminum alloy body | Max. working pressure 1.0MPa | Adjustable lubrication rate | Transparent oil reservoir | Compact design | Ideal for industrial pneumatic systems.

The Raydafon AR Series AR5000-06/10 Air Source Treatment Unit is a comprehensive pneumatic solution that combines a pressure reducing regulator, lubricator, and filter into a single compact module. Designed for compressed air systems, the AR Series AR5000-06/10 regulator ensures clean, lubricated, and precisely regulated air supply to pneumatic tools and automation equipment, enhancing efficiency and extending machinery life.

Technical Specifications – AR Series AR5000-06/10

Key Features of the AR Series AR5000-06/10 Air Source Treatment Unit

• Automatic Lubrication: The AR Series AR5000-06/10 unit adds precise amounts of oil to compressed air, ensuring proper lubrication of pneumatic tools and equipment, reducing friction and wear.
• Extended Equipment Lifespan: The Raydafon AR Series regulator prevents rust and corrosion in pneumatic components, prolonging the operational life of machinery and tools.
• Improved Efficiency: The AR Series AR5000-06/10 enhances the performance of pneumatic tools by reducing mechanical resistance and ensuring smooth operation.
• Adjustable Lubrication Rate: The AR Series regulator is equipped with a user‑friendly adjustment mechanism to control oil supply, allowing customization based on specific application needs.
• Compact Design: The AR Series AR5000-06/10 integrates easily with other air source treatment components such as filters and regulators, saving space without compromising functionality.
• Easy Maintenance: The Raydafon AR Series features a transparent oil reservoir for easy monitoring of oil levels and quick refilling, minimizing downtime.
• Durable and Reliable Construction: Made from high‑quality aluminum alloy, the AR Series AR5000-06/10 regulator withstands industrial environments, ensuring long‑term durability and consistent performance.

How the AR Series AR5000-06/10 Regulator Works

The Raydafon AR Series AR5000-06/10 Air Source Treatment Unit combines three critical functions in one compact module: pressure reduction, filtration, and lubrication. Compressed air enters the unit, passes through a filter to remove contaminants, then through the pressure reducing regulator to maintain a stable output pressure, and finally through the lubricator which adds a controlled mist of oil to the air stream. This ensures that downstream pneumatic tools and actuators receive clean, lubricated, and precisely regulated air for optimal performance.

The AR Series AR5000-06/10 regulator is engineered for heavy‑duty industrial use, with an aluminum alloy body that resists corrosion and a transparent oil reservoir that allows quick visual checks. The adjustable oil feed mechanism enables operators to fine‑tune lubrication rates to match the specific demands of each application, from high‑speed pneumatic drills to slow‑moving cylinders.

Applications of the AR Series AR5000-06/10 Air Source Treatment Unit

• Pneumatic Tools: The AR Series AR5000-06/10 provides lubricated air to drills, grinders, nail guns, and impact wrenches, ensuring optimal performance and durability.
• Industrial Automation: The Raydafon AR Series regulator ensures smooth operation of pneumatic cylinders, actuators, and valves in automated production lines.
• Manufacturing and Assembly Lines: The AR Series AR5000-06/10 is commonly used in automotive, electronics, and machinery production to guarantee reliable lubrication for pneumatic systems.
• Air Compressors: The AR Series regulator enhances air output quality by introducing necessary lubrication, protecting downstream equipment from damage.
• Construction Tools: The Raydafon AR Series supplies lubricated air to jackhammers and air hammers, reducing downtime and maintenance.
• Textile Industry: The AR Series AR5000-06/10 ensures seamless operation of pneumatic machines in textile manufacturing by providing clean and lubricated air.
• Packaging Equipment: The AR Series regulator maintains efficient functioning of pneumatic‑based packaging machinery, such as sealing and cutting tools.
• Painting and Coating Systems: While lubrication is not directly applied to the painting process, some pneumatic systems require lubricated air from the AR Series AR5000-06/10 to maintain smooth operation.
