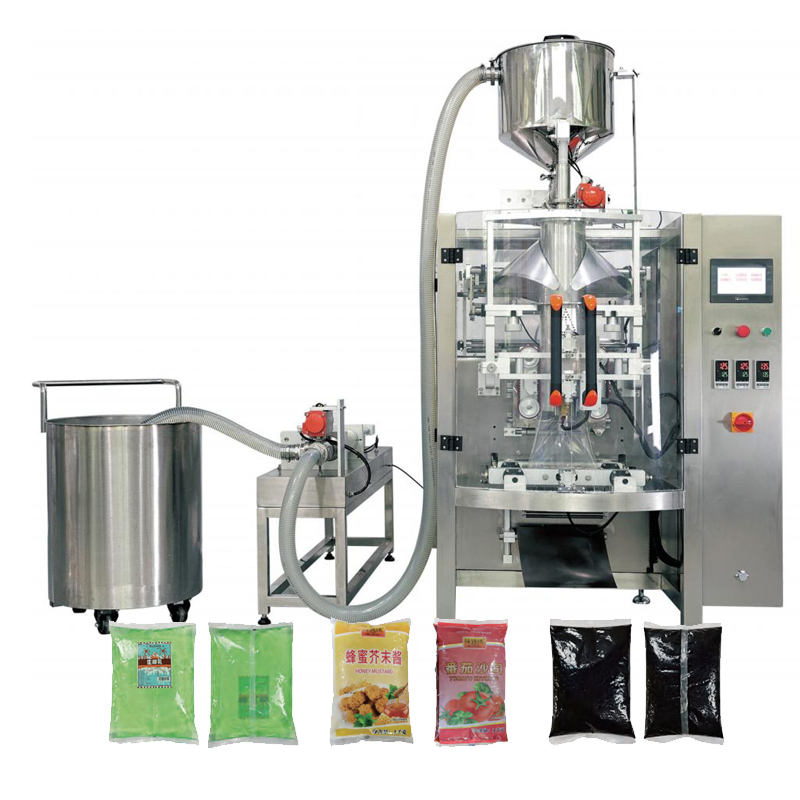

Big Volume Bag Liquid Packing Machine for Tomato Sauce Beef Sauce

Big Volume Bag Liquid Packing Machine for Tomato Sauce Beef SauceProducts DescriptionBig Volume Bag Liquid Packing MachineThis machine is suitable for automatic packacing of various.iauids.pastes in food.hemical.daly chemica.oharmaceutical and other industries, such as: tomato sauce.beef sauce.hot p......

Send Inquiry

Product Description

Big Volume Bag Liquid Packing Machine for Tomato Sauce Beef Sauce

Products Description

Big Volume Bag Liquid Packing Machine

This machine is suitable for automatic packacing of various.iauids.pastes in food.hemical.daly chemica.oharmaceutical and other industries, such as: tomato sauce.beef sauce.hot pot ingredients.sesame sauce.noodle sauce.jam.butter.cooking oil.Waterproof paint liquid.etc.

Equipment performance

1.Chinese and English touch screen display, intuitive and simple operation

2.Plc computer control system, the operation is more stable, and any parameter can be adjusted without stopping the machine

3.Ten groups of parameters can be stored, and the replacement of varieties is more accurate

4.The servo motor is used to pull and touch, and the positioning is more accurate
5.Independent temperature control system, the accuracy can reach ±1°C

6.The temperature of horizontal and vertical sealing can be controlled independently, which can be welapplied to various packaging materials such as composite film and aluminum film.

7.The packaging styles are diversified, such as back sealing、gusseting、connected bag、punching、etc.

8.The production of bag making、sealing、packaging and date printing is completed at one time.

9.The working environment is clean and the noise is low .

Basic Parameters

Model	420YB	520YB	620YB
Dose range	Piston pump,Rotor pump,Liquid pump			screw feeder	pump/rotor pump/piston pump
Measuring range	200-2000ml	200-3000ml	500-5000ml
Bag size	W90-200mm L80-300mm	W120-250mm L50-350mm	W130-300mm L50-400mm
Speed	20-30bag/min	15-30bag/min	10-20bag/min
Bag type	Back seal /Side Seal
Control system	PLC+Touch Screen
Weight	900kg	1000kg	1520kg
Voltage	380V 50Hz 3.5kw	380V 50Hz 4.0kw	380V 50Hz 4.5kw
Dimension	L2600mW1700mH2000m	L2750mW1800mH2100m	L2900mW1950mH2300m
Requirements	PE laminated film, such as PET/AL/PEPET/PENYlon/PEect Thickness:0.08~0.12mm(3 or 4 lavers): inner core diameter: 75mm Quter roll diameter: 350mm
