BP4/BP8 Metal Cutter CNC Step Lathe Machining Center Machine Tool Cylindrical Cylinder Grinder

Raydafon Group's BP4/BP8 Metal Cutter CNC Step Lathe Machining Center excels with precision engineering for metal cutting, offering unmatched accuracy and durability in cylindrical grinding. Ideal for manufacturers and engineers, it boosts productivity and ensures superior results, setting it apart with advanced CNC technology for reliable performance.
Send Inquiry
Product Description

BP4/BP8 Metal Cutter CNC Step Lathe Machining Center Machine Tool Cylindrical Cylinder Grinder

Products Description

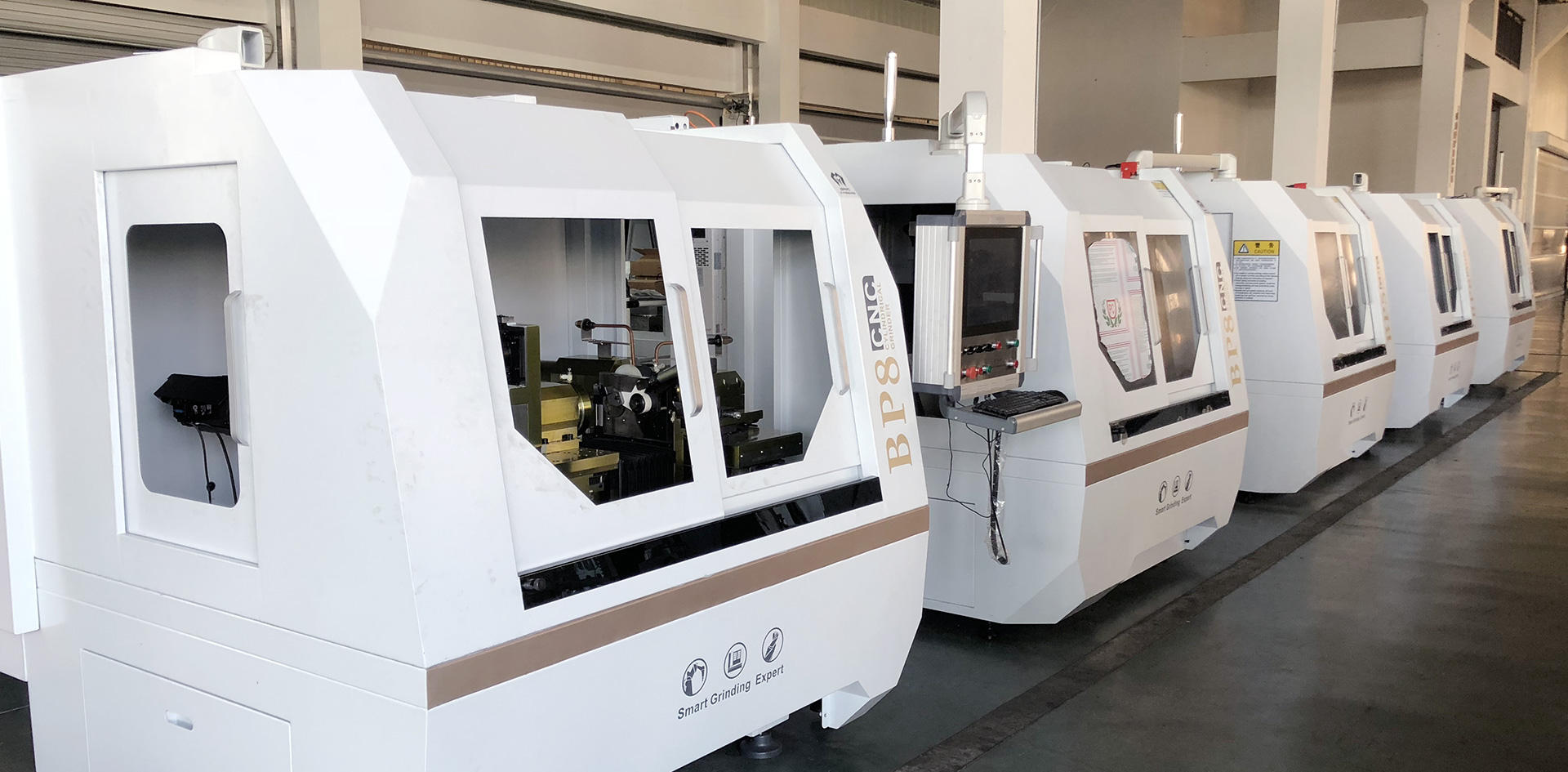

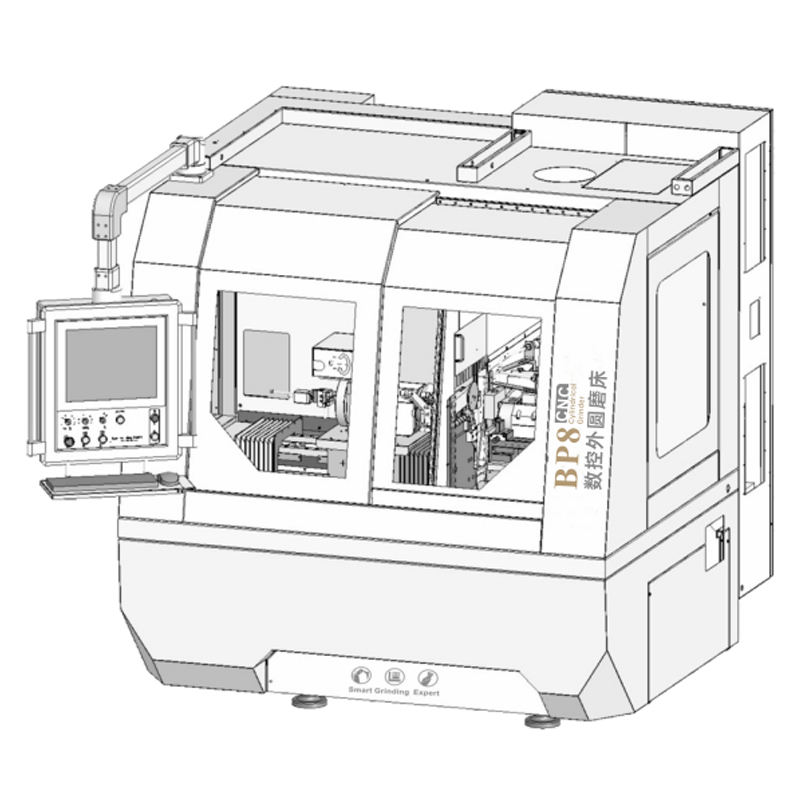

BP4/BP8 CNC Step Cylindrical Grinder

Flexibility from innovative design
1 , New 20KW strong grinding function with BP8 , more flexible forsmall batch workpieces grinding with unbelievable results

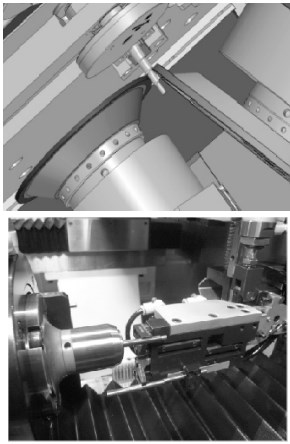

2 , Innovative roughing wheel angle setup device and technologyeasily realize grinding balance force smooth change .
3 , High precision ball screws bring high stability and efficiency to theloading device .
4 , Optional linear motor with Heidenhain scale enhances machineaccuracy sharply .
5 , Optional natural granite provides excellent vibration absorptionperformance and temperature stability .
6 , Innovative front and rare position device
7 , Synchronized roughing and finishing high speed grinding processenables 3-5 times efficiency as conventional grinding process

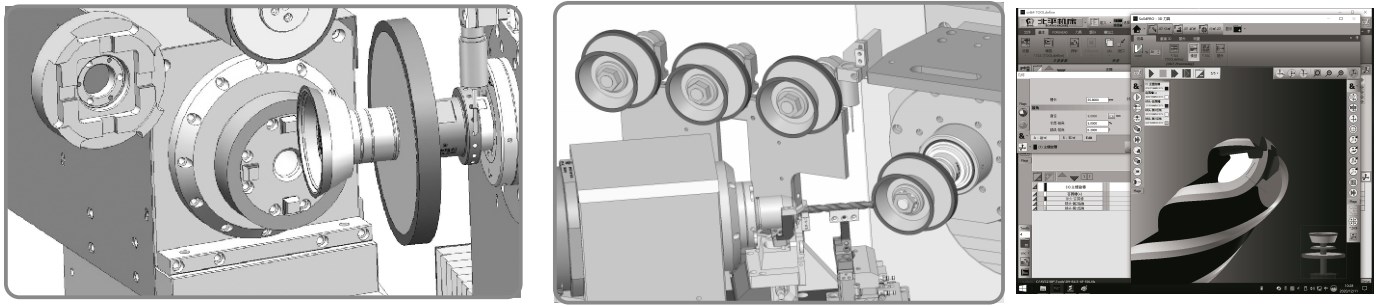

8 , 3D OD shaping software optional with smart , clear andprogrammable interface , for unlimited grinding profile possibility .
9 , CNC C axis capable for faces , angles , eccentric and non cylindricalcam surface grinding10 , Up-down shank support
BP4/BP8 Metal Cutter CNC Step Lathe Machining Center Machine Tool Cylindrical Cylinder Grinder
BP4/BP8 Metal Cutter CNC Step Lathe Machining Center Machine Tool Cylindrical Cylinder Grinder
BP4/BP8 Metal Cutter CNC Step Lathe Machining Center Machine Tool Cylindrical Cylinder Grinder
Product Specification
Grinding Spindle
Linear controlled resolution
0.001mm
Single spindle hole
φ25mm Special Flange
Tolerance of Linear Repositioning
0.0004-0.0026mm
Max Speed of Finishing / Rough Grinding
12000/9000rpm
Shank Diameter / Concentricity
0.2/0.0018mm
Rough Grinding Max Power
10/20kw
Controller
BP/SYNTEC/FANUC/SIEMENS
Finishing Grindingmax power
5kw
Automatic loading system
Travel
Diameter of Shank
3-16/25mm
X aixs
300mm
Max lenath of Work Piece
50-250mm
Y aixs
30mm
Z aixs
100mm
Work piece rotary axis(C axis)
Connected Loading
Rotary speed
0-3000rpm
380V / 50HZ
23/33kw
Clamping type
W20/W25
Machine Size
Max speed ( mechanical/direct drive )
30/300rpm
Length x Width
2300*2000mm
Tools Range（Grindable Tool depends on its Type and Machining Requirement）
Height
2100mm
Diameter
1-16/25mm
Machine Weight
Length
250mm
total weight
3350kg

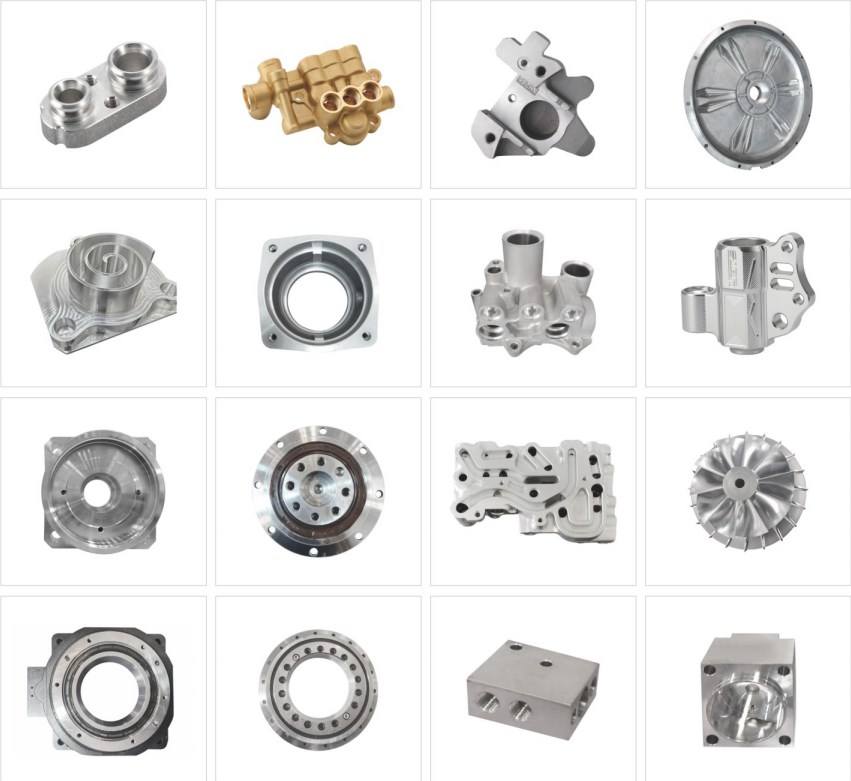

Samples Show
BP4/BP8 Metal Cutter CNC Step Lathe Machining Center Machine Tool Cylindrical Cylinder Grinder
Applications
BP4/BP8 Metal Cutter CNC Step Lathe Machining Center Machine Tool Cylindrical Cylinder Grinder
BP4/BP8 Metal Cutter CNC Step Lathe Machining Center Machine Tool Cylindrical Cylinder Grinder
