Product Description

BPF4 F6 6 Transfer Station 5 Axis CNC Machine Tool Lathe Machining Center Grinder for Metal Cutter

Products Description

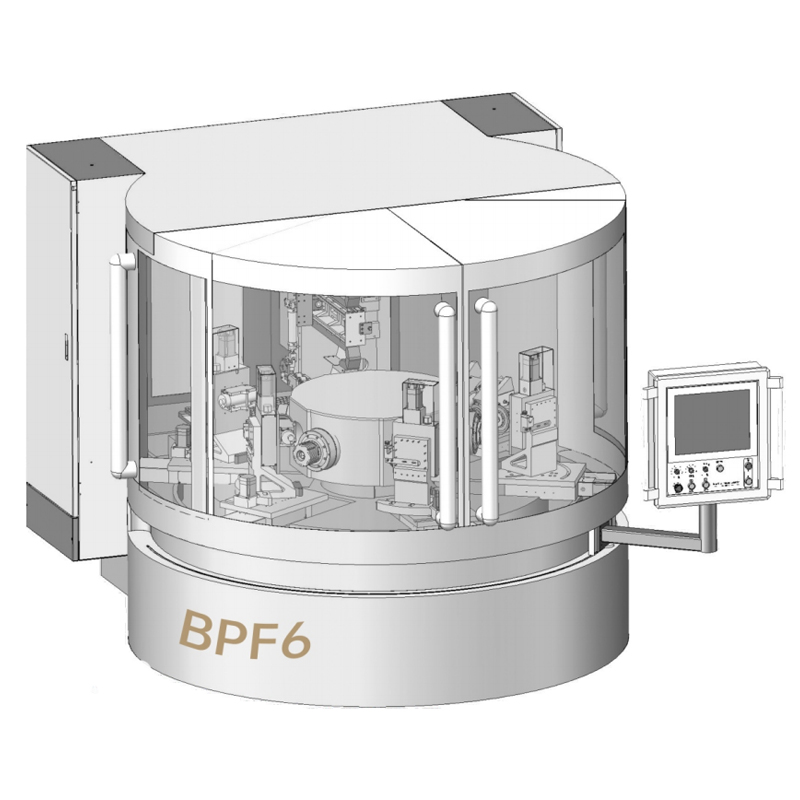

BPF4/F6 6 Transfer Station 5-Axis CNC Tool Grinder

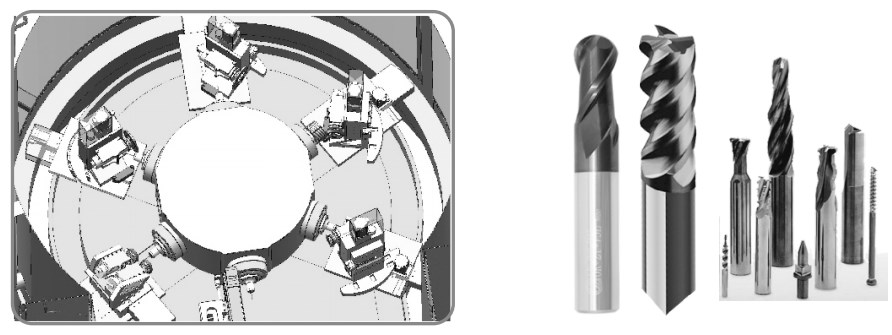

BPF6 tooling grinding center integrates 6 work station for high precision and high efficiencyach station can be optimized for the process features of workpiece and tools , thus cycletime would be enhanced more than 3 times faster than conventional single station grindingmachines . BPF6 is perfect for automatic mass production of mills , drills , thread taps andcustomized shape tooling for aviation , automobile , molds , IT and medical industries .

Main features

1.Double bearing guarantee high work table rigidity ; Extremely short force feedback loopand very high structure strength

2 , On-line measuring " for reference , diameters , profiles and etc .

3 . Precise temperature controlfor coolant

4 , Extremely flexible , easy to setup and widely capable , fixtures easy to change and locationmeasured and corrected by CNC

5 , Standard grinding units , easy to setup

6 , Multiple types of spindle availa ble for various needs : mills , drills , deburring , threadingnd etc

7 , Same blank for different products , unloading to correct stock bin

8 , Fully realizing 6 faces grinding with high turntable repeated positioning accuracy

9 , Fully sealed working units , no chips interruption risk , Precise and reliable drive units

Product Specification

Application			Station 3
Capability	Mill/Drill/Thread	Flute Grinding	φ75 / 100mm Wheel 380W Direct Drive Spindle Max . 10000RPM
Grinding Length	30-50mm	Station 4
Grinding diameter	1-8mm	Retract & Clearance Flute Grinding	φ100mm wheel
Grinding Scope					φ75mm wheel
Grinding range	0.5-8mm			380W Direct Drive Spindle
helical angle	15-55			Max . 10000RPM
Min cycle time	13s	Station 6 （F6）
Station 1			polishing	φ100mm wheel
Loader	Max1350pcs		380W Direct Drive Spindle
Station 2				Max . 10000RPM
Flute Grinding	Wheel Dia . 100mm 300wdirect Drive Spindle Max , 10000RPM	System
Station 5（F6）			BP/SY	4 Channels
Flute Grinding	φ75 / 100mm Wheel 380W Direct Drive Spindle Max . 10000RPM	Machine weight and size
Connected Loading			weigth	4000kg
380V/50HZ	10KW	size	235026502000

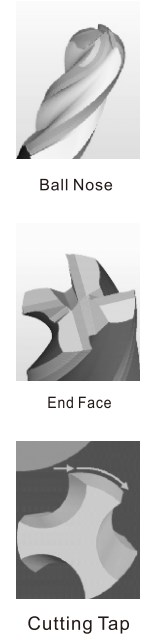

Samples Show

Applications

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter
