Product Description

China Professional Manufacture W 2200 series Walterscheid Replacement PTO Shaft

Products Description

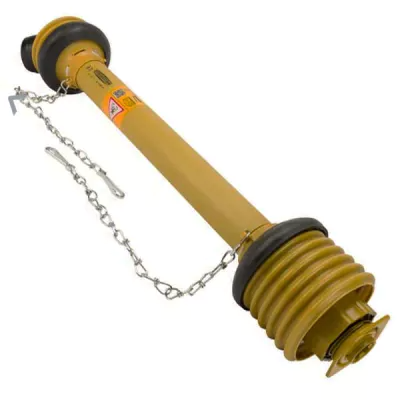

W 2200 series PTO Shaft Replacement of Walterscheid

Lubrication frequency is 50 to 100 hours Meet the requirements specified in EC 89/392 EEC Comply with EN12965 safety standard CE mark available Maximum dynamic capacity 540 rpm: 20 kW, 335 Nm Maximum dynamic capacity 1000 rpm: 31 kW, 295 Nm Value at working angle of 5 ° and service life of 1000 hours

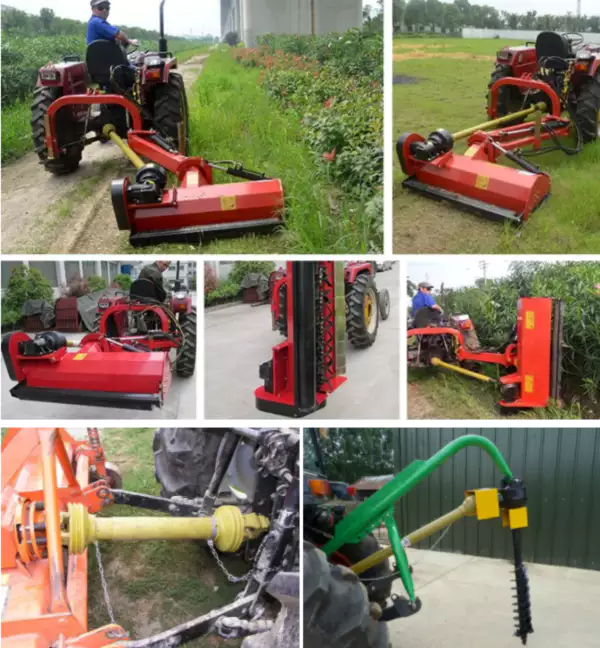

PTO shaft type Pto shaft is one of the most important components of the tractor system, because it allows various agricultural implements to be connected to the tractor. It transmits the power of the tractor to the rotary mower, feed grinder, grain silo screw conveyor and other implements. There are various types of PTO shafts available for a wide range of agricultural applications. These include transmission PTO, constant speed PTO and dual PTO. Transmission PTO: This type of PTO shaft is directly connected to the transmission on the tractor and is one of the oldest PTO shaft types. Its rotational speed is between 540 and 1000 rpm, depending on the connected equipment. The transmission PTO is the simplest and most common PTO shaft type. It has a simple switch for engaging the PTO on the tractor and pulling torque from the engine to the connected equipment. Whether you are a tractor or a farm truck, you need a high-quality PTO shaft. If you do not do this, you may find that you have damaged the implement and tractor. When purchasing a new PTO shaft, always consider the size of the implement and tractor. This will help you determine the proper shaft length and ensure that the implement will not be damaged by the PTO. You should also ensure that you buy durable shafts, such as this brush pig PTO shaft. It is composed of 6 spline ends and the standard size is 1 3/8 ". This will make it perfectly match your implement and tractor, and provide excellent driving force for your machine. Robust and durable: this PTO shaft is made of 4 series power transmission system steel, with 20CrMnTi carburized steel universal joint and Q345 steel pipe in the shield. The PTO shaft is carefully forged and can be used with different types of agricultural machinery, with a solid and heavy feel. In addition, the shaft is a CE certified product, equipped with safety chain and strong shield to eliminate potential hazards during transmission. It is easy to assemble and use, and easy to replace directly. Safety chain and shield: These PTO chains are used to securely connect the PTO shaft to the tractor and equipment. They can also prevent the PTO shaft from moving during use, which is a common cause of accidents. It is also helpful to kneel on a soft surface (such as a car floor mat or some strong cardboard) when connecting the implement to the PTO. This will reduce the stress on the knee, making it easier for you to work with splines. Jamming of the open power take-off shaft is a serious risk, which may cause serious injury or even death. This is because the axis can quickly twist and rotate around the human body. This may result in amputations, spinal and neck injuries, and complete physical damage.

Specifications Of W 2200 Series PTO shaft

Connection outside diameter tractor side	1-3/8 Inch
Connection number of splines/grooves by tractor side	6
Consists of	* Pto shaft with shield and slip clutch K32B (60 daNm) * Declaration of conformity * Instruction manual
Locking type by tractor side	Collar lock
Attachment tractor side	Quick disconnect yoke
Connection Ø machine side	1-3/8 Inch
Connection number of splines/grooves by machine side	6
Locking type by machine side	Collar lock
Attachment machine side	Radial pin clutch
Size code	W2200
Length	710 mm
Power per 540 rpm	20 kW
Power per 1000 rpm	31 kW
Cross joint cap diameter tractor side	24 mm
Cross joint length tractor side	61 mm
Cross joint cap diameter machine side	24 mm
Cross joint length machine side	61 mm
Clutch type	K32B
Max clutch torque	600 N·m
Outer tube profile	1
Outer tube wall thickness	3 mm
Outer tube large outside diameter	48 mm
Inner tube profile	Ov
Inner tube wall thickness	4 mm
Inner tube large outside diameter	40 mm
Profile tube shape	Lemon
Max static torque	1850 N·m

Tractor PTO shaft assembly and replacement parts Tractor PTO shaft: If you are looking for a complete assembly, we provide you with guarantee. We provide a large number of PTO drive shafts designed in North America and Italy. Their length and spline configuration meet your needs. CV PTO assembly: CV (constant speed) PTO shaft can be used for most tractors and implements. These products balance the tractor's power input and shaft output to provide greater stability when engaged. Cross and bearing kit: The cross and bearing assembly is the universal joint that constitutes the core of the PTO drive shaft system. This part is the power distribution point from the PTO components to the connecting equipment. Half-axle assembly: We have various 48 "and 60" Weasler axle PTO assemblies. The center and shaft end length components have square and rectangular design options. Additional components: If the PTO shaft components begin to show signs of wear, please save the cost of purchasing new components by replacing individual components. We have a series of new protective devices and protective bearings, inner and outer tubes, yokes, pins and universal clutches.

How does the PTO shaft work?

How the PTO shaft works Many agricultural equipment lack independent power, which is the role of tractor PTO. Each end of the PTO shaft is connected to the tractor and the machine. The tractor PTO shaft is operated by a simple switch and can rotate between 540 and 1000 RPM, depending on the equipment. When engaged, the shaft draws power and torque from the tractor transmission to provide the correct power for your implement and enable you to work. The PTO shaft has different dimensions. You need to find a shaft that matches the coupling on the traction equipment. It should be easy to connect the tool to the tractor. If the equipment must be lifted off the ground to connect the shaft or the shaft is too long, forced connection may damage both. If you have an existing PTO shaft at hand, it is easy to confirm your length. Close and measure the distance between the PTO yoke and the yoke.

PTO shaft and agricultural gearbox Agricultural gearbox and PTO shaft: These components work together to transfer mechanical power between agricultural tractors. The PTO shaft converts engine energy into hydraulic pressure. This is why the tractor pulls heavy loads. During normal operation, it can reduce the risk of damage to the tractor and operator. If used properly, it is an important part of the tractor, but it may also have defects. When selecting agricultural gear boxes, the durability and mechanical properties of products and materials should be considered. The durable gearbox can be used for many years to avoid repeated replacement. A high-quality agricultural gearbox will be durable for many years to come. You don't want to replace it temporarily. This may be expensive, so please consider your needs when purchasing agricultural gearbox and PTO shaft. RAYDAFON wholesales PTO shafts and agricultural gearboxes at low prices! If you are interested, please contact us immediately!

Why choose us? We have more than 14 years of spare parts experience, especially in power train parts. We have deeply participated in the auto parts business of Hangzhou, China's largest manufacturer of imported parts. We provide products with good cost performance for different customers around the world. We maintain good relations with local products through win-win policies. The factory provides high-quality and fast products; We provide high-quality and fast service; Customers provide their customers with high-quality products and services. This is a healthy and powerful equilateral triangle to keep the Hangzhou Circuit moving forward. We are one of the major manufacturers and wholesalers of PTO spare parts for light and heavy vehicles. We adopt advanced technology and high-quality raw materials to provide products of various sizes, shapes, designs and capacities. Our products are known for their ease of maintenance, and we deliver them in a cost-effective and durable manner. Therefore, these products are provided according to the given information of customers.

We also supply agricultural gearbox:https://planetary-gearboxes.en.Raydafon.com/productgrouplist-200696697/Agricultural_Gearboxes.html?spm=a2700.shop_index.88.62

For more details, please click here to contact us！
