Product Technical Description
| Model : | Large Power Screw Air Compressor (II series) |
| Type: | Large Power Screw Air Compressor |
| Voltage: | 380V/50HZ/3P, 220V/60HZ/3P, 400V/50HZ/3P, 415V/50HZ/3P or Customer′s Requirements |
| Working Pressure: | 7~12.5 bar |
| Installed Motor Power: | 90KW~400KW |
| Capacity: | 12.5~74 m3/min |
| Color: | Blue |
| Driven Method: | Direct Driven |
| Trademark: | SCR |
| Transport Package: | Standard Wooden Packing |
| Available Certificate: | CE, ISO, UL, ASME, GHOST |
| Origin: | Shanghai, China |
| application: | Casting , Metal , Plastic , Rubber |

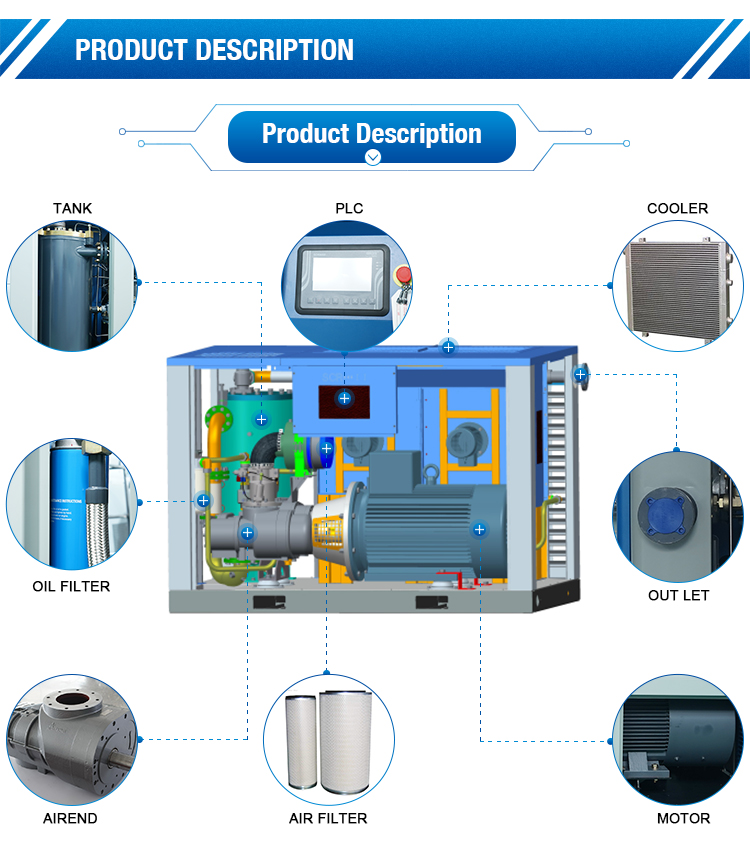

Product Features
German high quality centrifugal fan
German ROSENBERG's newest centrifugal fans, big cooling air volume, stable and uniform
air pressure , full use of the heat dissipation area, good cooling effect. Totally conquer the problem of big horse power air cooling type compressors poor cooling effect problems.
High quality air inlet valve
SCR use a high quality imported inlet valve. SCR have adopted this technology because when the machine unloads the device will automatically adjust the exhaust pressure. Compared with similar products this greatly reduces the unload power, also reduces the bearing load at the same time, and improving the bearing service life.
American High quality air filter system
The Donaldson air filter adopts a nano coating on the filter surface with an innovative filter construc-tion. The filter has a low pressure drop which reduc-es energy consumption. Compared with traditional filters it has a higher dust capacity and lower flow resistance.
High quality high efficiency specialized motor
High Efficiency all closed air cooling air compressor specialized motor. Protection grade IP55 Optional , insulation grade F, class B temperature rise, can prevent dust and moisture into the motor. SKF bearing can ensure long-term continuous trouble-free operation.
 |

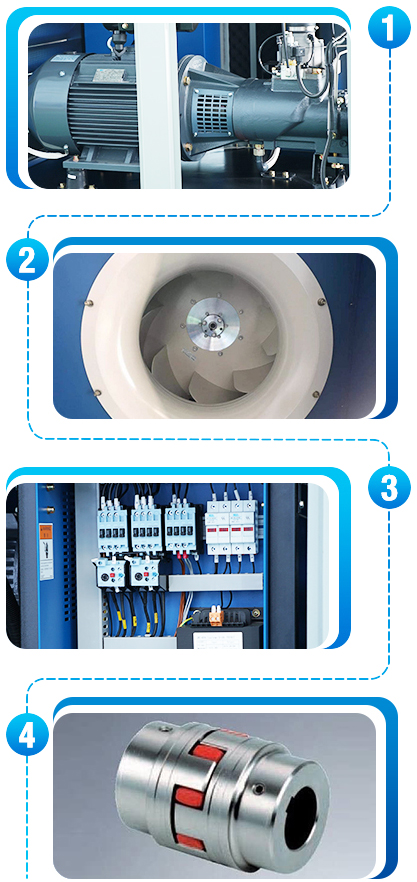

1.Direct driven airend,high reliability
2.Centrifugal fan coolin system
3.Siemens core control components (1)Famous Siemens electrical appliances are used. (2)The screw compressor has a self-owned PLC integrated function. (3)Intrlligent PLC realize automatically control.
4.Germany KTR coupling
|
| Model | SCR300I-8 | SCR300I-10 | |
| Capacity/Pressure(m3/min,/BAR) | 38.4/8 | 33.3/10 | |
| TEFC Motor | Power(KW) | 220KW(300H.P) | |
| Speed(r/min) | 2975 | ||
| Starting way | Star-Delta | ||
| Volt(V) | 380/400/415(220) | ||
| Motor safety grade | IP54 | ||
| Motor isolation grade | F | ||
| Electrical Supply | 380(400,415)V/50Hz/3Phase, 220V/60HZ/3P | ||
| Outlet Temperature(ºC) | ≤ Environment Temperature+10ºC | ||
| Driven way | Direct Driven | ||
| Noise level at 1 meter | 84±3dB(A) | ||
| Cooling method | Air cooling | ||
| Oil content | ≤3 ppm | ||
| Outlet Connection | DN100 | ||
| Dimension | Length(mm) | 3000 | |
| Width(mm) | 2050 | ||
| Height(mm) | 2097 | ||
| Weight(KG) | 5000 | ||
 |
Professional online consultant to solve your question about compressor system.
|
| Free site design consultant, and energy saving solution to help you save operation cost. | |
| Negotiable technican available to service machinery overseas. | |
| Online professional after-service until solve the problem. | |
|
1 year warranty after commissioning or 16months against shipping date, (except maintenance consumables). |
|
| A sufficient number of spare parts are available, make sure the good after service. |
|
1989 Start Sells of Screw Compressor
2008 Establish Shanghai Globe Screw Compressor Technology focus on airend technology through technology cooperation with Germany.
2010 Get UL certificate, start to sell in US.
2015 Promotion of oil cooling PM compressor, two stage compressor. Export oil free compressor to UK, US etc. Export to more than 55countries around the world.
2018 Jan, 1st, Joint Venture with Japan Anest Iwata to have better future development.
|
 |
2002 Establish SCR factory in Jinshan Area.
2009 Attend Germany Hannover Mess, Get CE certificate, start to sell in Europen market.
2013 Export low pressure compressor.
2016 EPM, Low pressure PM compressor be published.
|
|
1 What trade terms do we provide? What kind of settlement currency do we offer? |
|
Trade term :CIF ,CFR ,FOB,Ex-Works |
|
2 How long is our delivery? |
|
Our standard delivery time is 30-40 days after confirmation order & receiving recipets for standard compressors, for the other non standard requirement will be discussed case by case. |
|
3 What is the voltage of the compressor? |
|
The available voltage include 380V/50HZ/3Phase, 400V/50HZ/3P, 415V/50HZ/3P, 220V/60HZ/3P, 380V/60HZ/3P, 440V/60HZ/3P. At the same time we provide other voltage according to customer requirement. |
|
4 Can our compressor run in high temperature environment? What is the working temperature range for our machine? |
|
Yes ,our machine would run in high temperature environment ,until now our products have been sold to many countries which would meet high temperature in summer ,such like Iraq, Saudi Arabia, Egypt, Algeria, etc. |
|
5 What's the min. Order requirement ? |
|
Min. Order requirement is 1PCS. |
If you are interested in any of our products,please feel free to contact us.We are looking forward to cooperating,growing and developing with you sincerely.
