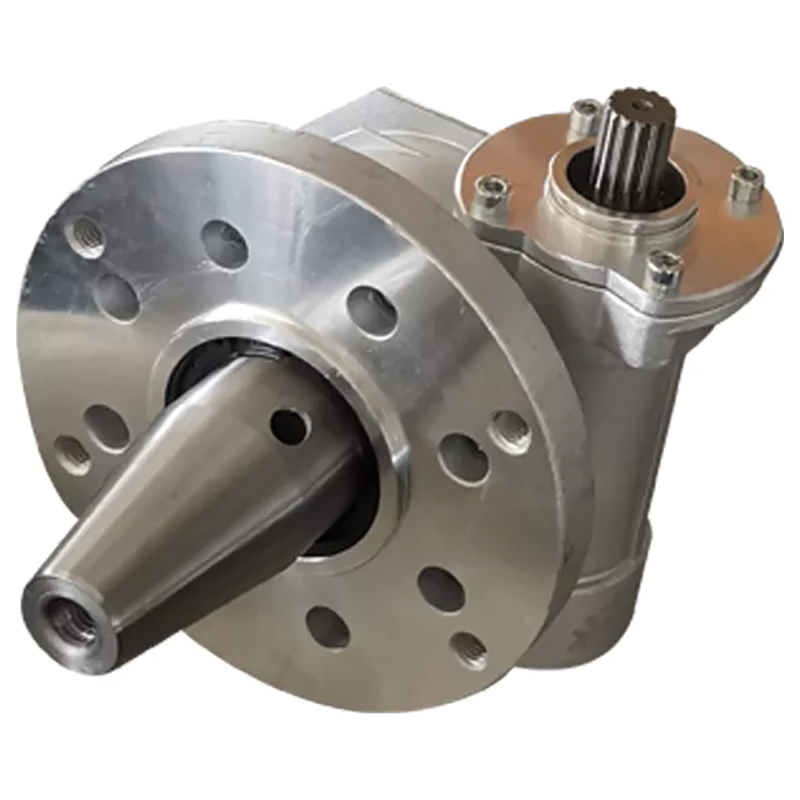

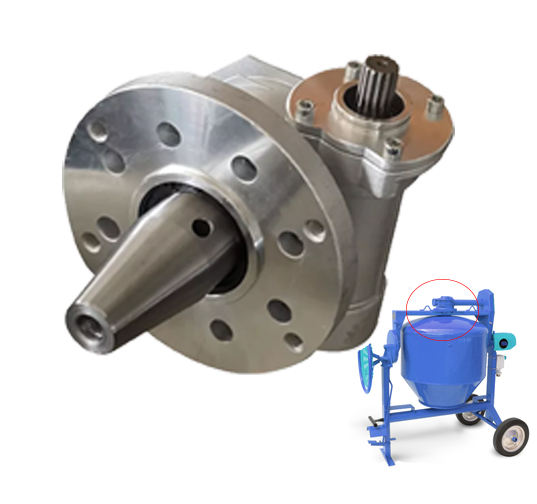

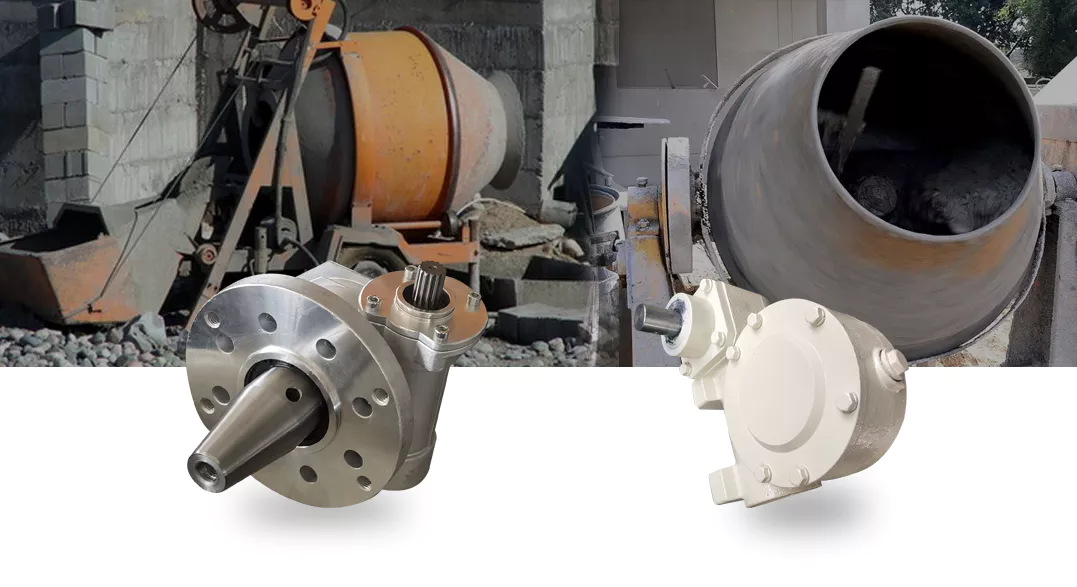

Concrete Mixing Gearbox Reducer For Cement Mixer With Bullet Head Shape Output

Concrete Mixing Gearbox Reducer For Cement Mixer With Bullet Head Shape OutputProducts DescriptionFeatures of Cement Mixer GearboxView the following features:Mix mortar, plaster, cement slurry, and concreteMix a 380 pound bag or a 550 pound bagRemove the drum and frame from the base for transportati......
Send Inquiry
Product Description

Concrete Mixing Gearbox Reducer For Cement Mixer With Bullet Head Shape Output

Products Description
Features of Cement Mixer Gearbox
View the following features: Mix mortar, plaster, cement slurry, and concrete Mix a 380 pound bag or a 550 pound bag Remove the drum and frame from the base for transportation Gearbox drive never requires maintenance Wheels allow you to roll where you need them Pour into a cart or bucket False bottom to prevent dry matter from sticking to the bottom Powder coating rust prevention 360 º rotation allows you to load from one side and unload from the other side Grouting pump with stirrer Perfect and even mixing Used indoors or in narrow spaces Original mixer that will last for decades
Concrete Mixing Gearbox Reducer For Cement Mixer With Bullet Head Shape Output
Concrete Mixing Gearbox Reducer For Cement Mixer With Bullet Head Shape Output
Function:
Power transmission: The Gearbox reducer converts the high-speed rotation of the electric motor into appropriate speed and torque to drive the drum of the concrete mixer for mixing operations.
Speed adjustment: By using a gearbox reducer, the speed of the drum can be adjusted to meet different concrete mixing needs.
Torque amplification: The reducer can amplify the torque generated by the electric motor, providing sufficient power to handle the concrete mixing process.
Concrete Mixing Gearbox Reducer For Cement Mixer With Bullet Head Shape Output
Concrete Mixing Gearbox Reducer For Cement Mixer With Bullet Head Shape Output

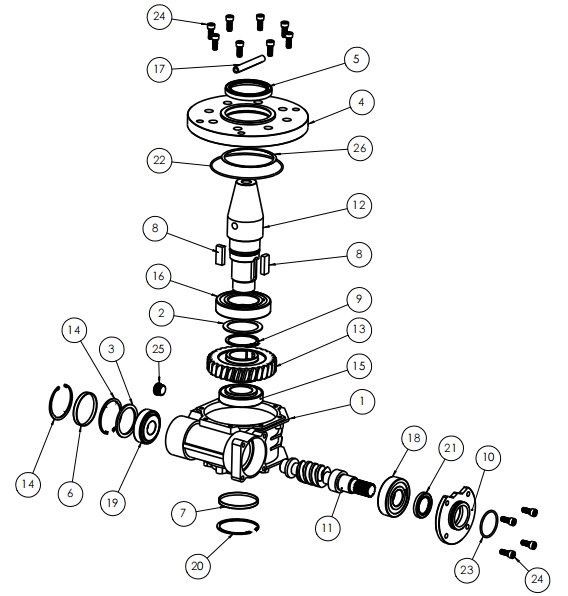

1 9.88.19/01 Carcassa
2 9.88.19/13 Tree thickness
3 9.88.19/12 Screw thickness
4 9.88.19/02 Large flange
5 9.88.19/07 Large oil screen
6 9.88.19/09 Cap diam. 62 screw
7 9.88.19/10 Cap diam. 72 shaft
8 CH14835 Key
9 SEG55AL Seeger 55 tree
10 9.88.19/03 Small flange
11 9.88.19/05 Endless vine
12 9.88.19/06 Central tree
13 9.88.19/04 Bronze crown
14 SEG62FO Seeger 62 hole
15 9.88.01_07 Bearing 30208
16 9.88.01/06 Bearing 6211 2RS
17 9.88.01_14 Elastic plug
18 9.88.01/15 Bearing 6306 2RS
19 9.88.19/11 Bearing 30305
20 SEG72FO Seeger 72 hole
21 9.88.19/14 Small oil shield
22 or Ring 3500 O-Ring large
23 or Ring 3181 Small O-Ring
24 Screw M8 x 20 uni 5931 Screw M8 x 20 uni 5931
25 9.88.19_16 Oil cap
26 9.88.19_17 Bearing thickness G.

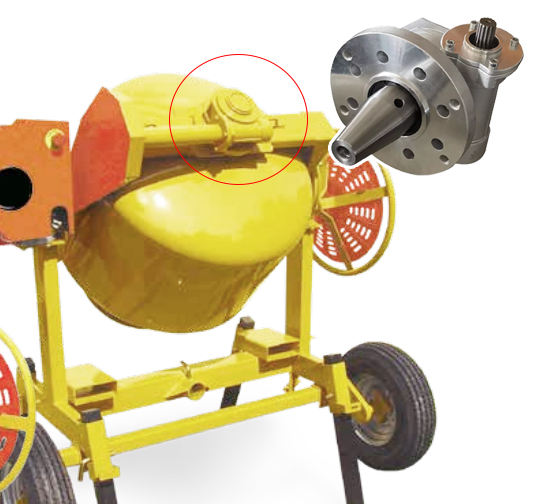

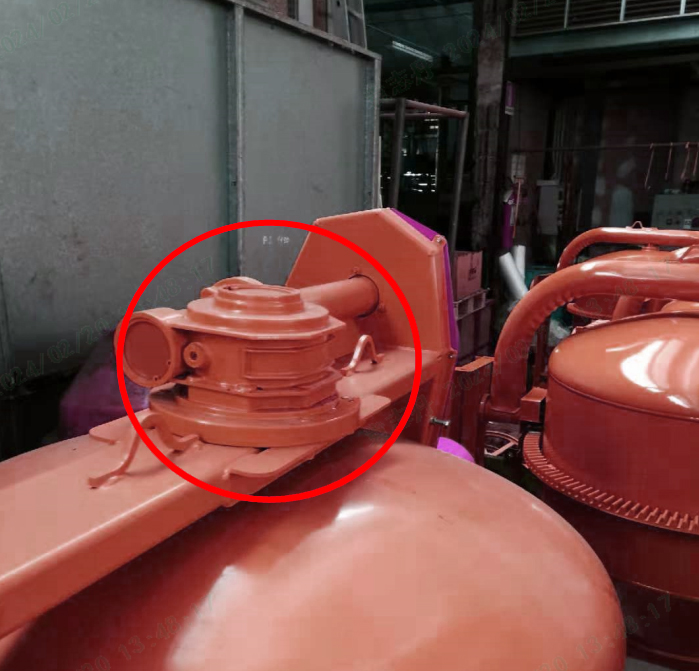

Application of Cement Mixer
Concrete Mixing Gearbox Reducer For Cement Mixer With Bullet Head Shape Output

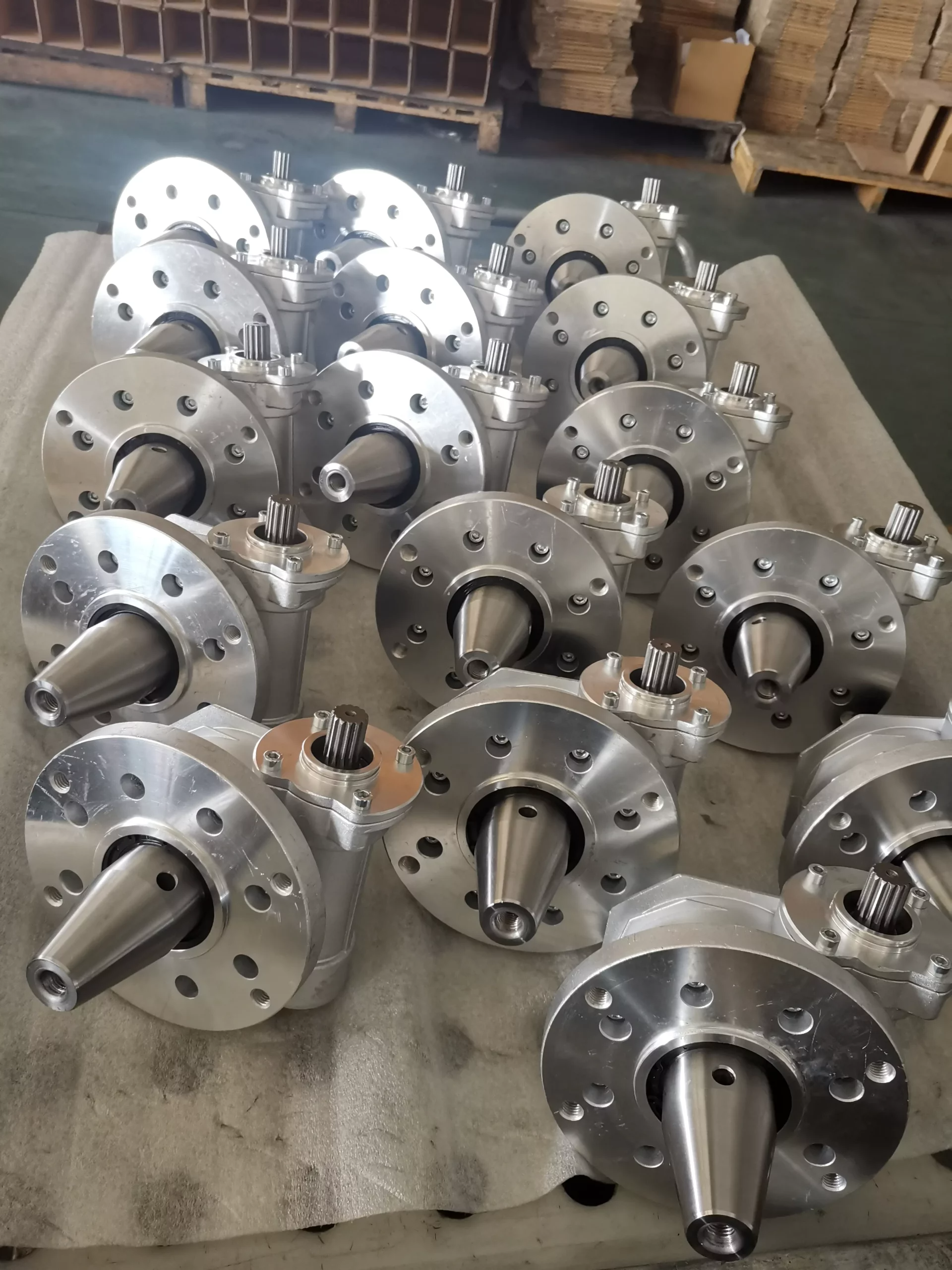

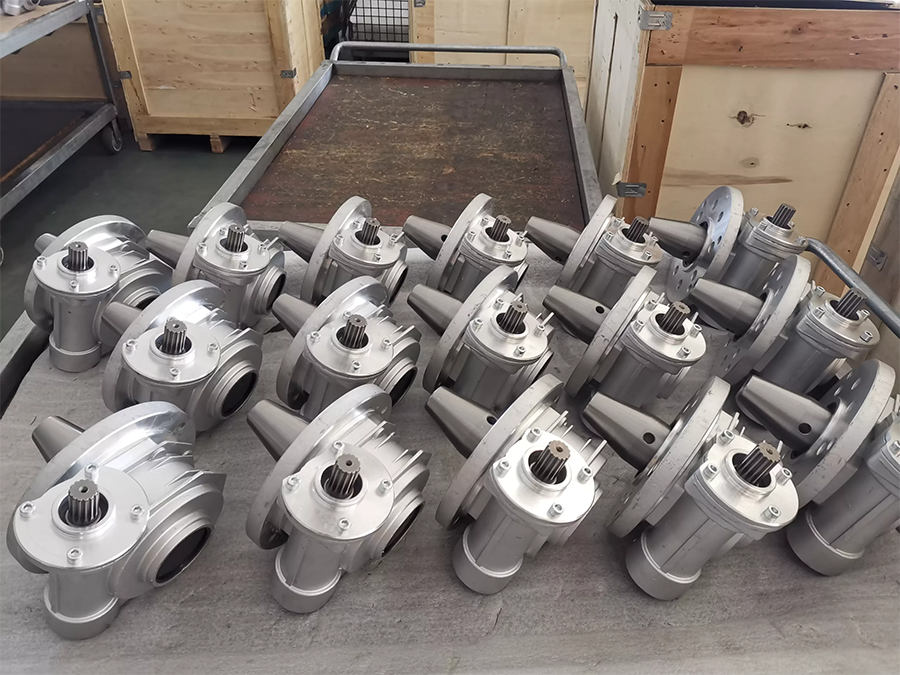

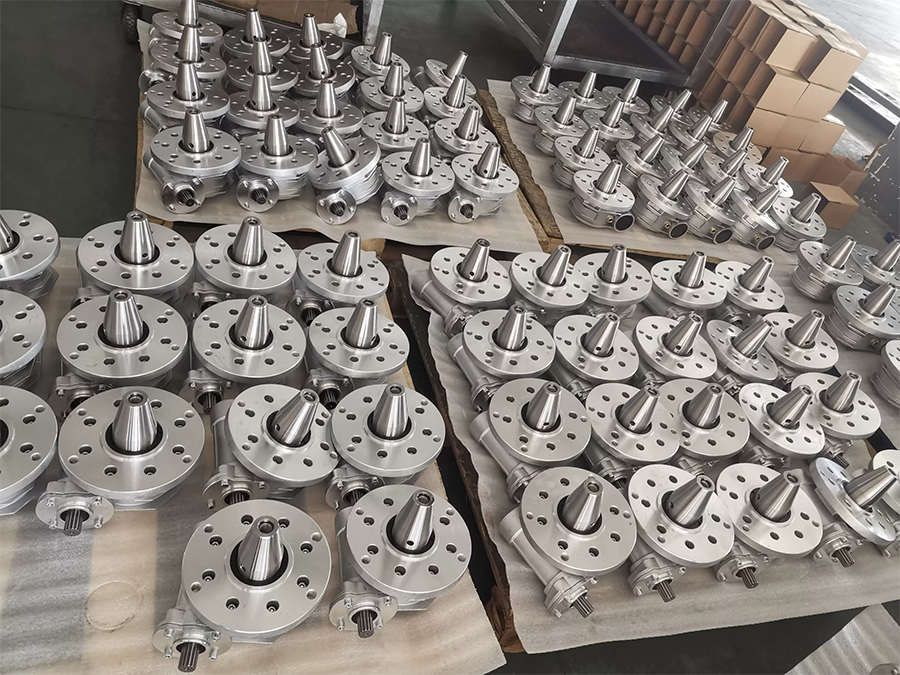

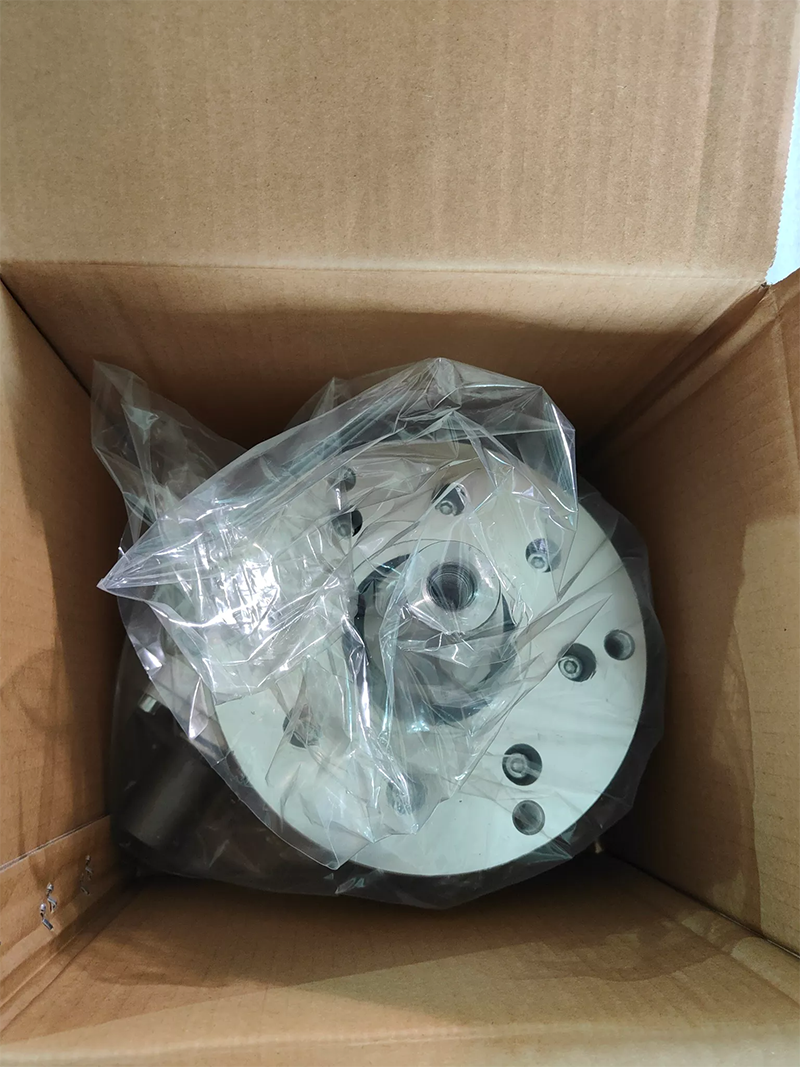

Packing Detail of Cement Mixer Gearbox
1. Standard export packing or according to customer`s requirements
2. use a crane/forklift to load the machines into the container
3. use the wire to fasten the machines to keep them stable
4. use the cork wood to forbid collision
Concrete Mixing Gearbox Reducer For Cement Mixer With Bullet Head Shape Output
Concrete Mixing Gearbox Reducer For Cement Mixer With Bullet Head Shape Output
Concrete Mixing Gearbox Reducer For Cement Mixer With Bullet Head Shape Output
Concrete Mixing Gearbox Reducer For Cement Mixer With Bullet Head Shape Output

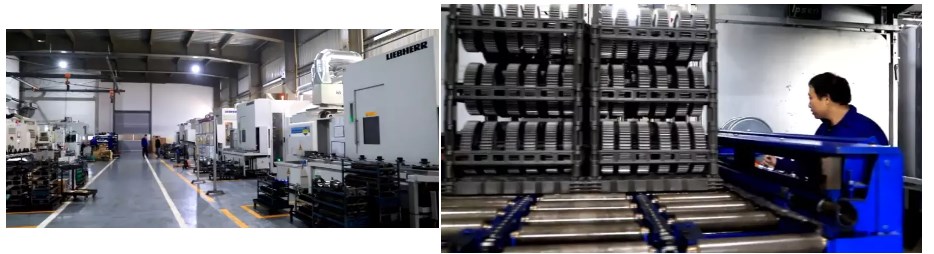

Construction gearbox manufacturer Our company has successfully developed series reducers of tens of thousands of specifications, such as spiral worm gear, plane envelope, conical envelope, cylindrical gear, hard tooth surface, planetary gear, cycloidal pin gear, screw elevator, four series modular gear reducer, harmonic reducer, cooling tower, etc., by virtue of strong technical force, large, advanced and sophisticated production and processing equipment, and by using new technology and appropriate testing equipment. The reducers produced by our company are widely used in various fields of the mechanical industry such as metallurgy, mining, steel, lifting, shipping, cement, chemical, food, papermaking, etc.
Concrete Mixing Gearbox Reducer For Cement Mixer With Bullet Head Shape Output
