Product Description

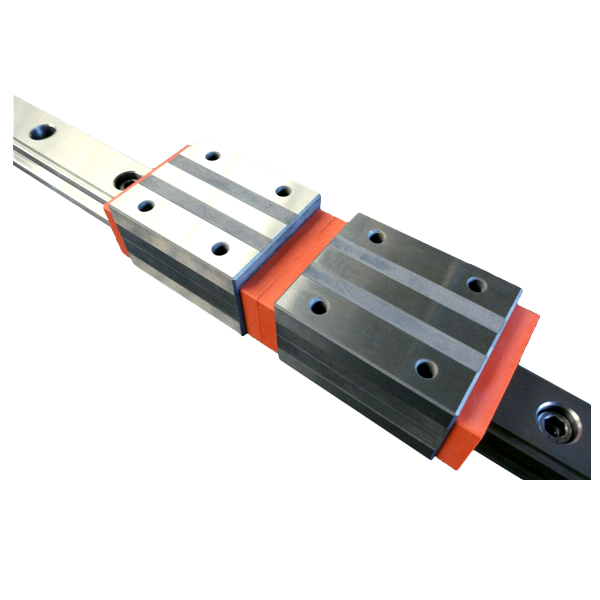

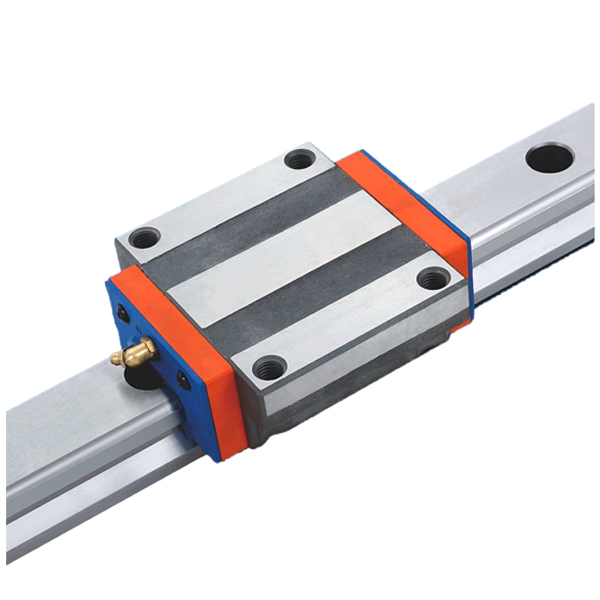

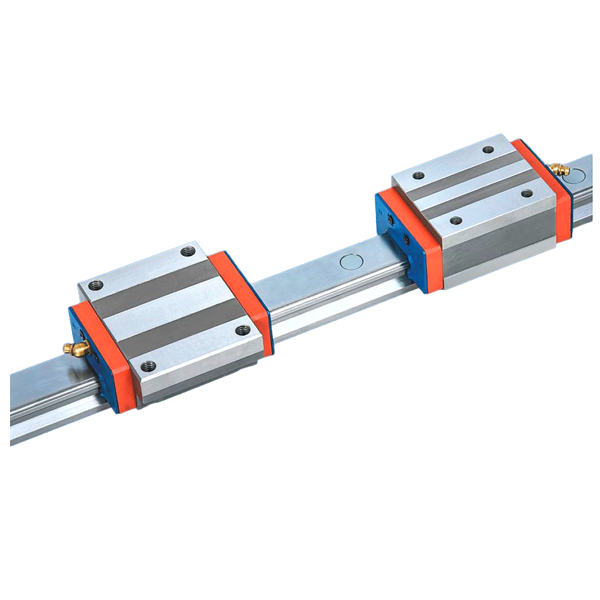

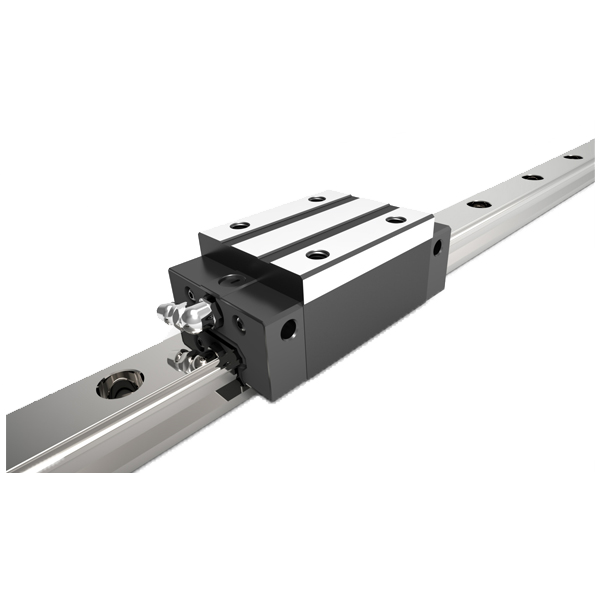

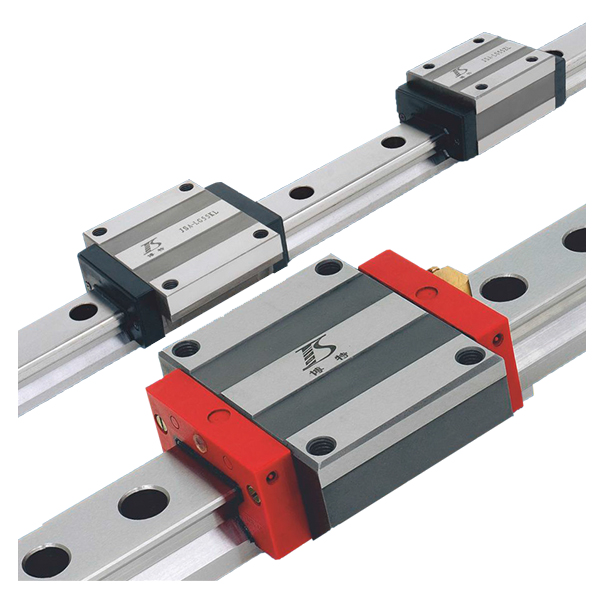

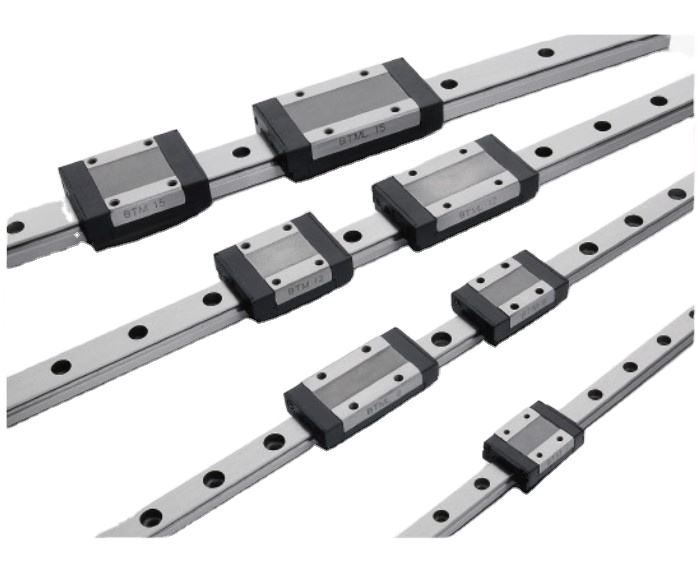

Economical Custom Design BTM Standard-type Miniature Linear Guideway Ball Screw

Products Description

Ball screw pair is a mechanical component composed of screw, nut, ball and other components. Its function is to convert rotary motion into linear motion or linear motion into rotary motion. It is a further development of the traditional sliding screw. The profound significance of this development is the same as the changes brought by rolling bearings to sliding bearings. Because of its excellent friction characteristics, ball screw pairs are widely used in various industrial equipment, precision instruments and precision CNC machine tools. Since our company developed the first set of ball screw pairs in China in 1964, the company has been leading and infiltrating the development of domestic ball screw pairs in the technical development of ball screw pairs, and has taken the lead in the R & D and manufacturing of domestic ball screw pairs. In order to adapt to the development of CNC machine tools, the company has established the product development direction of "large-scale, heavy-duty, high-speed and high-precision". In the process of product development, a number of new products with independent intellectual property rights, such as dkfzd end block high-speed and high-precision ball screw pairs, JF / jfzd matrix large heavy-duty ball screw pairs, were introduced. More than 30 patents have been applied for and authorized. In terms of processing technology, the company took the lead in applying induction hardening technology to the heat treatment of ball screw pairs, greatly improving the production efficiency of ball screw pairs. In recent years, the company has successfully introduced the world-class leistritz high-speed hardware rotary milling machine and hardware material rotary milling technology, which has changed the traditional processing technology for decades, improved the production capacity and quality, and greatly shortened the product production cycle. By using the pre batch scale, the product supply cycle can be shortened to 15 days. At present, the company can produce the smallest diameter Φ 6mm, lead 1mm; The maximum specification diameter is Φ The 245mm single screw has a length of 10m and a maximum dynamic load rating of 125t. Suitable for ball screw pairs in various applications; Various ball screw pairs of 2m P1, 3M P2, 5m P3 and 10m P5 can be provided in batches. It is a professional manufacturer of ball screw pairs with the largest variety and the most complete specifications in China.

Product Name	Best quality linear guieway 15,20,25,30,35,45,55,65mm width
Material	Bearing Steel
Preload	F0 , F1, F2, F3
Linear Rail Width	7,9,12,15,20,25,30,35,45,55,65,85,100,125mm width
Grade	1,2,3,4,5,6
Length	Max. 4000mm
Block	Flange/Square
Used	automatic machinery/CNC machines

Characteristics
1. High Reliability
2. Smooth Operation
3. High Rigidity and Preload
4. High transmission efficiengy
5. Steady motion
6. High Durability
