Ep Small Gear Motor Speed Reducer Gearbox for Greenhouse Ventilation

Ep Small Gear Motor Speed Reducer Gearbox for Greenhouse VentilationProduct DescriptionEp Small Gear Motor Speed Reducer Gearbox For Greenhouse VentilationOur greenhouse reducer and gearbox series is suitable for all kinds of greenhouse skylights, side windows, roll shading film, edge film, insulati......

Send Inquiry

Product Description

Ep Small Gear Motor Speed Reducer Gearbox for Greenhouse Ventilation

Product Description

Ep Small Gear Motor Speed Reducer Gearbox For Greenhouse Ventilation

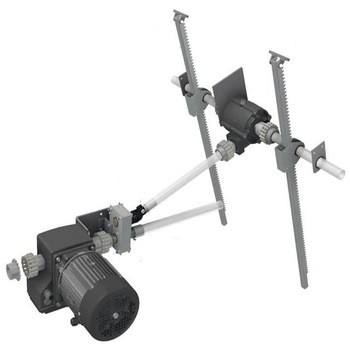

Our greenhouse reducer and gearbox series is suitable for all kinds of greenhouse skylights, side windows, roll shading film, edge film, insulation quilt, northern straw curtain and so on.

In order to meet different customers and different structural needs, the series has been developed. The center distance is from 30 to 100mm, the speed ratio is from 150:1 to 1800:1, the limit range is from 0.5 to 60 rpm, and the torque is from 150N.m to 2000N. .m.

This type of greenhouse geared motor has the characteristics of compact structure, large speed ratio, large torque, light weight, low noise, good sealing, absolutely reliable limit, long service life, good self-locking performance and low price.

Through large-scale, long-term use of various greenhouse reducer companies, reliable quality, advanced technology, won numerous accolades.

Maintenance free

unique and compact Unique expansion chamber

High quality and reliable

Easy-to-program limit switch

Product Name

Greenhouse Gearbox Greenhouse Reducer Gear Motors for Greenhouse

Feature

Maximum drive torque of 150 Nm or 450 Nm.
Rotational speeds of 3 or 5 rpm for a mains frequency of 50 Hz or 3.6 or 6 rpm for a mains frequency of 60 Hz in case of application of 4-pole electric motor.
Protection class IP65.
Can be used in ambient temperatures of 0-60°C.
Suitable for discontinuous use, operating class s3-30%, maximum activation time 25 minutes.
Equipped as standard with 16-tooth galvanised chain coupling 5/8"x3/8".
FT85 motor assembly flange for installation of IEC standard motor (EN 50347).
Maximum switching range of limit switch system 40 or 64 revolutions of the drive shaft.
IP68 M16x1.5 cable gland for cable feedthrough (5-9 mm cable).

Our Company

Ever-power specialist in making all kinds of mechanical transmission and hydraulic transmission like: planetary gearboxes, worm reducers, in-line helical gear speed reducers, parallel shaft helical gear reducers, helical bevel reducers, helical worm gear reducers, agricultural gearboxes, tractor gearboxes, auto gearboxes, pto drive shafts, special reducer & related gear components and other related products, sprockets, hydraulic system, vaccum pumps, fluid coupling, gear racks, chains, timing pulleys, udl speed variators, v pulleys, hydraulic cylinder, gear pumps, screw air compressors, shaft collars low backlash worm reducers and so on. furthermore, we can produce customized variators, geared motors, electric motors and other hydraulic products according to customers' drawings.

The company provides a reliable gurantee for the product' s quality by advanced inspection and testing equipment. professional technical team, exquisite processing technology and strict control system.

In recent years, the company has been developing rapidly by its rich experience in production, adcanced managemant system, standardized management system, strong technical force. We always adhere the concept of survial by quality, and decelopment by innovation in science and technology.

Ever-power Group is willing to work with you hand in hand and create brilliance together!

Grinding Workshop

CNC Teeth Machine

CNC Lathe Workshop

Figuring Center

Heat Treatment Machine

Heat Treatment Workshop

Material available

Low carbon steel, C45, 20CrMnTi, 42CrMo, 40Cr, stainless steel. Can be adapted regarding customer requirements.

Surface treatment

Blacking, galvanization, chroming, electrophoresis, color painting, ...

Heat treatment

High frequency quenching heat treatment, hardened teeth, carbonizing, nitride, ...

Certifications

FAQ

Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.

Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ.

Please contact us with all relevant details to get the most accurate quotation.

Packing & Delivery

Our Service

Our company is a famous manufacturer of agriculture gearbox,worm reduce gearbox, PTO shafts, Sprockets ,rollar chains, bevel gear, pulleys and racks in china.

We have exported many products to our customers all over the world, we have long-time experience and strong technology support.

Some of our customer :
Italy: COMER,GB GEABOX ,SATI, CHIARAVALLI, AMA , Brevini
Germany: SILOKING ,GKN ,KTS
France: Itfran, Sedies
Brazil: AEMCO ,STU
USA: John Deere , BLOUNT, Weasler, Agco, Omni Gear, WOODS
Canada: JAY-LOR , CANIMEX ,RingBall
......

-Ø Our Company with over twelve year's history and 1000 workers and 20 sales.
-Ø With over 100 Million USD sales in 2017
-Ø With advance machinery equipments
-Ø With large work capacity and high quality control, ISO certified.
......

You also can check our website to know for more details, if you need our products catalogue, please contact with us.
