F series differential gearbox drive reduction gear box in line reverse gearbox comer manual transmission power transmission

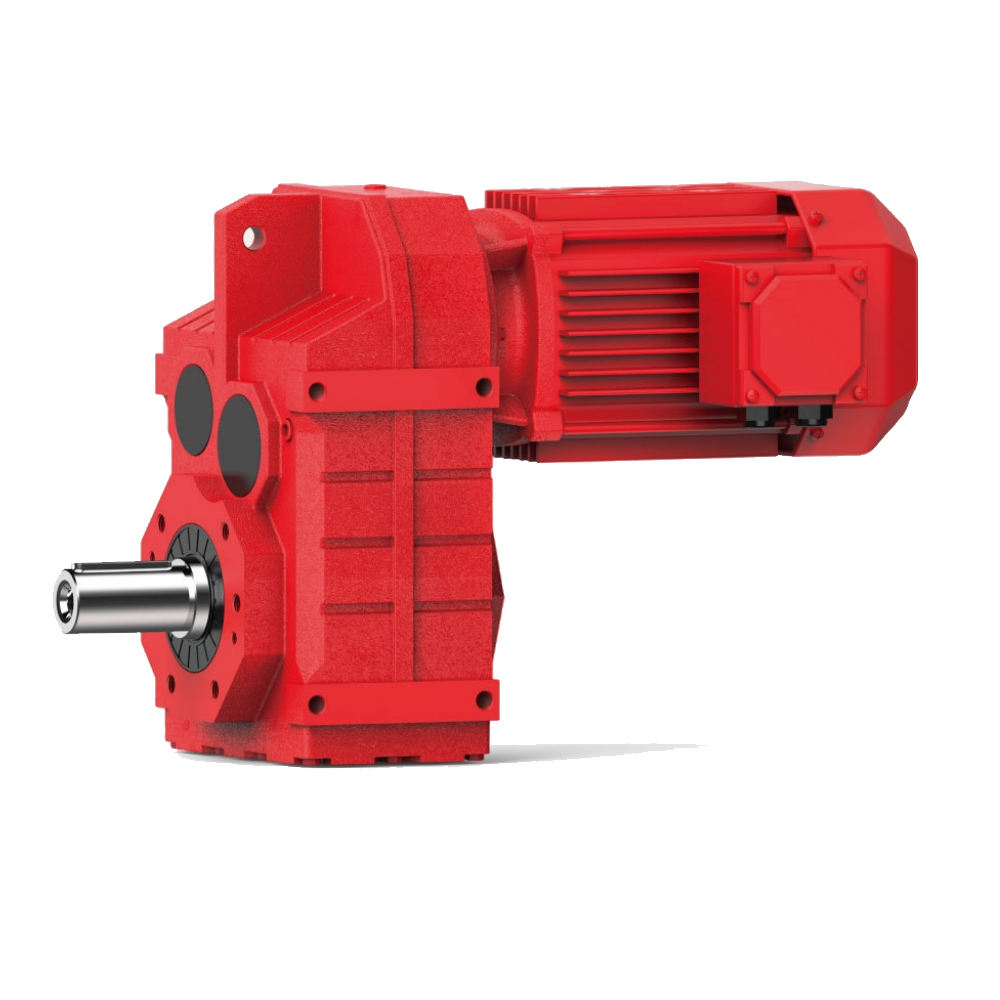

F series differential gearbox is one kind of parallel shaft helical gear reducer , which consist of 2 or 3 stageshelical
gears (relate to gear ratio) in the same case . The hard tooth surface gear use the high quality alloy steel ,the
process of carburizing and quenching, grinding ,which give it follow characters :Stable transmission ,low noise
and temperature ,high loading ,long working lift . Wide application ,specialize in Metallurgy ,Sewage treatment,
Chemical Industry , Pharmacy ,Agriculture equipment and Oil industry
1) Output speed: 0.6~1,028r/min
2) Output torque: up to 21700N.m
3) Motor power: 0.12~200kW

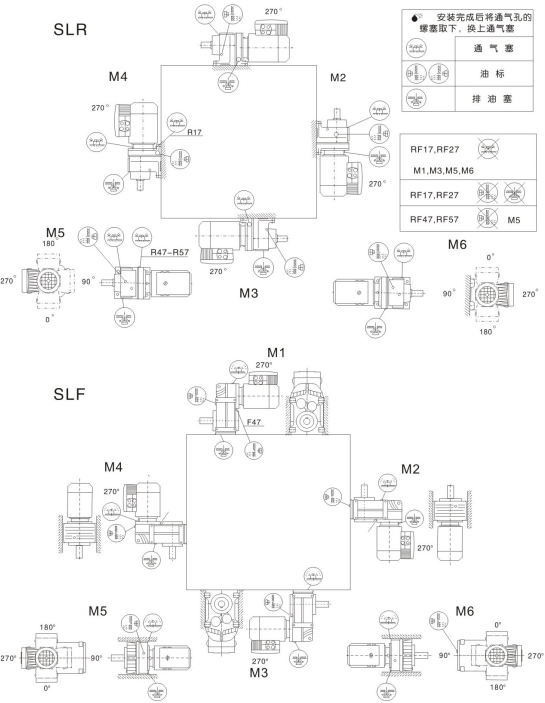

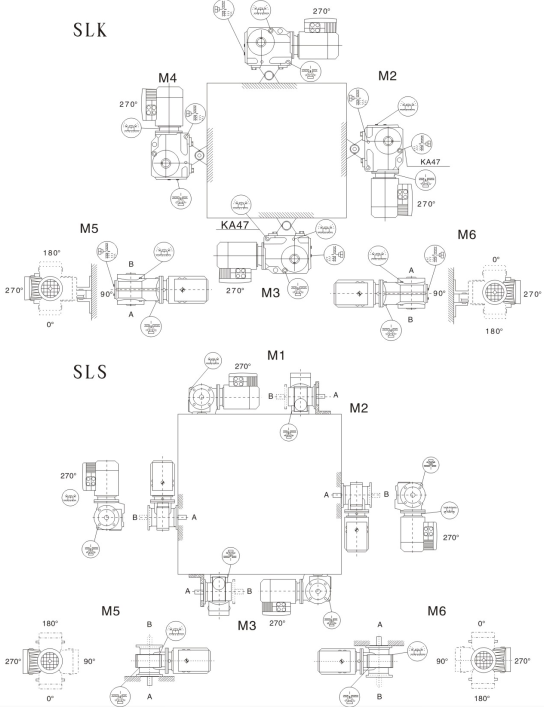

4) Mounted form: foot-mounted and flange-mounted mounting
|
Gear Material
|
20CrMnTi
|
|
Case Material
|
HT250
|
|
Shaft Material
|
20CrMnTi
|
|
Gear Processing
|
Grinding finish by HOFLER Grinding Machines
|
|
Color
|
Customized
|
|
Noise Test
|
65~70dB
|
|
Efficiency
|
94%~98% (depends on the transmission stage)
|
|
Lubricating oil
|
Shell Omala synthetic oil or mineral oil , or similar brand
|
|
Heat treatment
|
tempering, cementiting, quenching,etc.
|
|
Brand of bearings
|
C&U bearing, ZWZ,LYC, HRB,NSK and so on
|
|
Brand of oil seal
|
NAK or other brand
|
|
Temp. rise (MAX)
|
40 °
|
|
Temp. rise (Oil)(MAX)
|
50 °
|
|
Vibration
|
≤20µm
|
|
