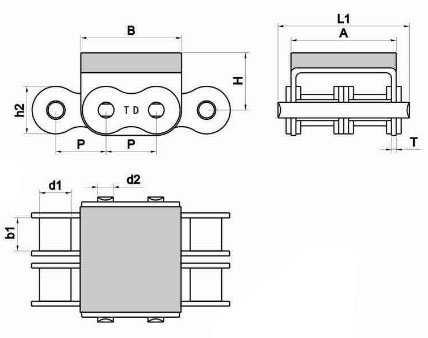

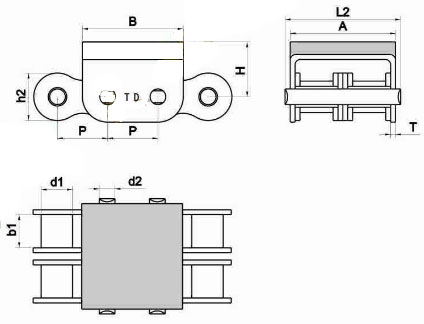

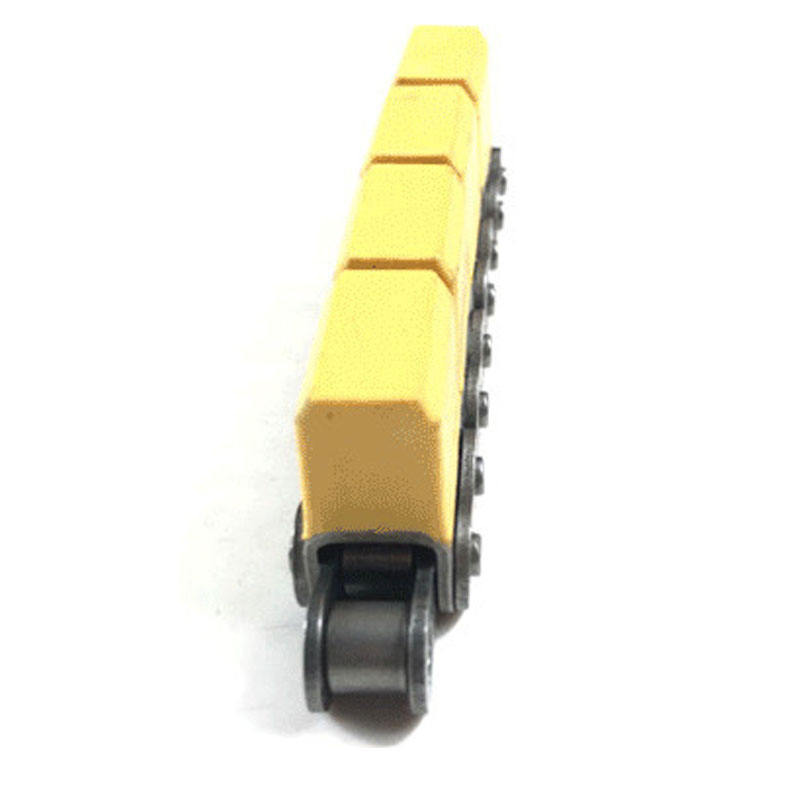

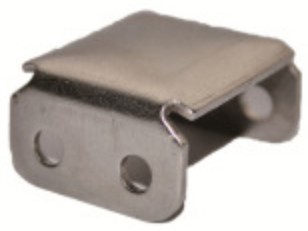

Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Plate depth | Pin length | ||
P | d1 max | b1 min | d2 max | h2 max | L1 max | L2 max | ||
08B-G2 | 12.7 | 8.51 | 7.75 | 4.45 | 11.8 | 34 | 31.2 | |
10A-G2 | 15.875 | 10.16 | 9.4 | 5.08 | 15 | 41.8 | 37.8 | |
10B-G2 | 15.875 | 10.16 | 9.65 | 5.08 | 14.7 | 38.4 | 35.4 | |
12A-G2 | 19.05 | 11.91 | 12.57 | 5.94 | 16 | 51 | 44.5 | |
12B-G2 | 19.05 | 12.07 | 11.68 | 5.72 | 16 | 46.6 | 39.1 | |
16A-G2 | 25.4 | 15.88 | 15.75 | 7.92 | 24 | 66.7 | 57.2 | |
16B-G2 | 25.4 | 15.88 | 17.02 | 8.28 | 21 | 73.2 | 60.93 | |
Chain No. | Plate and attachment size | U plate thickness | Ultimate tensile strength | Weight per meter | ||||
A | B | H | T | Q min kn/lbf | kg/m | |||
08B-G2 | 28.4 | 24.2 | 12.3 | 1.5 | 32/7273 | 2.07 | ||
10A-G2 | 36 | 30 | 17 | 2 | 42.3/9822 | 2.72 | ||
10B-G2 | 33.3 | 30 | 16 | 1.5 | 44.5/10114 | 2.56 | ||
12A-G2 | 44.5 | 36 | 17 | 1.85 | 55.3/12136 | 3.31 | ||
12B-G2 | 39.1 | 36 | 16 | 1.85 | 57.8/13136 | 3.21 | ||
16A-G2 | 57.2 | 46 | 20 | 2.42 | 115/30124 | 7.27 | ||
16B-G2 | 60.93 | 49 | 22 | 1.5 | 106/26094 | 7.35 | ||
