Product Description

Factory Directly Wholesale American Standard 10C Series Cast Iron QD Sheaves For C Belts

Products Description

10C Series Cast Iron QD Sheaves for “C” Belts

10C series ten groove QD bushing pulley is used for C, CX, belt and CC v belt; Their diameters range from 8.40 inches to 50.40 inches. Depending on the pulley size, they use E, J or M QD (quick disassembly) bushings, which we also have in stock. Most of our 10C QD pulleys are made of high strength grade 35 cast iron, phosphate coated and coated with anti-corrosion paint. All these are balanced at the factory to ensure smooth operation of the machine.

10C QD Sheave Size Chart

For more details, please click here to contact us！

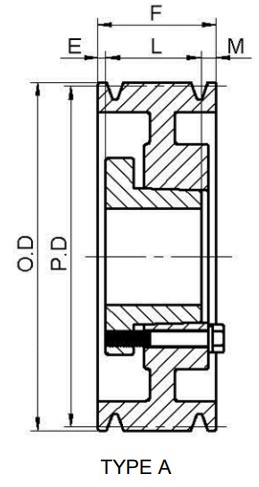

Size	Bushing Type	Type	Pitch Diameter	Outside Diameter	(E)	(F)	(L)	(M)	Sheave Weight (LBS)
10C80E	E	A	8.0"	8.40"	2-1/32"	10-1/4"	2-3/4"	5-15/32"	65
10C85E	E	A	8.5"	8.90"	2-1/32"	10-1/4"	2-3/4"	5-15/32"	69
10C90J	J	A	9.0"	9.40"	2-1/16"	10-1/4"	4-5/8"	3-9/16"	73
10C95J	J	A	9.5"	9.90"	2-1/16"	10-1/4"	4-5/8"	3-9/16"	79
10C100J	J	A	10.0"	10.40"	2-1/16"	10-1/4"	4-5/8"	3-9/16"	84
10C105J	J	A	10.5"	10.90"	2-1/16"	10-1/4"	4-5/8"	3-9/16"	95
10C110J	J	A	11.0"	11.40"	2-1/16"	10-1/4"	4-5/8"	3-9/16"	104
10C120J	J	A	12.0"	12.40"	2-1/16"	10-1/4"	4-5/8"	3-9/16"	113
10C130J	J	A	13.0"	13.40"	2-1/16"	10-1/4"	4-5/8"	3-9/16"	121
10C140J	J	A	14.0"	14.40"	2-1/16"	10-1/4"	4-5/8"	3-9/16"	128
10C160J	J	A	16.0"	16.40"	2-1/16"	10-1/4"	4-5/8"	3-9/16"	146
10C180J	J	A	18.0"	18.40"	2-1/16"	10-1/4"	4-5/8"	3-9/16"	161
10C200J	J	A	20.0"	20.40"	2-1/16"	10-1/4"	4-5/8"	3-9/16"	175
10C240M	M	A	24.0"	24.40"	9/32"	10-1/4"	6-3/4"	3-7/32"	265
10C300M	M	A	30.0"	30.40"	9/32"	10-1/4"	6-3/4"	3-7/32"	310
10C360M	M	A	36.0"	36.40"	9/32"	10-1/4"	6-3/4"	3-7/32"	345
10C440M	M	A	44.0"	44.40"	9/32"	10-1/4"	6-3/4"	3-7/32"	450
10C500M	M	A	50.0"	50.40"	9/32"	10-1/4"	6-3/4"	3-7/32"	500

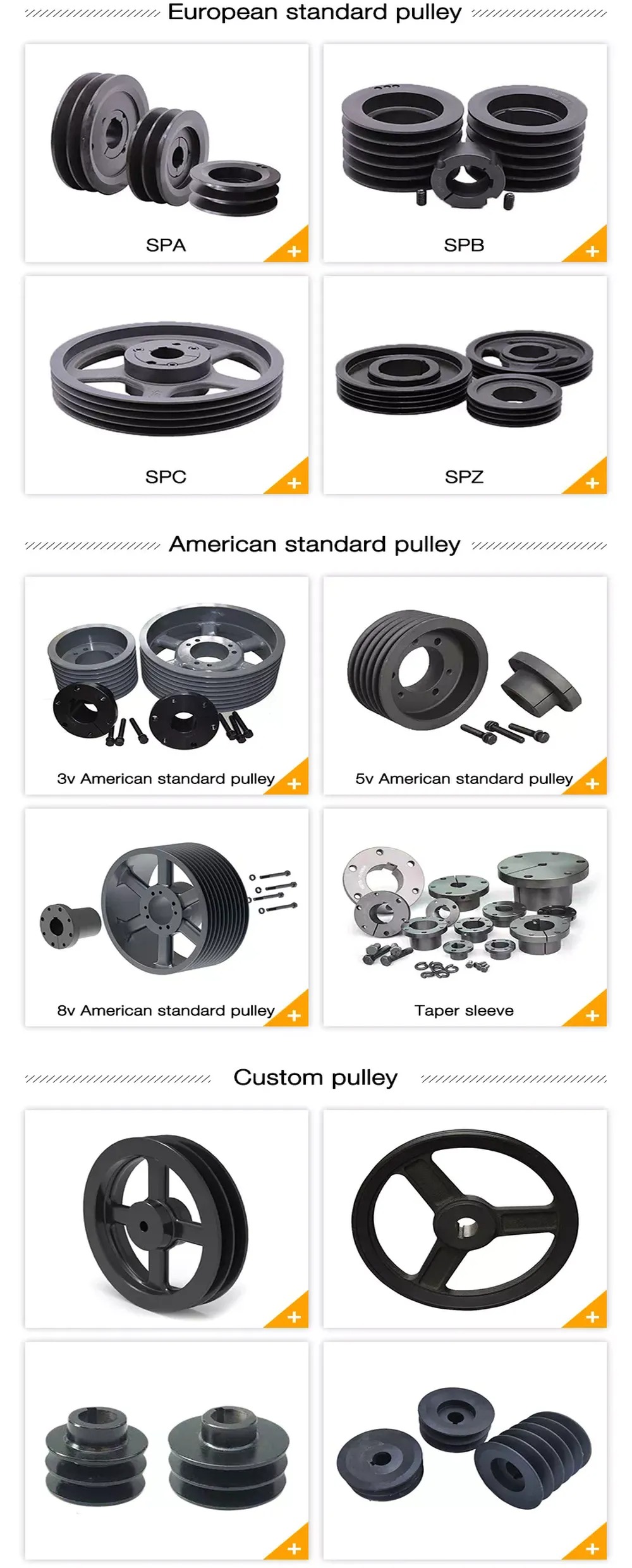

V-belt pulley specification 1) European Standards: a) V-belt pulley for tapered bushing: SPZ, SPA, SPB, SPC; Up to 10 grooves. b) Adjustable V-belt pulley and variable speed belt pulley c) Flat pulley and conveyor pulley 2) American Standard: a) Tapered bushing pulley: 3V, 5V, 8V b) Pulley of QD bushing: series b, C, D c) Split taper sleeve pulley: TA, TB, TC series d) Pulleys for 3L, 4L or A and 5L or B belts: AK, AKH, 2AK, 2AKH, BK, BKH, 2BK, 2BKH and 3BK e) Adjustable pulleys: multi pitch H, L, J, K and M multi V pulleys. 3) Hole: guide hole, finishing hole, tapered hole, QD bushing hole. 4) Surface treatment: paint, phosphate, zinc plating 5) Materials: cast iron, ductile iron, nylon, aluminum 6) Manufactured according to drawings and/or samples, OEM inquiry is welcome.

We also provides belts matching pulleys：https://planetary-gearboxes.en.Raydafon.com/productgrouplist-825651128/Belt.html?spm=a2700.shop_pl.98.11

Technological Processing

Warehouse inventory The warehouse covers an area of 5000 square meters, and can provide various standard models of A/B/C/Z, with complete quantities and large inventory. At the same time, it accepts various non-standard customized drawings. The daily output is 10 tons and the delivery time is short.
