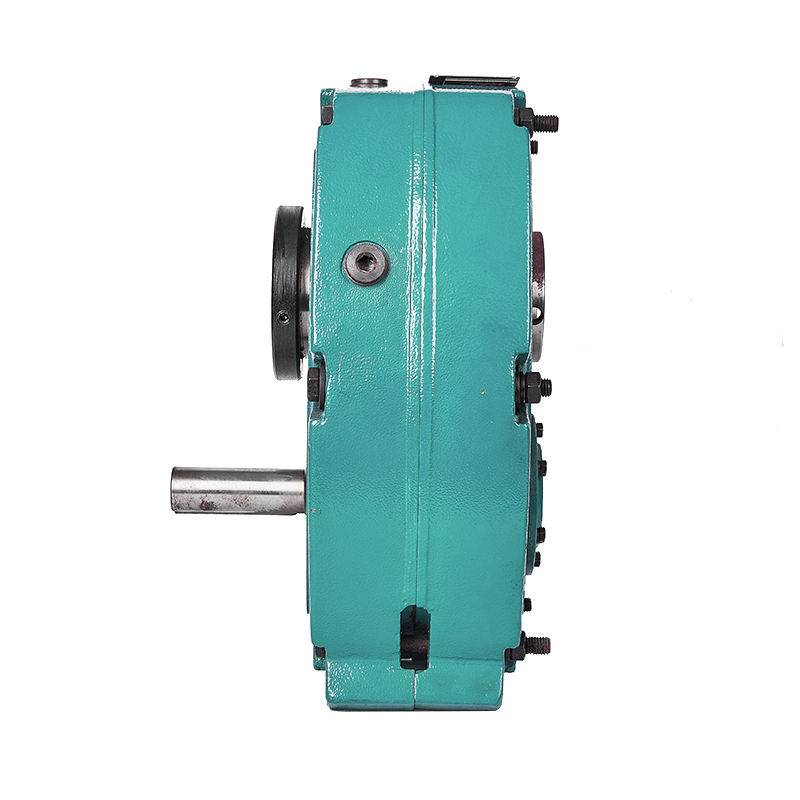

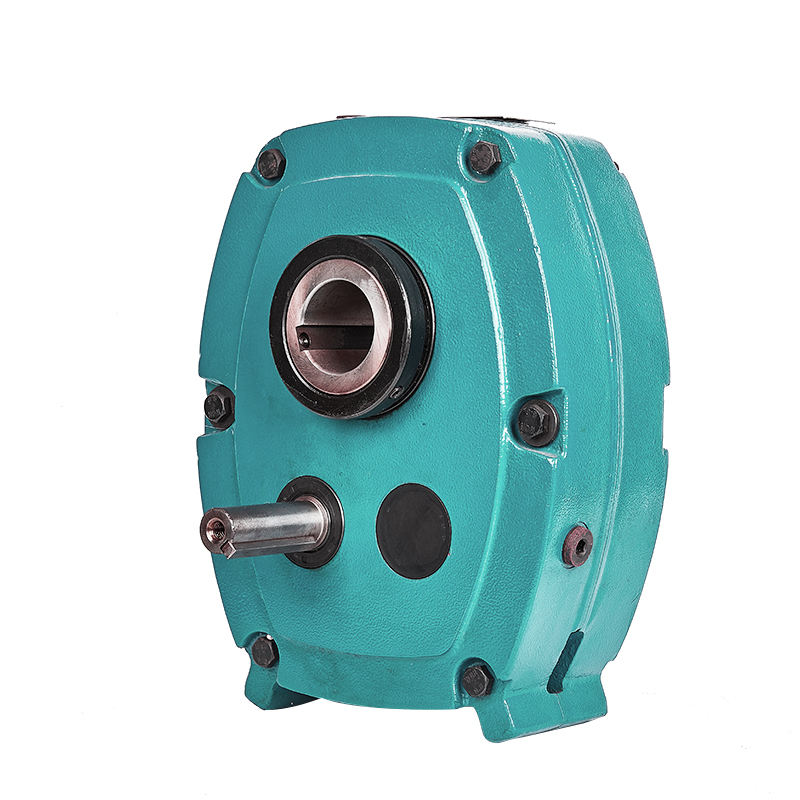

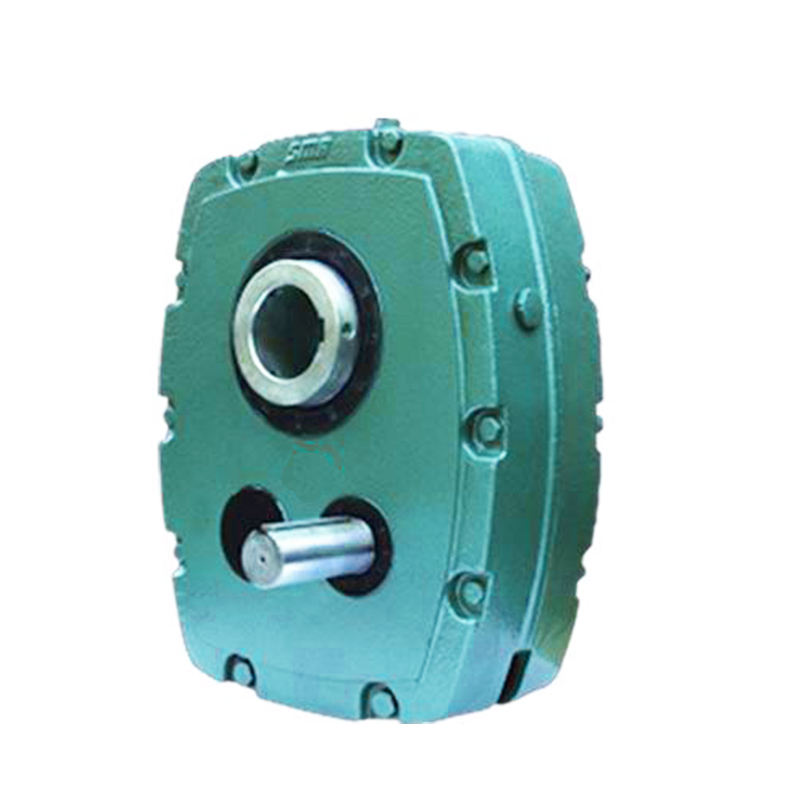

Factory Wholesale Shaft Mounted Gearbox Made in China

Raydafon Guoup Factory Wholesale Shaft Mounted Gearbox, made in China, delivers reliable power transmission for industrial machinery with durable materials and precision engineering. Ideal for manufacturers seeking cost-effective solutions, it enhances efficiency and reduces downtime, offering superior performance and competitive pricing for long-term value.
Send Inquiry
Product Description

Factory Wholesale Shaft Mounted Gearbox Made in China

Products Description
Components:
1. Housing: High-strength Gray Cast Iron Gearboxes
2. Gears: Helical Involute Gears, Carburizing, Quenching, Grinding
3. Shafts: High-strength Hardening Alloy Steel
4. Input Configurations: Keyed Solid Shaft Input
5. Output Configurations: Keyed Hollow Shaft Output
6. Oil Seal: Double Lips Skeleton Seal
7. Spare Parts: Torque arm, Optional BackstopModels:
1 Stage(Ratio 5): B05, C05, D05, E05, F05, G05, H05, J05
2 Stage(Ratio 13/20): B13/20, C13/20, D13/20, E13/20, F13/20, G13/20, H13/20, J13/20
Features:
1. High strength of gear box, gears and shafts, sturdy and durable
2. 2 metric output shaft bore diameters(Standard and Optional)
3. Optional backstop to prevent backdriving. Backstop is not recommended for the gear ratio 5
4. Double lips skeleton oil seal combines the functions of seal and dust-proof
5. Widely used in belt conveyor and pulley drive system
Applications:
Conveyors in Mine, Quarry, Gravel Transport, Baggage & Bulk Handling, Animal Feeding, etc.
Installation:
1. Hanging Shaft Mounted
2. Output Flange MountedLubrication:
Oil-bath and Splash
Lubrication
Lubricating Oil: Mineral Oil and Synthetic Oil
Extreme pressure oil is not recommended, unless in case of with backstop
Cooling:
Natural Cooling
Factory Wholesale Shaft Mounted Gearbox Made in China
Factory Wholesale Shaft Mounted Gearbox Made in China
Factory Wholesale Shaft Mounted Gearbox Made in China
Models
Output Shaft Bore
Max. Torque*
Nominal Ratio
Standard
Optional
SMR-B
30mm
40mm
277N.m
5
13
20
SMR-C
40mm
50mm
468N.m
SMR-D
50mm
55mm
783N.m
SMR-E
55mm
65mm
1194N.m
SMR-F
65mm
75mm
1881N.m
SMR-G
75mm
85mm
2970N.m
SMR-H
85mm
100mm
4680N.m
SMR-J
100mm
120mm
7449N.m
Factory Wholesale Shaft Mounted Gearbox Made in China
Factory Wholesale Shaft Mounted Gearbox Made in China
Factory Wholesale Shaft Mounted Gearbox Made in China
