Zjy Series Shaft Mounted Gearbox Reducer For Belt Scraper Conveyors Bucket Elevators
  • Zjy Series Shaft Mounted Gearbox Reducer For Belt Scraper Conveyors Bucket ElevatorsZjy Series Shaft Mounted Gearbox Reducer For Belt Scraper Conveyors Bucket Elevators

Zjy Series Shaft Mounted Gearbox Reducer For Belt Scraper Conveyors Bucket Elevators

Raydafon Group's Zjy Series Shaft Mounted Gearbox Reducer is engineered for belt scraper conveyors and bucket elevators, offering durable construction, efficient power transmission, and reliable performance. Ideal for industrial professionals, it ensures smooth operations, reduces downtime, and enhances productivity with its unique design and superior quality. Experience the difference with Raydafon—precision you can trust.

Zjy Series Shaft Mounted Gearbox Reducer For Belt Scraper Conveyors Bucket Elevators

Zjy Series Shaft Mounted Gearbox Reducer For Belt Scraper Conveyors Bucket Elevators
Products Description

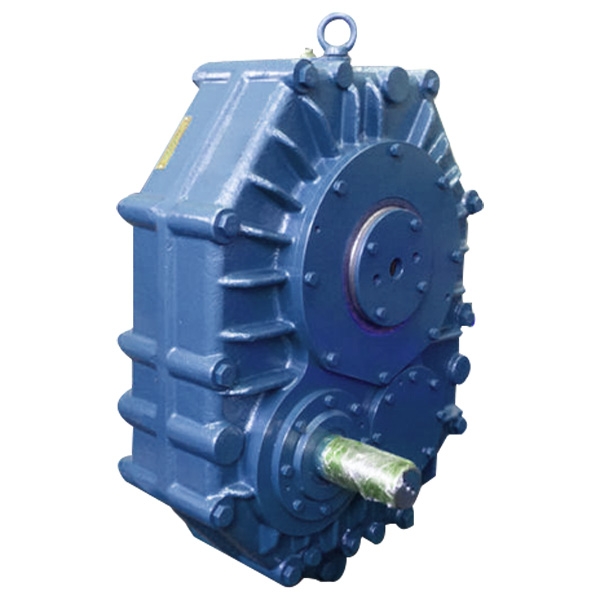

ZJY Series Shaft Mounted Gearbox Reducer


Zjy Series Shaft Mounted Gearbox Reducer For Belt Scraper Conveyors Bucket Elevators
Components:
1. Housing: Cast Iron Gearbox
2. Gears: Hardened Helical Gears, Carburizing, Quenching, Grinding
3. Gears Accuracy: 6 Class
4. Shafts: High Quality Alloy Steel
5. Input Configurations:
Keyed Solid Shaft Input
6. Output Configurations:
Keyed Hollow Shaft Output
7. Spare Parts: Torque arm, Backstop Models:
ZJY106, ZJY125, ZJY150, ZJY180, ZJY212, ZJY250, ZJY300
Features:
1. High strength of gear box, gears and shafts, sturdy and durable
2. Bi-directional rotation(Clockwise or Counterclockwise) is available for output shaft. Unidirectional rotation if equipped with the backstop to prevent backdriving
3. Widely used in conveyors
Models
Output Shaft Bore
Input Power
Max. Torque
Ratio
Weight
ZJY106
45mm
2.3kW~12kW
750N.m
10, 11.2, 12.5, 14, 16, 18, 20, 22.4, 25
27kg
ZJY125
55mm
3.8kW~19kW
1250N.m
40kg
ZJY150
60mm
7.1kW~33kW
2120N.m
67kg
ZJY180
70mm
11kW~56kW
3550N.m
110kg
ZJY212
85mm
19kW~92kW
6000N.m
173kg
ZJY250
100mm
32kW~157kW
10000N.m
250kg
ZJY300
120mm
46kW~225kW
14720N.m
380kg
Applications:
Belt Conveyors, Scraper Conveyors, Bucket Elevators
Installation:
Hanging Shaft Mounted
Equipped With Pulley
Lubrication:
Oil-bath and Splash
Lubrication Cooling:
Natural Cooling
Zjy Series Shaft Mounted Gearbox Reducer For Belt Scraper Conveyors Bucket Elevators
Hot Tags: Zjy Series Shaft Mounted Gearbox Reducer, Shaft Mounted Gearbox, Gearbox Reducer, Belt Scraper Conveyor Gearbox, Bucket Elevator Gearbox, Raydafon Transmission, Raydafon, Raydafon Power, Supplier, Manufacturer, Factory, China
