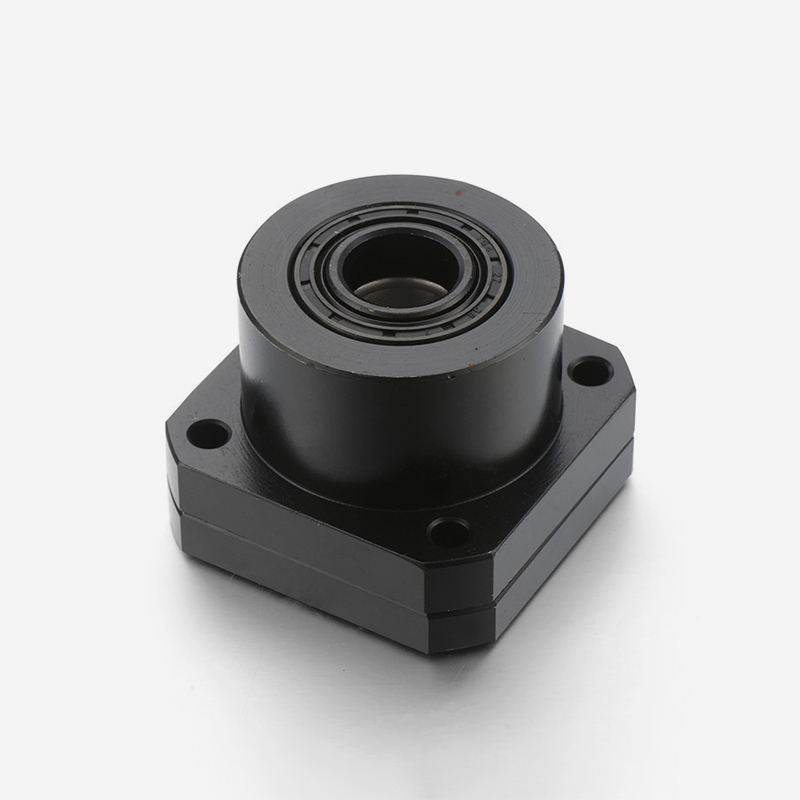

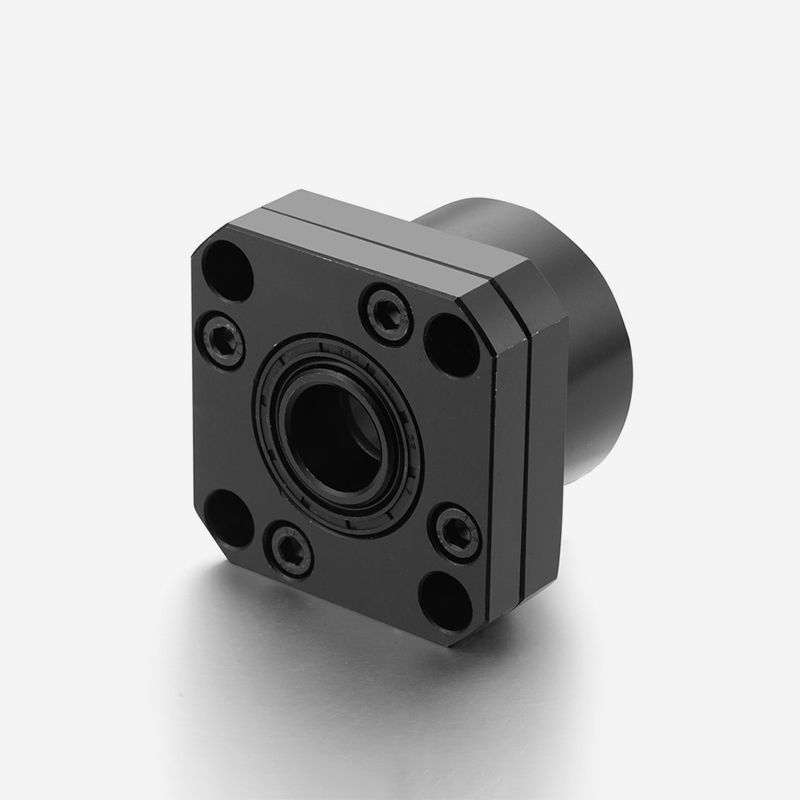

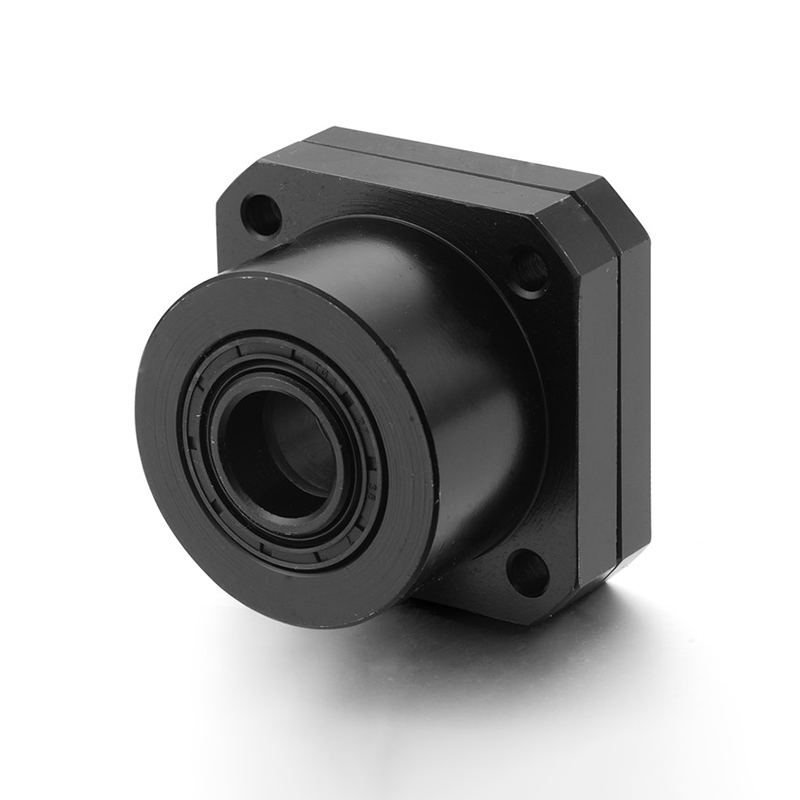

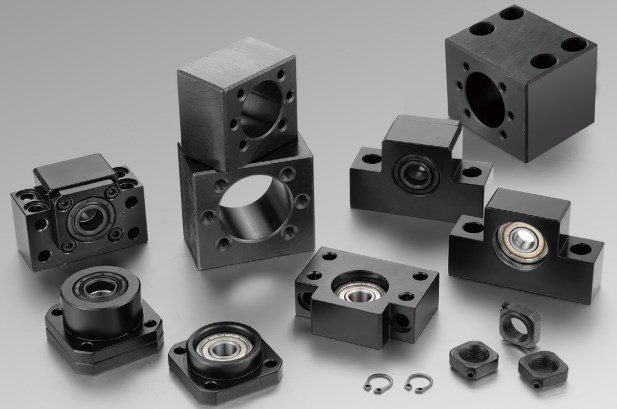

FK Series Flange Nut Mount Ball Screw Bracket of FK5 FK6 FK8 FK10 FK12 FK15 FK20 FK25 FK30

Products Description

Stable support, precise positioning

Ball Screw Brackets are high-quality support components designed specifically for ball screw systems. They are used to fix and support ball screws, ensuring their stability and accuracy in high-precision motion control applications. Suitable for various industrial automation equipment, machine tools, robots, and precision measuring instruments, it is a key component for achieving efficient and reliable transmission.

Key features

High strength materials: ---Made of high-quality alloy steel or cast iron, it has excellent mechanical strength and durability. ---After heat treatment process, the anti fatigue performance is enhanced and the service life is extended. Precision machining: ---High precision CNC machining ensures consistency in installation hole positions and surface smoothness. ---Precise fit tolerance, providing stable support effect, reducing vibration and noise. Diversified design: ---Multiple models and sizes are available, suitable for ball screws of different diameters and lengths. ---Supports horizontal, vertical, and inclined installation, flexibly adapting to various application scenarios. Easy to install: ---Standardized design, simplified installation process, reduced assembly time and cost. ---Built in lubrication channel for easy maintenance and upkeep, ensuring long-term stable operation. Anti corrosion treatment: ---The surface is treated with electroplating or painting, effectively resisting moisture, chemicals, and other corrosive factors. ---Suitable for harsh environments such as humidity, acidity, and alkalinity, ensuring long-term reliable use.

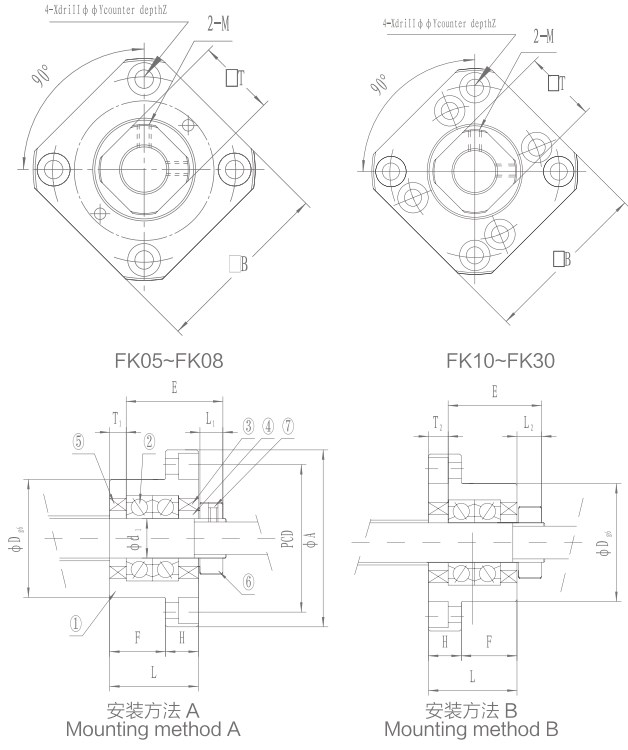

Model No	Dimensions
Model No		d1	L	H	F	E	Dg6	A	PCD	B
FK 5	5	16.5	6	10.5	18.5	20	34	26	26
FK 6	6	20	7	13	22	22	36	28	28
FK 8	8	23	9	14	26	28	43	35	35
FK 10	10	27	10	17	29.5	34	52	42	42
FK 12	12	27	10	17	29.5	36	54	44	44
FK 15	15	32	15	17	36	40	63	50	52
FK 20	20	52	22	30	50	57	86	70	68
FK 25	25	57	27	30	60	63	98	80	79
FK 30	30	62	30	32	61	75	117	95	93


L1	T1	X	Y	Z
5.5	3.5	3.4	6.5	4
5.5	3.5	3.4	6.5	4
7	4	3.4	6.5	4
7.5	5	4.5	8	4
7.5	5	4.5	8	4
10	6	5.5	9.5	6
8	10	6.5	11	10
13	10	9	15	13
11	12	11	17.5	15
