GAPK Type Flexible Drum Gear Coupling With Brake Disc for Heavy Loads Speed Direction Change

GAPK Type Flexible Drum Gear Coupling With Brake Disc for Heavy Loads Speed Direction ChangeProducts DescriptionGAPK Type Drum Gear Coupling With brake disc type:1,Suitable for matching with discbrake occasions.2.Double drum gear structure, cancompensate forthe larger axisdeviation,the brake disc is......

Send Inquiry

Product Description

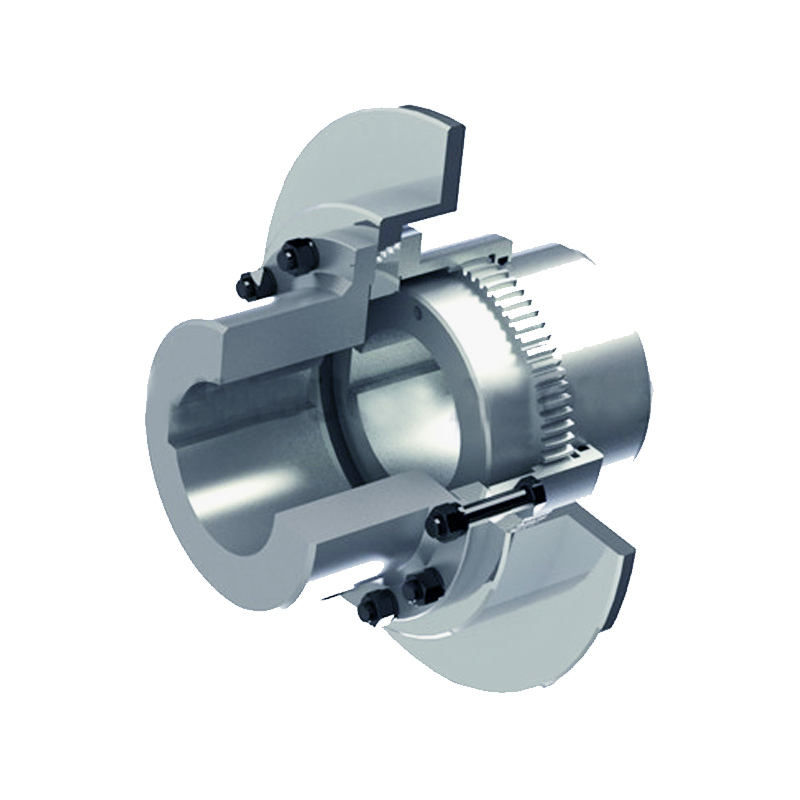

GAPK Type Flexible Drum Gear Coupling With Brake Disc for Heavy Loads Speed Direction Change

Products Description

GAPK Type Drum Gear Coupling

With brake disc type:

1,Suitable for matching with discbrake occasions.

2.Double drum gear structure, cancompensate forthe larger axisdeviation,the brake disc is arrangecat the mowing end of the coupling.the brake disc weight and theworking brake load,and thevibration are fully borne by the coupling.

Maximum torque: 112.000 N.m Maximum shaft hole: 220mm Diameter ofbrake disc: 1,000mm

GAPK type with disc drumgear coupling,suitable for matching with disc brake occasions, allowing forward and reverse rotation. its characteristics are: double drum tooth structure, which cancompensate for large axis deviation; The brake disc is arranged in the passive end ofthe coupling, the weight ofthe brake discand the working brake load and vibration are fully borne by the half coupling, thus improving the meshing performance ofthedrum teeth during braking, The maximum braking torque is not limited by the structural strength of the coupling, which issafe and rellable, Compact structure, good cooling conditions of brake disc: The plug-in brake disc allows for guickreplacementwithoutremowing the dewice. GAPK type drum gear coupling with brake disc Therefore, it is especially suitable for heavy loads where the load, speed and direction change frequently, and thenominaltorqueis 630-112000N.m.

Application

GB Type Drum Gear Coupling is widely used in multiple industries and is particularly suitable for the following application scenarios: ---Metallurgical industry: such as rolling mills, continuous casting machines, etc., to ensure stable and reliable transmission performance. ---Mining machinery, such as crushers, conveyors, etc., are suitable for harsh working environments. ---The power industry, such as generators, fans, etc., provides efficient energy transfer. ---Chemical industry: such as reaction vessels, pump equipment, etc., to ensure safe and reliable operation. ---Other heavy machinery, such as cranes, port equipment, etc., are suitable for various occasions that require high-precision transmission.
