Product Description

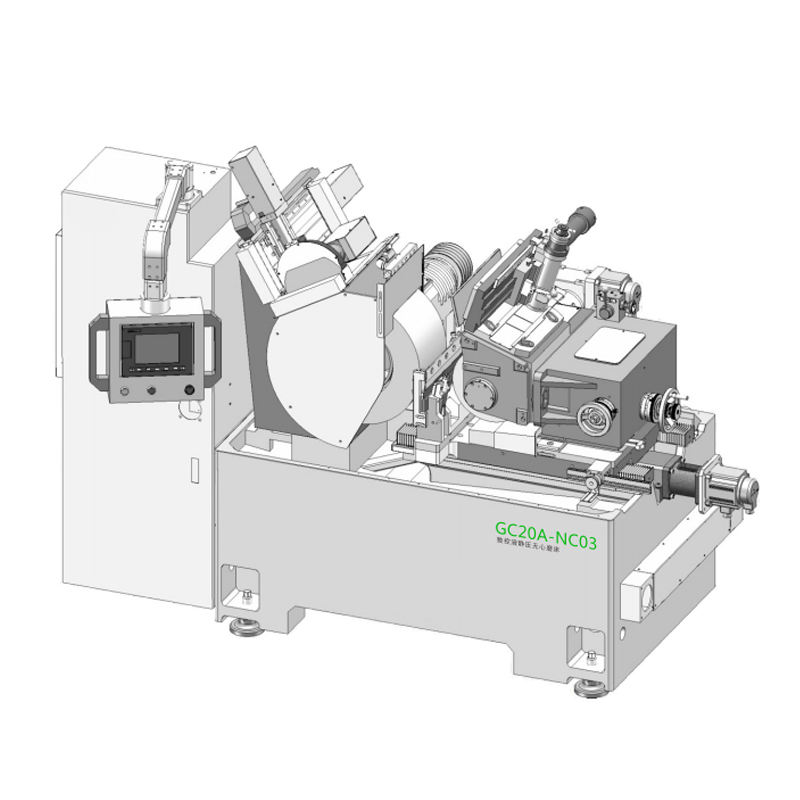

GC20A-NC01/03 GC18A-NC01/03 Precise CNC Hydrostatic Centerless Machine Tool Lathe Machining Center Grinder

Products Description

GC20A-NC01/003
GC18A-NC01/03 Precise CNC Hydrostatic Centerless Grinder

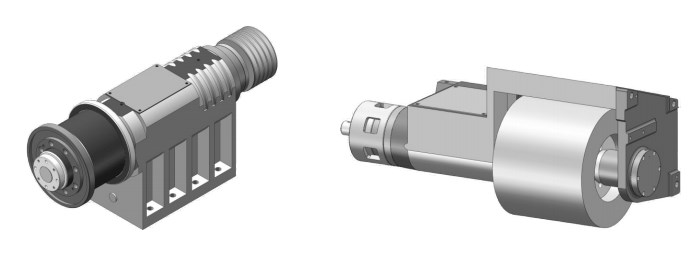

1 , High precision ground grinding wheel , regulating wheel spindles and bearings , assembled withadvanced technology by professional handcraft to guarantee 0 . 0015mm rotating accuracy , high loadingcapacity and stability .
2 , Allot steel spindle with hardness over 62HRC and high precision grinding process , guarantee highprecision , high rigidity
3 . High quality casted machine bed with heat treatment and natural timing process to guarantee stableinternal structure . Perfect dynamic design and outstanding material provide excellent rigidity and stability .
4 . Feeding system driven by high precision ball screw and servo motor of high resolution provides a positionaccuracy of 0 . 001mm and repeated accuracy 0 . 001mm . Online correction function available .
5 , Semi automatic dressing for grinding wheel and regulating wheel , hydraulic driven on X axis with stablemovement , no backlash . Manual feeding on Z axis , resolution of 0 . 01mm
GC20A-NC01/03 GC18A-NC01/03 Precise CNC Hydrostatic Centerless Machine Tool Lathe Machining Center Grinder
GC20A-NC01/03 GC18A-NC01/03 Precise CNC Hydrostatic Centerless Machine Tool Lathe Machining Center Grinder
GC20A-NC01/03 GC18A-NC01/03 Precise CNC Hydrostatic Centerless Machine Tool Lathe Machining Center Grinder
Product Specification
GC18A-NC01/03
GC20A-NC01/03
Grinding range ( diameter )
φ1-φ50mm
φ1-φ50mm
Grinding wheel size ( 0DXWXID )
φ455*255*228.6mm
φ510*255*228.6mm
Adjustment wheel size
φ305*255*111.2mm
φ305*255*111.2mm
Grinding wheel rotation speed
100-1500rpm
100-1350rpm
Adjustment wheel rotation speed
0-250rpm
0-250rpm
Grinding wheel drive motor
11kw
15kw
Adjustment wheel drive motoroil pressure
2.2kw
2.2kw
pump drive motor
1hp
1hp
Cooling pump drive motor
1/4hp
1/4hp
Adjustment wheel feeding graduation
serve feeding value min setting value
0.0005mm
Serve feeding value min setting value
0.0005mm
0.0005mm
Dressing device feeding graduation
2mm/rotation 0/01mm/graduation
Adjustment wheel tilting angle
+5~-3
+5~-3
Adjustment wheel rotation angle
±5
±5
Mechanical size
2265*1900*1650mm
2265*1900*1650mm
Machine weight
3900kg
4000kg

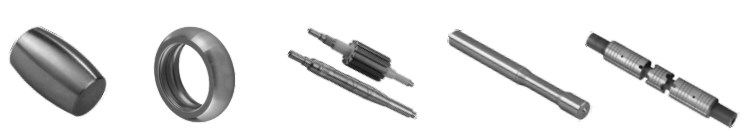

Samples Show
GC20A-NC01/03 GC18A-NC01/03 Precise CNC Hydrostatic Centerless Machine Tool Lathe Machining Center Grinder
Applications
GC20A-NC01/03 GC18A-NC01/03 Precise CNC Hydrostatic Centerless Machine Tool Lathe Machining Center Grinder
