Direct Replacement for Rexroth GFT 110 W3 Series

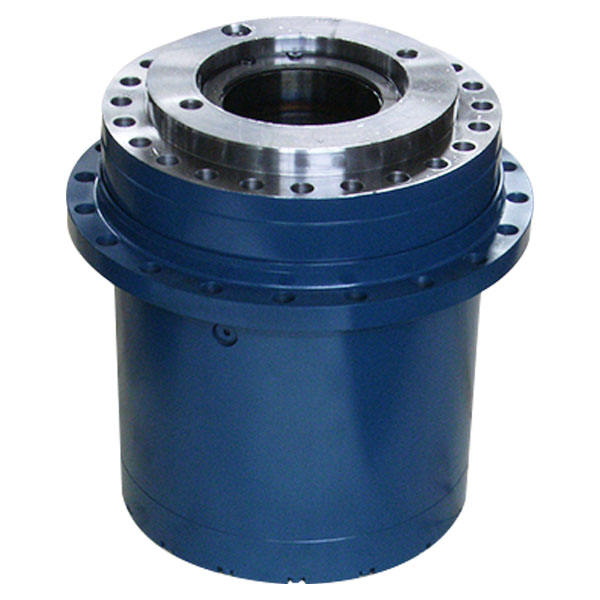

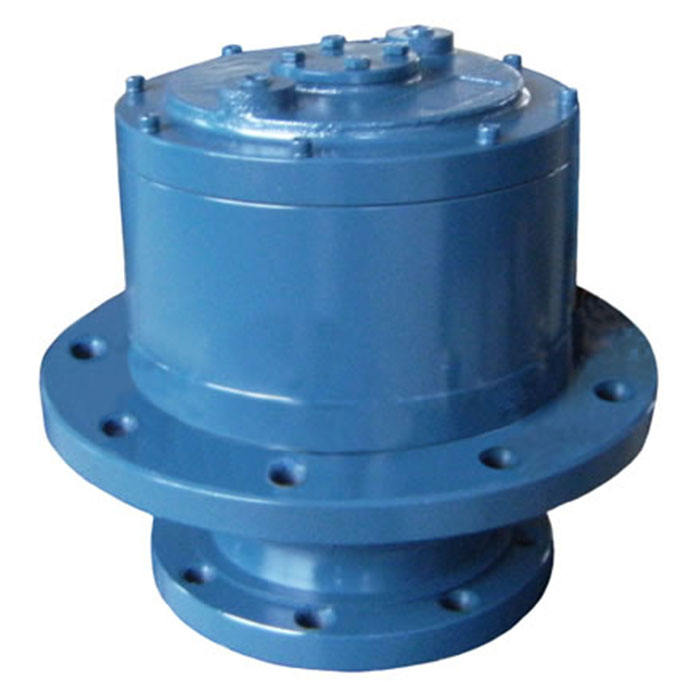

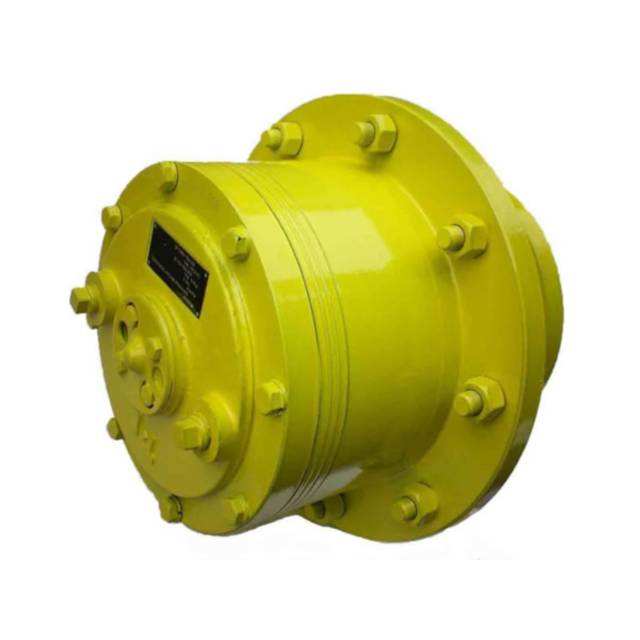

The GFT 110 W3 6497 R916012025 is a planetary winch reduction gearbox built for the Casagrande RIG B300 rotary drilling rig. It belongs to the GFT-W family of planetary gearboxes used in hoisting mechanisms — truck cranes, crawler cranes, ship cranes and harbor cranes — where the gearbox is installed inside the winch drum to save installation space. Raydafon manufactures the GFT 110 W3 6497 as a performance-equivalent replacement for the Rexroth GFT 110 W3, with more than 80% of internal components interchangeable: planet gears, cageless planetary gear bearings, planet carriers and ring gears. Because the gearbox mounts inside the drum, it keeps the winch assembly compact while still delivering 100,000 Nm output torque and 300 KN cable force for heavy drilling operations.
The GFT 110 W3 uses a compact two-, three- or four-stage planetary layout that fits entirely inside the winch drum. Every component that carries torque has been designed around the load profile of a drilling rig winch — repetitive start-stop cycles, high radial loads at the drum bearing, and long duty periods in dusty or humid site conditions.
The planetary gears run on a cageless bearing arrangement instead of a conventional caged needle bearing. This raises the load rating of each planet stage and eliminates the cage as a failure point under shock loads.
The output side main bearing is sized for the radial and axial loads of the winch drum, not just the torque load. This is what allows the gearbox to be mounted inside the drum without an external support bearing.
Seal materials and geometry are selected for the temperature range and contamination level of construction and drilling sites. The sealing package is designed for pressure wash-down and dusty environments.
A multi-disc parking brake can be integrated into the gearbox housing, so the winch holds position without an additional external brake unit. The brake is released hydraulically as part of the winch control circuit.
The motor interface accepts Rexroth fixed or variable motors — A2FM/E, A6VM/E, A10VM/E — without an adapter. For the GFT 110 W3 specifically, the standard matching motors are A2FE180, A2FM250, A6VE160 and A6VM250.
Mounting flange, shaft dimensions, oil ports and overall envelope match the Rexroth GFT 110 W3. Over 80% of internal parts — planet gears, cageless bearings, planet carriers, ring gears — are dimensionally interchangeable with the original Rexroth units.
The table below lists the full GFT-W range that Raydafon manufactures, so you can cross-check your existing winch model against the correct replacement. The GFT 110 W3 (this product) is highlighted. If your model is not listed, send us the nameplate photo and we will confirm the match.
| Model | Output Torque T2 max (Nm) | Ratio I | Matching Hydraulic Motor | Cable Force (KN) | Weight w/o Motor (kg) |
|---|---|---|---|---|---|
| GFT 0013 W2 | 9,500 | 16.3 – 37.6 | A2FE63 / A6VE55 | 50 | 85 |
| GFT 0017 W2 | 14,000 | 26.4 – 45.4 | A2FE63 / A6VE55 | 67 | 105 |
| GFT 0017 W3 | 14,000 | 77.9 – 102.6 | A2FE63 / A6VE55 | 74 | 115 |
| GFT 0024 W3 | 19,000 | 90.1 – 137.2 | A2FE63 / A6VE55 | 99 | 130 |
| GFT 0026 W2 | 18,000 | 42.9 – 62 | A2FE90 / A6VE107 | 84 | 140 |
| GFT 0036 W3 | 26,000 | 67 – 138.9 | A2FE90 / A6VE80 | 118 | 155 |
| GFT 0040 W2 | 27,000 | 35.9 – 59.1 | A2FE125 / A6VE160 | 108 | 219 |
| GFT 0050 W3 | 37,500 | 84.2 – 146.4 | A2FE125 / A6VE160 | 150 | 238 |
| GFT 0060 W3 | 42,500 | 63.8 – 169.9 | A2FE90 / A2FM250 | 164 | 230 |
| GFT 0080 W3 | 67,000 | 61.3 – 185.4 | A6VE107 / A6VM250 / A2FE180 | 231 | 430 |
| GFT 110 W3 — this product | 100,000 | 79.5 – 215 | A2FE180 / A2FM250 / A6VE160 / A6VM250 | 300 | 515 |
| GFT 0160 W3 | 140,000 | 161.8 – 251 | A2FE180 / A6VE160 | 373 | 680 |
| GFT 0220 W3 | 200,000 | 97.7 – 293 | A2FE180 / A2FM200 / A6VE160 / A6VM250 | 471 | 850 |
| GFT 0330 W3 | 275,000 | 168.9 – 302.4 | A2FE250 / A6VE250 | 595 | 1,380 |
Casagrande RIG B300 and similar rotary drilling rigs use the GFT 110 W3 in the main winch and auxiliary winch circuits. The gearbox mounts inside the drum, and the multi-disc parking brake holds the drill string when the hydraulic circuit is depressurized.
The GFT-W series is the standard winch drive for truck cranes, crawler cranes and harbor cranes in the 25–100 tonne lifting class. Compact mounting inside the reel is what allows a lower crane deck height.
Marine winches need sealed gearboxes that tolerate salt spray and continuous duty. The optimized seal package on the GFT 110 W3 is designed for this environment, with the motor interface positioned for easy hose routing on deck.
Any hoisting mechanism with a hydraulic motor drive and a drum-mounted gearbox can use the GFT series. Common retrofit cases include older drilling rigs, piling rigs and special-purpose winches where the original Rexroth unit is no longer available.
| Raydafon Model | GFT 110 W3 6497 R916012025 |
|---|---|
| Equivalent Rexroth Model | Rexroth GFT 110 W3 (same mounting dimensions and oil port positions) |
| Compatible Machine | Casagrande RIG B300 rotary drilling rig (also fits other equipment using Rexroth GFT 110 W3) |
| Interchangeable Internal Parts | Planet gears, cageless planetary gear bearings, planet carriers, ring gears — over 80% of components |
| Motor Interface | Rexroth A2FE180, A2FM250, A6VE160, A6VM250 (fixed and variable motors) |
| Parking Brake | Integrated multi-disc parking brake, hydraulically released |
| Mounting | Inside winch drum — no external support bearing required |
Photo of the original gearbox nameplate and the machine model plate. This confirms the exact Rexroth model and drilling rig variant.
Winch drum diameter, rated line pull and the hydraulic motor model currently fitted. We cross-check these against the gearbox ratio.
Written quotation with unit price, MOQ, production schedule and shipping terms. Standard configurations typically ship faster than customized ratios.

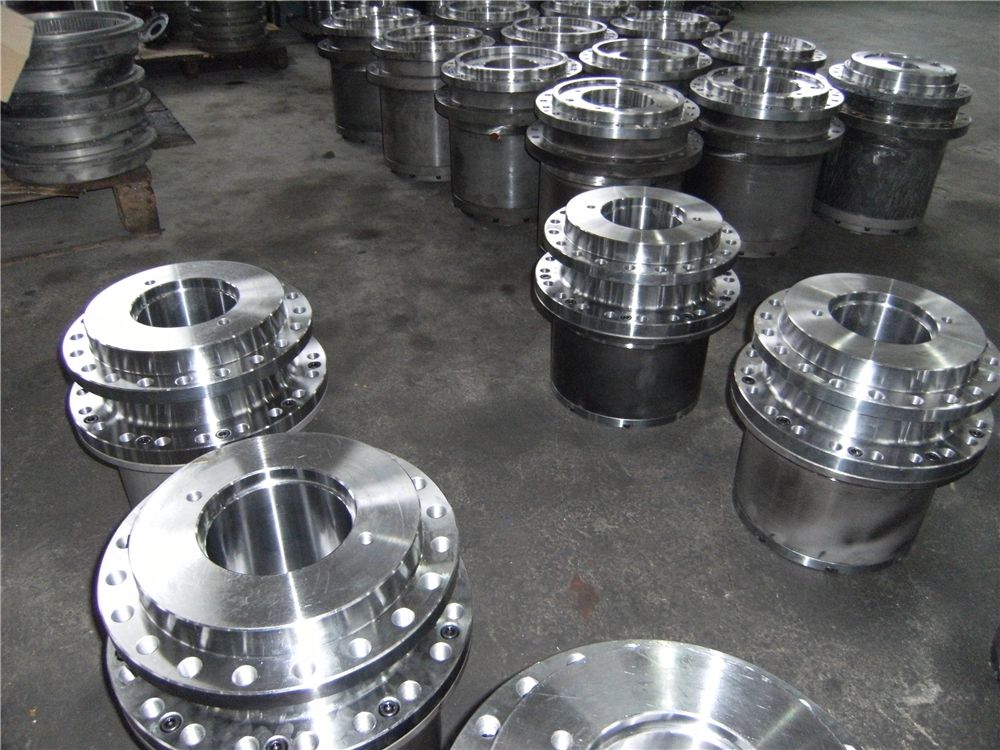

Each gearbox is assembled, oil-tested and run-off before shipment. Photos and video of the run-off can be supplied on request.
Rust-preventive coating on machined surfaces, wooden case packing, customized shipping marks. Suitable for sea freight and air freight.

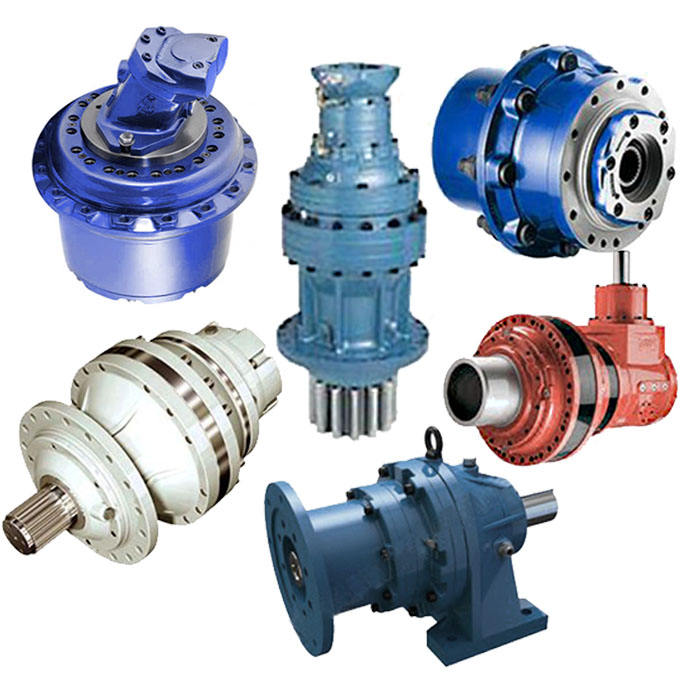

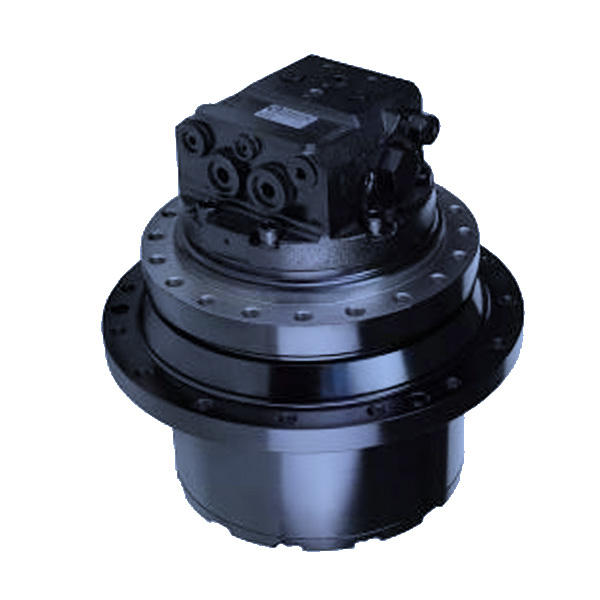

Buyers sourcing a GFT replacement gearbox often combine the order with the hydraulic motor, related planetary gearboxes and driveline components. Raydafon manufactures the following in-house:
Send us the original nameplate photo, your Casagrande RIG B300 model year, and destination port. We will reply with the correct gearbox configuration, price, lead time and packing details.
