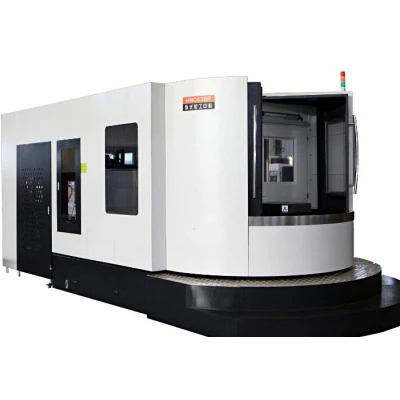

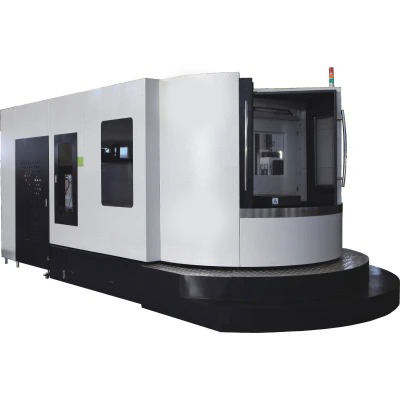

HMC500 horizontal machining center

The HMC500 horizontal machining center is a versatile and high-performance machine tool used in various industries for efficient and precise machining operations. Advantages: High Precision: The HMC500 is known for its exceptional accuracy and repeatability, ensuring tight tolerances and high-quality finished parts. Rigidity and Stability: The machine's robust construction and rigid bed provide excellent stability during heavy cutting operations, minimizing vibrations and ensuring consistent results. Versatility: The HMC500 offers multi-axis machining capabilities, allowing for complex and intricate machining tasks with multiple tooling options. Efficient Production: With a high-speed spindle and rapid tool changing system, the HMC500 enables fast and efficient production, reducing cycle times and increasing productivity. Easy Operation: Equipped with user-friendly controls and intuitive interfaces, the HMC500 simplifies programming and operation, reducing setup time and enhancing operator efficiency. Applications: The HMC500 horizontal machining center is widely used in industries such as automotive, aerospace, mold-making, and general machining. It is suitable for various applications, including: Milling and Drilling: The machine performs precise milling and drilling operations on a wide range of materials, including metals and plastics. Complex Components: It handles the machining of intricate and complex parts, such as engine components, gearbox housings, and turbine blades. Die and Mold Making: The HMC500 is well-suited for producing molds and dies with its high precision and versatility. Prototyping and Production: From small-scale prototyping to large-scale production runs, the HMC500 efficiently handles a range of manufacturing requirements

HMC63

HMC500

HMC500P

HMC630

HMC630P

Workbench

Single pallet

Dounle pallets

Single pallet

Dounle pallets

Workbench size

630x630

500×600

630x700

The maximum load-bearing capacity of the workbench

1200

600

950

Number of workbenches

Table form

24xM16 threaded hole

Distance from the centerline of the spindle to the workbench

100 ～ 1000

120 ～ 870

0 ～ 750

120 ～ 870

0 ～ 750

Distance from workbench center to spindle end face

50 ～ 1080

130 ～ 1030

Workpiece rotation diameter

Φ1050

Φ1380

Φ950

Φ1380

Φ950

Workbench indexing

1° x360

1° x360 / 0.001°

Type of platform replacement structure

turn type

Workbench exchange time

3-Axis

stroke

1050/900/1030

1050/750/900

Fast Moving Distance (XNY2)

m/min

60/60/60

30/30/30

B-axis fast movement speed

m/min

Main spindle

Main spindle power (basic configuration)

18.5-26

15/18.5

Maximum speed (basic configuration)

rpm

8000

6000

Spindle hole thrust

BT50

Main spindle inner diameter

100

Positioning accuracy (national standard

positioning accuracy

0.01 (entire process)

Repetitive positioning accuracy

0.006

B-axis indexing accuracy

6″

10″

B-axis repeated indexing accuracy

1″

5″

Tool magazine

Tool magazine capacity

Tool selection method

Two-way arbitrary

Tool change time

2.5

4.5

External dimensions

Length * width * height

6485x3865x3300

4800×3700×2850

6600×4300×2850

4800×3700×2800

6600×4300×2850

Machine weight

18200

11000

13000

12000

14000

Machine Structure:

---X, Y, Z three-axis adopts ultra-wide guide rails, which have excellent rigidity, vibration absorption (suppressing vibration
generated when cutting tools) and damping (preventing vibration when the guide system is started or stopped)
---Suitable for machine tools with heavy cutting loading
---Y axes are supported by 4 guide rails, which has stronger carrying capacity. X and Y axis are linear guideway. Z axis is box /linear guideway.

Spindle :

Taiwan brand short nose BT50-190mm spindle, standard is belt drive 8000rpm.
15/18.5Kw large power motor with high torque 143Nm

Ultralight spindle headstock and Z axis with counter balance block

Manual Scrape :

Manual scraping is used on the main joint surface to ensure effective contact area

Axes Driving :

---The 3 axes servo motors are directly connected to the high-precision ball screw via a gapless elastic coupling to ensure transmission accuracy.
---All servo motors are equipped with absolute encoders to increase efficiency and reliability.
----The three axis screw is pre-stretched to eliminate the influence of screw temperature rise on machining accuracy

Application

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter
